Detect CWE-22 in Android Application

This scenario seeks to find the improper limitation of a pathname to a restricted directory ('Path Traversal').

CWE-22: Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal')

We analyze the definition of CWE-22 and identify its characteristics.

See CWE-22 for more details.

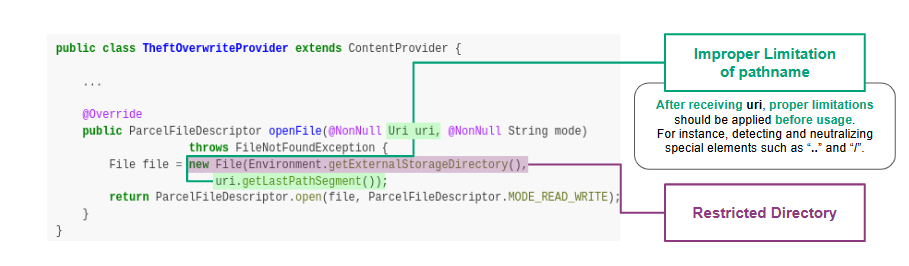

Code of CWE-22 in ovaa.apk

We use the ovaa.apk sample to explain the vulnerability code of CWE-22.

CWE-22 Detection Process Using Quark Script API

Let's use the above APIs to show how the Quark script finds this vulnerability.

First, we design a detection rule accessFileInExternalDir.json to spot behavior accessing a file in an external directory.

Next, we use API methodInstance.getArguments() to get the argument for the file path and use quarkResultInstance.isHardcoded(argument) to check if the argument is hardcoded into the APK. If No, the argument is from external input.

Finally, we use Quark API quarkResultInstance.findMethodInCaller(callerMethod, targetMethod) to check if there are any APIs in the caller method for string matching. If NO, the APK does not neutralize special elements within the argument, which may cause CWE-22 vulnerability.

Quark Script: CWE-22.py

from quark.script import runQuarkAnalysis, Rule

SAMPLE_PATH = "ovaa.apk"
RULE_PATH = "accessFileInExternalDir.json"


STRING_MATCHING_API = [
    ["Ljava/lang/String;", "contains", "(Ljava/lang/CharSequence)Z"],
    ["Ljava/lang/String;", "indexOf", "(I)I"],
    ["Ljava/lang/String;", "indexOf", "(Ljava/lang/String;)I"],
    ["Ljava/lang/String;", "matches", "(Ljava/lang/String;)Z"],
]


ruleInstance = Rule(RULE_PATH)
quarkResult = runQuarkAnalysis(SAMPLE_PATH, ruleInstance)

for accessExternalDir in quarkResult.behaviorOccurList:

    filePath = accessExternalDir.secondAPI.getArguments()[2]

    if quarkResult.isHardcoded(filePath):
        continue

    caller = accessExternalDir.methodCaller
    strMatchingAPIs = [
        api for api in STRING_MATCHING_API if quarkResult.findMethodInCaller(
            caller, api)
    ]

    if not strMatchingAPIs:
        print(f"CWE-22 is detected in method, {caller.fullName}")

Quark Rule: accessFileInExternalDir.json

{
    "crime": "Access a file in an external directory",
    "permission": [],
    "api": [
        {
            "class": "Landroid/os/Environment;",
            "method": "getExternalStorageDirectory",
            "descriptor": "()Ljava/io/File;"
        },
        {
            "class": "Ljava/io/File;",
            "method": "<init>",
            "descriptor": "(Ljava/io/File;Ljava/lang/String;)V"
        }
    ],
    "score": 1,
    "label": []
}

Quark Script Result

$ python3 CWE-22.py
CWE-22 is detected in method, Loversecured/ovaa/providers/TheftOverwriteProvider; openFile (Landroid/net/Uri; Ljava/lang/String;)Landroid/os/ParcelFileDescriptor;

Detect CWE-23 in Android Application

This scenario aims to demonstrate the detection of the Relative Path Traversal vulnerability.

CWE-23: Relative Path Traversal

We analyze the definition of CWE-23 and identify its characteristics.

See CWE-23 for more details.

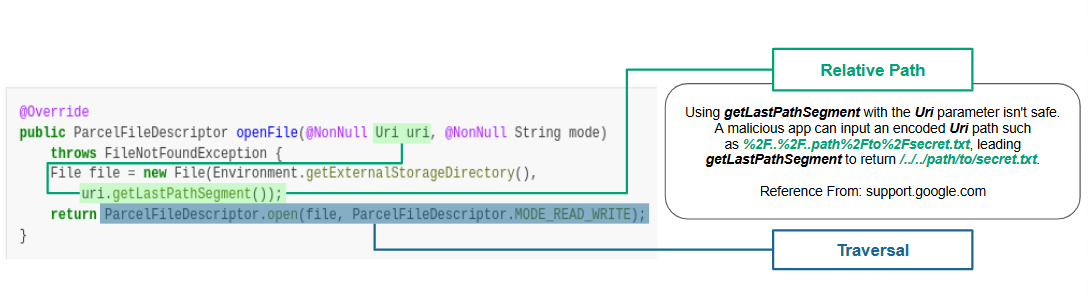

Code of CWE-23 in ovaa.apk

We use the ovaa.apk sample to explain the vulnerability code of CWE-23.

CWE-23 Detection Process Using Quark Script API

Let’s use the above APIs to show how the Quark script finds this vulnerability.

To begin with, we create a detection rule named accessFileInExternalDir.json to identify behavior that accesses a file in an external directory.

Next, we use methodInstance.getArguments() to retrieve the file path argument and check whether it belongs to the APK. If it does not belong to the APK, the argument is likely from external input.

Then, we use the Quark Script API quarkResultInstance.findMethodInCaller(callerMethod, targetMethod) to search for any APIs in the caller method that are used to match strings. If no API is found, that implies the APK does not neutralize special elements within the argument, possibly resulting in CWE-23 vulnerability.

Quark Script: CWE-23.py

from quark.script import runQuarkAnalysis, Rule

SAMPLE_PATH = "ovaa.apk"
RULE_PATH = "accessFileInExternalDir.json"


STRING_MATCHING_API = [
    ["Ljava/lang/String;", "contains", "(Ljava/lang/CharSequence)Z"],
    ["Ljava/lang/String;", "indexOf", "(I)I"],
    ["Ljava/lang/String;", "indexOf", "(Ljava/lang/String;)I"],
    ["Ljava/lang/String;", "matches", "(Ljava/lang/String;)Z"],
    [
        "Ljava/lang/String;",
        "replaceAll",
        "(Ljava/lang/String; Ljava/lang/String;)Ljava/lang/String;",
    ],
]

ruleInstance = Rule(RULE_PATH)
quarkResult = runQuarkAnalysis(SAMPLE_PATH, ruleInstance)

for accessExternalDir in quarkResult.behaviorOccurList:

    filePath = accessExternalDir.secondAPI.getArguments()[2]

    if quarkResult.isHardcoded(filePath):
        continue

    caller = accessExternalDir.methodCaller
    strMatchingAPIs = [
        api
        for api in STRING_MATCHING_API
        if quarkResult.findMethodInCaller(caller, api)
    ]

    if not strMatchingAPIs:
        print(f"CWE-23 is detected in method, {caller.fullName}")

Quark Rule: accessFileInExternalDir.json

{
    "crime": "Access a file in an external directory",
    "permission": [],
    "api": [
        {
            "class": "Landroid/os/Environment;",
            "method": "getExternalStorageDirectory",
            "descriptor": "()Ljava/io/File;"
        },
        {
            "class": "Ljava/io/File;",
            "method": "<init>",
            "descriptor": "(Ljava/io/File;Ljava/lang/String;)V"
        }
    ],
    "score": 1,
    "label": []
}

Quark Script Result

$ python3 CWE-23.py
CWE-23 is detected in method, Loversecured/ovaa/providers/TheftOverwriteProvider; openFile (Landroid/net/Uri; Ljava/lang/String;)Landroid/os/ParcelFileDescriptor;

Detect CWE-78 in Android Application

This scenario seeks to find Improper Neutralization of Special Elements used in an OS Command in the APK file.

CWE-78 Improper Neutralization of Special Elements used in an OS Command ('OS Command Injection')

We analyze the definition of CWE-78 and identify its characteristics.

See CWE-78 for more details.

Code of CWE-78 in Vuldroid.apk

We use the Vuldroid.apk sample to explain the vulnerability code of CWE-78.

CWE-78 Detection Process Using Quark Script API

Let’s use the above APIs to show how the Quark script finds this vulnerability.

First, we design a detection rule ExternalStringsCommands.json to spot on behavior using external strings as commands.

Next, we use Quark API behaviorInstance.getMethodsInArgs() to get the methods that passed the external command.

Then we check if the method neutralizes any special elements in the argument.

If the neutralization is not complete, then it may cause CWE-78 vulnerability.

Quark Script: CWE-78.py

from quark.script import runQuarkAnalysis, Rule, findMethodInAPK

SAMPLE_PATH = "Vuldroid.apk"
RULE_PATH = "ExternalStringCommand.json"


STRING_MATCHING_API = set([
    ("Ljava/lang/String;", "contains", "(Ljava/lang/CharSequence)Z"),
    ("Ljava/lang/String;", "indexOf", "(I)I"),
    ("Ljava/lang/String;", "indexOf", "(Ljava/lang/String;)I"),
    ("Ljava/lang/String;", "matches", "(Ljava/lang/String;)Z"),
    (
        "Ljava/lang/String;",
        "replaceAll",
        "(Ljava/lang/String; Ljava/lang/String;)Ljava/lang/String;",
    ),
])

specialElementsPattern = r"[ ;|,>`]+"

ruleInstance = Rule(RULE_PATH)
quarkResult = runQuarkAnalysis(SAMPLE_PATH, ruleInstance)

for ExternalStringCommand in quarkResult.behaviorOccurList:

    methodCalled = set()
    caller = ExternalStringCommand.methodCaller

    for method in ExternalStringCommand.getMethodsInArgs():
        methodCalled.add(method.fullName)

    if methodCalled.intersection(STRING_MATCHING_API) and not ExternalStringCommand.hasString(specialElementsPattern):
        continue
    else:
        print(f"CWE-78 is detected in method, {caller.fullName}")

Quark Rule: ExternalStringCommand.json

{
    "crime": "Using external strings as commands",
    "permission": [],
    "api": [
        {
            "class": "Landroid/content/Intent;",
            "method": "getStringExtra",
            "descriptor": "(Ljava/lang/String;)Ljava/lang/String"
        },
        {
            "class": "Ljava/lang/Runtime;",
            "method": "exec",
            "descriptor": "(Ljava/lang/String;)Ljava/lang/Process"
        }
    ],
    "score": 1,
    "label": []
}

Quark Script Result

$ python3 CWE-78.py
CWE-78 is detected in method, Lcom/vuldroid/application/RootDetection; onCreate (Landroid/os/Bundle;)V
