Flow OverStack - UserService

Project Overview

UserService is a microservice responsible for all user-related operations within the flow OverStack platform. It provides user authentication with Keycloak for identity management and roles management.

Technologies and Patterns Used

• .NET 9 & C# — Core framework and language
• ASP.NET Core — HTTP API.
• Entity Framework Core with PostgreSQL — Data access (Repository & Unit of Work patterns) to PostgreSQL database
• Clean Architecture — Layered separation (Domain, Application, Infrastructure, Presentation)
• Decorator Pattern — allows behavior to be added to individual objects dynamically without affecting others. In this project, it is used to implement caching.
• Keycloak — OAuth2/OpenID Connect identity provider
• Hangfire — Hosted services for background jobs
• Redis — Caching layer
• Kafka — Message queue that listens to main events
• Hot Chocolate — GraphQL endpoint with built-in support for pagination, filtering, and sorting
• gRPC — High-performance RPC interface
• Observability — Traces, logs, and metrics collected via OpenTelemetry and Logstash, exported to Aspire dashboard, Jaeger, ElasticSearch, and Prometheus
• Monitoring & Visualization — Dashboards in Grafana, Kibana and Aspire
• Health Checks — Status endpoints to monitor service availability and dependencies
• xUnit & Coverlet — Automated unit and integration testing with code coverage
• SonarQube & Qodana — Code quality and coverage analysis

Architecture and Design

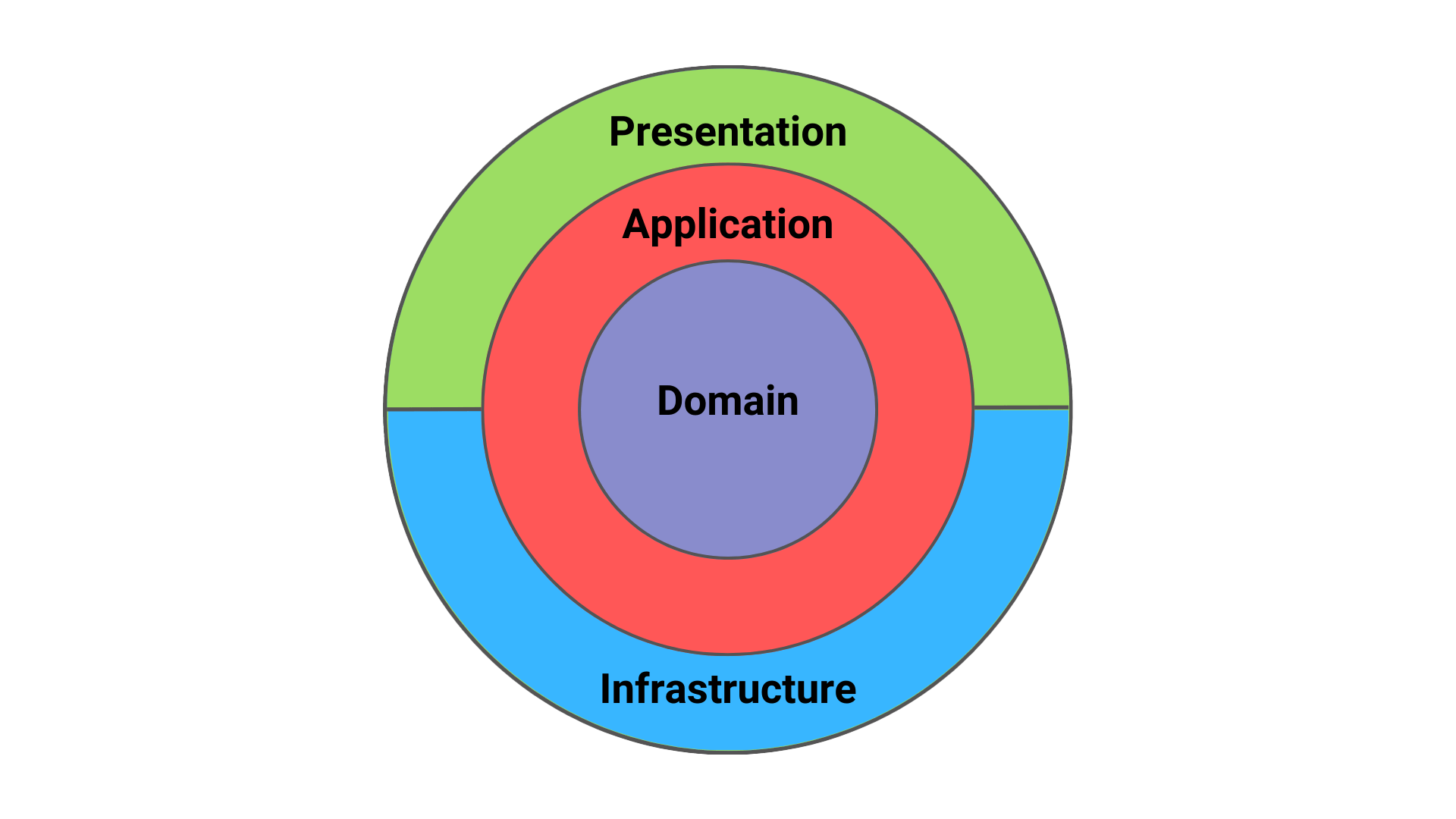

This service follows the principles of Clean Architecture. The solution is split into multiple projects that correspond to each architectural layer.

Layer	Project
Presentation	UserService.Grpc, UserService.GraphQl, UserService.Api
Application	UserService.Application
Domain	UserService.Domain
Infrastructure	UserService.BackgroundJobs, UserService.Cache, UserService.DAL, UserService.Keycloak, UserService.Messaging

Full system design on Miro: Application Structure Board

Getting Started

Prerequisites

• .NET 9 SDK
• Docker Desktop
• Running service dependencies

Installation

1. Clone the repo

2. Configure appsettings.json and .NET User Secrets in UserService.Api with your database, Redis, and Keycloak settings. Example:

    {
    "ConnectionStrings": {
    "PostgresSQL": "Server=localhost;Port=5433; Database=user-service-db; User Id=<YOUR-USER-ID>; Password=<YOUR-PASSWORD>"
    },
    "KeycloakSettings": {
      "AdminToken": "<YOUR-TOKEN>"
    },
    "RedisSettings": {
      "Password": "<YOUR-PASSWORD>"
    }
   }

3. Start supporting services:

   docker-compose -p flowoverstack -f docker-compose.common.yml up -d
   docker-compose -p userservice -f docker-compose.yml up -d

4. Run the API:

   cd UserService.Api
   dotnet run

API Documentation

The following endpoints are available by default:

UseHttpsForRestApi	REST API & Swagger	GraphQL Endpoint	gRPC Endpoint
true	https://localhost:7163/swagger	https://localhost:7163/graphql	https://localhost:7163 http://localhost:5044
false	http://localhost:7163/swagger	http://localhost:7163/graphql	http://localhost:5044

Testing

Run unit and functional tests:

cd UserService.Tests
dotnet test --filter Category=Functional
dotnet test --filter Category=Unit

Contributing

1. Fork the repository
2. Create a feature branch
3. Commit your changes
4. Push to your branch
5. Open a Pull Request

Please follow the existing code conventions and include tests for new functionality. You are also welcome to open issues for bug reports, feature requests, or to discuss improvements.

License

This project is licensed under the MIT License. See the LICENSE file for details.

Contact

For questions or suggestions open an issue.
