Flutter Clean Architecture & SOLID Principles 🚀

A comprehensive guide to building scalable and maintainable Flutter applications using Clean Architecture and SOLID Principles.

Table of Contents đź“Ś

Introduction

This project demonstrates how to structure Flutter applications using Clean Architecture and SOLID Principles. The goal is to create modular, testable, and maintainable codebases that scale with your application's growth.

What is Clean Architecture?

Clean Architecture is a software design philosophy that promotes separation of concerns through clearly defined layers. Each layer has a specific responsibility, making the codebase modular, testable, and easier to maintain.

Core Layers

  1. Presentation Layer

    • Contains UI and state management (e.g., Cubits, Widgets, Pages).
    • Responsible for displaying data and handling user interactions.
    • May import domain/use-cases and core, but must NOT import feature data directly — always use repository interfaces / use-cases.

  2. Domain Layer

    • The heart of the application. Contains Entities, UseCases, and Repositories.
    • Focuses purely on business logic, independent of frameworks.
    • Must not import from data or presentation.

  3. Data Layer

    • Manages data sources (e.g., APIs, local databases).
    • Implements repositories to provide data to the domain layer.
    • May import domain to implement repository interfaces.

Dependency rules that must be enforced

  • Keep imports flowing inward only — Presentation -> Domain -> Data.
  • Core is reusable library and should be independent of other layers but domain, data, presentation depends on core.
  • Shared UI is reusable UI related library and It might depend on core but not other layers. Presentation layer depends on Shared UI.

Benefits

  • Framework Independence: Decouples business logic from frameworks, UI, and data sources.
  • Modularity: Enables easier testing and maintenance.
  • Scalability: Supports flexible and future-proof feature additions.

SOLID Principles

SOLID Principles complement Clean Architecture by providing guidelines for writing clean, maintainable, and extensible code:

  1. Single Responsibility Principle (SRP)
    Each class should have only one reason to change.

  2. Open/Closed Principle (OCP)
    Classes should be open for extension but closed for modification.

  3. Liskov Substitution Principle (LSP)
    Subtypes must be substitutable for their base types without altering program correctness.

  4. Interface Segregation Principle (ISP)
    Classes should not be forced to implement interfaces they do not use.

  5. Dependency Inversion Principle (DIP)
    High-level modules should not depend on low-level modules; both should depend on abstractions.

For more detailed information and real-world examples, see the SOLID Principles documentation.

Project Features

  • 🛡️ SOLID Principles: Ensures scalable, maintainable, and testable code.
  • 🏗️ Clean Architecture: Divides code into layers (Data, Domain, Presentation) for clear separation of concerns.
  • 🍴 Build Flavors: Supports Development, Staging, and Production environments.
  • 🔧 Robust Error Handling: Comprehensive API and internal error management.
  • 🔄 Automated Request/Response Handling: Includes token refreshing and request inspection.
  • 📡 Core Services: Navigation, Internet, Local Database, Toast Messages, and User Credential management.
  • 🎨 Reusable UI Components: Customizable themes and reusable widgets.
  • ⚙️ Utilities: Screen size handling, extensions, mixins, generics, and form validation utilities.

Getting Started 🚀

Follow these steps to get the project up and running on your local machine.

Prerequisites

  • Flutter SDK (version 3.x.x or higher)
  • An editor like VS Code or Android Studio
  • An emulator or a physical device

Installation & Setup

  1. Clone the repository:

    git clone https://github.com/gaurishankars/Flutter-Clean-Architecture-SOLID-Principle.git
cd Flutter-Clean-Architecture-SOLID-Principle

  2. Install dependencies:

    flutter pub get

Running the Application

This project is configured with multiple build flavors (Development, Staging, Production). You can run them using the following commands:

  • Development: flutter run --flavor dev -t lib/main_dev.dart
  • Staging: flutter run --flavor stg -t lib/main_stg.dart
  • Production: flutter run --flavor prod -t lib/main.dart

Project Structure

lib/
├── config/
│   ├── injector/
│   └── app_config.dart
├── core/
│   ├── constants/
│   ├── data/
│   │   └── models/
│   ├── data_handling/
│   ├── data_states/
│   ├── domain/
│   │   ├── entities/
│   │   └── use_cases/
│   ├── services/
│   │   ├── api/
│   │   ├── database/
│   │   ├── image_picker/
│   │   ├── internet/
│   │   ├── navigation/
│   │   └── session/
│   ├── utils/
│   │   ├── extensions/
│   │   └── .....
│   └── app_initializer.dart
├── features/
│   ├── auth/
│   │   ├── data/
│   │   ├── domain/
│   │   ├── presentation/
│   ├── dashboard/
│   └── ...
├── routing/
├── shared_ui/
│   ├── cubits/
│   ├── models/
│   ├── themes/
│   ├── ui/
│   ├── utils/
│   └── application.dart
├── main_dev.dart
├── main.dart
├── main_stg.dart

Feature Template Generation with Mason

This project uses Mason to generate feature templates for consistent and efficient development.

How to Generate a Feature

  1. Activate the mason_cli globally:

    dart pub global activate mason_cli

  2. Fetch the bricks for the project:

    mason get

  3. Generate a new feature using the cubit_feature brick:

    mason make cubit_feature -c config.json

  4. Generate a new cubit and page using the cubit_page brick:

    mason make cubit_page -c config.json

What Do cubit_feature & cubit_page Do?

  • cubit_feature: Generates a feature template following Clean Architecture, including:

    • Data Layer: Data Sources, Models, Repositories
    • Domain Layer: Entities, Repositories, Use Cases
    • Presentation Layer: Cubits, Pages, Widgets

  • cubit_page: Generates a cubit and page template inside the specified feature's presentation layer.

Configuration

The generation process relies on a config.json file, which includes details such as feature, cubit, and page names, as well as entity names and their variable types. Ensure that config.json is correctly defined before running the generation command.

Visual Representation

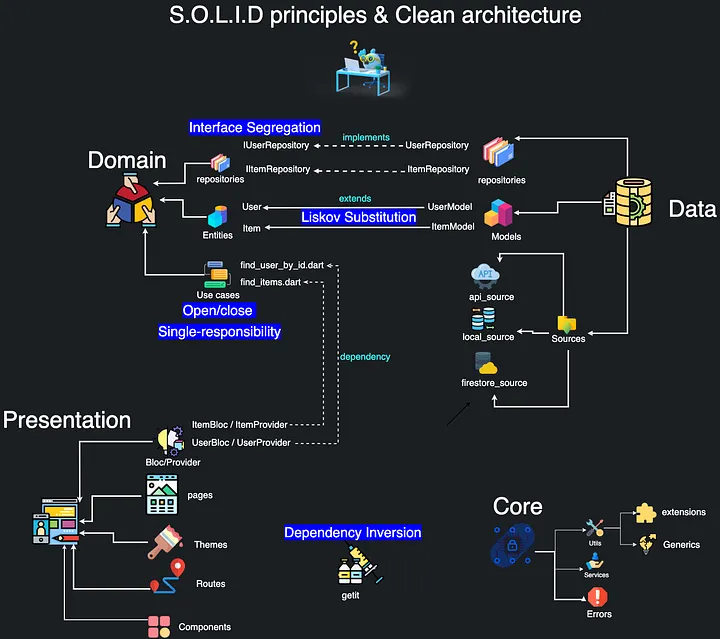

Clean Architecture With SOLID Principle

This diagram highlights the modular and scalable structure of Clean Architecture, aligning with SOLID principles to ensure best development practices.

API Workflow Overview

Data Flow Summary

graph TD
    UI -->|calls| Cubit
    Cubit -->|calls| UseCase
    UseCase -->|calls| Repository
    Repository -->|calls| RemoteDataSource
    Repository -->|calls| LocalDataSource
    Repository -->|uses| InternetService
    Repository -->|wrapped by| DataHandler
    Repository -->|handles| DataState
    RemoteDataSource -->|uses| ApiService
    RemoteDataSource -->|wrapped by| DataHandler
    ApiService -->|sends| API
    LocalDataSource -->|uses| LocalDatabaseService
    LocalDataSource -->|wrapped by| ErrorHandler
    LocalDatabaseService -->|sends| LocalDB
Loading
  1. UI calls Cubit, which calls UseCase
  2. UseCase calls Repository
  3. Repository checks Internet availability using InternetService
  4. If online:
    • Calls RemoteDataSource
    • RemoteDataSource uses ApiService to make HTTP requests
    • Response handling is wrapped with DataHandler.safeApiCall
    • Errors are caught via ErrorHandler
  5. If offline:
    • Optionally falls back to localCallback using LocalDataSource
  6. Repository may also call LocalDataSource directly
  7. All outcomes are returned as DataState<T>: SuccessState, or FailureState

Core Components

1. Repository

  • Acts as the single source of truth for the domain layer.
  • Decides when to fetch from remote or local sources.
  • Uses fetchWithFallback() from DataHandler for connectivity handling.

2. RemoteDataSource

  • Contains remote API methods.
  • Makes network calls via ApiService.

3. ApiService

  • Abstracts over Dio for HTTP requests.
  • Simplifies request methods and adds debugging/interception.

4. Interceptor

  • Intercepts and modifies requests/responses.
  • Appends access tokens and handles token refresh on 401 responses.

5. LocalDataSource

  • Manages local data using LocalDatabaseService.
  • Used for fallback or offline storage.

6. DataHandler

  • Wraps remote calls in safeApiCall().
  • Validates and parses API responses.
  • Handles SuccessState, FailureState, and JSON parsing.

7. ErrorHandler

  • Catches various error types and converts them into FailureState with meaningful messages.

8. DataState<T>

  • Represents UI state as a sealed class:
    • SuccessState<T>
    • FailureState<T>
    • LoadingState<T>
state.when(
  success: (data) => print("Got data"),
  failure: (msg, type) => print("Error: $msg"),
  loading: () => print("Loading..."),
);

Example: Login Flow

@injectable
class LoginCubit extends BaseCubit<LoginState> {
  final LoginCubitUseCases _useCases;

  LoginCubit({
    required LoginCubitUseCases useCases,
  })  : _useCases = useCases,
        super(const LoginState.initial());

  Future<void> login({required String username, required String password}) async {
    final dataState = await _useCases.login.call(
      LoginRequest(username: "", password: ""),
    );

    dataState.when(
      success: (user) => print("Login success"),
      failure: (msg, type) => print("Login failed: $msg"),
      loading: () => print("Logging in..."),
    );

    if (dataState.hasData) {
      saveUserData(dataState.data!);
    } else if (dataState.hasError) {
      // Handle error
    }
  }

  Future<void> saveUserData(UserData userData) async {
    final dataState = await _useCases.saveUserData.call(userData);

    if (dataState.hasData) {
      // Handle success
    } else if (dataState.hasError) {
      // Handle error
    }
  }
}

Internal Flow

graph TD
   A[UI] --> B[LoginCubit]
    B --> C[LoginUseCase]
    B --> D[SaveUserDataUseCase]
    C --> E[AuthRepository]
    D --> E[AuthRepository]

    %% Remote Data Flow
    E -->|check internet| F[InternetService]
    E -->|calls| G[AuthRemoteDataSource.login]
    G --> H[Request API via ApiService]
    H --> I[Handles API Response]
    I -->|success| J[SuccessState]
    I -->|failure| K[FailureState]

    %% Local Data Flow
    E -->|calls| L[AuthLocalDataSource.saveUserData]
    L --> M[Request LocalDB via LocalDatabaseService]
    M --> N[Handles LocalDB Response]
    N -->|success| O[SuccessState]
    N -->|failure| P[FailureState]
Loading

Benefits

  • Decoupled Layers: Easier testing and maintenance.
  • Unified Error Handling: All API and type errors are gracefully caught.
  • Clean Network Management: Internet checks, retries, and fallback handled centrally.
  • Consistent UI State: Always returns DataState for safe rendering.

Debugging Tools

  • Alice integrated into ApiService for easy request/response inspection.

Testing

This project uses a multi-layered testing strategy to ensure robustness and maintainability.

  • Mocking with mocktail: Dependencies are mocked using the mocktail package. This allows for testing each layer in isolation. For example, when testing a Repository, the RemoteDataSource and LocalDataSource are mocked. The tests demonstrate how to mock dependencies and stub method calls to return specific data or states.

  • Widget Testing with patrol_finders: Widget tests use patrol_finders (part of the Patrol framework) to provide a more intuitive and powerful way to find and interact with widgets, making UI tests cleaner and more readable.

  • Integration Testing with patrol: End-to-end tests are written using patrol, which extends flutter_test with features for controlling native UI elements (like permission dialogs).

    Note: Patrol requires a one-time setup for both native Android (build.gradle) and iOS (Podfile, RunnerUITests.m) projects. For detailed instructions, please refer to the official Patrol setup documentation.

  • Isolating Layers: The architecture makes it easy to test components independently:

    • When testing a UseCase, the Repository is mocked.
    • When testing a Cubit, the UseCases are mocked.
    • When testing a DataSource, the ApiService or LocalDatabaseService is mocked.

Running Tests

The project includes a suite of automated tests to ensure code quality and functionality.

Unit & Widget Tests

  • Run all tests:

    flutter test

  • Run a specific test file:

    flutter test path/to/your/test_file.dart

Integration Tests (Patrol)

Ensure an emulator or physical device is running before executing these tests.

  • Run all integration tests:
    patrol test
  • Run a specific integration test:
    patrol test --target path/to/your/integration_test.dart

Developer Resources

For more details on specific commands and guidelines, refer to the following documents:

  • Docker Commands: Essential Docker and Docker Compose commands for development environments.
  • Flutter Commands Cheat Sheet: A collection of essential and frequently used Flutter commands to boost your productivity.
  • Flutter Configuration Guidelines: Guidelines for setting up the Flutter environment, including activating pub commands, configuring Firebase CLI, and managing the Java SDK location.
  • Git Commands Cheat Sheet: A collection of essential and frequently used git commands to boost your productivity.
