Tokenizer SPM fixes for phi-3 and llama-spm (bugfix) #7425

jaime-m-p · 2024-05-21T00:35:13Z

Bugfixing #7375 : Need rtrim after the pre-inserted BOS. More details here.

github-actions · 2024-05-21T01:04:10Z

📈 llama.cpp server for bench-server-baseline on Standard_NC4as_T4_v3 for phi-2-q4_0: 531 iterations 🚀

Expand details for performance related PR only

Concurrent users: 8, duration: 10m
HTTP request : avg=8827.26ms p(95)=23186.6ms fails=, finish reason: stop=468 truncated=63
Prompt processing (pp): avg=104.01tk/s p(95)=435.03tk/s
Token generation (tg): avg=32.11tk/s p(95)=46.81tk/s
ggml-org/models/phi-2/ggml-model-q4_0.gguf parallel=8 ctx-size=16384 ngl=33 batch-size=2048 ubatch-size=256 pp=1024 pp+tg=2048 branch=tokenizer-spm-fixes commit=0594bfdd5e22e5df6ea44583088ca08609a70e00

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

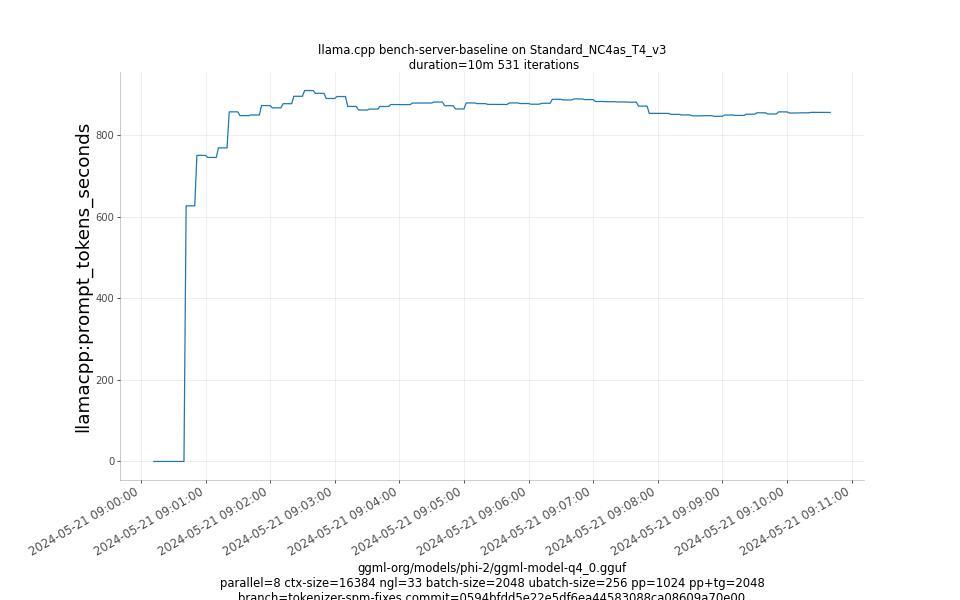

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 531 iterations"
    y-axis "llamacpp:prompt_tokens_seconds"
    x-axis "llamacpp:prompt_tokens_seconds" 1716282012 --> 1716282640
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 626.54, 626.54, 626.54, 626.54, 626.54, 750.3, 750.3, 750.3, 750.3, 750.3, 745.22, 745.22, 745.22, 745.22, 745.22, 768.62, 768.62, 768.62, 768.62, 768.62, 856.96, 856.96, 856.96, 856.96, 856.96, 847.71, 847.71, 847.71, 847.71, 847.71, 849.26, 849.26, 849.26, 849.26, 849.26, 872.34, 872.34, 872.34, 872.34, 872.34, 866.74, 866.74, 866.74, 866.74, 866.74, 876.91, 876.91, 876.91, 876.91, 876.91, 895.11, 895.11, 895.11, 895.11, 895.11, 909.16, 909.16, 909.16, 909.16, 909.16, 902.35, 902.35, 902.35, 902.35, 902.35, 889.67, 889.67, 889.67, 889.67, 889.67, 894.49, 894.49, 894.49, 894.49, 894.49, 870.24, 870.24, 870.24, 870.24, 870.24, 861.4, 861.4, 861.4, 861.4, 861.4, 863.69, 863.69, 863.69, 863.69, 863.69, 870.1, 870.1, 870.1, 870.1, 870.1, 874.86, 874.86, 874.86, 874.86, 874.86, 874.59, 874.59, 874.59, 874.59, 874.59, 878.46, 878.46, 878.46, 878.46, 878.46, 878.67, 878.67, 878.67, 878.67, 878.67, 881.0, 881.0, 881.0, 881.0, 881.0, 871.94, 871.94, 871.94, 871.94, 871.94, 864.04, 864.04, 864.04, 864.04, 864.04, 878.75, 878.75, 878.75, 878.75, 878.75, 877.1, 877.1, 877.1, 877.1, 877.1, 875.2, 875.2, 875.2, 875.2, 875.2, 875.04, 875.04, 875.04, 875.04, 875.04, 878.79, 878.79, 878.79, 878.79, 878.79, 877.34, 877.34, 877.34, 877.34, 877.34, 875.68, 875.68, 875.68, 875.68, 875.68, 877.99, 877.99, 877.99, 877.99, 877.99, 887.73, 887.73, 887.73, 887.73, 887.73, 886.08, 886.08, 886.08, 886.08, 886.08, 888.57, 888.57, 888.57, 888.57, 888.57, 886.98, 886.98, 886.98, 886.98, 886.98, 882.31, 882.31, 882.31, 882.31, 882.31, 881.79, 881.79, 881.79, 881.79, 881.79, 881.18, 881.18, 881.18, 881.18, 881.18, 880.64, 880.64, 880.64, 880.64, 880.64, 871.01, 871.01, 871.01, 871.01, 871.01, 853.28, 853.28, 853.28, 853.28, 853.28, 853.14, 853.14, 853.14, 853.14, 853.14, 850.75, 850.75, 850.75, 850.75, 850.75, 849.35, 849.35, 849.35, 849.35, 849.35, 847.18, 847.18, 847.18, 847.18, 847.18, 847.58, 847.58, 847.58, 847.58, 847.58, 846.04, 846.04, 846.04, 846.04, 846.04, 849.15, 849.15, 849.15, 849.15, 849.15, 848.22, 848.22, 848.22, 848.22, 848.22, 851.14, 851.14, 851.14, 851.14, 851.14, 854.63, 854.63, 854.63, 854.63, 854.63, 851.73, 851.73, 851.73, 851.73, 851.73, 856.85, 856.85, 856.85, 856.85, 856.85, 854.16, 854.16, 854.16, 854.16, 854.16, 854.53, 854.53, 854.53, 854.53, 854.53, 855.7, 855.7, 855.7, 855.7, 855.7, 855.44, 855.44, 855.44, 855.44, 855.44]

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

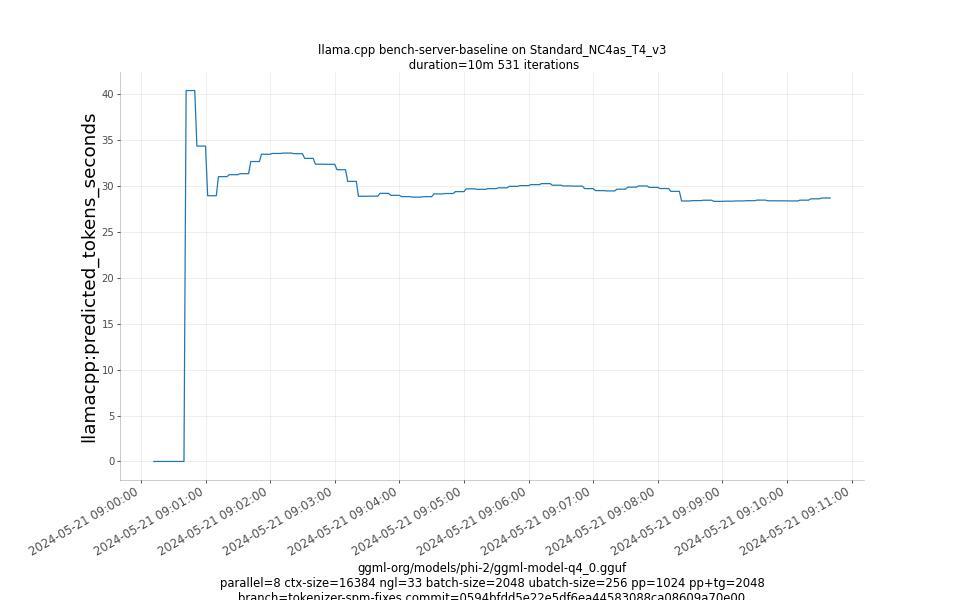

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 531 iterations"
    y-axis "llamacpp:predicted_tokens_seconds"
    x-axis "llamacpp:predicted_tokens_seconds" 1716282012 --> 1716282640
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 40.43, 40.43, 40.43, 40.43, 40.43, 34.38, 34.38, 34.38, 34.38, 34.38, 28.96, 28.96, 28.96, 28.96, 28.96, 31.05, 31.05, 31.05, 31.05, 31.05, 31.26, 31.26, 31.26, 31.26, 31.26, 31.37, 31.37, 31.37, 31.37, 31.37, 32.69, 32.69, 32.69, 32.69, 32.69, 33.49, 33.49, 33.49, 33.49, 33.49, 33.57, 33.57, 33.57, 33.57, 33.57, 33.62, 33.62, 33.62, 33.62, 33.62, 33.55, 33.55, 33.55, 33.55, 33.55, 33.04, 33.04, 33.04, 33.04, 33.04, 32.4, 32.4, 32.4, 32.4, 32.4, 32.39, 32.39, 32.39, 32.39, 32.39, 31.8, 31.8, 31.8, 31.8, 31.8, 30.53, 30.53, 30.53, 30.53, 30.53, 28.91, 28.91, 28.91, 28.91, 28.91, 28.92, 28.92, 28.92, 28.92, 28.92, 29.22, 29.22, 29.22, 29.22, 29.22, 29.01, 29.01, 29.01, 29.01, 29.01, 28.86, 28.86, 28.86, 28.86, 28.86, 28.81, 28.81, 28.81, 28.81, 28.81, 28.86, 28.86, 28.86, 28.86, 28.86, 29.16, 29.16, 29.16, 29.16, 29.16, 29.21, 29.21, 29.21, 29.21, 29.21, 29.41, 29.41, 29.41, 29.41, 29.41, 29.72, 29.72, 29.72, 29.72, 29.72, 29.66, 29.66, 29.66, 29.66, 29.66, 29.74, 29.74, 29.74, 29.74, 29.74, 29.83, 29.83, 29.83, 29.83, 29.83, 29.99, 29.99, 29.99, 29.99, 29.99, 30.07, 30.07, 30.07, 30.07, 30.07, 30.18, 30.18, 30.18, 30.18, 30.18, 30.29, 30.29, 30.29, 30.29, 30.29, 30.11, 30.11, 30.11, 30.11, 30.11, 30.03, 30.03, 30.03, 30.03, 30.03, 30.01, 30.01, 30.01, 30.01, 30.01, 29.74, 29.74, 29.74, 29.74, 29.74, 29.52, 29.52, 29.52, 29.52, 29.52, 29.49, 29.49, 29.49, 29.49, 29.49, 29.68, 29.68, 29.68, 29.68, 29.68, 29.9, 29.9, 29.9, 29.9, 29.9, 30.03, 30.03, 30.03, 30.03, 30.03, 29.87, 29.87, 29.87, 29.87, 29.87, 29.75, 29.75, 29.75, 29.75, 29.75, 29.44, 29.44, 29.44, 29.44, 29.44, 28.39, 28.39, 28.39, 28.39, 28.39, 28.43, 28.43, 28.43, 28.43, 28.43, 28.48, 28.48, 28.48, 28.48, 28.48, 28.35, 28.35, 28.35, 28.35, 28.35, 28.37, 28.37, 28.37, 28.37, 28.37, 28.4, 28.4, 28.4, 28.4, 28.4, 28.42, 28.42, 28.42, 28.42, 28.42, 28.49, 28.49, 28.49, 28.49, 28.49, 28.41, 28.41, 28.41, 28.41, 28.41, 28.41, 28.41, 28.41, 28.41, 28.41, 28.4, 28.4, 28.4, 28.4, 28.4, 28.48, 28.48, 28.48, 28.48, 28.48, 28.63, 28.63, 28.63, 28.63, 28.63, 28.71, 28.71, 28.71, 28.71, 28.71]

Details

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

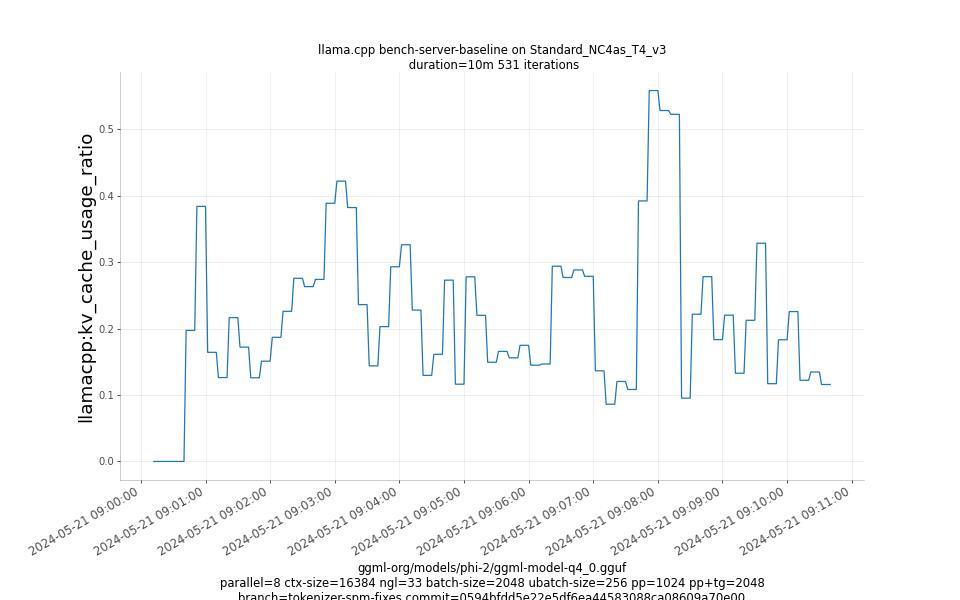

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 531 iterations"
    y-axis "llamacpp:kv_cache_usage_ratio"
    x-axis "llamacpp:kv_cache_usage_ratio" 1716282012 --> 1716282640
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.2, 0.2, 0.2, 0.2, 0.2, 0.38, 0.38, 0.38, 0.38, 0.38, 0.16, 0.16, 0.16, 0.16, 0.16, 0.13, 0.13, 0.13, 0.13, 0.13, 0.22, 0.22, 0.22, 0.22, 0.22, 0.17, 0.17, 0.17, 0.17, 0.17, 0.13, 0.13, 0.13, 0.13, 0.13, 0.15, 0.15, 0.15, 0.15, 0.15, 0.19, 0.19, 0.19, 0.19, 0.19, 0.23, 0.23, 0.23, 0.23, 0.23, 0.28, 0.28, 0.28, 0.28, 0.28, 0.26, 0.26, 0.26, 0.26, 0.26, 0.27, 0.27, 0.27, 0.27, 0.27, 0.39, 0.39, 0.39, 0.39, 0.39, 0.42, 0.42, 0.42, 0.42, 0.42, 0.38, 0.38, 0.38, 0.38, 0.38, 0.24, 0.24, 0.24, 0.24, 0.24, 0.14, 0.14, 0.14, 0.14, 0.14, 0.2, 0.2, 0.2, 0.2, 0.2, 0.29, 0.29, 0.29, 0.29, 0.29, 0.33, 0.33, 0.33, 0.33, 0.33, 0.23, 0.23, 0.23, 0.23, 0.23, 0.13, 0.13, 0.13, 0.13, 0.13, 0.16, 0.16, 0.16, 0.16, 0.16, 0.27, 0.27, 0.27, 0.27, 0.27, 0.12, 0.12, 0.12, 0.12, 0.12, 0.28, 0.28, 0.28, 0.28, 0.28, 0.22, 0.22, 0.22, 0.22, 0.22, 0.15, 0.15, 0.15, 0.15, 0.15, 0.17, 0.17, 0.17, 0.17, 0.17, 0.16, 0.16, 0.16, 0.16, 0.16, 0.17, 0.17, 0.17, 0.17, 0.17, 0.14, 0.14, 0.14, 0.14, 0.14, 0.15, 0.15, 0.15, 0.15, 0.15, 0.29, 0.29, 0.29, 0.29, 0.29, 0.28, 0.28, 0.28, 0.28, 0.28, 0.29, 0.29, 0.29, 0.29, 0.29, 0.28, 0.28, 0.28, 0.28, 0.28, 0.14, 0.14, 0.14, 0.14, 0.14, 0.09, 0.09, 0.09, 0.09, 0.09, 0.12, 0.12, 0.12, 0.12, 0.12, 0.11, 0.11, 0.11, 0.11, 0.11, 0.39, 0.39, 0.39, 0.39, 0.39, 0.56, 0.56, 0.56, 0.56, 0.56, 0.53, 0.53, 0.53, 0.53, 0.53, 0.52, 0.52, 0.52, 0.52, 0.52, 0.1, 0.1, 0.1, 0.1, 0.1, 0.22, 0.22, 0.22, 0.22, 0.22, 0.28, 0.28, 0.28, 0.28, 0.28, 0.18, 0.18, 0.18, 0.18, 0.18, 0.22, 0.22, 0.22, 0.22, 0.22, 0.13, 0.13, 0.13, 0.13, 0.13, 0.21, 0.21, 0.21, 0.21, 0.21, 0.33, 0.33, 0.33, 0.33, 0.33, 0.12, 0.12, 0.12, 0.12, 0.12, 0.18, 0.18, 0.18, 0.18, 0.18, 0.23, 0.23, 0.23, 0.23, 0.23, 0.12, 0.12, 0.12, 0.12, 0.12, 0.13, 0.13, 0.13, 0.13, 0.13, 0.12, 0.12, 0.12, 0.12, 0.12]

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

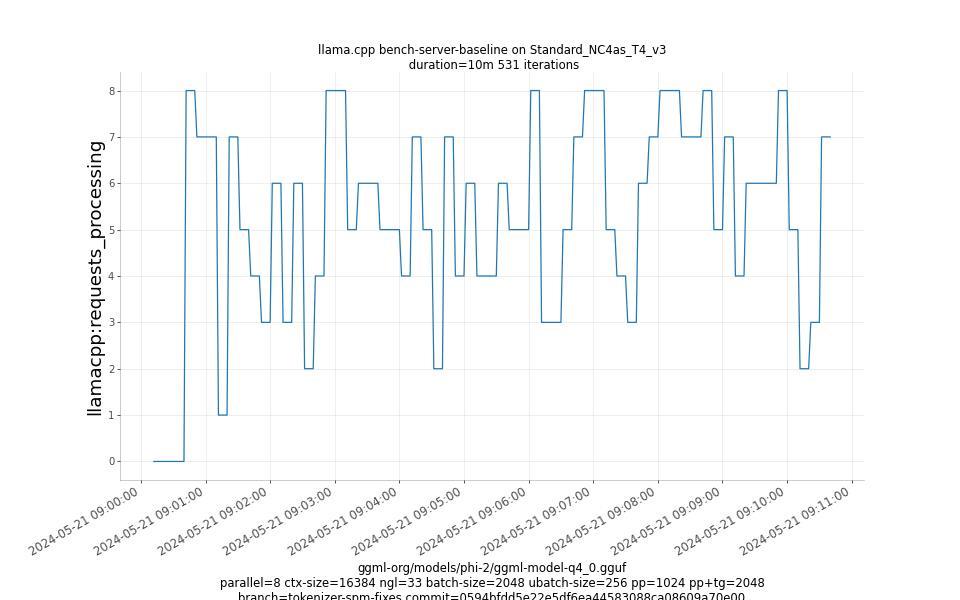

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 531 iterations"
    y-axis "llamacpp:requests_processing"
    x-axis "llamacpp:requests_processing" 1716282012 --> 1716282640
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 1.0, 1.0, 1.0, 1.0, 1.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 3.0, 3.0, 3.0, 3.0, 3.0, 6.0, 6.0, 6.0, 6.0, 6.0, 3.0, 3.0, 3.0, 3.0, 3.0, 6.0, 6.0, 6.0, 6.0, 6.0, 2.0, 2.0, 2.0, 2.0, 2.0, 4.0, 4.0, 4.0, 4.0, 4.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 2.0, 2.0, 2.0, 2.0, 2.0, 7.0, 7.0, 7.0, 7.0, 7.0, 4.0, 4.0, 4.0, 4.0, 4.0, 6.0, 6.0, 6.0, 6.0, 6.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 8.0, 8.0, 8.0, 8.0, 8.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 3.0, 3.0, 3.0, 3.0, 3.0, 6.0, 6.0, 6.0, 6.0, 6.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 4.0, 4.0, 4.0, 4.0, 4.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 2.0, 2.0, 2.0, 2.0, 2.0, 3.0, 3.0, 3.0, 3.0, 3.0, 7.0, 7.0, 7.0, 7.0, 7.0]

This reverts commit 7fb66eb.

ggerganov · 2024-05-21T08:36:07Z

I reverted the changes that I made to the server tests - these should no longer be necessary

* Update brute force test: add_special * Update brute force test: default values for add_bos_token and add_eos_token * Enable rtrim when pre-inserting BOS Co-authored-by: Georgi Gerganov <ggerganov@gmail.com> * Revert "server : fix test regexes"

mofosyne · 2024-05-22T07:51:40Z

On main branch this caused a failure under 'CI / macOS-latest-cmake-arm64 (push) Failing after 2m' for this test

20 - test-backend-ops

ggerganov · 2024-05-22T08:13:47Z

It's not related - some of the CPY tests occasionally produce numerical differences that slightly exceed the epsilon threshold:

20:   CPY(type_src=f32,type_dst=q5_1,ne=[256,4,4,4]): [CPY] NMSE = 0.000000730 > 0.000000100 FAIL

The difference is due to different rounding mode between the CPU / GPU: #4698

jaime-m-p added 4 commits May 21, 2024 02:07

Style

c78a53a

Update brute force test: add_special

3d490e8

Enable rtrim when pre-inserting BOS

9b21dc3

Default values for add_bos_token and add_eos_token

f2340b4

github-actions bot added testing Everything test related python python script changes labels May 21, 2024

Revert "server : fix test regexes"

0594bfd

This reverts commit 7fb66eb.

github-actions bot added examples server labels May 21, 2024

ggerganov approved these changes May 21, 2024

View reviewed changes

jaime-m-p merged commit d7e852c into ggml-org:master May 21, 2024

This was referenced May 25, 2024

Old GGUF have broken tokenization and there is no warning #7476

Closed

Bug: Inconsistent ggml-4-x86-cuda-v100 ci failures on master #7613

Closed
