ActivityTaskView

ActivityTaskView is a float window that shows activity task stacks in a app, monitors all activities' lifecycle.

Introduction

Colors of lifecycles

• onCreate
• onStart
• onResume
• onPause
• onStop
• onDestroy

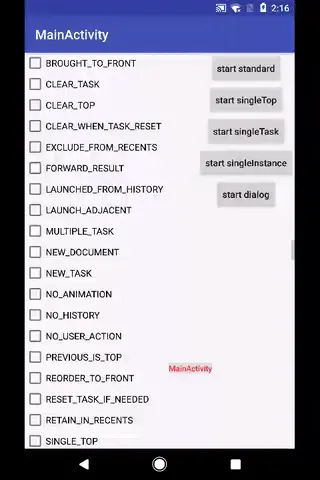

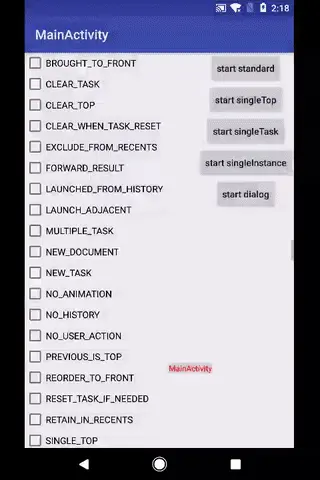

Use in demo(show different launch mode)

standard mode

singletop mode

singletask mode

singleinstance mode

dialog style activity

Usage

1. Add dependence in module's build.gradle

compile 'cc.rome753:activitytaskview:3.8.0'

2. Add system alert permission in AndroidManifest.xml

<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />

3. Init in application's onCreate()

@Override
public void onCreate() {
    super.onCreate();
    ActivityTask.init(this, BuildConfig.DEBUG);
    // ActivityTask.setAutoHide(false); // optional
    // ActivityTask.setInterval(500);   // optional
    // ActivityTask.setTextSize(10);    // optional
}

minSdkVersion 14

License

Apache License, Version 2.0
http://www.apache.org/licenses/
