University Name - SJSU
Course: Enterprise Software - CMPE172/ Fall 2021
Team Members:
John Hoang 014411072
Western Han 012261964
Aryan Kumar 012162371
Project Introduction:
This web application is intended to be an enterprise application aimed at school book stores/libraries so students can easily find and check out books they need in respected departments. Admins have the power to add/edit/remove books, departments, and authors and view a list of books that are checked out by what student.
- Find and run WebappApplication.java in /src/main/java/edu.sjsu.project/
Updating and Maintaining
- any changes, always build as maven
- run .jar
when importing, if src file not showing
- file -> project strucutre -> modules
- import module
- locate FastPages folder and import entire folder. this should fix.
-
Compile and then build as maven package
-
add file to main directory as "Dockerfile"
-
map: ex.
FROM openjdk:15
ADD target/project-0.0.1-SNAPSHOT.jar fast-pages-image.jar
EXPOSE 8080
ENTRYPOINT ["java", "-jar", "fast-pages-image.jar"]
- open terminal
- cd to code directory
- build:
"docker build -f Dockerfile -t fast-pages-image . "
- if build success -> run:
"docker run -p 8085:8085 fast-pages-image"
To pull this application from docker:
- open powershell or terminal
- "docker pull johnhoang5/fast-page-final-ver"

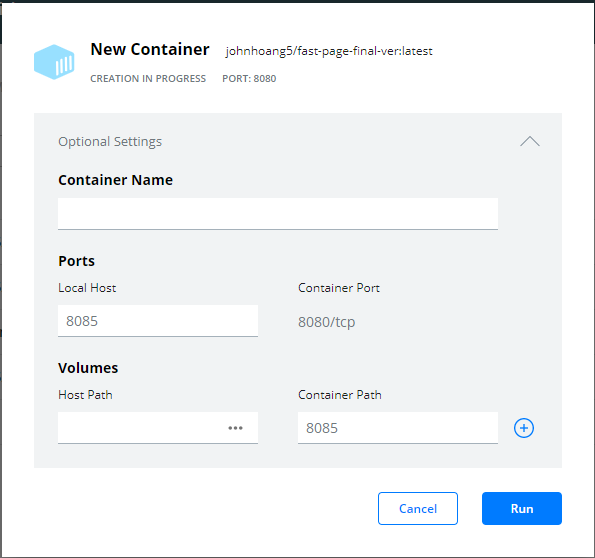

- Open Docker Desktop
- Configure johnhoang5/fast-pages-image port to 8085
- run
- visit: http://localhost:8085/
http://fastpages.us-west-1.elasticbeanstalk.com/
These screenshots captures main features of this application

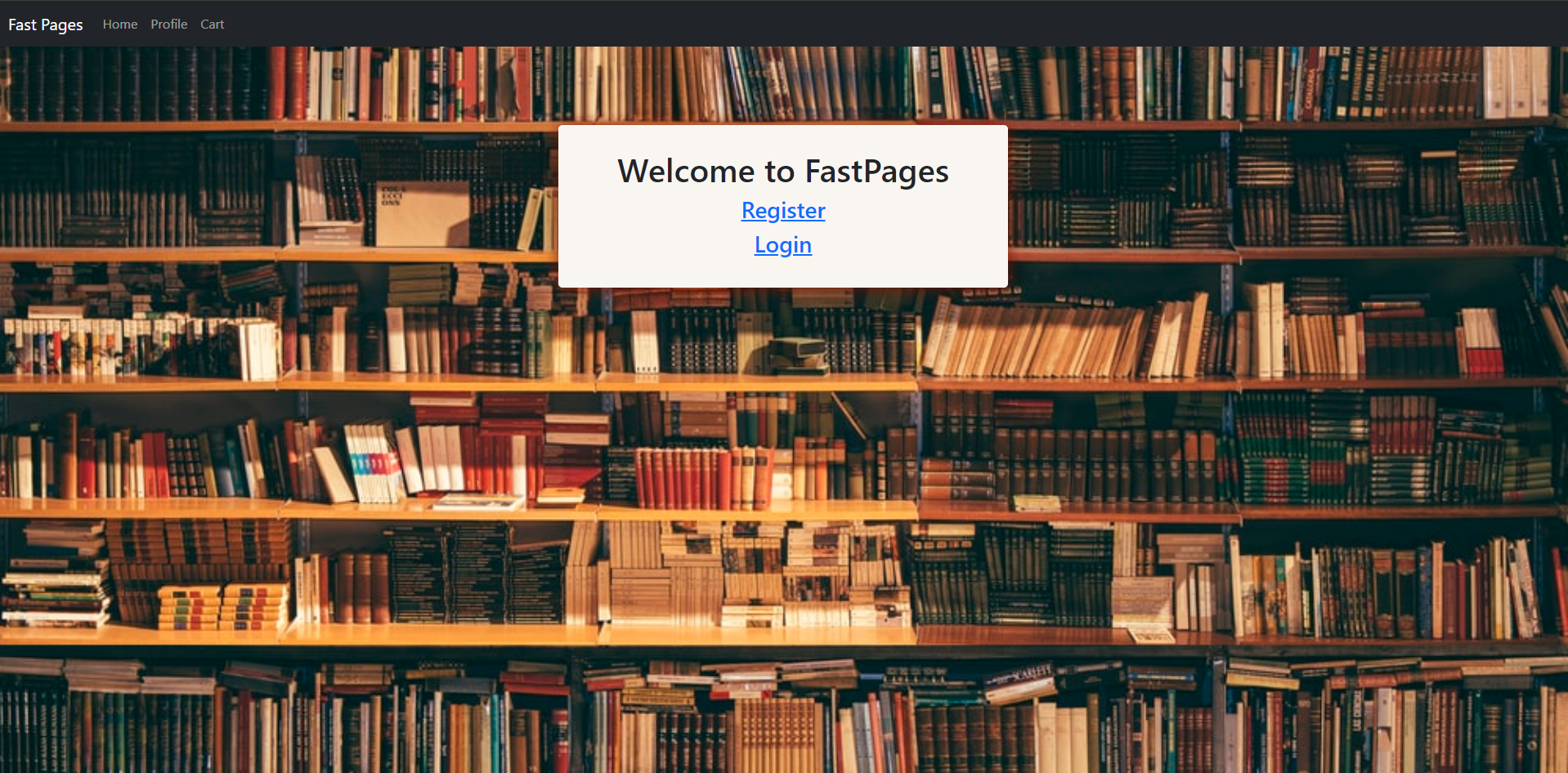

Landing Page:

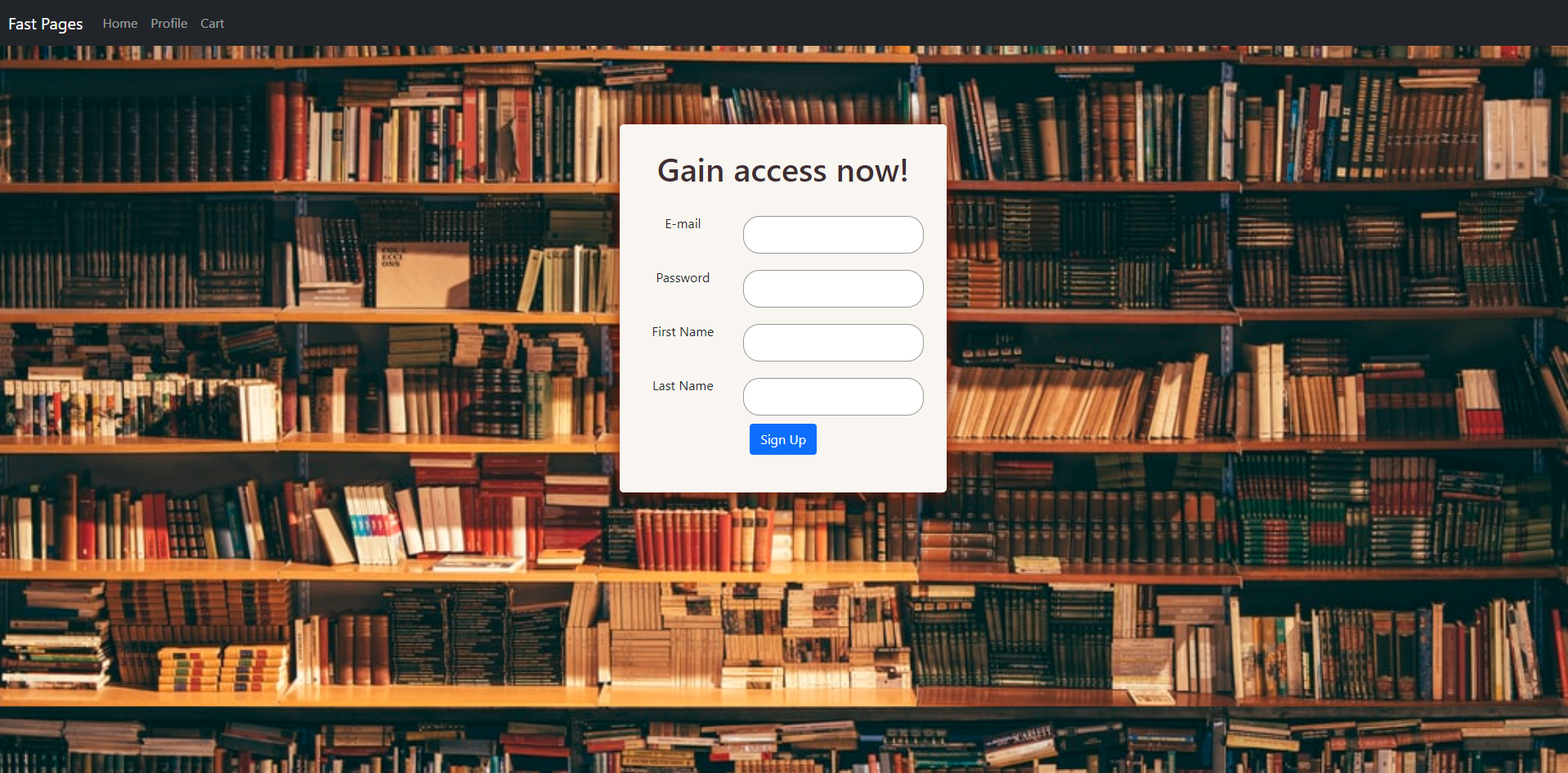

Register:
Login:

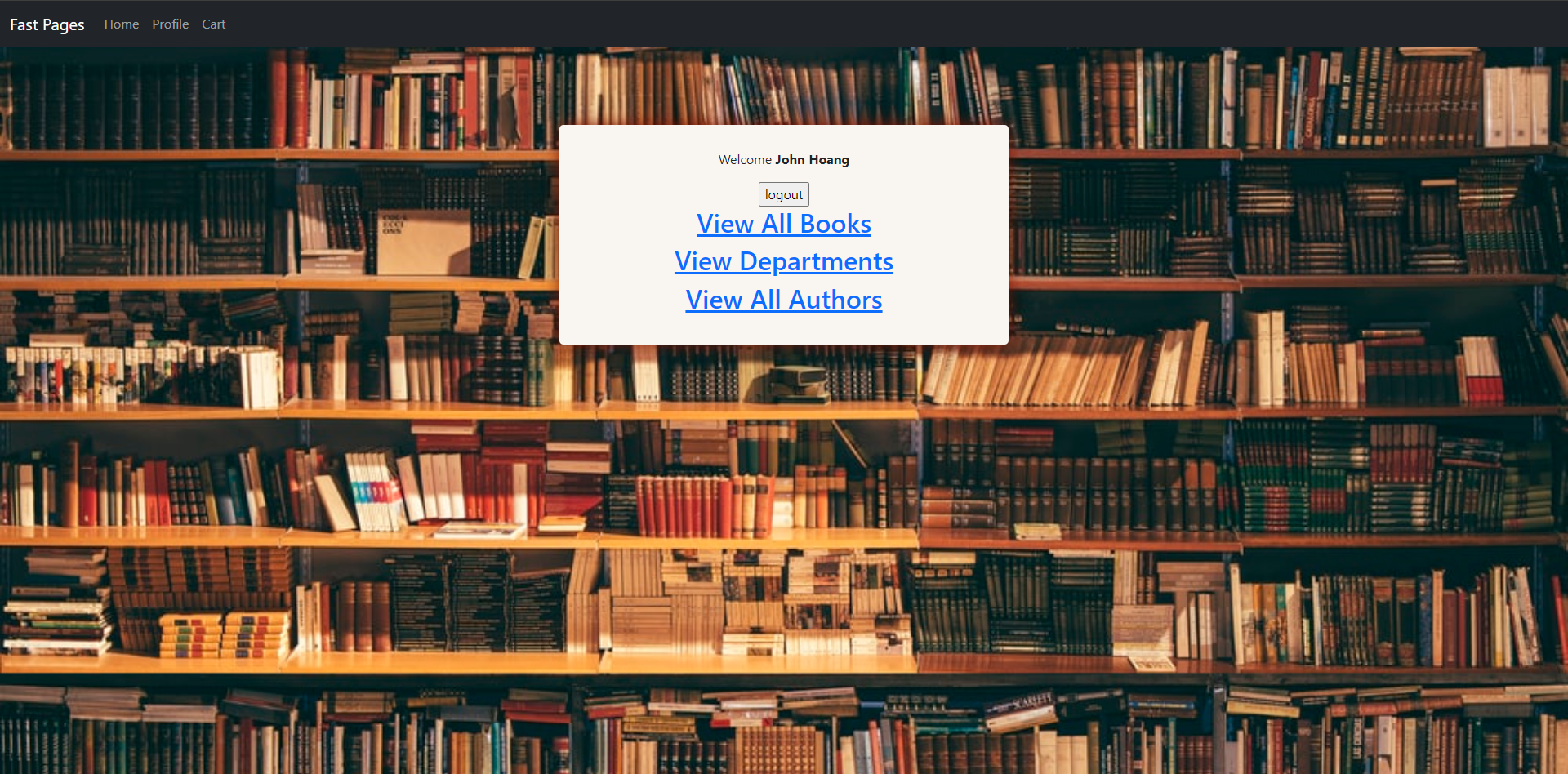

User Home Page:

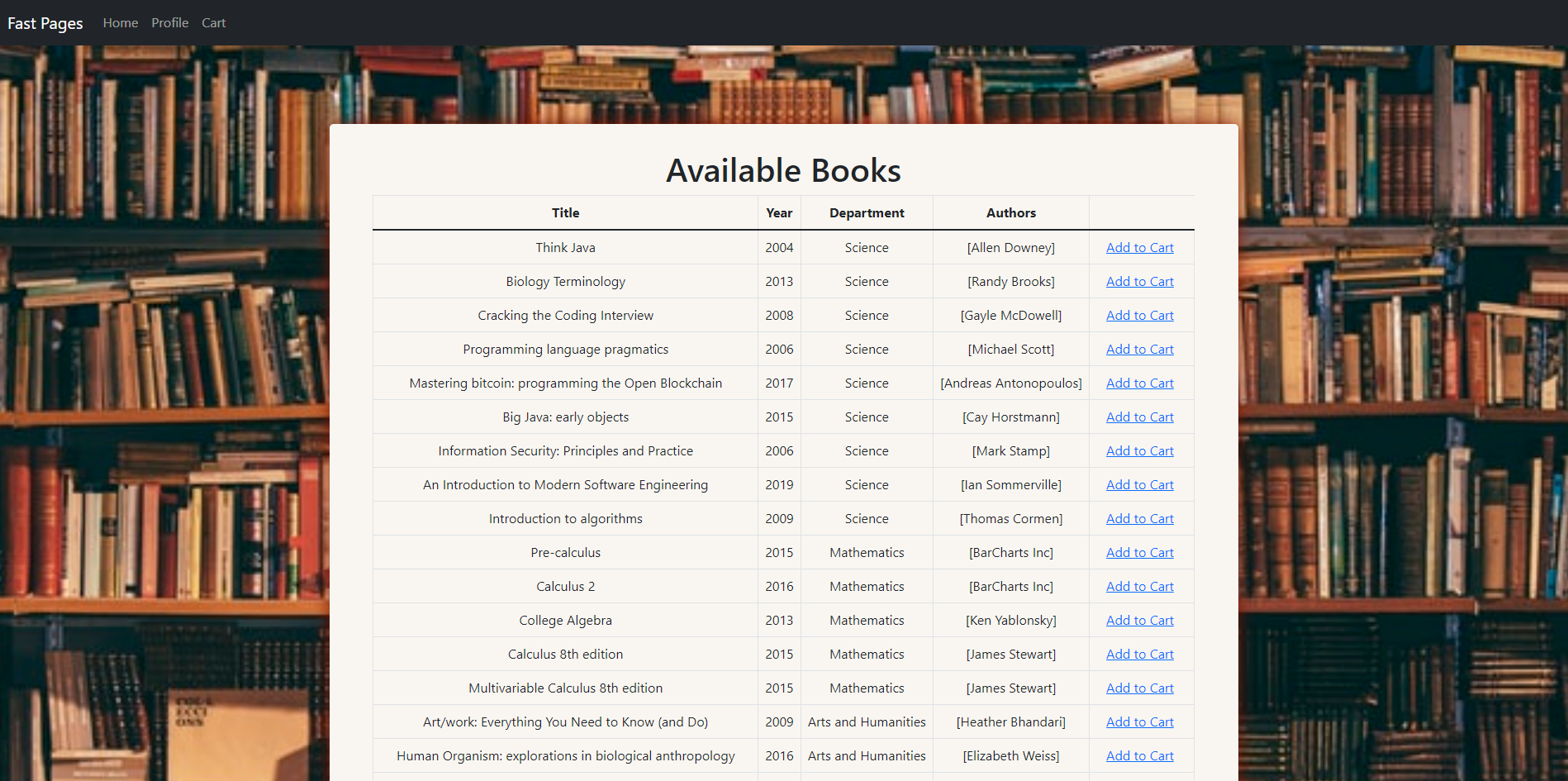

User Cataloge Page:
User checking out book Process:

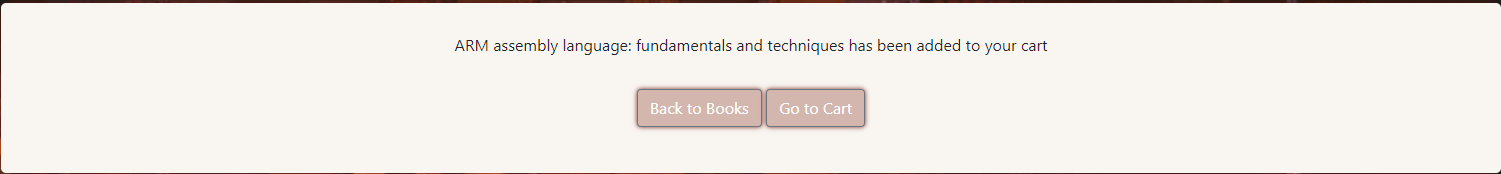

Checkout confirmation:

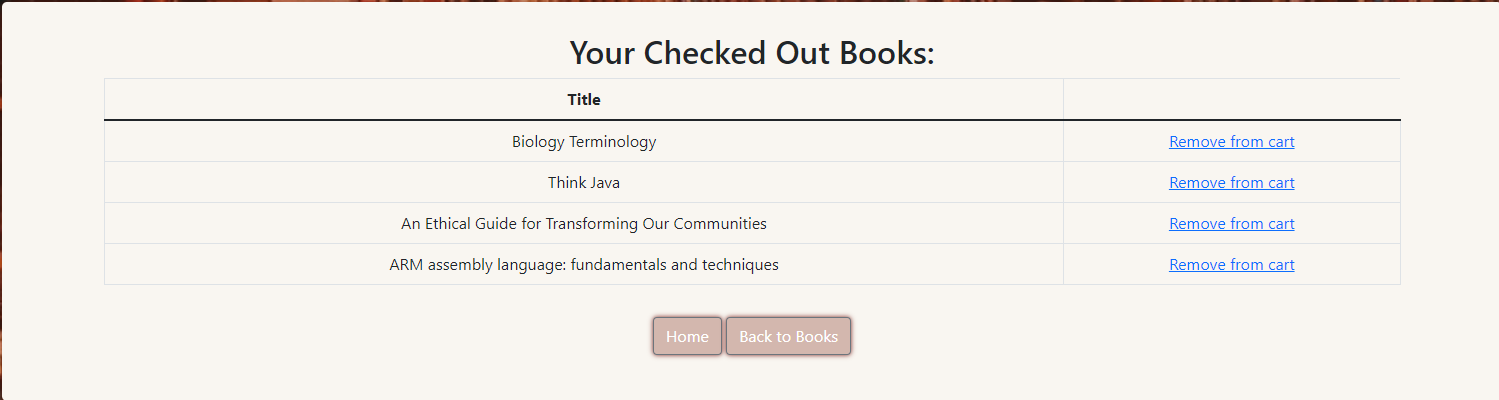

All Books Current User Has Checked Out:

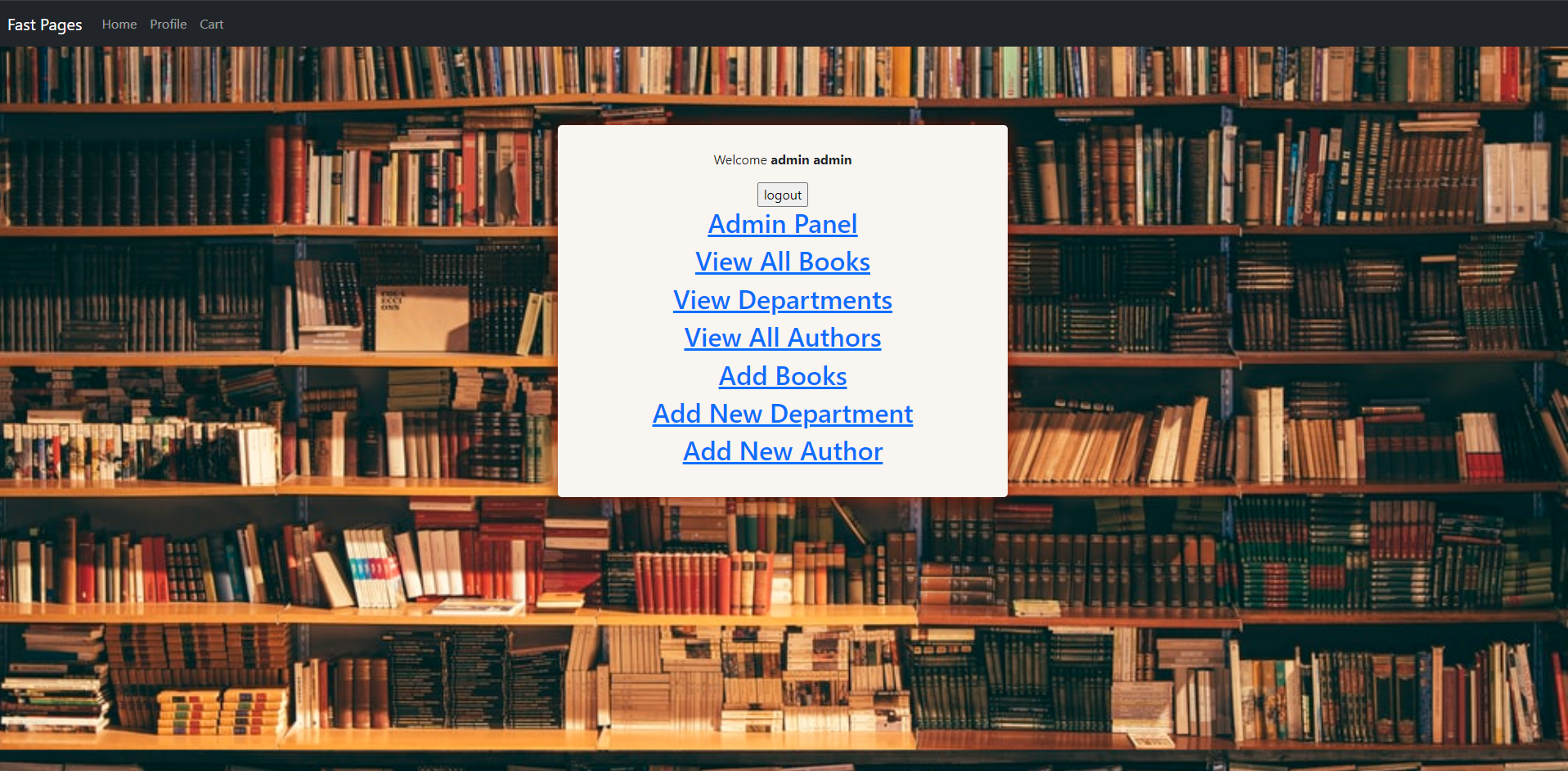

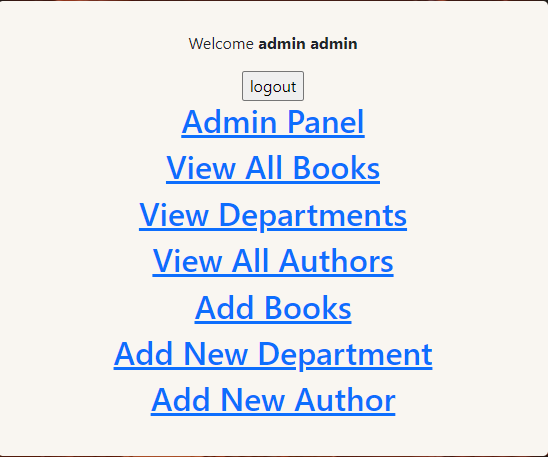

Admin Home Page:

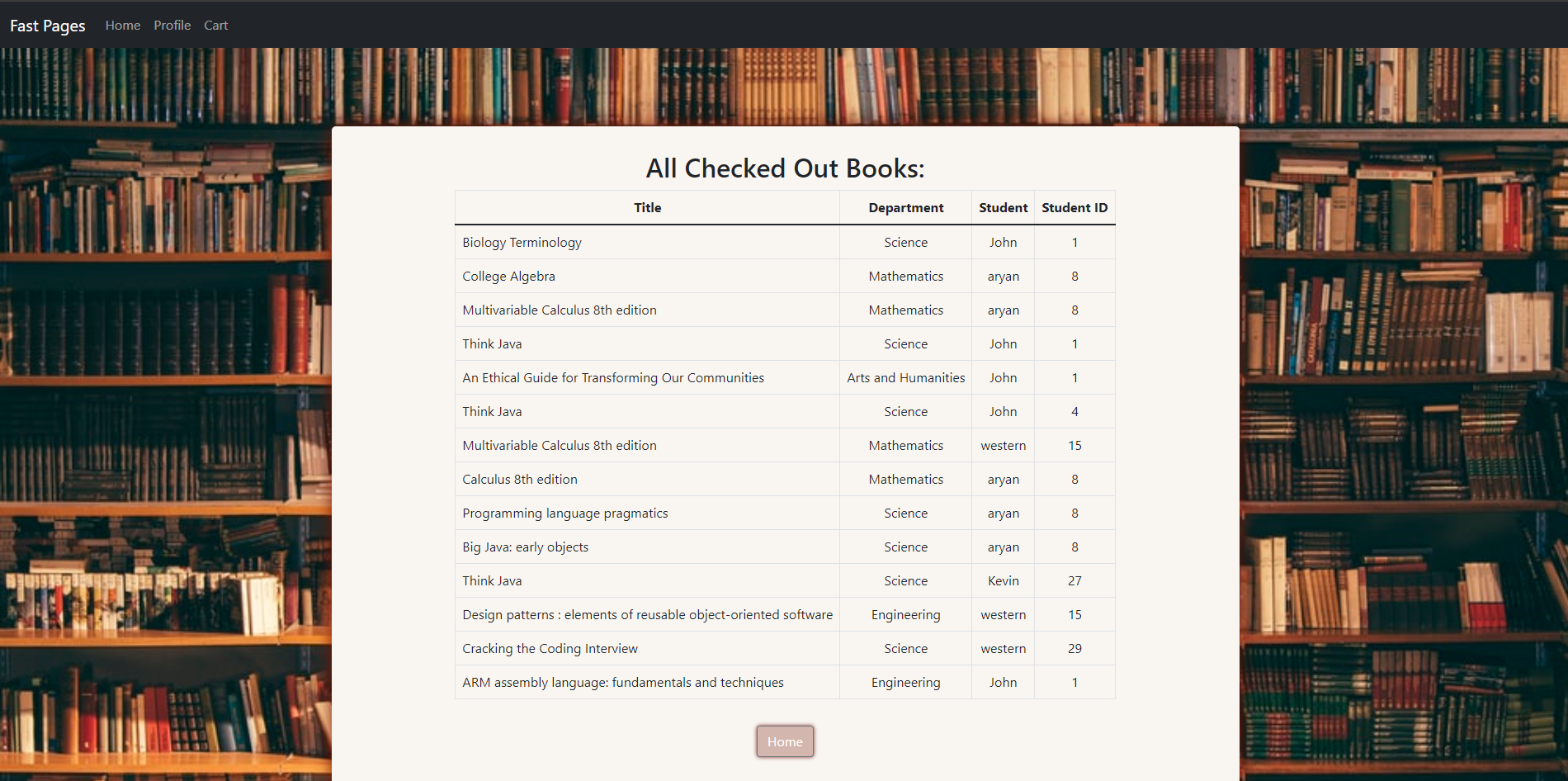

Admin Panel (Shows all books checked out):

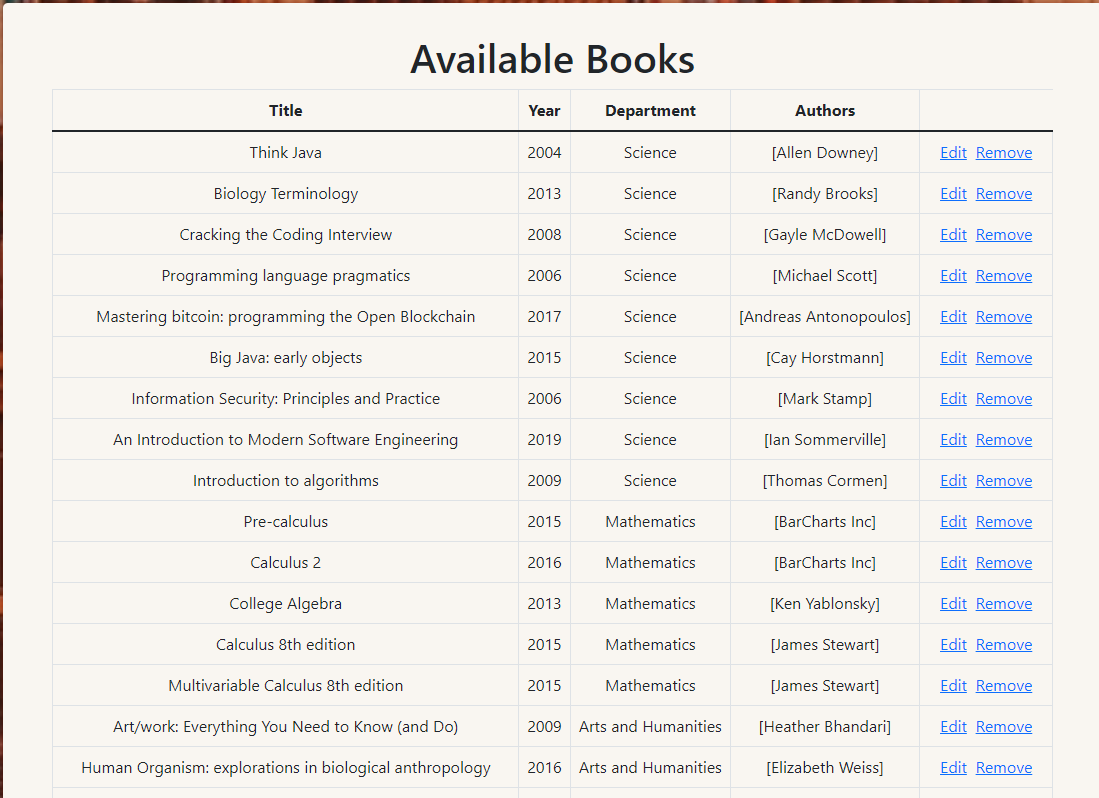

Admin Cataloge Page, Can edit/remove books:
Admin add new books/edit books Process:
Click Add Book:

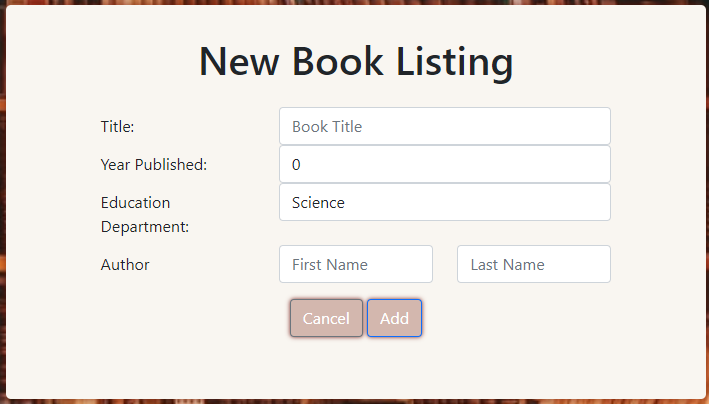

Add Info:

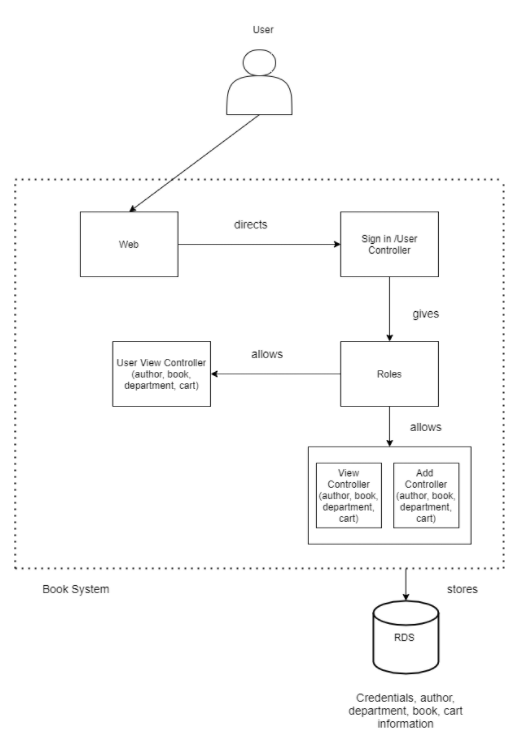

System Diagram:

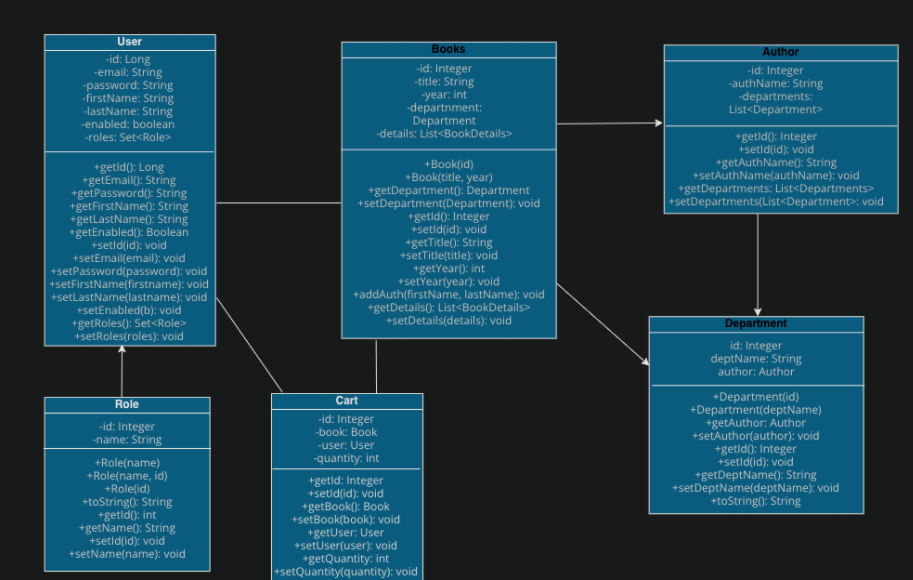

Class Diagram:

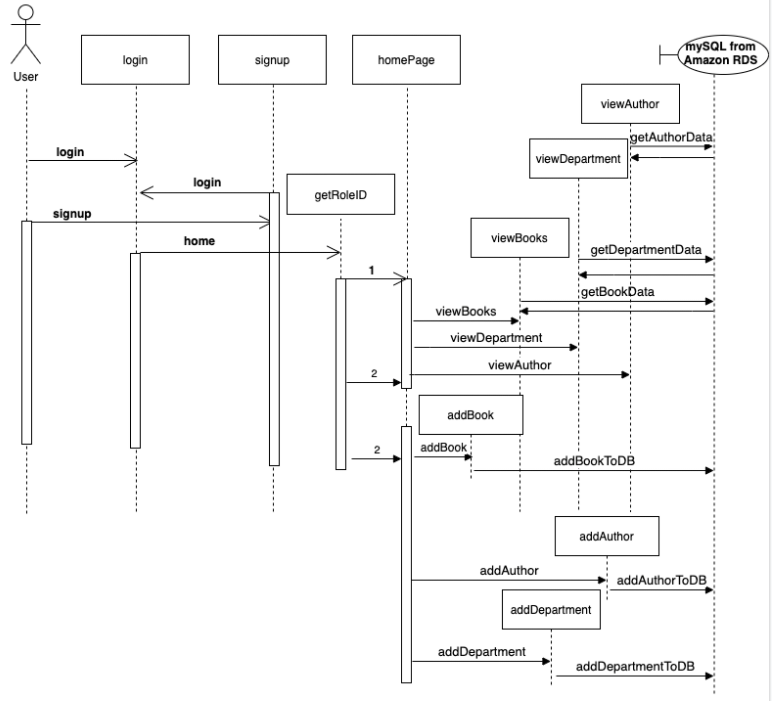

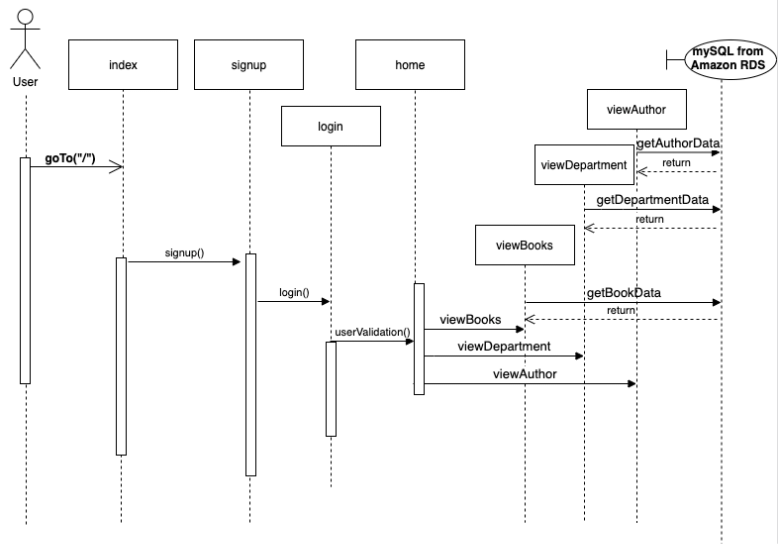

Sequence Diagram:
Interaction Diagram:

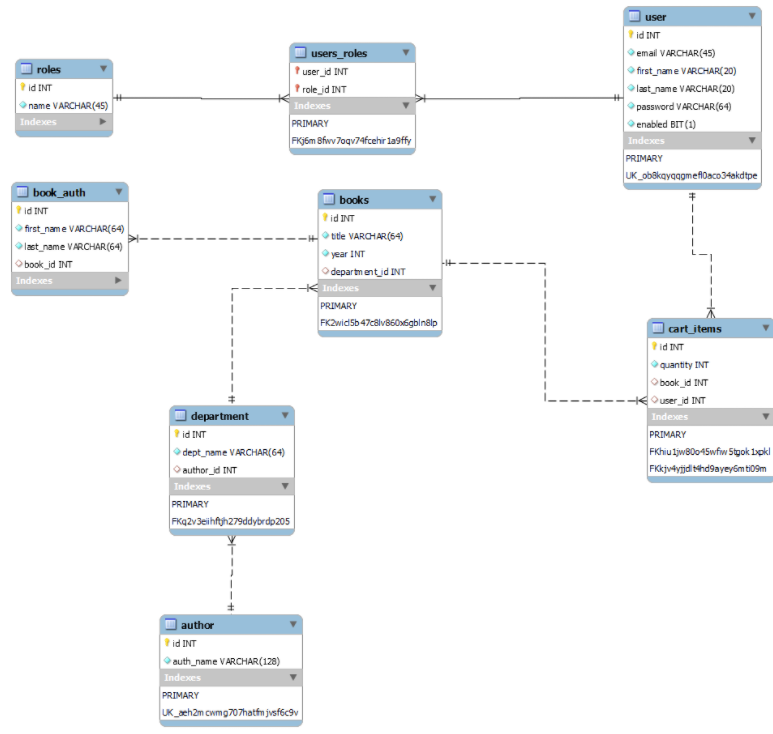

DB Schema Diagram:
