ESP32 FileServer Application for the Centronics Parallel Port
WORK IN PROGRESS!!
The idea is to connect a ESP32 to the Amiga Parallel Port to act as a filehub where you can do file transfers to/from your PC and then fetch those files using a file transfer protocol like Kermit or Zmodem on the Amiga ⇄ ESP32 side.
Hardware is here:
https://github.com/jbilander/Parallel_to_ESP32
This project currently uses these libraries:
Used library Version Path
SPI 1.0 C:\Users\Jorgen\AppData\Local\Arduino15\packages\esp32\hardware\esp32\1.0.6\libraries\SPI
SdFat 2.2.0 C:\Users\Jorgen\Documents\Arduino\libraries\SdFat
WiFi 1.0 C:\Users\Jorgen\AppData\Local\Arduino15\packages\esp32\hardware\esp32\1.0.6\libraries\WiFi
ESP32-FTP-Server 1.0.0 C:\Users\Jorgen\Documents\Arduino\libraries\ESP32-FTP-Server
ESP32-ParIO-Server 1.0.0 C:\Users\Jorgen\Documents\Arduino\libraries\ESP32-ParIO-Server
ESP Telnet 2.1.1 C:\Users\Jorgen\Documents\Arduino\libraries\ESPTelnet-2.1.1
https://github.com/greiman/SdFat/
https://github.com/jbilander/ESP32-FTP-Server
https://github.com/jbilander/ESP32-ParIO-Server
https://github.com/LennartHennigs/ESPTelnet
Status:
Currently it's possible to FTP with active-ftp to the ESP32 and store files on a FAT\FAT32\exFAT formatted MicroSD-card connected to the SPI-pins (MOSI 13, MISO 12, SCK 14, CS 4) on the ESP32.
It is also possible to list the content by connecting a USB-to-TTL-serial-UART-converter to Serial1 UART1 (TX1 pin 15, RX1 pin 36) or connect via Telnet from your PC and type the command ls or dir for listing folder and files, and exit for disconnecting.
esptool.exe command to flash the ESP32-DEVKIT-V1 board:
"C:\Users\Jorgen\AppData\Local\Arduino15\packages\esp32\tools\esptool_py\3.0.0/esptool.exe" --chip esp32 --port "COM4" --baud 115200 --before default_reset --after hard_reset write_flash -z --flash_mode dio --flash_freq 40m --flash_size detect 0xe000 "C:\Users\Jorgen\AppData\Local\Arduino15\packages\esp32\hardware\esp32\1.0.6/tools/partitions/boot_app0.bin" 0x1000 "C:\Users\Jorgen\AppData\Local\Arduino15\packages\esp32\hardware\esp32\1.0.6/tools/sdk/bin/bootloader_dio_40m.bin" 0x10000 "c:\Users\Jorgen\Projects\ESP32-FileServer\build/ESP32-FileServer.ino.bin" 0x8000 "c:\Users\Jorgen\Projects\ESP32-FileServer\build/ESP32-FileServer.ino.partitions.bin"
ToDo:
Implement a file transfer protocol for the ESP32-ParIO-Server that will run over the parallel port.
Kermit, Zmodem or HS/Link are candidate protocols.

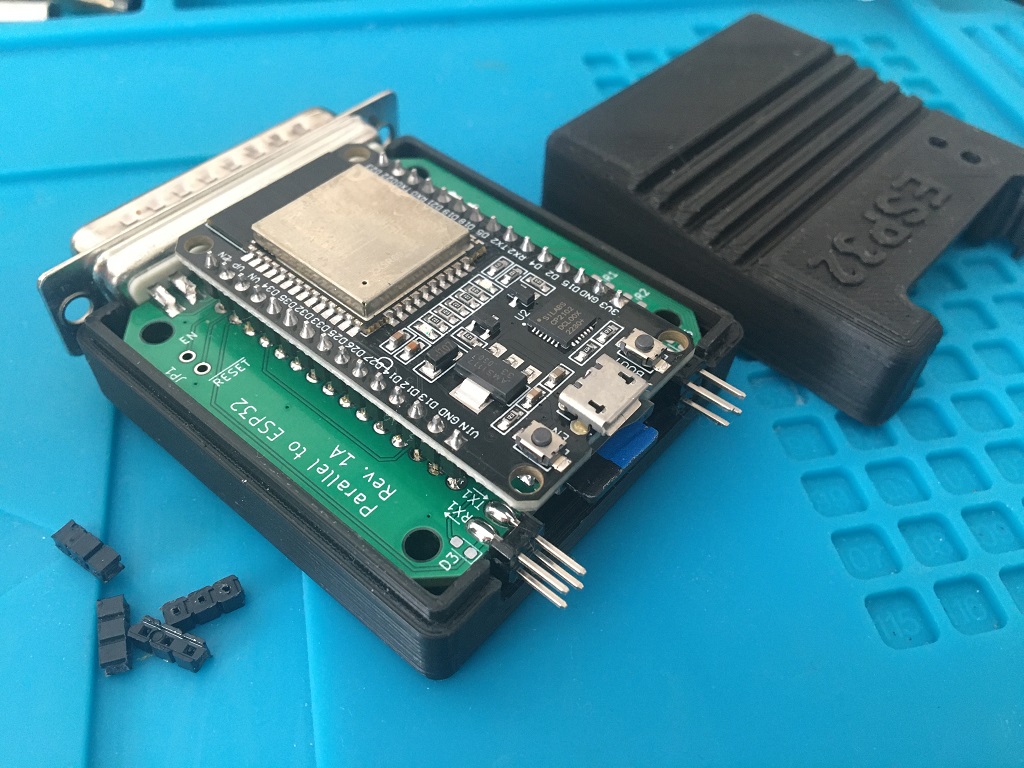

Module I use:
DOIT ESP32 DEVKIT V1
