This section summarizes the different crack segmentation methods I tested and their effectiveness depending on the type of crack (thick vs. thin).
I began by using a standard U-Net architecture for semantic segmentation, combined with basic OpenCV preprocessing steps such as grayscale conversion, Gaussian blur, and edge detection.
Observations:
- The model did not generalize well.
- Performance was poor on both small and large cracks, especially under varying lighting conditions.
- Noise and background textures negatively affected the segmentation accuracy.
Conclusion:
This approach lacked robustness and failed to reliably detect cracks of different sizes and contrasts.
To address the challenge of segmenting very fine, hairline cracks, I used OTSU's method for automatic thresholding based on image histograms.
Observations:
- Performed well on high-resolution images containing thin, low-contrast cracks.
- Worked best when the image had a clear foreground-background intensity separation.
- Required proper preprocessing to handle lighting variation.
Conclusion:
OTSU was effective for detecting subtle cracks that other models missed, but it struggled in inconsistent lighting conditions or when cracks were not clearly separated in grayscale intensity.
I also tested Sobel filters to extract edges based on image gradients (horizontal and vertical).
Observations:
- Performed reasonably well on images with clear crack boundaries.
- Limited performance in noisy or complex backgrounds.
- Often produced fragmented or incomplete crack outlines.
Conclusion:
Useful for initial edge detection but insufficient on its own for accurate segmentation.

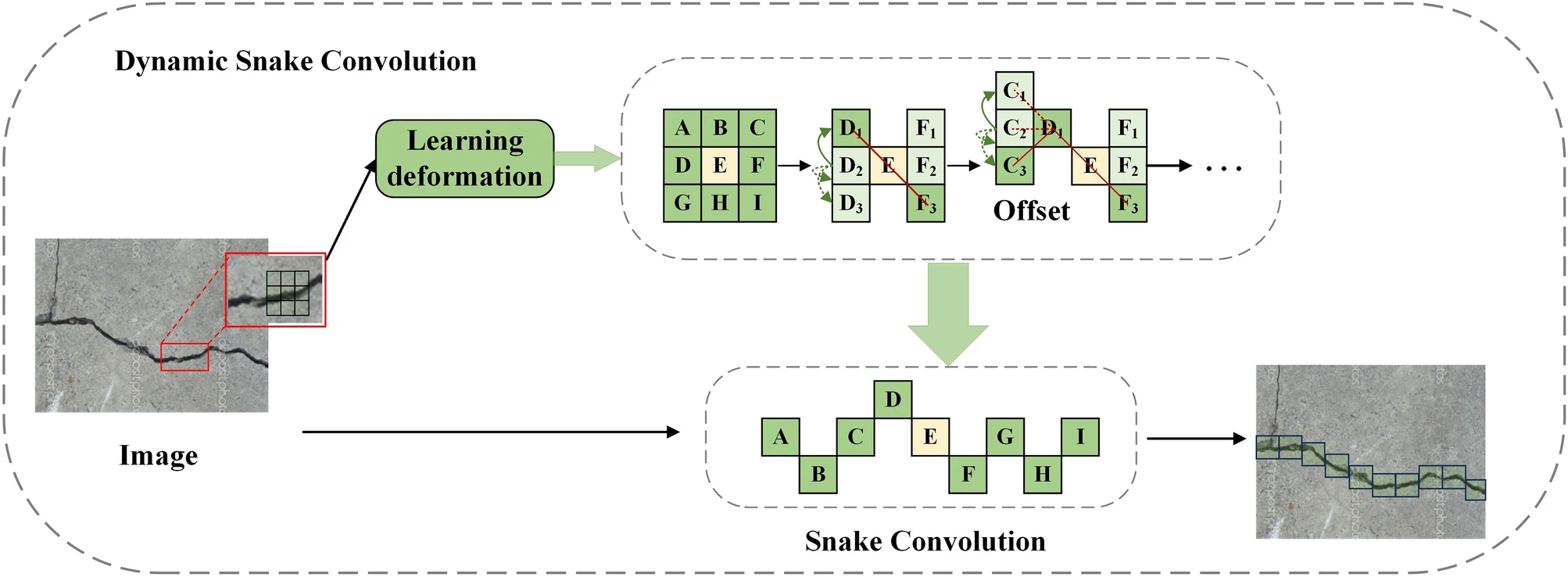

Dynamic Snake Convolution (DSC) is a technique designed to improve how convolutional neural networks (CNNs) detect and follow object boundaries — like cracks in concrete.
Unlike standard convolution, which uses fixed grid patterns (e.g., 3×3 kernels), DSC allows the sampling points of the convolution to move dynamically. This flexibility helps the network "adapt" to curved or irregular shapes in the image, similar to how a snake moves along a path.
DSC is especially useful in tasks like crack detection, edge segmentation, and irregular object boundaries, where traditional kernels might miss or blur thin or curved details.
| Method | Best for | Performance | Notes |
|---|---|---|---|
| U-Net + OpenCV | General segmentation | Low | Sensitive to noise and lighting |
| OTSU Thresholding | Thin/hairline cracks | Medium-High | Requires good contrast/preprocessing |
| Sobel Filtering | Basic edge detection | Low-Medium | Not reliable in complex images |
- Explore other deeplearning models (SAM,...)
- Improve preprocessing to normalize lighting conditions.
- Test newer segmentation models for better generalization.
