Added "How to preserve RAM" #418

New issue

Have a question about this project? Sign up for a free GitHub account to open an issue and contact its maintainers and the community.

Sign up for GitHub

By clicking “Sign up for GitHub”, you agree to our terms of service and privacy statement. We’ll occasionally send you account related emails.

Already on GitHub? Sign in to your account

Jump to bottom
Merged
merged 7 commits into from
Nov 19, 2021
Merged

Added "How to preserve RAM" #418

merged 7 commits into from
Nov 19, 2021

Conversation

@MOj0
Copy link
Contributor

@MOj0 MOj0 commented Nov 9, 2021

No description provided.

themarpe
themarpe requested changes Nov 9, 2021
View reviewed changes
SzabolcsGergely
SzabolcsGergely previously requested changes Nov 9, 2021
View reviewed changes
@Erol444
Copy link
Contributor

Erol444 commented Nov 9, 2021

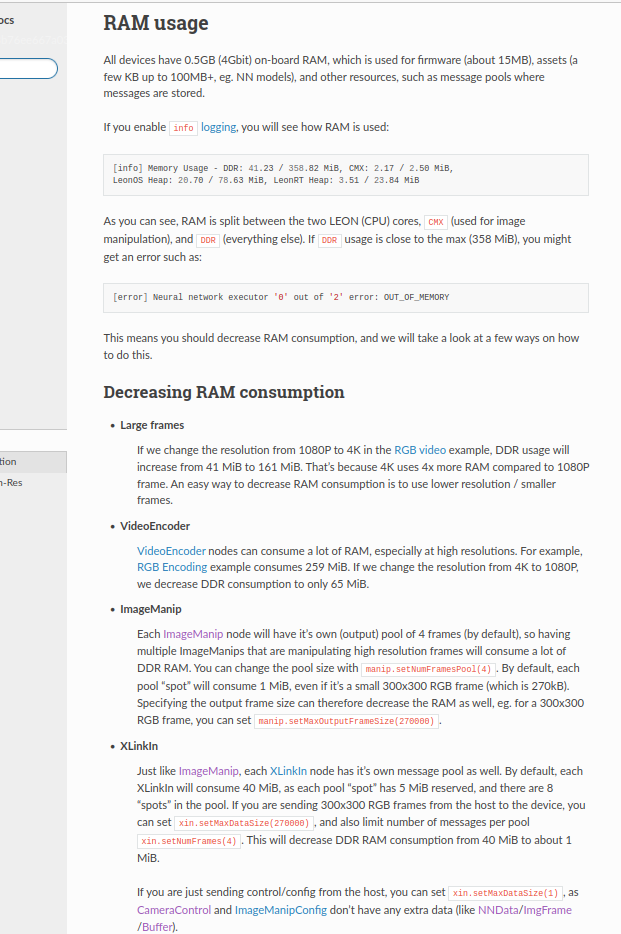

XLinkIn / ImageManip are just part of the RAM consumers. I believe VideoEncoder consumes a lot of RAM, please try it out (using debugging to view RAM), measure the amount of RAM 1 VideoEncoder uses at eg. 1080P, 4k... and add results here, under eg. VideoEncoder RAM usage sub-header. You could also mention that all devices have 0.5GB (4Gbit) RAM (@Luxonis-David to cross-check me here), which is used for firmware (about 15MB), assets (eg Neural networks, which can be a few kb to 100MB+), and then the rest of it is used by resources (node pools where messages are stored). Maybe Martin can expand on this.

@Luxonis-David
Copy link

Luxonis-David commented Nov 10, 2021

@Erol444 correct

@Erol444
Copy link
Contributor

Erol444 commented Nov 19, 2021 •
edited
Loading

I will be finishing this PR, as Mojo doesn't have much time. New version below. Thoughts @themarpe / @szabi-luxonis ?

themarpe
themarpe approved these changes Nov 19, 2021
View reviewed changes
Copy link
Collaborator

@themarpe themarpe left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

A couple of changes, LGTM from my perspective

@Erol444 Erol444 self-requested a review November 19, 2021 16:47
Erol444
Erol444 approved these changes Nov 19, 2021
View reviewed changes
docs/source/tutorials/preserve_ram.rst Outdated
device.setLogLevel(dai.LogLevel.DEBUG)
device.setLogOutputLevel(dai.LogLevel.DEBUG)

There might be some memory issues when creating a larger number (around 10) of :ref:`ImageManip`, :ref:`XLinkIn` and other nodes.
Copy link
Contributor

@Erol444 Erol444 Nov 15, 2021

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

having 10 imagemanip won't cause memory issues if frames are small - so I would leave this sentence out.

@Erol444 Erol444 merged commit 595c57a into main Nov 19, 2021
@Erol444 Erol444 deleted the update-python-docs-pages branch November 19, 2021 16:47
