Catalog Rule & Selected Categories with level > 3

[SKovbel]

Preconditions

1. M 2.1,4

Steps to reproduce

1. Open form for create new Catalog Rule
2. In Condition Select^ Product Attribute -> Category
3. Open Categories Chooser
4. Select one Category with level = 1, 2 or 3
5. Select one Category with level > 3 (4, 5, ...)
6. Click ok & close Category Chooser

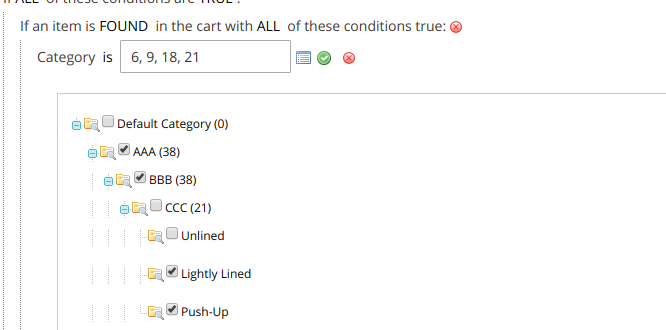

7. Open again Category Chooser and see
   that only categories with level <= 3 are selected
   and category with level > 3 without selection

Expected result

1. All selected priviosly categories must be selected, with level > 3

Actual result

1. Categories with level > 3 are not selected

PS

I used M2.1.,4, but checked 2.3 version and this bug is still present.
Categories with level <= 3 are generated with page with level > 3 with ajax request
For myself I fixed in file Catalog/view/adminhtml/templates/catalog/category/checkboxes/tree.phtml
2. Added selected param to TreeLoader
3. Change Controller from CatalogRule/Controller/Adminhtml/Promo/Widget/CategoriesJson.php
to Catalog/Controller/Adminhtml/Category/Widget/CategoriesJson.php
which can work with selected param
3. After that everything is working

ps
diff

git diff magento/module-catalog/view/adminhtml/templates/catalog/category/checkboxes/tree.phtml
diff --git a/magento/module-catalog/view/adminhtml/templates/catalog/category/checkboxes/tree.phtml b/magento/module-catalog/view/adminhtml/templates/catalog/category/checkboxes/tree.phtml
index b1f81976..af1b9eb1 100644
--- a/magento/module-catalog/view/adminhtml/templates/catalog/category/checkboxes/tree.phtml
+++ b/magento/module-catalog/view/adminhtml/templates/catalog/category/checkboxes/tree.phtml
@@ -73,7 +73,7 @@ Ext.extend(Ext.tree.TreePanel.Enhanced, Ext.tree.TreePanel, {
 jQuery(function()
 {
     var categoryLoader = new Ext.tree.TreeLoader({
-       dataUrl: '<?php /* @escapeNotVerified */ echo $block->getLoadTreeUrl() ?>'
+       dataUrl: '<?php /* @escapeNotVerified */ echo $block->getUrl('catalog/category_widget/categoriesJson') ?>'
     });

     categoryLoader.createNode = function(config) {
@@ -146,6 +146,7 @@ jQuery(function()

     categoryLoader.on("beforeload", function(treeLoader, node) {
         treeLoader.baseParams.id = node.attributes.id;
+        treeLoader.baseParams.selected = <?php /* @escapeNotVerified */ echo $block->getJsFormObject() ?>.updateElement.value;
     });

     categoryLoader.on("load", function(treeLoader, node, config) {

[magento-engcom-team]

Hi @SKovbel. Thank you for your report.
To help us process this issue please make sure that you provided the following information:

• Summary of the issue
• Information on your environment
• Steps to reproduce
• Expected and actual results

Please make sure that the issue is reproducible on the vanilla Magento instance following Steps to reproduce. To deploy vanilla Magento instance on our environment, please, add a comment to the issue:

@magento-engcom-team give me {$VERSION} instance

where {$VERSION} is version tags (starting from 2.2.0+) or develop branches (2.2-develop +).
For more details, please, review the Magento Contributor Assistant documentation.

@SKovbel do you confirm that you was able to reproduce the issue on vanilla Magento instance following steps to reproduce?

• yes
• no

[engcom-backlog-nickolas]

Hello @SKovbel, thank you for your report.
We've acknowledged the issue and added to our backlog.

[Bravarg]

Preparing PR
