Fixes

[mottosso]

Namely:

1. Errors are now thrown when you e.g. Enum(fields=["A", "B"]) because fields isn't an argument that exists. Still wondering whether we should just use regular function arguments here, would probably help IDEs highlight available arguments etc.
2. Enum can now be reset properly.

[davidlatwe]

Opps, version num fallback to 0.5.5, should bump back to 0.5.7 or 0.5.6. :P

[mottosso]

Nice catch, thanks

[mottosso]

Hope we didn't lose any other changes? :O

[davidlatwe]

TypeError raised if kwargs["items"] is a generator :/

TypeError: 'generator' object is not subscriptable

But shouldn't make it to list here as well, the current use case is to run the generator on create.
🤔

[davidlatwe]

Oh, change to kwargs.pop("default", 0) should work ? since looks like Enum is now all index-based ?

[davidlatwe]

Can confirm changing the line

kwargs["default"] = kwargs.pop("default", kwargs["items"][0])

into

kwargs["default"] = kwargs.pop("default", 0)

works. :D

[mottosso]

Nice, this should work nicely with it also being able to take an integer. Because otherwise, we would have needed to fetch the first string-item from that "items" list.

[davidlatwe]

Integer is broken as well XD

> Integer("foo", min=1)
TypeError: Integer() got an unexpected keyword argument 'min' #

[mottosso]

I'll throw in restyling here as well.

[mottosso]

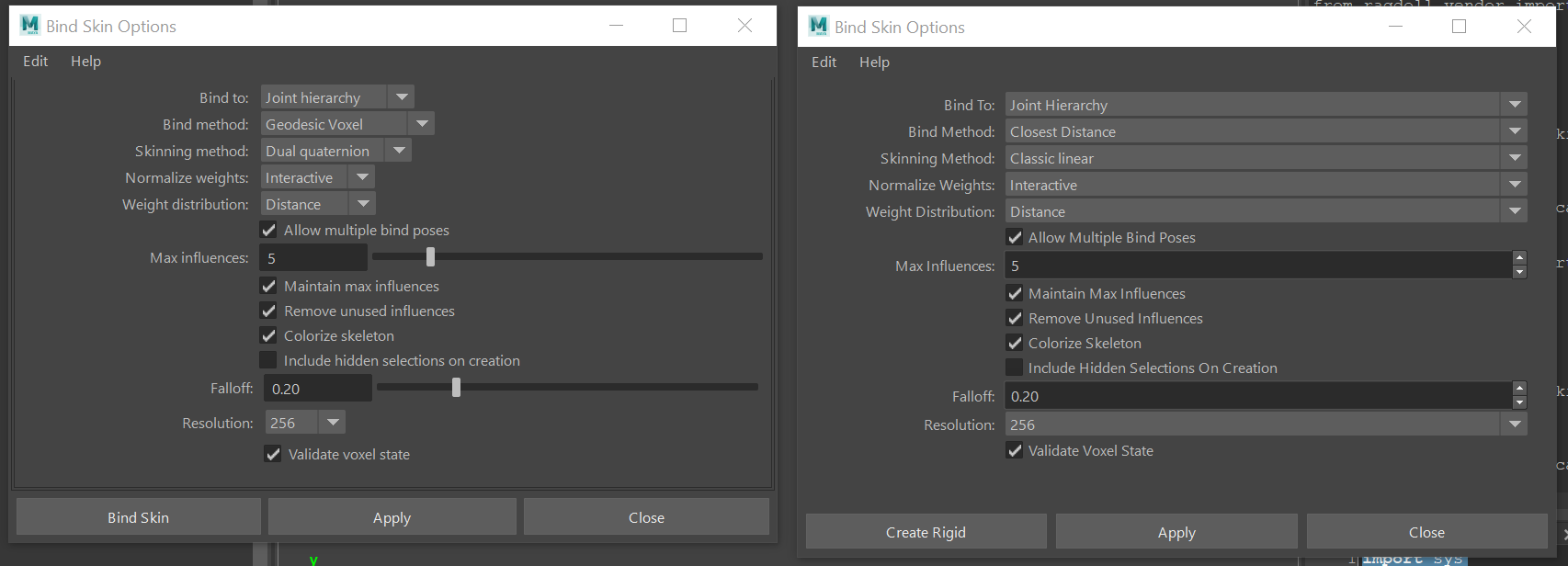

For clarity, left-hand side is native Maya and right-hand side is qargparse.

class Options(QtWidgets.QMainWindow):
    def __init__(self, title, parent=None):
        super(Options, self).__init__(parent)
        self.setWindowTitle(title)
        self.setAttribute(QtCore.Qt.WA_DeleteOnClose)
        self.setMinimumWidth(px(550))
        self.setMinimumHeight(px(370))

        buttons = [
            QtWidgets.QPushButton("Create Rigid"),
            QtWidgets.QPushButton("Apply"),
            QtWidgets.QPushButton("Close"),
        ]

        central = QtWidgets.QWidget()
        # central = QtWidgets.QGroupBox()
        header = self.menuBar()
        # body = QtWidgets.QWidget()
        footer = QtWidgets.QWidget()

        edit = header.addMenu("&Edit")
        hlp = header.addMenu("&Help")

        edit.addAction("Save Settings")
        edit.addAction("Reset Settings")
        hlp.addAction("Help on Create Rigid Options")

        layout = QtWidgets.QHBoxLayout(footer)
        layout.setContentsMargins(0, 0, 0, 0)
        layout.addWidget(buttons[0])
        layout.addWidget(buttons[1])
        layout.addWidget(buttons[2])

        args = [
            qargparse.Enum("Bind to", items=["Joint Hierarchy", "Selected Joints", "Object Hierarchy"]),
            qargparse.Enum("Bind method", items=["Closest Distance", "Closest in hierarchy", "Geodesic voxel"]),
            qargparse.Enum("Skinning method", items=["Classic linear", "Dual quaternion"]),
            qargparse.Enum("Normalize weights", items=["Interactive", "Post"]),
            qargparse.Enum("Weight distribution", items=["Distance", "Neighbors"]),
            qargparse.Boolean("Allow multiple bind poses", default=True),
            qargparse.Integer("Max influences", default=5, min=1, max=30),
            qargparse.Boolean("Maintain max influences", default=True),
            qargparse.Boolean("Remove unused influences", default=True),
            qargparse.Boolean("Colorize skeleton", default=True),
            qargparse.Boolean("Include hidden selections on creation", default=False),
            qargparse.Float("Falloff", min=0.0, max=1.0, default=0.2),
            qargparse.Enum("Resolution", items=["1024", "512", "256"], default="256"),
            qargparse.Boolean("Validate voxel state", default=True),
        ]

        parser = qargparse.QArgumentParser(args)

        layout = QtWidgets.QVBoxLayout(central)
        layout.addWidget(parser)
        layout.addWidget(footer)

        self.setCentralWidget(central)

opt = Options("Bind Skin Options")
opt.show()

I was going to collapse the comboboxes, like they are in Maya. But now I'm not so sure. In bulk like this, it looks quite nice. I do want those sliders though, they are handy.

[davidlatwe]

In bulk like this, it looks quite nice.

Like things all aligned together as well

[mottosso]

Added a separate examples file.

$ python examples.py

There's some issue with PySide2 under Maya 2018, the blurry one is at 1.0x scale, the others at 1.5x scale, where 2018 should minimize the width but isn't. Isn't respecting the QSizePolicy it seems like. Not sure what that's about. :/

Either way, I made it an option to either fill or not fill the enum boxes, can't make up my mind and expect others will want the choice.

QArgumentParser(style={"comboboxFillWidth": True})

I also thought more about whether to include the : with or without spaces etc. but think that the user could simply add that to their own labels if they want that, which also gives them the power to control how much spacing etc.

qargparse.Enum("No spacing")
qargparse.Enum("Spacing: ")
qargparse.Enum("Special spacing  :  ")
# etc..

[mottosso]

Added some nice sliders, and fixed the issue with number boxes not working with decimal numbers.

[mottosso]

You can now add an icon="/path/to/file.png" on the UI, for some extra flare.

For example.

There's also a separation made between default and "initial" value, the default being what you reset to when pressing the reset button, initial being the initial value put into the argument on launch. You would use that to e.g. store initial values on disk, whilst keeping the reset button and the original default value intact.

Boolean("alive", default=True, initial=False)

• Docs

[davidlatwe]

You can now add an icon="/path/to/file.png" on the UI, for some extra flare.

Awesome !

There's also a separation made between default and "initial" value

Does that means this mottosso/allzpark#49 can be resolved as well ?

[mottosso]

Oo, yes, yes it would.

[mottosso]

This works well for me so far, think it's ready to merge.
