Scroll Bar present on form nodes

[JamiePhonic]

I have added a form node to a flow to allow users to enter data into a flow, however when viewed on the dashboard, a scroll bar is shown, but only for the form element. (see image below)

Environment information:

Node-RED-Dashboard version: 2.9.6
Node-RED version: 0.18.7
node.js version: 8.11.3
npm version: 6.3.0
Platform/OS: Ubuntu Server 16.04.3
Browser: Firefox & Chrome on Linux mint 19 and windows 10 1803

[dceejay]

Hi - sorry for delay (been on vacation) - can you share the flow you have that shows this. thanks

[JamiePhonic]

This issue is present on any and all flows i create, even a simple "form --> debug" flow.
I can post the flow anyway, however I'll need some time to sanitize it first.

[dceejay]

OK just create a simple one then ;-)

[JamiePhonic]

Here's a simple flow:

[{"id":"2ca82649.c6e6ea","type":"tab","label":"Flow 1","disabled":false,"info":""},{"id":"b8e3664e.5b1c2","type":"ui_form","z":"2ca82649.c6e6ea","name":"","label":"Data","group":"63dfe2d2.0dcc2c","order":0,"width":0,"height":0,"options":[{"label":"Field 1","value":"f1","type":"text","required":true},{"label":"Field 2","value":"f2","type":"text","required":true}],"formValue":{"f1":"","f2":""},"payload":"","submit":"submit","cancel":"cancel","topic":"","x":240,"y":220,"wires":[["8cdbf083.140568","9a8f0b08.1246d8"]]},{"id":"8cdbf083.140568","type":"ui_text","z":"2ca82649.c6e6ea","group":"63dfe2d2.0dcc2c","order":0,"width":0,"height":0,"name":"","label":"text","format":"{{msg.payload.f1}}","layout":"row-spread","x":410,"y":180,"wires":[]},{"id":"9a8f0b08.1246d8","type":"ui_text","z":"2ca82649.c6e6ea","group":"63dfe2d2.0dcc2c","order":0,"width":0,"height":0,"name":"","label":"text","format":"{{msg.payload.f2}}","layout":"row-spread","x":410,"y":240,"wires":[]},{"id":"63dfe2d2.0dcc2c","type":"ui_group","z":"","name":"Test","tab":"3aba05d9.a9992a","order":1,"disp":true,"width":"6","collapse":false},{"id":"3aba05d9.a9992a","type":"ui_tab","name":"Tab 7","icon":"dashboard","order":7}]

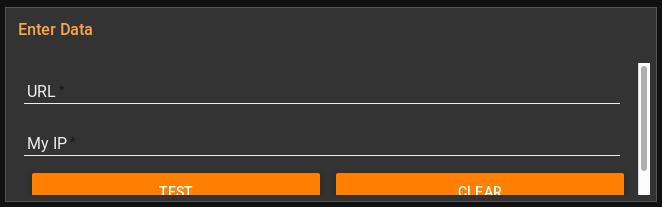

and the resultant display on the dashboard:

[dceejay]

hmm - odd - not seeing that here - How do you have the Dashboard Site settings?

[JamiePhonic]

That seems to be the issue.
I have my 1x1 widget size set to 40 to give me a tighter grouping on some guages i have on another flow. setting it back to 48 gets rid of the scroll bar on the form widget

[dceejay]

Aha - ok will have a look to see if we can improve that.
