Files with .e suffix do not display properly in OpenGrok UI #2577
Description
Another team at my company has been using OpenGrok with our software for almost 2 years. They are using release 0.13 and are not having issues with the display of .e files. But their server is not reliable and is down frequently, so I installed the latest version (1.1-rc70 and then 1.1-rc76) on a different machine. It parses the .e files properly and gives the same search result line numbers as the older version. However, when the .e file is displayed on the screen, it sometimes doesn't detect end of line, and sometimes it skips part of the file, so the line numbers it gave don't resolve properly.
I will attach photos of the same code being shown in both versions of OpenGrok.

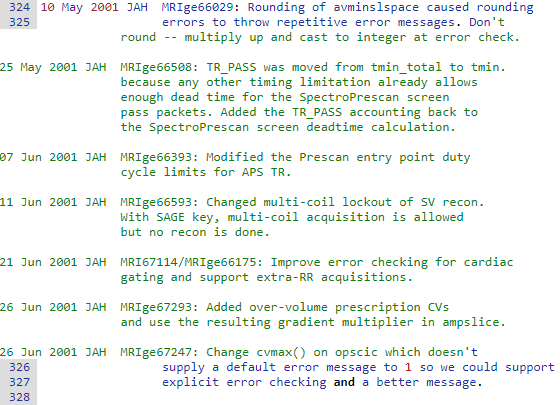

Here is the file incorrectly rendered on a server running 1.1-rc76

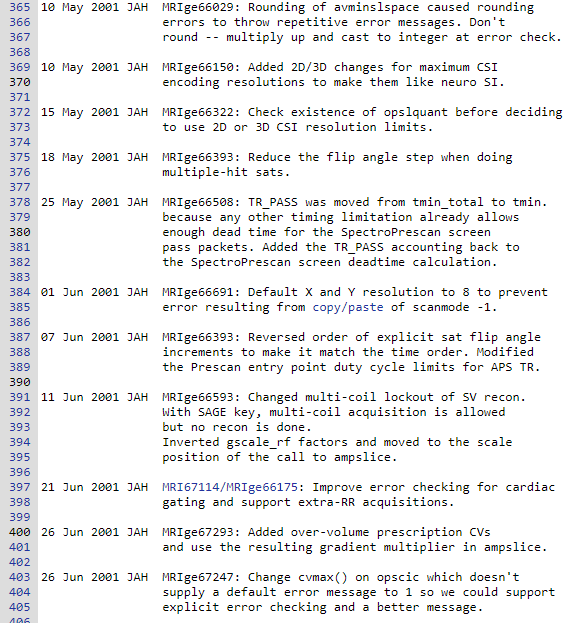

Here is the file correctly rendered on a server running 0.13.
I used a Hex editor to look at the files in question. I don't think the file type has anything to do with it. The places in the file where the UI gets messed up have double line feeds (0A 0A).
Here is a section of the code from what is displayed in the images. Line 00004B8C shows the first double line feed where the display starts to get messed up.
00004A9C 61 6E 73 21 20 54 68 69 73 20 61 6C 73 6F 20 63 61 75 73 65 ans! This also cause
00004AB0 64 20 54 61 72 64 69 73 20 63 72 61 73 68 65 73 2E 0A 0A 31 d Tardis crashes...1
00004AC4 30 20 4D 61 79 20 32 30 30 31 20 4A 41 48 20 20 4D 52 49 67 0 May 2001 JAH MRIg
00004AD8 65 36 36 30 32 39 3A 20 52 6F 75 6E 64 69 6E 67 20 6F 66 20 e66029: Rounding of
00004AEC 61 76 6D 69 6E 73 6C 73 70 61 63 65 20 63 61 75 73 65 64 20 avminslspace caused
00004B00 72 6F 75 6E 64 69 6E 67 0A 20 20 20 20 20 20 20 20 20 20 20 rounding.
00004B14 20 20 20 20 20 20 65 72 72 6F 72 73 20 74 6F 20 74 68 72 6F errors to thro
00004B28 77 20 72 65 70 65 74 69 74 69 76 65 20 65 72 72 6F 72 20 6D w repetitive error m
00004B3C 65 73 73 61 67 65 73 2E 20 44 6F 6E 27 74 0A 20 20 20 20 20 essages. Don't.
00004B50 20 20 20 20 20 20 20 20 20 20 20 20 72 6F 75 6E 64 20 2D 2D round --
00004B64 20 6D 75 6C 74 69 70 6C 79 20 75 70 20 61 6E 64 20 63 61 73 multiply up and cas
00004B78 74 20 74 6F 20 69 6E 74 65 67 65 72 20 61 74 20 65 72 72 6F t to integer at erro
00004B8C 72 20 63 68 65 63 6B 2E 0A 0A 31 30 20 4D 61 79 20 32 30 30 r check...10 May 200
00004BA0 31 20 4A 41 48 20 20 4D 52 49 67 65 36 36 31 35 30 3A 20 41 1 JAH MRIge66150: A
00004BB4 64 64 65 64 20 32 44 2F 33 44 20 63 68 61 6E 67 65 73 20 66 dded 2D/3D changes f
00004BC8 6F 72 20 6D 61 78 69 6D 75 6D 20 43 53 49 0A 20 20 20 20 20 or maximum CSI.
00004BDC 20 20 20 20 20 20 20 20 20 20 20 20 65 6E 63 6F 64 69 6E 67 encoding
00004BF0 20 72 65 73 6F 6C 75 74 69 6F 6E 73 20 74 6F 20 6D 61 6B 65 resolutions to make
00004C04 20 74 68 65 6D 20 6C 69 6B 65 20 6E 65 75 72 6F 20 53 49 2E them like neuro SI.
00004C18 0A 0A 31 35 20 4D 61 79 20 32 30 30 31 20 4A 41 48 20 20 4D ..15 May 2001 JAH M
00004C2C 52 49 67 65 36 36 33 32 32 3A 20 43 68 65 63 6B 20 65 78 69 RIge66322: Check exi
00004C40 73 74 65 6E 63 65 20 6F 66 20 6F 70 73 6C 71 75 61 6E 74 20 stence of opslquant
00004C54 62 65 66 6F 72 65 20 64 65 63 69 64 69 6E 67 0A 20 20 20 20 before deciding.
00004C68 20 20 20 20 20 20 20 20 20 20 20 20 20 74 6F 20 75 73 65 20 to use
00004C7C 32 44 20 6F 72 20 33 44 20 43 53 49 20 72 65 73 6F 6C 75 74 2D or 3D CSI resolut
00004C90 69 6F 6E 20 6C 69 6D 69 74 73 2E 0A 0A 31 38 20 4D 61 79 20 ion limits...18 May
00004CA4 32 30 30 31 20 4A 41 48 20 20 4D 52 49 67 65 36 36 33 39 33 2001 JAH MRIge66393
00004CB8 3A 20 52 65 64 75 63 65 20 74 68 65 20 66 6C 69 70 20 61 6E : Reduce the flip an
00004CCC 67 6C 65 20 73 74 65 70 20 77 68 65 6E 20 64 6F 69 6E 67 0A gle step when doing.
00004CE0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 6D 75 6C mul
00004CF4 74 69 70 6C 65 2D 68 69 74 20 73 61 74 73 2E 0A 0A 32 35 20 tiple-hit sats...25
00004D08 4D 61 79 20 32 30 30 31 20 4A 41 48 20 20 4D 52 49 67 65 36 May 2001 JAH MRIge6
00004D1C 36 35 30 38 3A 20 54 52 5F 50 41 53 53 20 77 61 73 20 6D 6F 6508: TR_PASS was mo
00004D30 76 65 64 20 66 72 6F 6D 20 74 6D 69 6E 5F 74 6F 74 61 6C 20 ved from tmin_total
00004D44 74 6F 20 74 6D 69 6E 2E 0A 20 20 20 20 20 20 20 20 20 20 20 to tmin..
00004D58 20 20 20 20 20 20 62 65 63 61 75 73 65 20 61 6E 79 20 6F 74 because any ot
00004D6C 68 65 72 20 74 69 6D 69 6E 67 20 6C 69 6D 69 74 61 74 69 6F her timing limitatio
00004D80 6E 20 61 6C 72 65 61 64 79 20 61 6C 6C 6F 77 73 0A 20 20 20 n already allows.
00004D94 20 20 20 20 20 20 20 20 20 20 20 20 20 20 65 6E 6F 75 67 68 enough
00004DA8 20 64 65 61 64 20 74 69 6D 65 20 66 6F 72 20 74 68 65 20 53 dead time for the S
00004DBC 70 65 63 74 72 6F 50 72 65 73 63 61 6E 20 73 63 72 65 65 6E pectroPrescan screen
00004DD0 0A 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 70 61 . pa
00004DE4 73 73 20 70 61 63 6B 65 74 73 2E 20 41 64 64 65 64 20 74 68 ss packets. Added th
00004DF8 65 20 54 52 5F 50 41 53 53 20 61 63 63 6F 75 6E 74 69 6E 67 e TR_PASS accounting
