Spring Physics Simulation

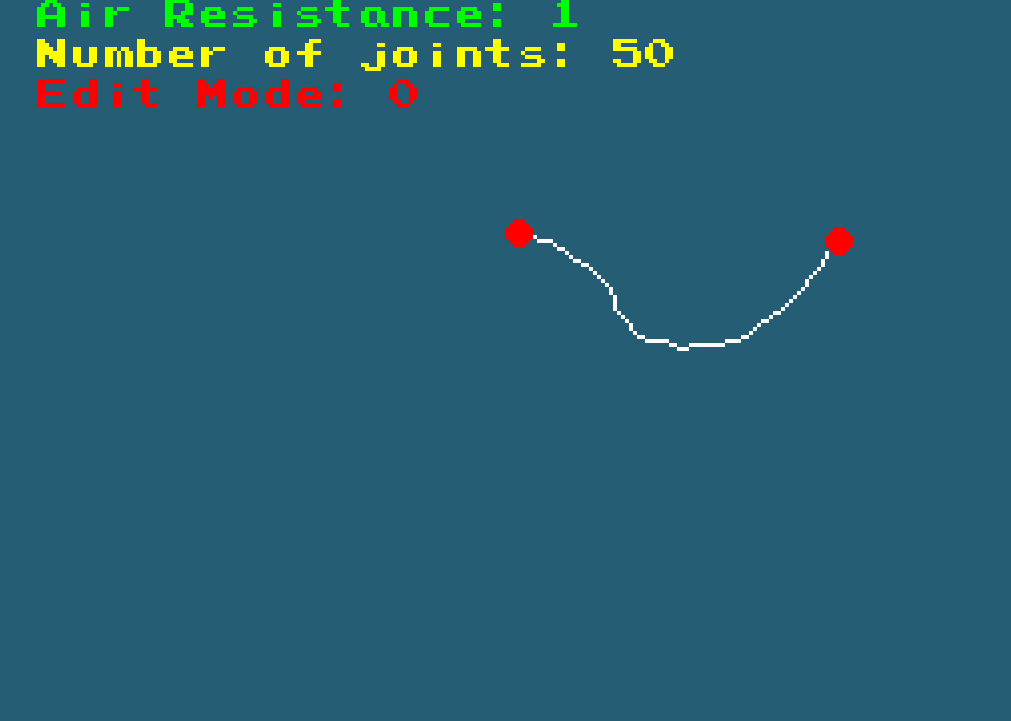

This project is a 2D pixel simulation of spring connections between nodes using C++ and the olcPixelGameEngine. The original goal was to simulate rope, which was achieved by connecting many nodes closely together. Properties such as tension and stretching can be shown, furthermore, if a few nodes are connected it also simulates soft-body physics.

Features

• Physics

  • Spring physics based off equillebroium distance between nodes.
  • Force application such as gravity.
  • Toggle air resistance

• Interaction

  • Delect node to lock in position
  • Add to nodes and connect nodes together
  • Delete nodes

• Graphics

  • Nodes can be drawn as circles or not drawn
  • Springs drawn as lines
  • GUI to show details such as number of nodes, whether the user is in edit mode.

• Controls

• Left Click: Grab node

• Right Click: Lock node

• Space: Toggle pause

• A: Toggle air resistance

• B: Toggle rendering nodes

• Mouse Wheel Up/Down: Add to end of string / Remove from end of string

• E: Edit Mode

  • While in edit mode
    • Left Click: Select node
    • Right Click: Add node
