PoolTest

Design Document
Blake Warner
Katherine Dipaola
Howard Hall
Haseeb Ikram
Alexander Pugh

INTRODUCTION

Takes input from the user about their pool chemical levels and provides guidance to improve said levels with through various methods in order to maintain a healthy swimming environment.

STORYBOARD


FUNCTIONAL REQUIREMENTS

SCENARIO

As a user who upkeeps a pool I wish to monitor and understand the various chemical aspects of my pool.

ASSUMPTIONS

Numbers are input in a float point format

EXAMPLES

Given the app is making proper calculations

When I input a pH level of 6.5 & a pool size of 16000 gallons

Then I should recieve proper guidance and chemical recommendations to return it to a safe pH range: "Your pH level is too low, add 4.5oz of dry acid to your pool. Do not swim for 8 hours after application."

ASSUMPTIONS

Numbers are input in a float point format

EXAMPLES

Given the app is making proper calculations

When I input a CYA value of -500

Then I should recieve a message asking for a vaild input range: "That is not a valid input, please input a positive number in the range (range for chemical)."

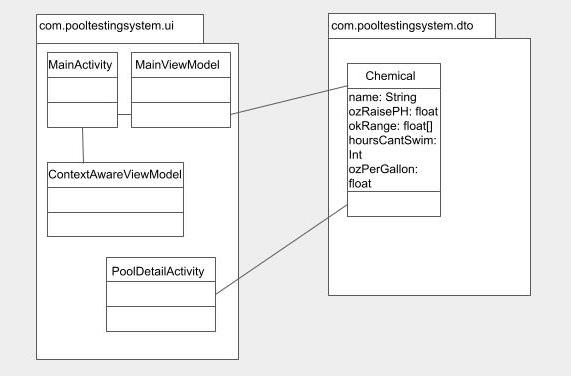

CLASS DIAGRAM

CLASS DIAGRAM DESCRIPTION

MainActivity: The first screen the user sees, which will have areas to input different specifications about their pool.

PoolDetailActivity: Displays information about the current state of the user's pool, and what they can do to improve it.

Chemical: Noun class that represents various pool chemicals.

ROLES

DevOps/Product Owner/Scrum Master: Howie Hall
Frontend Developer: Katie Dipaola
Frontend Inegration Specialist: Hasseb Ikram
Integration Developer: Blake Warner, Alexander Pugh

WEEKLY MEETING

Facetime @ 7:00PM every Sunday
