Where are schemas being generated.

[jakyle]

Q&A (please complete the following information)

• OS: Windows 10
• Browser: Chrome
• Version: 2.something? whatever swashbuckle 4.1 uses
• Method of installation: packaged with swashbuckle
• Swagger-UI version: [e.g. 3.10.0]
• Swagger/OpenAPI version: OpenAPI 3.0

Content & configuration

Swagger-UI configuration options:

SwaggerUI({
        var configObject = JSON.parse('%(ConfigObject)');
        var oauthConfigObject = JSON.parse('%(OAuthConfigObject)');
        // Apply mandatory parameters
        configObject.dom_id = "#swagger-ui";
        configObject.presets = [SwaggerUIBundle.presets.apis, SwaggerUIStandalonePreset];
        configObject.layout = "StandaloneLayout";
})

How can we help?

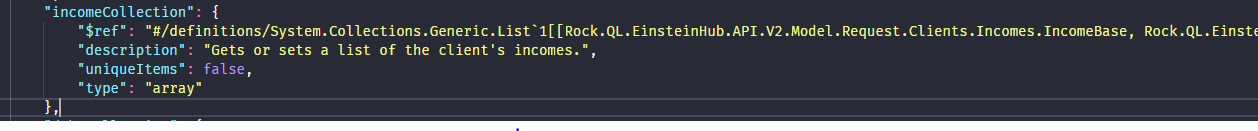

I am trying to create a plugin that will, in a hack-ey way, probably ignoring the current open API 3.0 spec, create a poly-morphic array of objects. when the json is sent to swagger-ui, it is parsed down in to the "spec" object. what I want to know where exactly are the "schema" objects for each "definitions" being generated from the spec object. for example this is a snippet from my json.

and the actual reference.

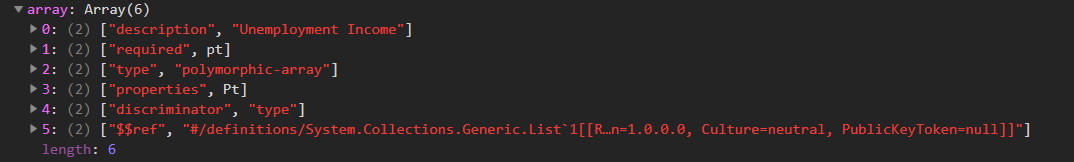

so what I'm expecting is that when the schema object is created, which from what I understand is the object that will be displayed in the ui, will contain the description from the property level and the rest of the information in the actual reference. what I end up with while debugging is something like this...

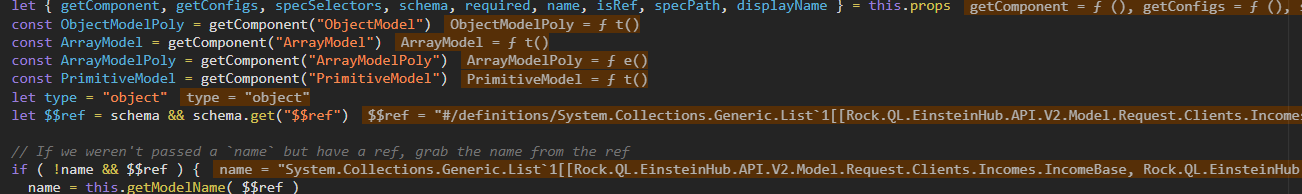

this is a snippet from the model component in the render method for schema.

so for whatever schema is being passed into the model, I want to know where I can override the schema generating behavior for my plugin. I am having a doozy of a time finding this for some reason. thank you in advance.
