Generated docs of compound types (Dicts of Enums as keys in particular)

[majedrze]

Hey,

I'm not very well versed in OpenApi and swagger, redoc, so I have a question.

I used FastApi in a project, it's a pretty awesome tool. But suppose I have a class like this that I use in a response:

class EnumBasedClass(str, Enum):
ENUM1: str = "ENUM1"
ENUM2: str = "ENUM2"
ENUM3: str = "ENUM3"

class OtherGenericType(BaseModel):
field1: str = "field1"
field2: str = "field2"
field3: str = "field3"

class ExampleClass(BaseModel):
some_field: Dict[EnumBasedClass, OtherGenericType]

The resultant docs looks something like this:

ResponseSchema
- property name* object ( OtherGenericType )
- field1 string
- field2 string
- field3 string

And Example response looks like this:
{
"property1": {},
"property2": {}
}

Would it be possible to substitute "property name*" with actual values from "EnumBasedClass"
or would this be some abuse of OpenApi. Or is there some better type to represent this case?

[euri10]

Check this ( https://gitlab.com/euri10/euri10_fastapi_base/blob/master/backend/app/models/users_settings.py#L40 ) if I got correctly what you want to do you need use_enum_values Le ven. 6 sept. 2019 à 12:28 PM, mjedrzejewski <notifications@github.com> a écrit :

…

Hey, I'm not very well versed in OpenApi and swagger, redoc, so I have a question. I used FastApi in a project, it's a pretty awesome tool. But suppose I have a class like this that I use in a response: class EnumBasedClass(str, Enum): ENUM1: str = "ENUM1" ENUM2: str = "ENUM2" ENUM3: str = "ENUM3" class OtherGenericType(BaseModel): field1: str = "field1" field2: str = "field2" field3: str = "field3" class ExampleClass(BaseModel): some_field: Dict[EnumBasedClass, OtherGenericType] The resultant docs looks something like this: ResponseSchema - property name* object ( OtherGenericType ) - field1 string - field2 string - field3 string And Example response looks like this: { "property1": {}, "property2": {} } Would it be possible to substitute "property name*" with actual values from "EnumBasedClass" or would this be some abuse of OpenApi. Or is there some better type to represent this case? — You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub <#509>, or mute the thread <https://github.com/notifications/unsubscribe-auth/AAINSPW65ALVCQ33DFM3IC3QIIWFNANCNFSM4IUHP4YA> .

[majedrze]

Thanks for the response.This does not solve my issue. Please see attached script for a minimum example.
main.txt

If you run the script with # uvicorn main:app --reload (please remember to rename txt to py),
got to http://127.0.0.1:8000/documentation

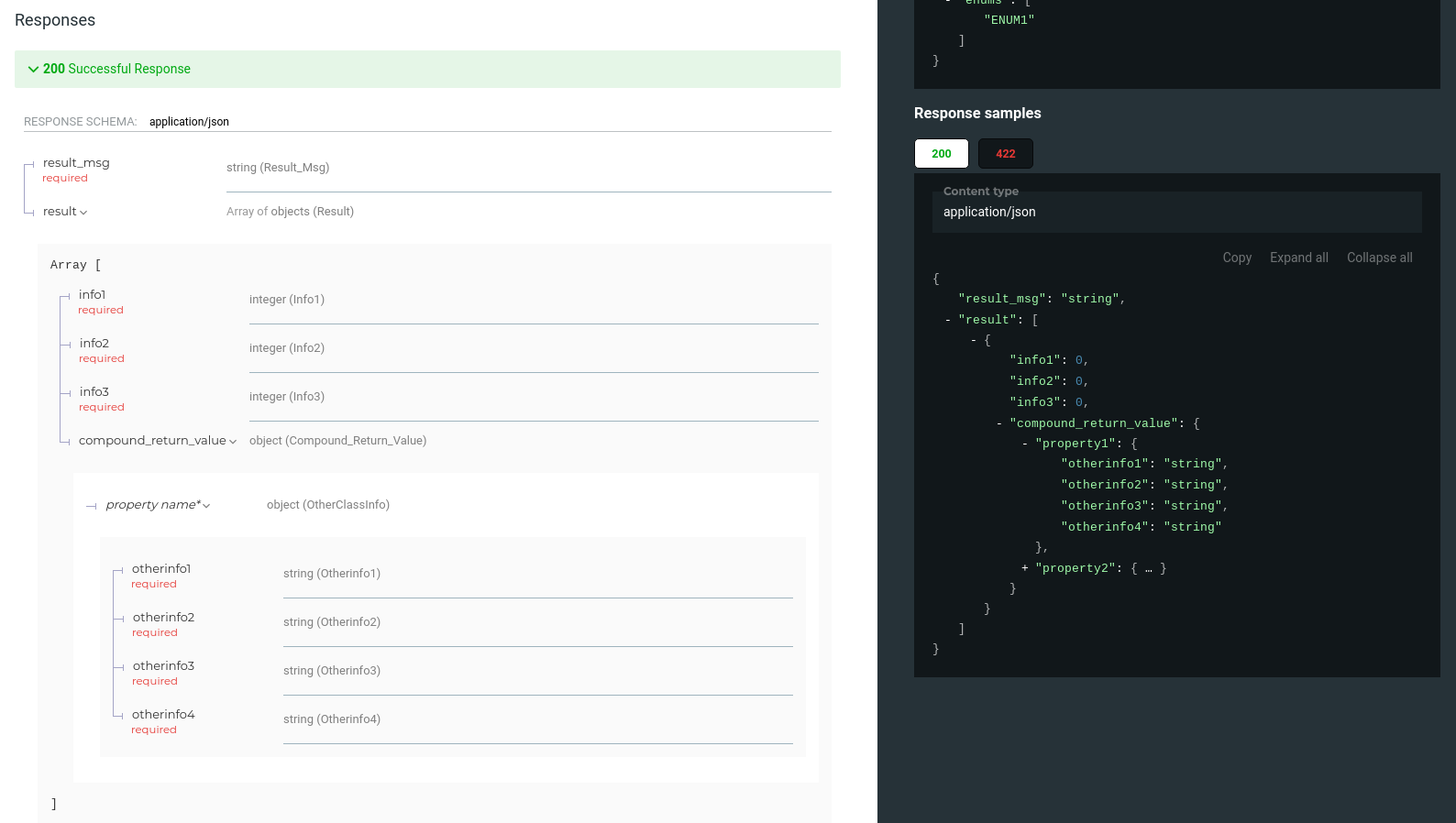

Is it possible to fix the documentation page so that it shows actual enum values instead of "property1" in the examples? I am attaching a screenshot to hopefully illustrate the issue.

[tiangolo]

@malsumis What I understand you want to achieve is to define that the keys of a JSON object (a dict) are one of the values in the enum, right?

That's not really supported by OpenAPI (nor JSON Schema, I think).

What I imagine you want to achieve could be done like:

from fastapi import FastAPI
from starlette.responses import JSONResponse, Response
from starlette.status import *
from typing import Set, Dict, List
from enum import Enum
from pydantic import BaseModel

class EnumBasedInfo(str, Enum):
    ENUM1: str = 'ENUM1'
    ENUM2: str = 'ENUM2'
    ENUM3: str = 'ENUM3'
    ENUM4: str = 'ENUM4'

class ProcessingRequest(BaseModel):
    request1: str
    request2: str
    enums: Set[EnumBasedInfo]

class OtherClassInfo(BaseModel):
    otherinfo1: str
    otherinfo2: str
    otherinfo3: str
    otherinfo4: str

class CompoundReturn(BaseModel):
    ENUM1: OtherClassInfo = None
    ENUM2: OtherClassInfo = None
    ENUM3: OtherClassInfo = None
    ENUM4: OtherClassInfo = None

class ResultInfo(BaseModel):
    info1: int
    info2: int
    info3: int
    compound_return_value: CompoundReturn = None

class ProcessingResult(BaseModel):
    result_msg: str
    result: List[ResultInfo] = None

app = FastAPI(redoc_url='/documentation')

@app.post("/", response_model=ProcessingResult,  # type: ignore
          responses={HTTP_200_OK: {"model": ProcessingResult, "description": "Some Description"}})
def process_request(processing_request: ProcessingRequest) -> JSONResponse:
     return JSONResponse(status_code=HTTP_200_OK)

[github-actions[bot]]

Assuming the original issue was solved, it will be automatically closed now. But feel free to add more comments or create new issues.
