1、安装准备

镜像下载地址：https://mirrors.tuna.tsinghua.edu.cn/ubuntu-releases/18.04.6/

# 打开终端
Ctrl+Alt+T

# 更新可用软件包列表
sudo apt-get update
# 安装这可用软件包的最新版本
sudo apt-get upgrade

# 查看系统版本
cat /proc/version
uname -a
lsb_release -a

2、安装 g++ 编译器和 python 解释器

# 安装 g++ 编译器
sudo apt-get install g++
# E: 无法获得锁 /var/lib/dpkg/lock-frontend - open (11: 资源暂时不可用)
# E: 无法获取 dpkg 前端锁 (/var/lib/dpkg/lock-front)
ps -e | grep apt
sudo kill [PID]
sudo rm /var/lib/dpkg/lock-frontend
sudo rm /var/cache/apt/archives/lock
sudo apt-get update

# 安装 python 解释器
sudo apt-get install python -y

3、编译运行与解释执行

# 编译
g++ c++_for.cpp -o c++_for
# 运行
./c++_for

# 解释执行
python python_for.py

4、安装 ROS

# 1、添加ROS软件源
sudo sh -c 'echo "deb http://packages.ros.org/ros/ubuntu $(lsb_release -sc) main" > /etc/apt/sources.list.d/ros-latest.list'

# 2、添加密钥
sudo apt-key adv --keyserver 'hkp://keyserver.ubuntu.com:80' --recv-key C1CF6E31E6BADE8868B172B4F42ED6FBAB17C654

# 3、安装 ROS
sudo apt update
# ros版本需要和Ubuntu版本一致
# Ubuntu20.04 	noetic
# Ubuntu18.04	melodic
# Ubuntu16.04	kinetic
# Ubuntu14.04	indigo
sudo apt install ros-melodic-desktop-full

# 4、初始化 rosdep
sudo apt install python-rosdep
sudo rosdep init
#######
sudo gedit /usr/lib/python2.7/dist-packages/rosdep2/sources_list.py
# def download_rosdep_data(url):
# url = "https://mirror.ghproxy.com/" + url
sudo gedit /usr/lib/python2.7/dist-packages/rosdep2/gbpdistro_support.py
# gbpdistro_url = "https://mirror.ghproxy.com/" + gbpdistro_url
sudo gedit /usr/lib/python2.7/dist-packages/rosdistro/__init__.py
sudo gedit /usr/lib/python2.7/dist-packages/rosdep2/gbpdistro_support.py
sudo gedit /usr/lib/python2.7/dist-packages/rosdep2/sources_list.py
sudo gedit /usr/lib/python2.7/dist-packages/rosdep2/rep3.py
sudo gedit /usr/lib/python2.7/dist-packages/rosdistro/manifest_provider/github.py
# https://raw.githubusercontent.com/ 前添加 https://mirror.ghproxy.com/
#######
rosdep update

# 5、设置环境变量
echo "source /opt/ros/melodic/setup.bash" >> ~/.bashrc
source ~/.bashrc

# 6、安装 rosinstall
sudo apt install python-rosinstall python-rosinstall-generator python-wstool build-essential

5、ROS 命令行工具

# 启动 ros master
roscore

# 启动小海龟仿真器
rosrun turtlesim turtlesim_node

# 启动海龟控制节点
rosrun turtlesim turtle_teleop_key

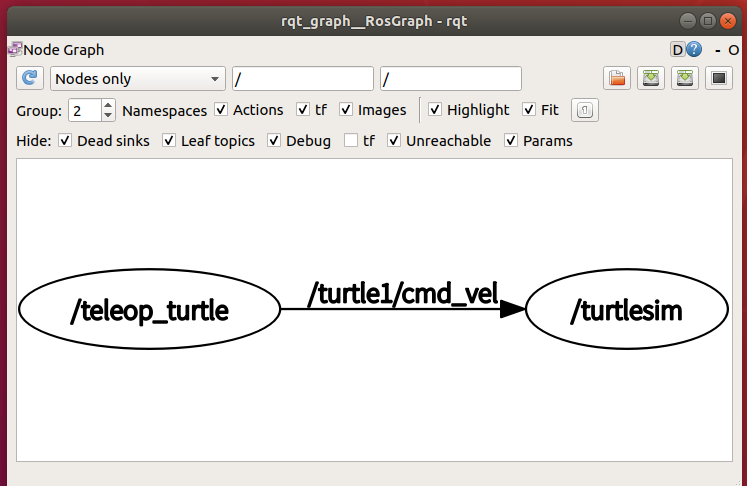

# 图形化工具
rqt_graph

# 节点信息
rosnode list
rosnode info turtlesim

# 话题信息
rostopic list
# 发布一次话题
rostopic pub /turtle1/cmd_vel geometry_msgs/Twist "linear:
  x: 1.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: 0.0"
# 以10Hz频率发布话题
rostopic pub -r 10 /turtle1/cmd_vel geometry_msgs/Twist "linear:
  x: 1.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: 1.0"

# 查看ros消息数据结构
rosmsg show geometry_msgs/Twist

# 服务请求列表
rosservice list
# 发布服务请求
rosservice call /spawn "x: 2.0
y: 2.0
theta: 0.0
name: 'turtle2'"

# 话题记录
rosbag record -a -O cmd_record
# 话题复现
rosbag play cmd_record.bag

6、创建工作空间与功能包

# 创建工作空间
mkdir -p ~/catkin_ws/src
cd ~/catkin_ws/src
catkin_init_workspace
# 编译工作空间
cd ~/catkin_ws
catkin_make
catkin_make install

# 创建功能包
cd ~/catkin_ws/src
catkin_create_pkg test_pkg roscpp rospy std_msgs
# 编译功能包
cd ~/catkin_ws
catkin_make

# 设置环境变量
source ~/catkin_ws/devel/setup.bash
# 检查环境变量
echo $ROS_PACKAGE_PATH

7、发布者Publisher

# 创建功能包
cd ~/catkin_ws/src
catkin_create_pkg learning_topic roscpp rospy std_msgs geometry_msgs turtlesim

# 创建发布者Publisher
cd ~/catkin_ws/src/learning_topic/src
touch velocity_publisher.cpp
vi velocity_publisher.cpp

velocity_publisher.cpp

#include <ros/ros.h>
#include <geometry_msgs/Twist.h>

int main(int argc, char **argv)
{
    // ROS节点初始化
    ros::init(argc, argv, "velocity_publisher");

    // 创建节点句柄
    ros::NodeHandle n;

    // 创建发布者，消息类型为geometry_msgs::Twist，发布名为turtle1/cmd_vel，队列长度为10
    ros::Publisher turtle_vel_pub = n.advertise<geometry_msgs::Twist>("turtle1/cmd_vel", 10);

    // 设置循环频率
    ros::Rate loop_rate(10);

    int count = 0;
    while (ros::ok())
    {
        // 初始化geometry_msgs::Twist类型消息
        geometry_msgs::Twist vel_msg;
        vel_msg.linear.x = 0.5;
        vel_msg.angular.z = 0.2;

        // 发布消息
        turtle_vel_pub.publish(vel_msg);
        ROS_INFO("Publish turtle velocity command[%0.2f m/s, %0.2f rad/s]",
                vel_msg.linear.x, vel_msg.angular.z);

        // 按照循环频率延时
        loop_rate.sleep();
    }

    return 0;
}

CMakeLists.txt

add_executable(velocity_publisher src/velocity_publisher.cpp)
target_link_libraries(velocity_publisher ${catkin_LIBRARIES})

编译运行

# 编译
cd ~/catkin_ws
catkin_make

# 设置环境变量
source ~/catkin_ws/devel/setup.bash
# 如果不想每次或者怕忘记设置环境变量，可以按如下方式修改
cd ~
# 显示隐藏文件
Ctrl+H
vi .bashrc
# 添加设置环境变量命令（路径改成自己的）
source /home/vectorx/catkin_ws/devel/setup.bash

# 重启终端才能生效
roscore
rosrun turtlesim turtlesim_node
rosrun learning_topic velocity_publisher

同理，python实现如下：

# 创建发布者Publisher
mkdir -p ~/catkin_ws/src/learning_topic/scripts
cd ~/catkin_ws/src/learning_topic/scripts
touch velocity_publisher.py
vi velocity_publisher.py

velocity_publisher.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy
from geometry_msgs.msg import Twist

def velocity_publisher():
    # ROS节点初始化
    rospy.init_node('velocity_publisher', anonymous=True)

    # 创建发布者，发布名为/turtle1/cmd_vel', 消息类型为geometry_msgs::Twist，队列长度为10
    turtle_vel_pub = rospy.Publisher('/turtle1/cmd_vel', Twist, queue_size=10)

    # 设置循环的频率
    rate = rospy.Rate(10)

    while not rospy.is_shutdown():
        # 初始化geometry_msgs::Twist类型的消息
        vel_msg = Twist()
        vel_msg.linear.x = 0.5
        vel_msg.angular.z = 0.2

        # 发布消息
        turtle_vel_pub.publish(vel_msg)
        rospy.loginfo("Publish turtle velocity command[%0.2f m/s, %0.2f rad/s]",
				vel_msg.linear.x, vel_msg.angular.z)

        # 按照循环频率延时
        rate.sleep()

if __name__ == '__main__':
    try:
        velocity_publisher()
    except rospy.ROSInterruptException:
        pass

8、订阅者Subscriber

cd ~/catkin_ws/src/learning_topic/src
touch pose_subscriber.cpp
vi pose_subscriber.cpp

pose_subscriber.cpp

#include <ros/ros.h>
#include "turtlesim/Pose.h"

void poseCallback(const turtlesim::Pose::ConstPtr& msg)
{
    ROS_INFO("Turtle pose: x:%0.6f, y:%0.6f", msg->x, msg->y);
}

int main(int argc, char **argv)
{
    // 初始化ROS节点
    ros::init(argc, argv, "pose_subscriber");

    // 创建节点句柄
    ros::NodeHandle n;

    // 创建订阅者，订阅名为/turtle1/pose的topic，注册回调函数poseCallback
    ros::Subscriber pose_sub = n.subscribe("/turtle1/pose", 10, poseCallback);

    // 循环等待回调函数
    ros::spin();

    return 0;
}

CMakeLists.txt

add_executable(pose_subscriber src/pose_subscriber.cpp)
target_link_libraries(pose_subscriber ${catkin_LIBRARIES})

编译运行

# 编译
cd ~/catkin_ws
catkin_make

# 因为之前已在.bashrc中添加过环境变量，这一步跳过

# 运行
roscore
rosrun turtlesim turtlesim_node
rosrun learning_topic pose_subscriber
rosrun turtlesim turtle_teleop_key

同理，python实现如下：

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy
from turtlesim.msg import Pose

def poseCallback(msg):
    rospy.loginfo("Turtle pose: x:%0.6f, y:%0.6f", msg.x, msg.y)

def pose_subscriber():
	# ROS节点初始化
    rospy.init_node('pose_subscriber', anonymous=True)

	# 创建一个Subscriber，订阅名为/turtle1/pose的topic，注册回调函数poseCallback
    rospy.Subscriber("/turtle1/pose", Pose, poseCallback)

	# 循环等待回调函数
    rospy.spin()

if __name__ == '__main__':
    pose_subscriber()

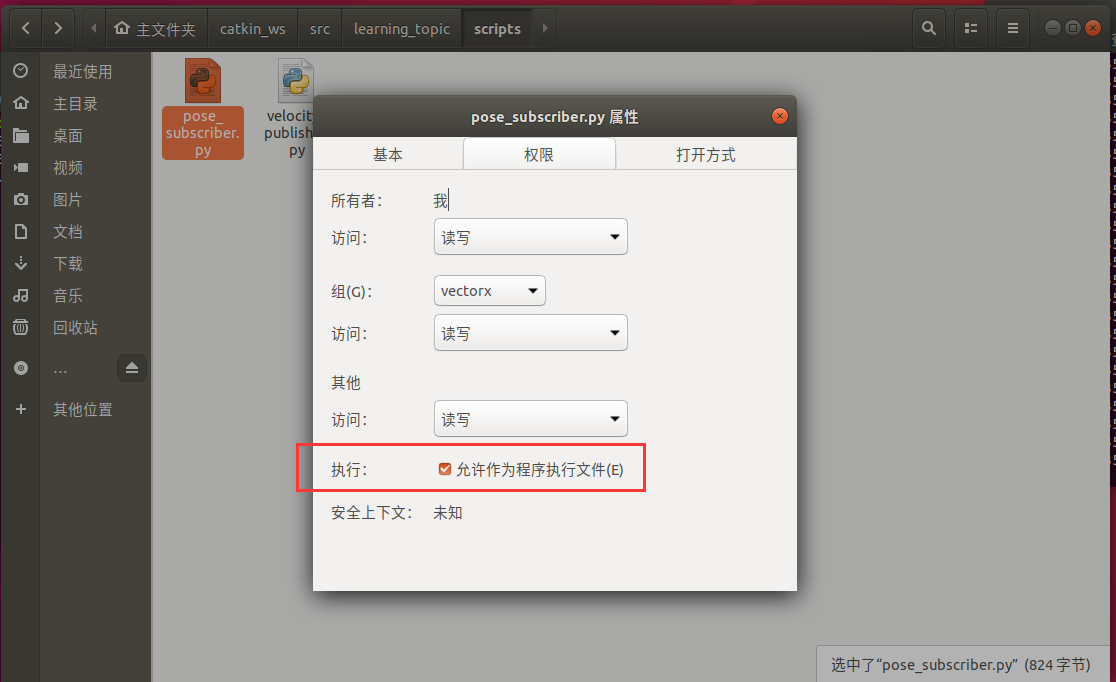

运行之前需要勾选为可执行

Python版本的无需编译，直接运行即可

rosrun learning_topic pose_subscriber.py

9、话题消息的定义与使用

9.1、话题消息的定义

mkdir -p ~/catkin_ws/src/learning_topic/msg
cd ~/catkin_ws/src/learning_topic/msg
touch Person.msg
vi Person.msg

Person.msg

string name
uint8 sex
uint8 age

uint8 unknown = 0
uint8 male    = 1
uint8 female  = 2

package.xml

<build_depend>message_generation</build_depend>
<exec_depend>message_runtime</exec_depend>

CMakeLists.txt

find_package(......
  message_generation
)

add_message_files(FILES Person.msg)
generate_messages(DEPENDENCIES std_msgs)

catkin_package(......
   CATKIN_DEPENDS geometry_msgs roscpp rospy std_msgs turtlesim message_runtime
)

编译

catkin_make

9.2、话题消息的使用

person_publisher.cpp

#include <ros/ros.h>
#include "learning_topic/Person.h"

int main(int argc, char **argv)
{
    // ROS节点初始化
    ros::init(argc, argv, "person_publisher");

    // 创建节点句柄
    ros::NodeHandle n;

    // 创建一个Publisher，发布名为/person_info的topic，消息类型为learning_topic::Person，队列长度10
    ros::Publisher person_info_pub = n.advertise<learning_topic::Person>("/person_info", 10);

    // 设置循环的频率
    ros::Rate loop_rate(1);

    int count = 0;
    while (ros::ok())
    {
        // 初始化learning_topic::Person类型的消息
    	learning_topic::Person person_msg;
		person_msg.name = "Tom";
		person_msg.age  = 18;
		person_msg.sex  = learning_topic::Person::male;

        // 发布消息
		person_info_pub.publish(person_msg);
       	ROS_INFO("Publish Person Info: name:%s  age:%d  sex:%d",
				  person_msg.name.c_str(), person_msg.age, person_msg.sex);

        // 按照循环频率延时
        loop_rate.sleep();
    }

    return 0;
}

person_subscriber.cpp

#include <ros/ros.h>
#include "learning_topic/Person.h"

// 接收到订阅的消息后，会进入消息回调函数
void personInfoCallback(const learning_topic::Person::ConstPtr& msg)
{
    // 将接收到的消息打印出来
    ROS_INFO("Subcribe Person Info: name:%s  age:%d  sex:%d",
			 msg->name.c_str(), msg->age, msg->sex);
}

int main(int argc, char **argv)
{
    // 初始化ROS节点
    ros::init(argc, argv, "person_subscriber");

    // 创建节点句柄
    ros::NodeHandle n;

    // 创建一个Subscriber，订阅名为/person_info的topic，注册回调函数personInfoCallback
    ros::Subscriber person_info_sub = n.subscribe("/person_info", 10, personInfoCallback);

    // 循环等待回调函数
    ros::spin();

    return 0;
}

CMakeLists.txt

add_executable(person_publisher src/person_publisher.cpp)
target_link_libraries(person_publisher ${catkin_LIBRARIES})
add_dependencies(person_publisher ${PROJECT_NAME}_generate_messages_cpp)

add_executable(person_subscriber src/person_subscriber.cpp)
target_link_libraries(person_subscriber ${catkin_LIBRARIES})
add_dependencies(person_subscriber ${PROJECT_NAME}_generate_messages_cpp)

编译

catkin_make

使用

roscore
rosrun learning_topic person_subscriber
rosrun learning_topic person_publisher

同理，Python实现如下：

person_publisher.py

import rospy
from learning_topic.msg import Person

def velocity_publisher():
	# ROS节点初始化
    rospy.init_node('person_publisher', anonymous=True)

	# 创建一个Publisher，发布名为/person_info的topic，消息类型为learning_topic::Person，队列长度10
    person_info_pub = rospy.Publisher('/person_info', Person, queue_size=10)

	#设置循环的频率
    rate = rospy.Rate(10)

    while not rospy.is_shutdown():
		# 初始化learning_topic::Person类型的消息
    	person_msg = Person()
    	person_msg.name = "Tom";
    	person_msg.age  = 18;
    	person_msg.sex  = Person.male;

		# 发布消息
        person_info_pub.publish(person_msg)
    	rospy.loginfo("Publsh person message[%s, %d, %d]",
				person_msg.name, person_msg.age, person_msg.sex)

		# 按照循环频率延时
        rate.sleep()

if __name__ == '__main__':
    try:
        velocity_publisher()
    except rospy.ROSInterruptException:
        pass

person_subscriber.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy
from learning_topic.msg import Person

def personInfoCallback(msg):
    rospy.loginfo("Subcribe Person Info: name:%s  age:%d  sex:%d",
			 msg.name, msg.age, msg.sex)

def person_subscriber():
	# ROS节点初始化
    rospy.init_node('person_subscriber', anonymous=True)

	# 创建一个Subscriber，订阅名为/person_info的topic，注册回调函数personInfoCallback
    rospy.Subscriber("/person_info", Person, personInfoCallback)

	# 循环等待回调函数
    rospy.spin()

if __name__ == '__main__':
    person_subscriber()

10、客户端Client

# 创建功能包
cd ~/catkin_ws/src
catkin_create_pkg learning_service roscpp rospy std_msgs geometry_msgs turtlesim

turtle_spawn.cpp

#include <ros/ros.h>
#include <turtlesim/Spawn.h>

int main(int argc, char **argv)
{
    // 初始化节点
    ros::init(argc, argv, "turtle_spawn");

    // 创建节点句柄
    ros::NodeHandle node;

    // 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
    ros::service::waitForService("/spawn");
    ros::ServiceClient add_turtle = node.serviceClient<turtlesim::Spawn>("/spawn");

    // 初始化turtlesim::Spawn的数据
    turtlesim::Spawn srv;
    srv.request.x = 2.0;
    srv.request.y = 2.0;
    srv.request.name = "turtle2";
    ROS_INFO("Call service to spawn turtle[x:%0.6f, y:%0.6f, name:%s]",
             srv.request.x, srv.request.y, srv.request.name.c_str());

    // 请求服务调用
    add_turtle.call(srv);
    // 显示服务调用结果
    ROS_INFO("Spawn turtle successful [name:%s]", srv.response.name.c_str());

    return 0;
}

配置编译规则 CMakeLists.txt

add_executable(turtle_spawn src/turtle_spawn.cpp)
target_link_libraries(turtle_spawn ${catkin_LIBRARIES})

编译运行客户端

cd ~/catkin_ws
catkin_make
# 成功后，catkin_ws/devel/lib/learning_service下会生成可执行文件turtle_spawn

roscore
rosrun turtlesim turtlesim_node
rosrun learning_service turtle_spawn

同理，python实现如下：

turtle_spawn.py

import sys
import rospy
from turtlesim.srv import Spawn

def turtle_spawn():
	# ROS节点初始化
    rospy.init_node('turtle_spawn')

	# 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
    rospy.wait_for_service('/spawn')
    try:
        add_turtle = rospy.ServiceProxy('/spawn', Spawn)

		# 请求服务调用，输入请求数据
        response = add_turtle(2.0, 2.0, 0.0, "turtle2")
        return response.name
    except rospy.ServiceException, e:
        print "Service call failed: %s"%e

if __name__ == "__main__":
	#服务调用并显示调用结果
    print "Spwan turtle successfully [name:%s]" %(turtle_spawn())

11、服务端Server

turtle_command_server.cpp

#include <ros/ros.h>
#include <geometry_msgs/Twist.h>
#include <std_srvs/Trigger.h>

ros::Publisher turtle_vel_pub;
bool pubCommand = false;

bool commandCallback(std_srvs::Trigger::Request &req,
                    std_srvs::Trigger::Response &res)
{
    // 显示请求数据
    pubCommand = !pubCommand;
    ROS_INFO("Publish turtle velocity command [%s]", pubCommand ? "Yes" : "No");

    // 设置反馈数据
    res.success = true;
    res.message = "Change turtle command state!";

    return true;
}

int main(int argc, char **argv)
{
    // 初始化节点
    ros::init(argc, argv, "turtle_command_server");

    // 创建节点句柄
    ros::NodeHandle n;

    // 创建一个名为/turtle_command的server，注册回调函数commandCallback
    ros::ServiceServer command_service = n.advertiseService("/turtle_command", commandCallback);

    // 创建一个Publisher，发布名为/turtle1/cmd_vel，消息类型为geometry_msgs::Twist，队列长度为10
    turtle_vel_pub = n.advertise<geometry_msgs::Twist>("/turtle1/cmd_vel", 10);

    // 循环等待回调函数
    ROS_INFO("Ready to receive turtle command.");

    // 设置循环的频率
    ros::Rate loop_rate(10);

    while(ros::ok())
    {
        // 查看一次回调函数队列
        ros::spinOnce();

        if (pubCommand)
        {
            geometry_msgs::Twist vel_msg;
            vel_msg.linear.x = 0.5;
            vel_msg.angular.z = 0.2;
            turtle_vel_pub.publish(vel_msg);
        }

        // 按照循环频率延时
        loop_rate.sleep();
    }

    return 0;
}

查看 std_srvs/Trigger消息结构

rossrv show std_srvs/Trigger
---
bool success
string message

配置编译规则 CMakeLists.txt

add_executable(turtle_command_server src/turtle_command_server.cpp)
target_link_libraries(turtle_command_server ${catkin_LIBRARIES})

编译运行客户端

cd ~/catkin_ws
catkin_make
# 查看 ~/catkin_ws/devel/lib/learning_service 下会生成可执行文件turtle_spawn

roscore
rosrun turtlesim turtlesim_node
rosrun learning_service turtle_command_server
rosservice call /turtle_command "{}"

同理，python实现如下：

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy
import thread,time
from geometry_msgs.msg import Twist
from std_srvs.srv import Trigger, TriggerResponse

pubCommand = False;
turtle_vel_pub = rospy.Publisher('/turtle1/cmd_vel', Twist, queue_size=10)

def command_thread():
	while True:
		if pubCommand:
			vel_msg = Twist()
			vel_msg.linear.x = 0.5
			vel_msg.angular.z = 0.2
			turtle_vel_pub.publish(vel_msg)

		time.sleep(0.1)

def commandCallback(req):
	global pubCommand
	pubCommand = bool(1-pubCommand)

	# 显示请求数据
	rospy.loginfo("Publish turtle velocity command![%d]", pubCommand)

	# 反馈数据
	return TriggerResponse(1, "Change turtle command state!")

def turtle_command_server():
	# ROS节点初始化
    rospy.init_node('turtle_command_server')

	# 创建一个名为/turtle_command的server，注册回调函数commandCallback
    s = rospy.Service('/turtle_command', Trigger, commandCallback)

	# 循环等待回调函数
    print "Ready to receive turtle command."

    thread.start_new_thread(command_thread, ())
    rospy.spin()

if __name__ == "__main__":
    turtle_command_server()

12、服务数据的定义与使用

12.1、服务数据的定义

mkdir -p ~/catkin_ws/src/learning_service/srv
cd ~/catkin_ws/src/learning_service/srv
touch Person.srv
vi Person.srv

Person.srv

string name
uint8  age
uint8  sex

uint8  unknown = 0
uint8  male    = 1
uint8 female   = 2
---
string result

package.xml

<build_depend>message_generation</build_depend>
<exec_depend>message_runtime</exec_depend>

CMakeLists.txt

find_package(......
  message_generation
)

add_service_files(FILES Person.srv)
generate_messages(DEPENDENCIES std_msgs)

catkin_package(......
   CATKIN_DEPENDS geometry_msgs roscpp rospy std_msgs turtlesim message_runtime
)

编译

catkin_make
# 查看 ~/catkin_ws/devel/include/learning_service下面是否存在下列三个文件
Person.h
PersonRequest.h
PersonResponse.h

12.2、服务数据的使用

person_client.cpp

#include <ros/ros.h>
#include "learning_service/Person.h"

int main(int argc, char** argv)
{
    // 初始化ROS节点
	ros::init(argc, argv, "person_client");

    // 创建节点句柄
	ros::NodeHandle node;

    // 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
	ros::service::waitForService("/show_person");
	ros::ServiceClient person_client = node.serviceClient<learning_service::Person>("/show_person");

    // 初始化learning_service::Person的请求数据
	learning_service::Person srv;
	srv.request.name = "Tom";
	srv.request.age  = 20;
	srv.request.sex  = learning_service::Person::Request::male;

    // 请求服务调用
	ROS_INFO("Call service to show person[name:%s, age:%d, sex:%d]",
			 srv.request.name.c_str(), srv.request.age, srv.request.sex);

	person_client.call(srv);

	// 显示服务调用结果
	ROS_INFO("Show person result : %s", srv.response.result.c_str());

	return 0;
};

person_server.cpp

#include <ros/ros.h>
#include "learning_service/Person.h"


// service回调函数，输入参数req，输出参数res
bool personCallback(learning_service::Person::Request  &req,
         			learning_service::Person::Response &res)
{
    // 显示请求数据
    ROS_INFO("Person: name:%s  age:%d  sex:%d", req.name.c_str(), req.age, req.sex);

	// 设置反馈数据
	res.result = "OK";

    return true;
}

int main(int argc, char **argv)ac
{
    // ROS节点初始化
    ros::init(argc, argv, "person_server");

    // 创建节点句柄
    ros::NodeHandle n;

    // 创建一个名为/show_person的server，注册回调函数personCallback
    ros::ServiceServer person_service = n.advertiseService("/show_person", personCallback);

    // 循环等待回调函数
    ROS_INFO("Ready to show person informtion.");

    ros::spin();

    return 0;
}

CMakeLists.txt

add_executable(person_server src/person_server.cpp)
target_link_libraries(person_server ${catkin_LIBRARIES})
add_dependencies(person_server ${PROJECT_NAME}_gencpp)

add_executable(person_client src/person_client.cpp)
target_link_libraries(person_client ${catkin_LIBRARIES})
add_dependencies(person_client ${PROJECT_NAME}_gencpp)

编译

catkin_make
# 查看 ~/catkin_ws/devel/lib/learning_service 下是否存在下面两个可执行文件
# person_client
# person_server

使用

roscore
rosrun learning_service person_server
rosrun learning_service person_client

同理，python实现如下：

person_client.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import sys
import rospy
from learning_service.srv import Person, PersonRequest

def person_client():
	# ROS节点初始化
    rospy.init_node('person_client')

	# 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
    rospy.wait_for_service('/show_person')
    try:
        person_client = rospy.ServiceProxy('/show_person', Person)

		# 请求服务调用，输入请求数据
        response = person_client("Tom", 20, PersonRequest.male)
        return response.result
    except rospy.ServiceException, e:
        print "Service call failed: %s"%e

if __name__ == "__main__":
	#服务调用并显示调用结果
    print "Show person result : %s" %(person_client())

person_server.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import rospy
from learning_service.srv import Person, PersonResponse

def personCallback(req):
	# 显示请求数据
    rospy.loginfo("Person: name:%s  age:%d  sex:%d", req.name, req.age, req.sex)
	# 反馈数据
    return PersonResponse("OK")

def person_server():
	# ROS节点初始化
    rospy.init_node('person_server')

	# 创建一个名为/show_person的server，注册回调函数personCallback
    s = rospy.Service('/show_person', Person, personCallback)

	# 循环等待回调函数
    print "Ready to show person informtion."
    rospy.spin()

if __name__ == "__main__":
    person_server()

13、参数的使用

使用准备

# 创建功能包
cd ~/catkin_ws/src
catkin_create_pkg learning_parameter roscpp rospy

# 启动小海龟
roscore
rosrun turtlesim turtlesim_node

参数命令

# 查询所有参数
rosparam list
# 查询背景色
rosparam get /turtlesim/background_b
rosparam get /turtlesim/background_g
rosparam get /turtlesim/background_r
# 查询发行版
rosparam get /rosdistro
rosparam get /rosversion

# 修改参数
rosparam set /turtlesim/background_b 100
# 修改并不能立即生效，需要发送clear请求
rosservice call /clear "{}"

# 转存参数
rosparam dump param.yaml
# 加载参数
# 修改 param.yaml 文件内容后执行（验证同理）
rosparam load param.yaml

# 删除参数（验证同理）
rosparam delete /turtlesim/background_b

代码实现

parameter_config.cpp

#include <string.h>
#include <ros/ros.h>
#include <std_srvs/Empty.h>

int main(int argc, char **argv)
{
    int red, green, blue;

    // 初始化ROS节点
    ros::init(argc, argv, "parameter_config");

    // 创建节点句柄
    ros::NodeHandle node;

    // 读取背景色参数
    ros::param::get("/turtlesim/background_r", red);
    ros::param::get("/turtlesim/background_g", green);
    ros::param::get("/turtlesim/background_b", blue);
    ROS_INFO("Get Background Color[%d, %d, %d]", red, green, blue);

    // 设置背景色参数
    red   = 255;
    green = 255;
    blue  = 255;
    ros::param::set("/turtlesim/background_r", red);
	ros::param::set("/turtlesim/background_g", green);
	ros::param::set("/turtlesim/background_b", blue);
    ROS_INFO("Set Background Color[%d, %d, %d]", red, green, blue);

    // 读取背景色参数
    ros::param::get("/turtlesim/background_r", red);
    ros::param::get("/turtlesim/background_g", green);
    ros::param::get("/turtlesim/background_b", blue);
    ROS_INFO("Re-get Background Color[%d, %d, %d]", red, green, blue);

    // 调用服务，刷新背景色
    ros::service::waitForService("/clear");
    ros::ServiceClient clear_background = node.serviceClient<std_srvs::Empty>("/clear");
    std_srvs::Empty srv;
    clear_background.call(srv);

    sleep(1);

    return 0;
}

配置编译规则 CMakeLists.txt

add_executable(parameter_config src/parameter_config.cpp)
target_link_libraries(parameter_config ${catkin_LIBRARIES})

编译运行客户端

cd ~/catkin_ws
catkin_make
# 查看 ~/catkin_ws/devel/lib/learning_service 下会生成可执行文件turtle_spawn

roscore
rosrun turtlesim turtlesim_node
rosrun learning_parameter parameter_config
rosservice call /turtle_command "{}"

同理，Python实现如下：

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import sys
import rospy
from std_srvs.srv import Empty

def parameter_config():
	# ROS节点初始化
    rospy.init_node('parameter_config', anonymous=True)

	# 读取背景颜色参数
    red   = rospy.get_param('/turtlesim/background_r')
    green = rospy.get_param('/turtlesim/background_g')
    blue  = rospy.get_param('/turtlesim/background_b')
    rospy.loginfo("Get Backgroud Color[%d, %d, %d]", red, green, blue)

	# 设置背景颜色参数
    red   = 255;
    green = 255;
    blue  = 255;
    rospy.set_param("/turtlesim/background_r", red);
    rospy.set_param("/turtlesim/background_g", green);
    rospy.set_param("/turtlesim/background_b", blue);
    rospy.loginfo("Set Backgroud Color[%d, %d, %d]", red, green, blue)

	# 读取背景颜色参数
    red   = rospy.get_param('/turtlesim/background_r')
    green = rospy.get_param('/turtlesim/background_g')
    blue  = rospy.get_param('/turtlesim/background_b')
    rospy.loginfo("Get Backgroud Color[%d, %d, %d]", red, green, blue)

	# 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
    rospy.wait_for_service('/clear')
    try:
        clear_background = rospy.ServiceProxy('/clear', Empty)

		# 请求服务调用，输入请求数据
        response = clear_background()
        return response
    except rospy.ServiceException, e:
        print "Service call failed: %s"%e

if __name__ == "__main__":
    parameter_config()

14、ROS坐标系管理系统

# 安装tf包
sudo apt-get install ros-melodic-turtle-tf

# 启动launch脚本
roslaunch turtle_tf turtle_tf_demo.launch

# 运行海龟键盘控制节点
rosrun turtlesim turtle_teleop_key

# tf树工具
rosrun tf view_frames
# 打开当前文件夹下的frames.pdf文件即可

# 坐标变换关系命令行工具
rosrun tf tf_echo turtle1 turtle2

# 坐标变换关系可视化工具（三维关系）
rosrun rviz rviz -d `rospack find turtle_tf` /rviz/turtle_rviz.rviz
# 1、Global Options > Fixed Frame 修改为 world
# 2、Add > By display type > rviz > tf > OK

15、tf坐标系广播与监听

# 创建功能包
cd ~/catkin_ws/src
catkin_create_pkg learning_tf roscpp rospy tf turtlesim

turtle_tf_broadcaster.cpp

#include <ros/ros.h>
#include <tf/transform_broadcaster.h>
#include <turtlesim/Pose.h>

std::string turtle_name;

void poseCallback(const turtlesim::PoseConstPtr& msg)
{
    // 创建tf广播器
    tf::TransformBroadcaster br;

    // 初始化tf数据
    tf::Transform transform;
    transform.setOrigin(tf::Vector3(msg->x, msg->y, 0.0));
    tf::Quaternion q;
    q.setRPY(0, 0, msg->theta);
    transform.setRotation(q);

    // 广播world与海龟坐标系的tf数据
    br.sendTransform(tf::StampedTransform(transform, ros::Time::now(), "world", turtle_name));
}

int main(int argc, char **argv)
{
    // 初始化ROS节点
    ros::init(argc, argv, "my_tf_broadcaster");

    // 输入参数作为海龟的名字
    if (argc != 2)
    {
        ROS_ERROR("need turtle name as argument");
        return -1;
    }
	turtle_name = argv[1];

    // 订阅海龟的位姿话题
    ros::NodeHandle node;
    ros::Subscriber sub = node.subscribe(turtle_name + "/pose", 10, &poseCallback);

    // 循环等待回调函数
    ros::spin();

    return 0;
}

turtle_tf_listener.cpp

#include <ros/ros.h>
#include <tf/transform_listener.h>
#include <geometry_msgs/Twist.h>
#include <turtlesim/Spawn.h>

int main(int argc, char **argv)
{
    // 初始化ROS节点
    ros::init(argc, argv, "my_tf_listener");

    // 创建节点句柄
    ros::NodeHandle node;

    // 请求产生turtle2
    ros::service::waitForService("/spawn");
    ros::ServiceClient add_turtle = node.serviceClient<turtlesim::Spawn>("/spawn");
    turtlesim::Spawn srv;
    add_turtle.call(srv);

    // 创建发布turtle2速度控制指令的发布者
    ros::Publisher turtle_vel = node.advertise<geometry_msgs::Twist>("/turtle2/cmd_vel", 10);

    // 创建tf的监听器
    tf::TransformListener listener;

    ros::Rate rate(10.0);
    while(node.ok())
    {
        // 获取turtle1与turtle2坐标系之间的tf数据
        tf::StampedTransform transform;
        try
        {
            listener.waitForTransform("/turtle2", "/turtle1", ros::Time(0), ros::Duration(3.0));
            listener.lookupTransform("/turtle2", "/turtle1", ros::Time(0), transform);
        }
        catch (tf::TransformException &ex)
        {
            ROS_ERROR("%s", ex.what());
            ros::Duration(1.0).sleep();
            continue;
        }

        // 根据turtle1与turtle2坐标系之间的位置关系，发布turtle2速度控制指令
        geometry_msgs::Twist vel_msg;
        vel_msg.angular.z = 4.0 * atan2(transform.getOrigin().y(),
				                        transform.getOrigin().x());
		vel_msg.linear.x = 0.5 * sqrt(pow(transform.getOrigin().x(), 2) +
				                      pow(transform.getOrigin().y(), 2));
        turtle_vel.publish(vel_msg);

        rate.sleep();
    }

    return 0;
}

配置编译规则 CMakeLists.txt

add_executable(turtle_tf_broadcaster src/turtle_tf_broadcaster.cpp)
target_link_libraries(turtle_tf_broadcaster ${catkin_LIBRARIES})

add_executable(turtle_tf_listener src/turtle_tf_listener.cpp)
target_link_libraries(turtle_tf_listener ${catkin_LIBRARIES})

编译运行客户端

cd ~/catkin_ws
catkin_make
# 查看 ~/catkin_ws/devel/lib/learning_tf 下会生成可执行文件 turtle_tf_broadcaster 和 turtle_tf_listener

roscore
rosrun turtlesim turtlesim_node
# ros重映射机制，控制节点名称不同，防止冲突
rosrun learning_tf turtle_tf_broadcaster __name:=turtle1_tf_broadcaster /turtle1
rosrun learning_tf turtle_tf_broadcaster __name:=turtle2_tf_broadcaster /turtle2
rosrun learning_tf turtle_tf_listener
rosrun turtlesim turtle_teleop_key

# 报错日志：[ERROR] [1720012351.995199109]: "turtle2" passed to lookupTransform argument target_frame does not exist. [ERROR] [1720012356.027073796]: Lookup would require extrapolation into the past. Requested time 1720012353.161287154 but the earliest data is at time 1720012353.788391871, when looking up transform from frame [turtle1] to frame [turtle2]

同理，python实现如下：

turtle_tf_broadcaster.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import roslib
roslib.load_manifest('learning_tf')
import rospy

import tf
import turtlesim.msg

def handle_turtle_pose(msg, turtlename):
    br = tf.TransformBroadcaster()
    br.sendTransform((msg.x, msg.y, 0),
                     tf.transformations.quaternion_from_euler(0, 0, msg.theta),
                     rospy.Time.now(),
                     turtlename,
                     "world")

if __name__ == '__main__':
    rospy.init_node('turtle_tf_broadcaster')
    turtlename = rospy.get_param('~turtle')
    rospy.Subscriber('/%s/pose' % turtlename,
                     turtlesim.msg.Pose,
                     handle_turtle_pose,
                     turtlename)
    rospy.spin()

turtle_tf_listener.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-

import roslib
roslib.load_manifest('learning_tf')
import rospy
import math
import tf
import geometry_msgs.msg
import turtlesim.srv

if __name__ == '__main__':
    rospy.init_node('turtle_tf_listener')

    listener = tf.TransformListener()

    rospy.wait_for_service('spawn')
    spawner = rospy.ServiceProxy('spawn', turtlesim.srv.Spawn)
    spawner(4, 2, 0, 'turtle2')

    turtle_vel = rospy.Publisher('turtle2/cmd_vel', geometry_msgs.msg.Twist, queue_size=1)

    rate = rospy.Rate(10.0)
    while not rospy.is_shutdown():
        try:
            (trans,rot) = listener.lookupTransform('/turtle2', '/turtle1', rospy.Time(0))
        except (tf.LookupException, tf.ConnectivityException, tf.ExtrapolationException):
            continue

        angular = 4 * math.atan2(trans[1], trans[0])
        linear = 0.5 * math.sqrt(trans[0] ** 2 + trans[1] ** 2)
        cmd = geometry_msgs.msg.Twist()
        cmd.linear.x = linear
        cmd.angular.z = angular
        turtle_vel.publish(cmd)

        rate.sleep()

编译运行客户端

cd ~/catkin_ws
catkin_make
# 查看 ~/catkin_ws/devel/lib/learning_tf 下会生成可执行文件 turtle_tf_broadcaster 和 turtle_tf_listener

roscore
rosrun turtlesim turtlesim_node
# ros重映射机制，控制节点名称不同，防止冲突
rosrun learning_tf turtle_tf_broadcaster.py __name:=turtle1_tf_broadcaster _turtle:=turtle1
rosrun learning_tf turtle_tf_broadcaster.py __name:=turtle2_tf_broadcaster _turtle:=turtle2
rosrun learning_tf turtle_tf_listener.py
rosrun turtlesim turtle_teleop_key

16、launch启动文件

cd ~/catkin_ws/src
catkin_create_pkg learning_launch

mkdir ~/catkin_ws/src/learning_launch/launch
cd ~/catkin_ws/src/learning_launch/launch
touch simple.launch

simple.launch

<launch>
	<node pkg="learning_topic" type="person_subscriber" name="listener" output="screen"/>
    <node pkg="learning_topic" type="person_publisher" name="talker" output="screen"/>
</launch>

编译运行

cd ~/catkin_ws
catkin_make

roslaunch learning_launch simple.launch

turtlesim_parameter_config.launch

<launch>
	<param name="/turtle_number" value="2"/>
    <node pkg="turtlesim" type="turtlesim_node" name="turtlesim_node">
		<param name="turtle_name1" value="Tom"/>
		<param name="turtle_name2" value="Jerry"/>
		<rosparam file="$(find learning_launch)/config/param.yaml" command="load"/>
	</node>
    <node pkg="turtlesim" type="turtle_teleop_key" name="turtle_teleop_key" output="screen"/>
</launch>

param.yaml

A: 123
B: "hello"

group:
  C: 456
  D: "hello"

编译运行

# 编译
cd ~/catkin_ws
catkin_make

# 启动
roslaunch learning_launch turtlesim_parameter_config.launch
# 验证
rosparam list
rosparam get /turtle_number
rosparam get /turtlesim_node/turtle_name1
rosparam get /turtlesim_node/turtle_name2
rosparam get /turtlesim_node/A
rosparam get /turtlesim_node/B
rosparam get /turtlesim_node/group/C
rosparam get /turtlesim_node/group/D

start_tf_demo_c++.launch

<launch>
    <node pkg="turtlesim" type="turtlesim_node" name="sim"/>
    <node pkg="turtlesim" type="turtle_teleop_key" name="teleop" output="screen"/>
    <node pkg="learning_tf" type="turtle_tf_broadcaster" name="turtle1_tf_broadcaster" args="/turtle1"/>
    <node pkg="learning_tf" type="turtle_tf_broadcaster" name="turtle2_tf_broadcaster" args="/turtle2"/>
    <node pkg="learning_tf" type="turtle_tf_listener" name="listener"/>
</launch>

start_tf_demo_py.launch

<launch>
	<node pkg="turtlesim" type="turtlesim_node" name="sim"/>
	<node pkg="turtlesim" type="turtle_teleop_key" name="teleop" output="screen"/>
	<node pkg="learning_tf" type="turtle_tf_broadcaster.py" name="turtle1_tf_broadcaster">
	  <param name="turtle" type="string" value="turtle1" />
	</node>
	<node pkg="learning_tf" type="turtle_tf_broadcaster.py" name="turtle2_tf_broadcaster">
	  <param name="turtle" type="string" value="turtle2" />
	</node>
    <node pkg="learning_tf" type="turtle_tf_listener.py" name="listener" />
</launch>

turtlesim_remap.launch

<launch>
	<include file="$(find learning_launch)/launch/simple.launch" />
    <node pkg="turtlesim" type="turtlesim_node" name="turtlesim_node">
		<remap from="/turtle1/cmd_vel" to="/cmd_vel"/>
	</node>
</launch>

运行

# 启动
roslaunch learning_launch turtlesim_remap.launch

# 验证 /turtle1/cmd_vel 是否变成了 /cmd_vel
rostopic list
# 发布 /cmd_vel 话题，验证是否生效
rostopic pub /cmd_vel geometry_msgs/Twist "linear:
  x: 1.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: 0.0"

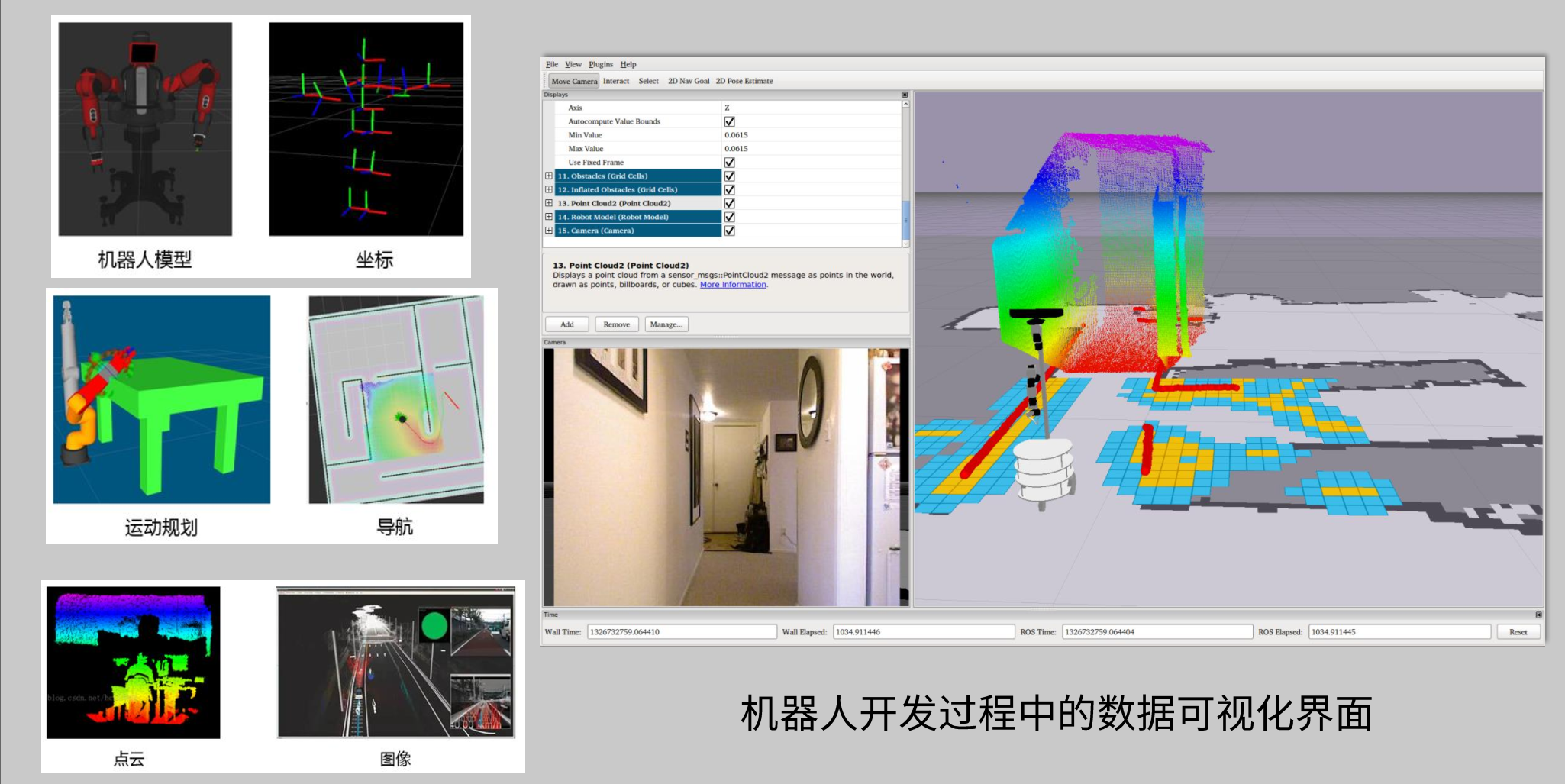

17、可视化工具

17.1、Qt工具箱

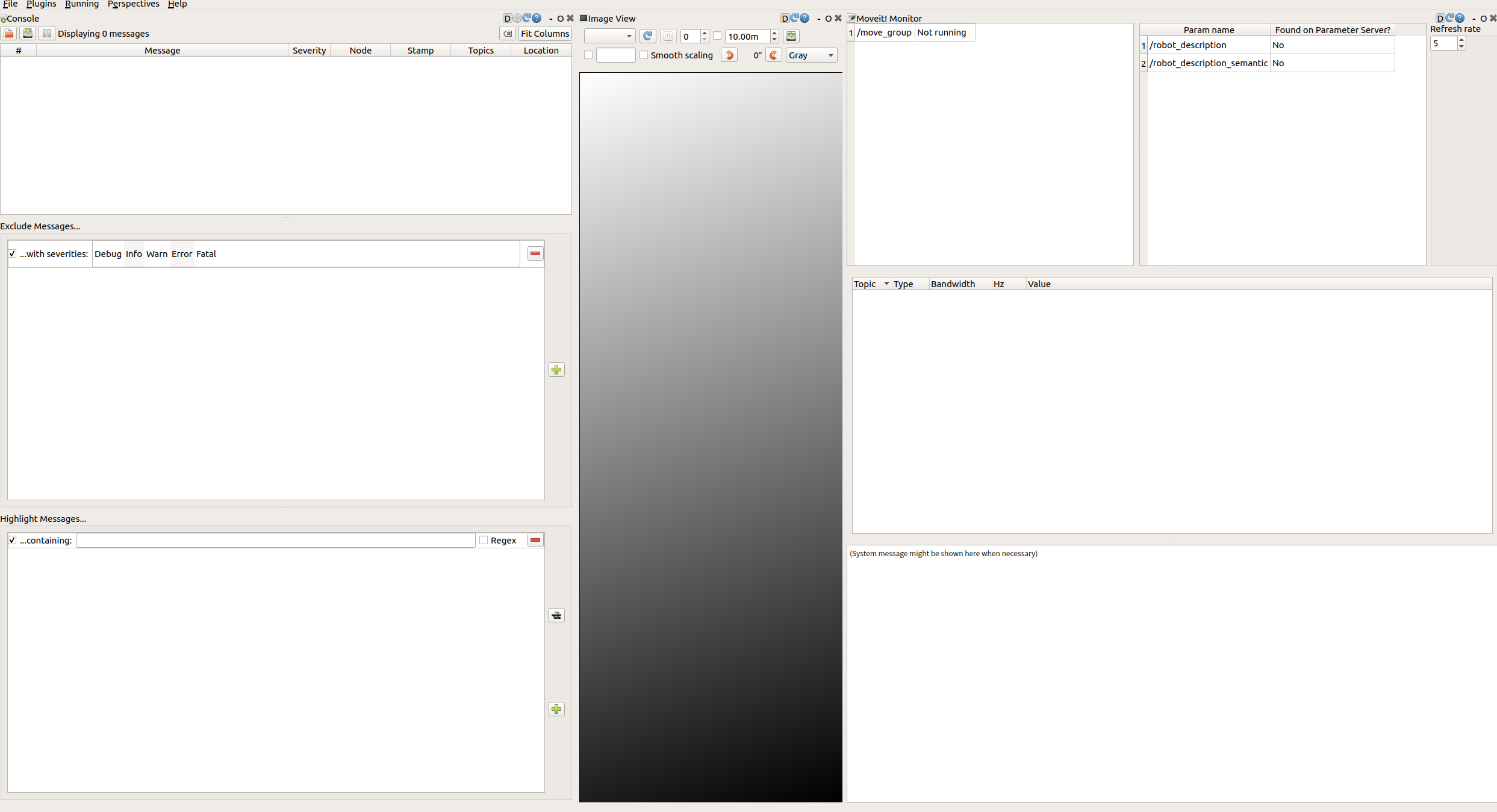

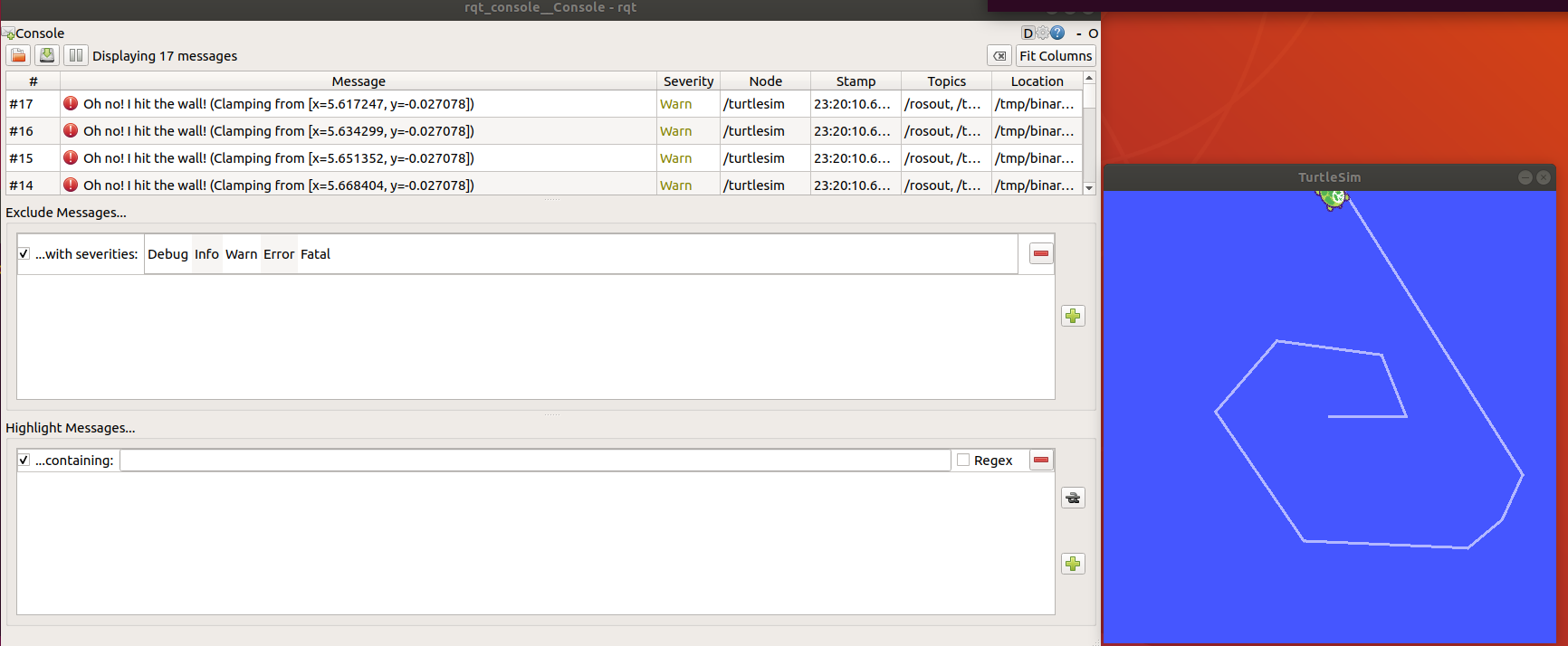

# 日志输出工具
rqt_console

# 计算图可视化工具
rqt_graph

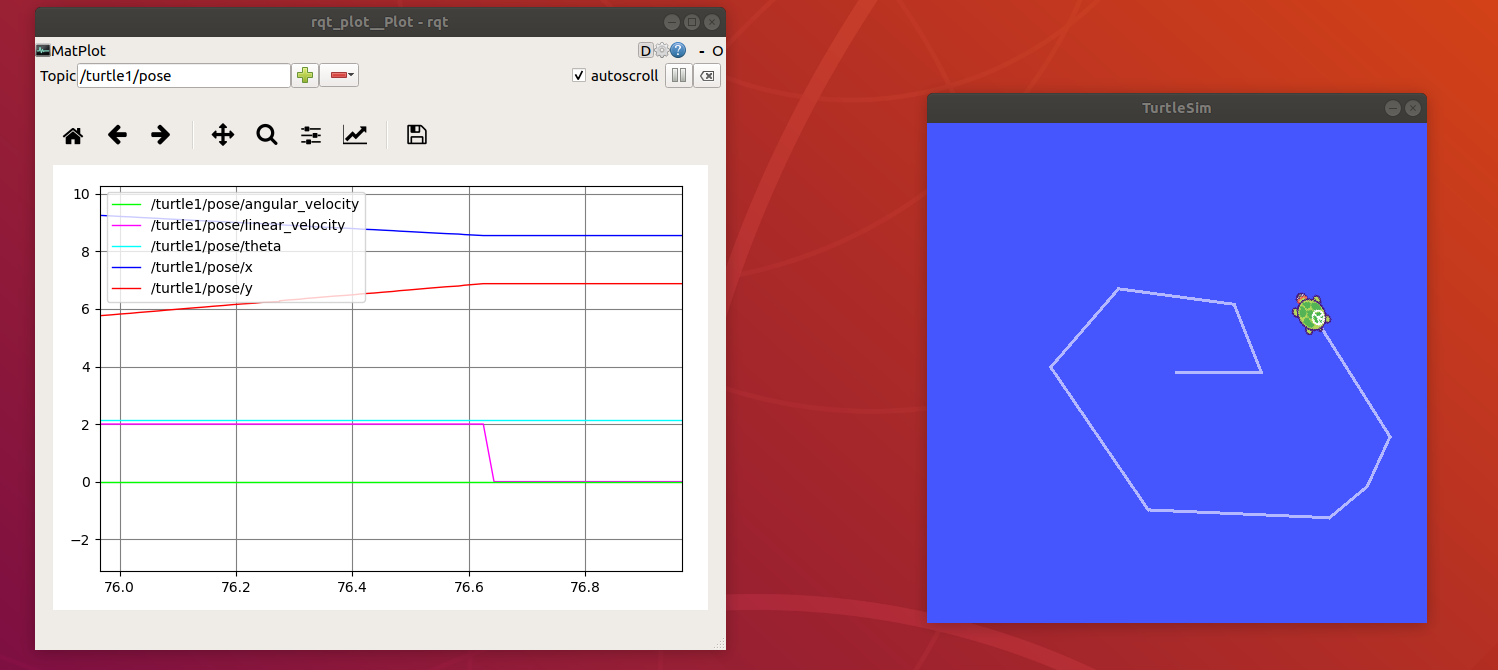

# 数据绘图工具
rqt_plot

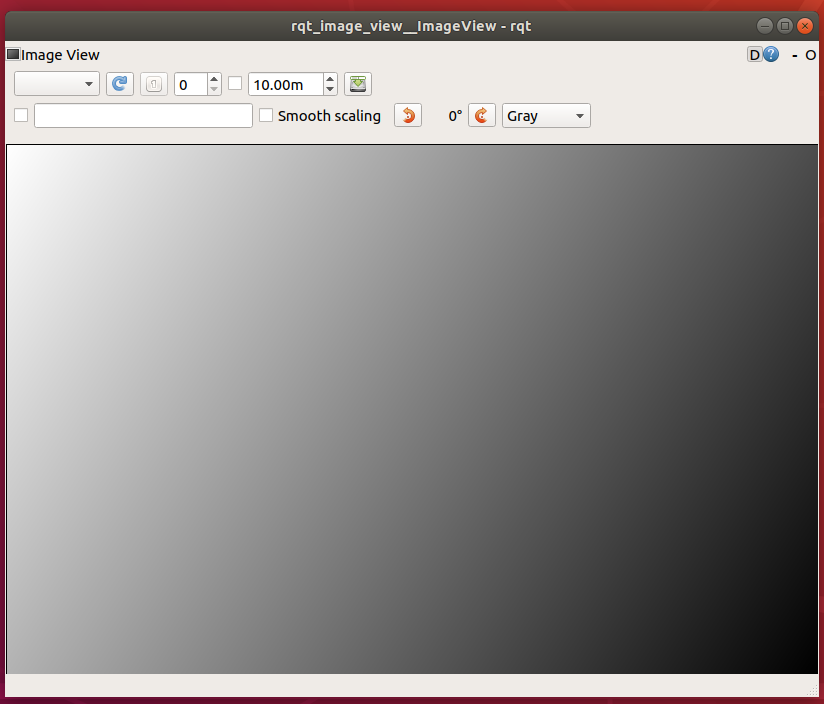

# 图像渲染工具
rqt_image_view

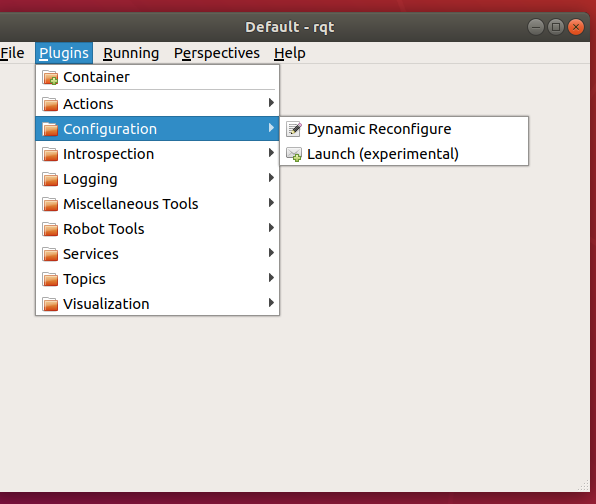

# 工具集成
rqt

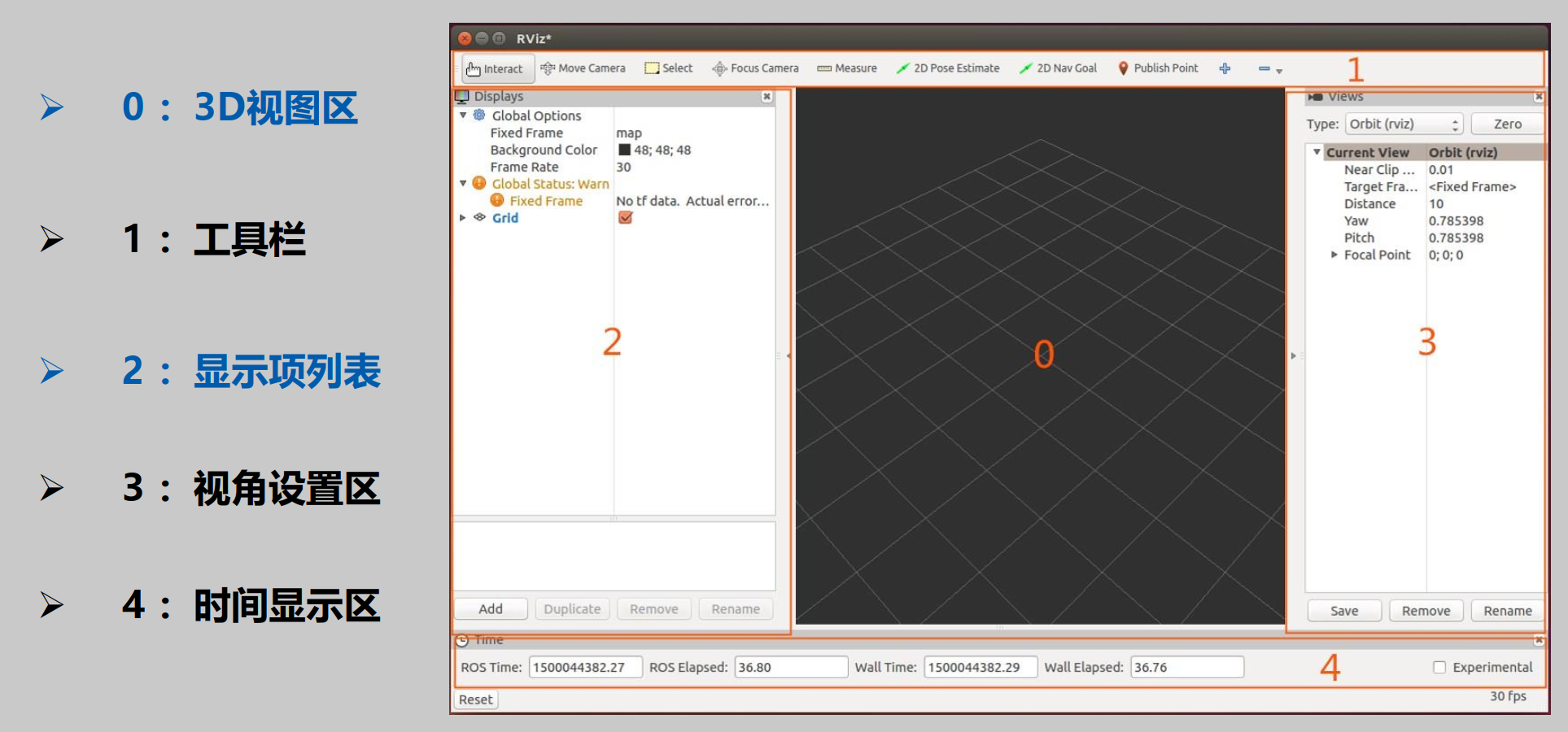

17.2、Rviz

# 启动
roscore
rosrun rviz rviz

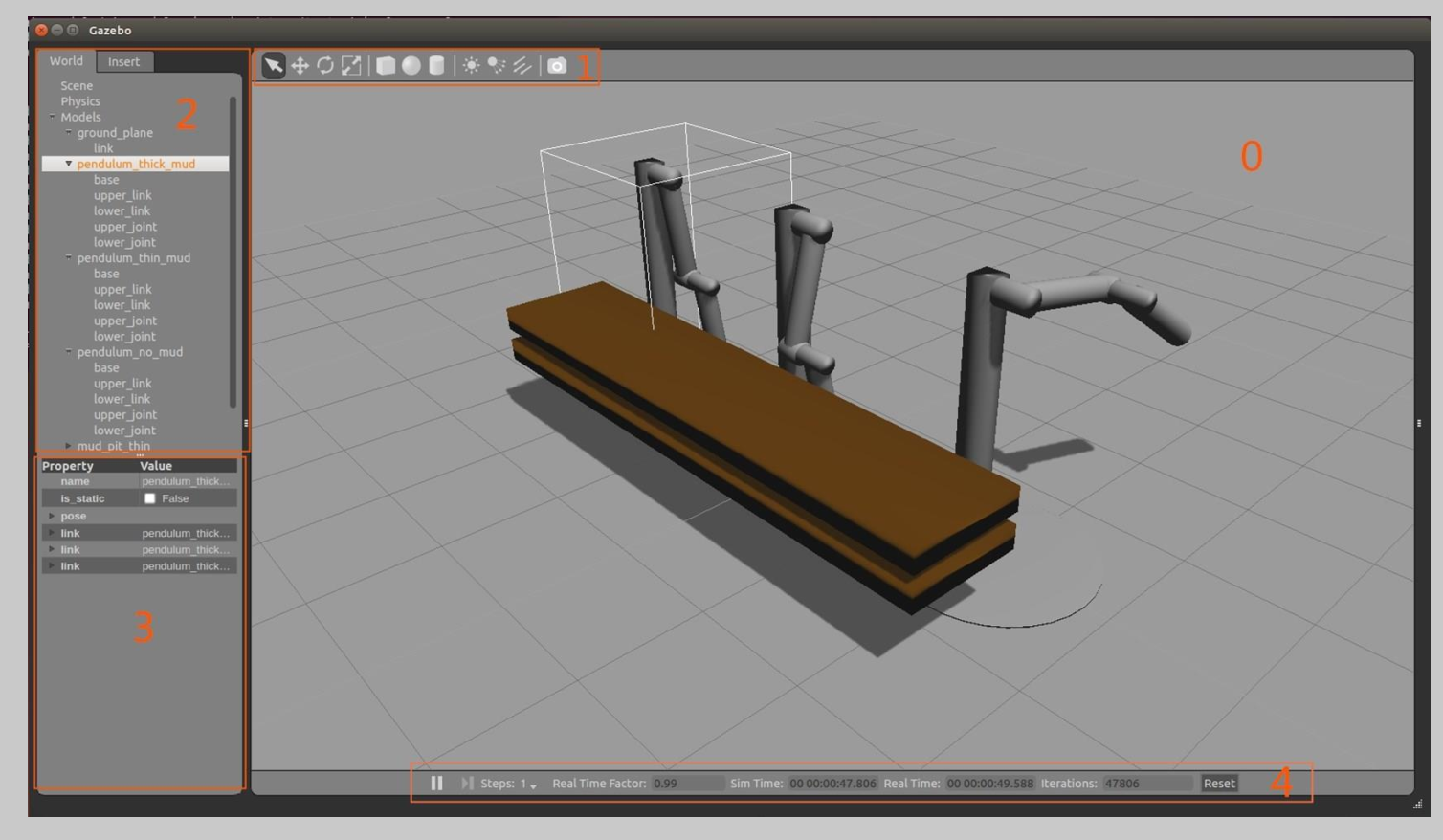

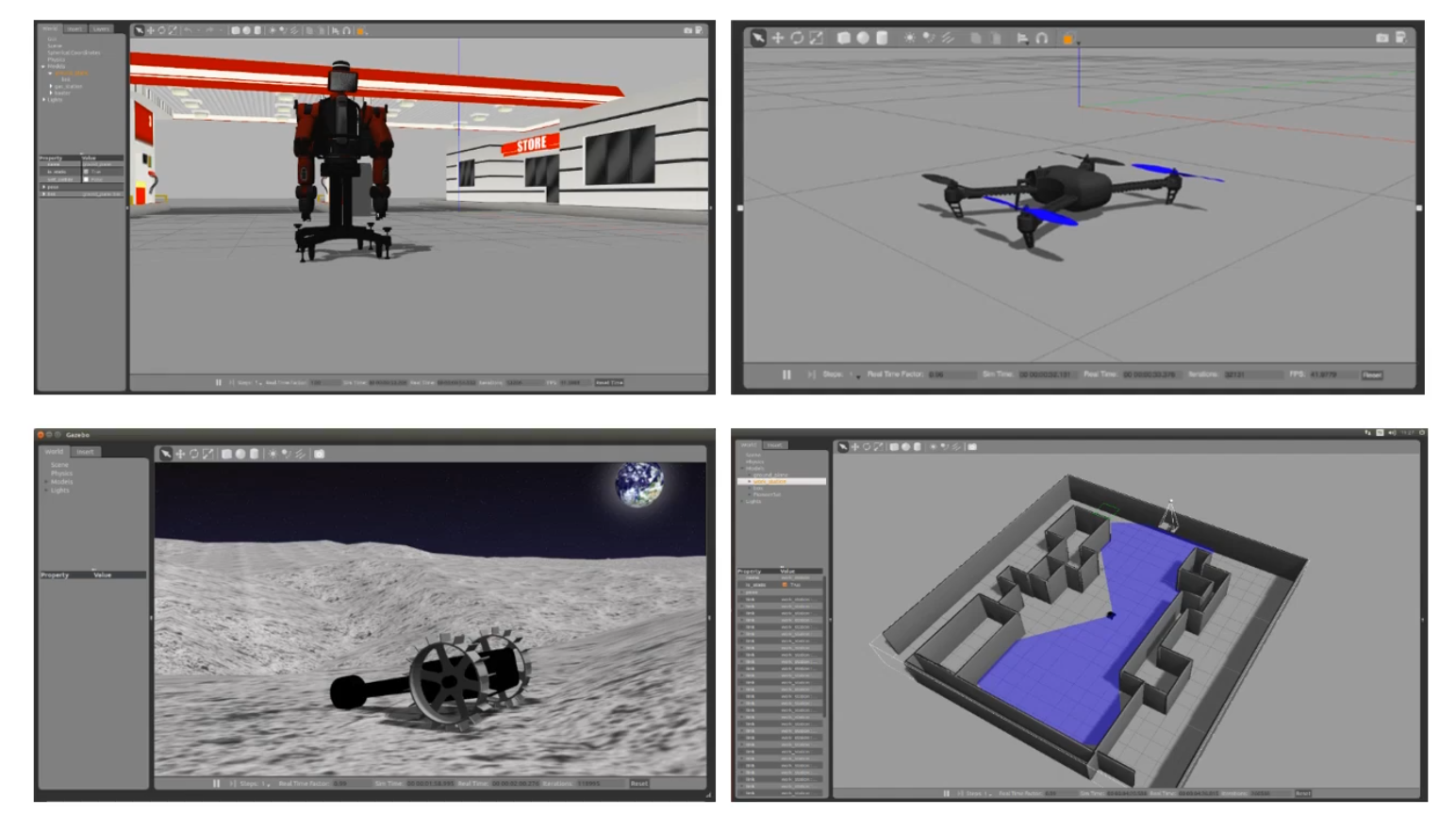

17.3、Gazebo

# 启动
roslaunch gazebo_ros willowgarage_world.launch

Name		Name	Last commit message	Last commit date
Latest commit History 3 Commits
ros_21_tutorials		ros_21_tutorials
README.md		README.md
bookmarks_2024_7_28.html		bookmarks_2024_7_28.html

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

1、安装准备

2、安装 g++ 编译器和 python 解释器

3、编译运行与解释执行

4、安装 ROS

5、ROS 命令行工具

6、创建工作空间与功能包

7、发布者Publisher

8、订阅者Subscriber

9、话题消息的定义与使用

9.1、话题消息的定义

9.2、话题消息的使用

10、客户端Client

11、服务端Server

12、服务数据的定义与使用

12.1、服务数据的定义

12.2、服务数据的使用

13、参数的使用

14、ROS坐标系管理系统

15、tf坐标系广播与监听

16、launch启动文件

17、可视化工具

17.1、Qt工具箱

17.2、Rviz

17.3、Gazebo

About

Uh oh!

Releases

Packages

Uh oh!

Contributors

Uh oh!

Languages

Folders and files

Latest commit

History

Repository files navigation

1、安装准备

2、安装 g++ 编译器和 python 解释器

3、编译运行与解释执行

4、安装 ROS

5、ROS 命令行工具

6、创建工作空间与功能包

7、发布者Publisher

8、订阅者Subscriber

9、话题消息的定义与使用

9.1、话题消息的定义

9.2、话题消息的使用

10、客户端Client

11、服务端Server

12、服务数据的定义与使用

12.1、服务数据的定义

12.2、服务数据的使用

13、参数的使用

14、ROS坐标系管理系统

15、tf坐标系广播与监听

16、launch启动文件

17、可视化工具

17.1、Qt工具箱

17.2、Rviz

17.3、Gazebo

About

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
