@antonis antonis commented Apr 14, 2021

Fixes #14438

Description

The original my_site_item_block.xml structure worked as expected in LTR languages and there is no structural reason to break in RTL. Thus the observed UI bug is most probably due to a ConstraintLayout bug (e.g.).
Note that we are using version 1.1.3 of ContraintLayout. I tested with 2.0.4(stable) and 2.1.0-beta1 and the issue is still reproduced.
As a workaround the layout was transformed to RelativeLayout.

A fix using ConstraintLayout was cherrypicked from @planarvoid's solution 4a51f62

To test:

  1. Set the Interface to an RTL (e.g. Hebrew or Arabic) language (Avatar>App Settings> Interface Language)
  2. Browse to My Site screen
  3. Verify that the options list is rendered correctly

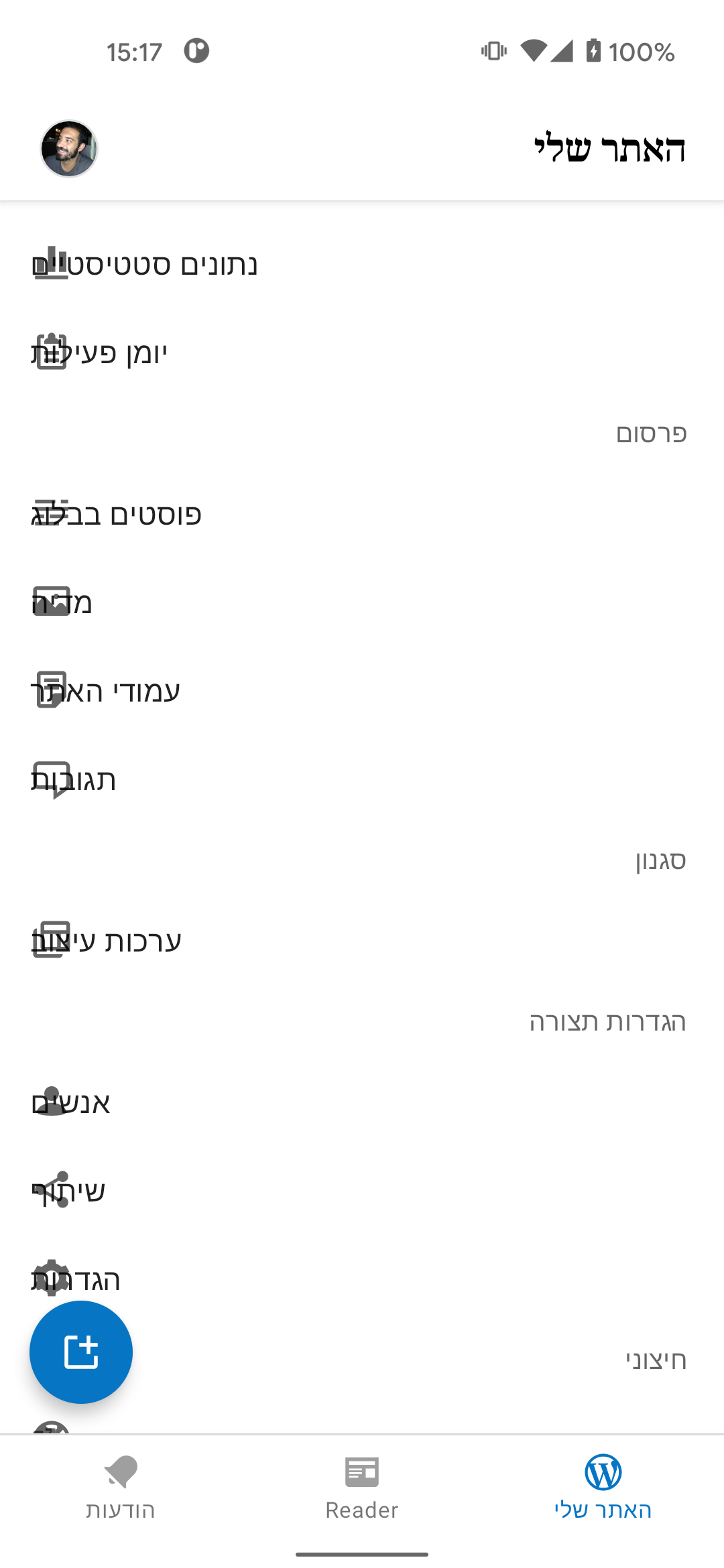

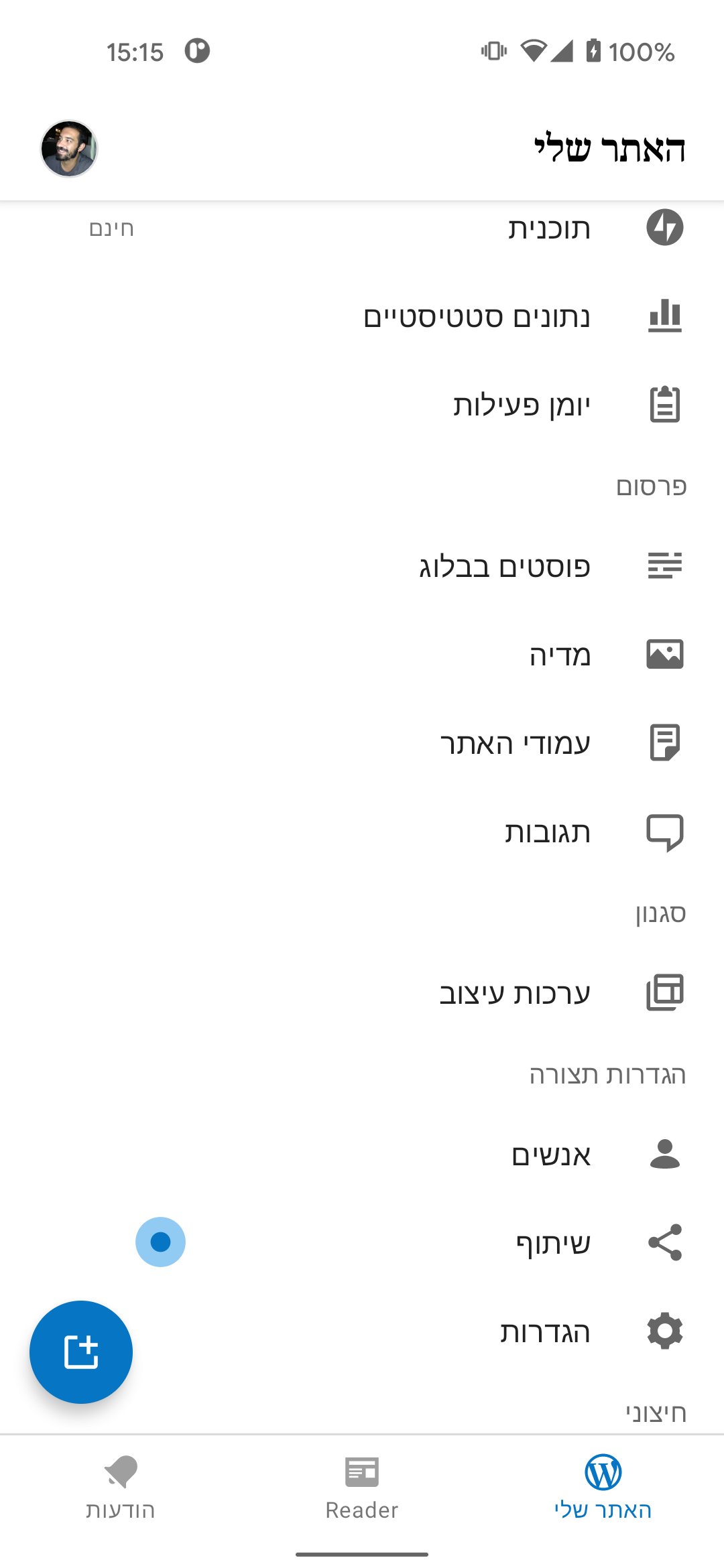

Hebrew Before Hebrew with the Fix
device-2021-04-14-151741 device-2021-04-14-151602

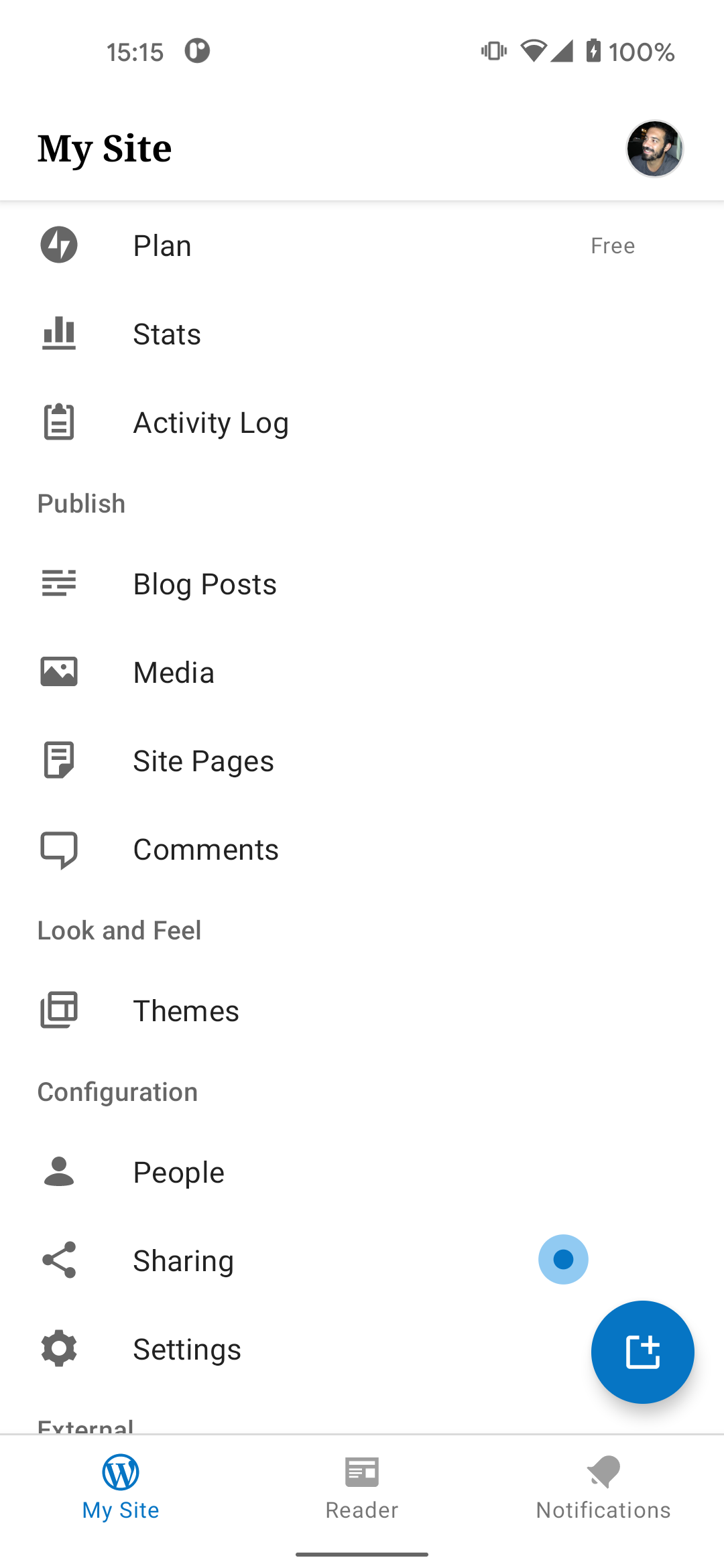

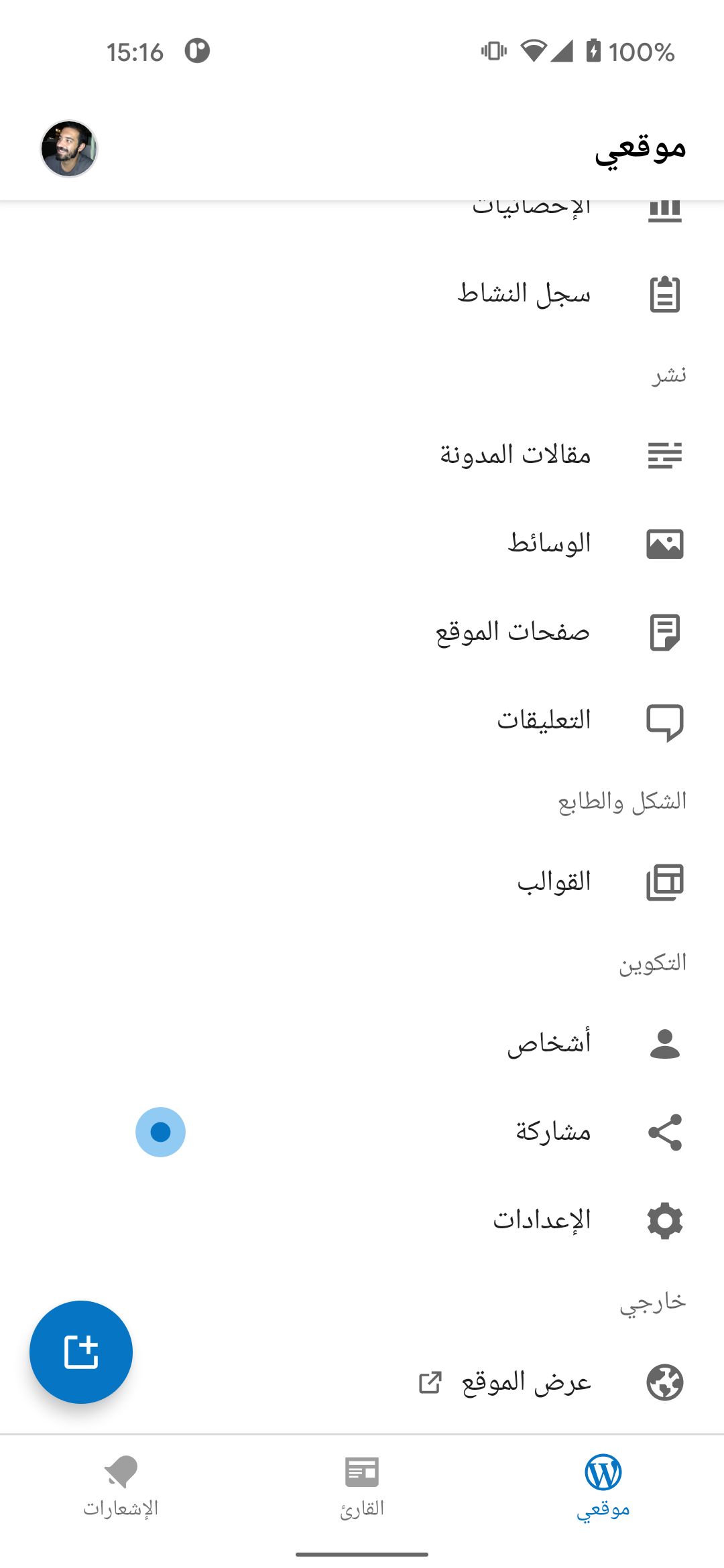

Arabic English
device-2021-04-14-151645 device-2021-04-14-151513

Regression Notes

  1. Potential unintended areas of impact
    None identified

  2. What I did to test those areas of impact (or what existing automated tests I relied on)
    N/A

  3. What automated tests I added (or what prevented me from doing so)
    N/A

PR submission checklist:

  • I have completed the Regression Notes.
  • I have considered adding accessibility improvements for my changes.
  • I have considered if this change warrants user-facing release notes and have added them to RELEASE-NOTES.txt if necessary.

@antonis antonis self-assigned this Apr 14, 2021
@peril-wordpress-mobile
Copy link

peril-wordpress-mobile bot commented Apr 14, 2021

You can trigger optional UI/connected tests for these changes by visiting CircleCI here.

@peril-wordpress-mobile
Copy link

peril-wordpress-mobile bot commented Apr 14, 2021

You can test the changes on this Pull Request by downloading the APK here.

@antonis antonis marked this pull request as ready for review April 14, 2021 12:36
@antonis antonis requested review from mkevins and planarvoid April 14, 2021 12:37
@antonis antonis marked this pull request as draft April 14, 2021 13:01
@antonis antonis force-pushed the issue/14438-rtlAlignement branch from 99b562b to b49c2ee Compare April 14, 2021 14:30
@antonis antonis marked this pull request as ready for review April 14, 2021 14:39
@antonis antonis added this to the 17.2 milestone Apr 14, 2021
@antonis antonis requested a review from chipsnyder April 15, 2021 17:08
Copy link
Contributor

@chipsnyder chipsnyder left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Works as described and LGTM! 🚢

@antonis antonis merged commit d119cc0 into develop Apr 16, 2021
@antonis antonis deleted the issue/14438-rtlAlignement branch April 16, 2021 09:39
