A Linux program that plays MP3 or WAV files to the Covox Speech Thing or its clones via a native parallel port.
C
Switch branches/tags
Nothing to show
Clone or download
Fetching latest commit…
Cannot retrieve the latest commit at this time.

README.md

covox-music-player

A Linux program that plays MP3 or WAV files to the Covox Speech Thing or its clones via a native parallel port. MP3 files are converted to WAV using FFmpeg as an intermediate step. WAV files are processed using the libsndfile library.

The original Covox can't be easily purchased this days but you can fabricate your own like what I have did here and here.

Video and images

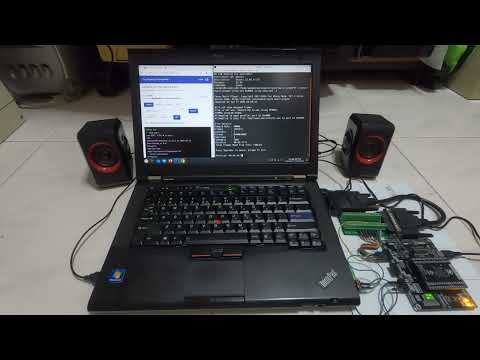

Video of the program in action.

Screen

Screenshot of my program

Screen

Terminal on the right is my program running. Terminal on the left is to obtain the IO address of the parallel port with lspci -v or cat /proc/ioports | grep parport.

Screen

As modern computers don't have parallel ports anymore, I used this Startech Expresscard to Parallel Port adapter with my laptop. If you are on a desktop, you can use a PCI-E adapter card. I have tested this serial-parallel combo from Startech to work although other models might work as well too.

USB-Parallel adapters are best avoided as they are not true parallel port hardware as they usually appear as USB printers and abstract the IO pins away. Thus you can't bitbang the pins as my program does. Besides, USB is not really suitable for realtime control due to latencies in its protocol.

Compiling the program

The system I tested this on is Linux Mint 18 (based on Ubuntu 16.04) but it should work on other distributions as well.

sudo apt update

#Install dependencies
sudo apt install gcc build-essential libsndfile-dev ffmpeg

git clone https://github.com/yeokm1/covox-music-player.git
cd covox-music-player
gcc covox-music-player-linux.c -o covox-music-player-linux.out -Wall -lsndfile -pthread

Running the program

sudo ./covox-music-player-linux.out 0x378 file.mp3

Replace 0x378 with the address of your parallel port such as 0xd020 or 0x3008 which are used on my systems. The program requires root access in order to access the parallel port addresses. View the video above to see how to obtain the addresses with the commands lspci -v or cat /proc/ioports | grep parport.

References

  1. Find Parallel Port address on Linux
