Cloud Native Spring Batch

전체 소스코드는 zacscoding/cloud-native-spring-batch 에서 확인할 수 있습니다.

Table Of Contents

Batch Service

해당 예제의 Batch Service는 Foo라는 도메인을 기준으로 아래와 같은 작업으로 이루어져있습니다.

@Data
public class Foo {
    private String first;
    private String second;
    private String third;
    private String message;
}

Batch Example

  • DownloadingJobExecutionListener: S3의 Bucket에 있는 *.csv 파일을 /tmp 디렉터리로 다운로드합니다.
    • 해당 파일들은 ExecutionContext에 localFiles라는 키 값으로 경로를 저장합니다.
  • ItemReader(MultiResourceItemReader): ExecutionContext::get("localFiles")에 있는 FlatFile을 읽습니다.
  • ItemProcessor(EnrichmentProcessor): enrich-service의 GET /enrich를 호출하여 Foo 도메인의 message 필드를 채워줍니다.
  • ItemWriter(JdbcItemWriter): Foo 도메인을 데이터베이스에 적재합니다.

해당 배치 서비스를 기준으로 Spring Cloud 모듈을 적용합니다(Config Server, Eureka Server)

그전에 Spring Cloud 컴포넌트에 대해 알아봅니다.

Spring Cloud

Spring Cloud Config

Spring Cloud Config 는 설정 정보를 관리하는 모듈입니다.

설정 정보를 변경하면 아래와 같은 문제가 발생합니다.

  • 애플리케이션을 재시작 해야한다.
  • 어떤 설정 정보가 수정되었는지 확인할 방법이 없고, 수정 내용을 이전 상태로 복구 할 방법이 없다(추적성이 없다).
  • 설정이 여기저기 분산되어 있어서 어디에서 어떤 설정 정보를 변경해야 하는지 파악하기 어렵다.
  • 손쉬운 압호화/복호화 방법이 없다.

이러한 문제들을 Spring cloud config를 통해서 해결할 수 있습니다.

Spring cloud config

(Spring Cloud Config Server/Client 구성)


Spring cloud config workflow (Spring Cloud Config 동작 방식)

Spring Clound Config Server

EnvironmentRepository

public interface EnvironmentRepository {

	Environment findOne(String application, String profile, String label);

	default Environment findOne(String application, String profile, String label, boolean includeOrigin) {
		return findOne(application, profile, label);
	}
}

위와 같이 findOne(application, profile, label) 라는 메소드를 통해 설정 정보를 조회합니다. 이때 구현체는 Git, JDBC, Vault, S3 등이 있습니다.


EnvironmentController

@RestController
@RequestMapping(method = RequestMethod.GET,
		path = "${spring.cloud.config.server.prefix:}")
public class EnvironmentController {
	private EnvironmentRepository repository;
    ...
	@RequestMapping(path = "/{name}/{profiles:.*[^-].*}",
			produces = MediaType.APPLICATION_JSON_VALUE)
	public Environment defaultLabel(@PathVariable String name,
			@PathVariable String profiles) {
		return getEnvironment(name, profiles, null, false);
	}

	@RequestMapping(path = "/{name}/{profiles:.*[^-].*}",
			produces = EnvironmentMediaType.V2_JSON)
	public Environment defaultLabelIncludeOrigin(@PathVariable String name,
			@PathVariable String profiles) {
		return getEnvironment(name, profiles, null, true);
	}

	@RequestMapping(path = "/{name}/{profiles}/{label:.*}",
			produces = MediaType.APPLICATION_JSON_VALUE)
	public Environment labelled(@PathVariable String name, @PathVariable String profiles,
			@PathVariable String label) {
		return getEnvironment(name, profiles, label, false);
	}

	@RequestMapping(path = "/{name}/{profiles}/{label:.*}",
			produces = EnvironmentMediaType.V2_JSON)
	public Environment labelledIncludeOrigin(@PathVariable String name,
			@PathVariable String profiles, @PathVariable String label) {
		return getEnvironment(name, profiles, label, true);
	}
    ...
}

기본적으로 아래와 같은 2가지 Path를 통해 Environment(설정 정보)를 조회할 수 있습니다.

  • /{spring.cloud.config.server.prefix}/{name}/{profiles}
  • /{spring.cloud.config.server.prefix}/{name}/{profiles}/{label}, 여기서 label은 Git의 경우 master 브런치, 커밋 해시 등

Spring cloud config server는 아래와 같이 application.yaml을 구성할 수 있습니다.

server:
  port: 8888

spring:
  application:
    name: "config-server"
  cloud:
    config:
      server:
        prefix: /config-server
        git:
          # default 0, 매 요청마다 fetch
          # 단위는 Second 이며 (refresh > 0 && (now() - lastRefresh) < (refreshRate * 1000) 면 fetch 하지 않음
          refreshRate: 5
          # uri: https://github.com/evagova/config-repo
          uri: file://${user.home}/config-repo

---
spring:
  profiles: jdbc
  datasource:
    url: jdbc:h2:mem:testdb?DB_CLOSE_ON_EXIT=FALSE
    username: root
    password: root
    driver-class-name: org.h2.Driver
  cloud:
    config:
      server:
        jdbc:
          sql: SELECT KEY, VALUE from PROPERTIES where APPLICATION=? and PROFILE=? and LABEL=?
          order: 1

---
spring:
  profiles: rabbitmq
  cloud:
    bus:
      env:
        enabled: true
      refresh:
        enabled: true
  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: user
    password: secret
management:
  endpoints:
    web:
      base-path: /actuator
      exposure:
        include: ['bus-refresh']

Spring Cloud Config Client

Spring cloud config client는 아래와 같이 application.yaml을 구성할 수 있습니다.

spring:
  profiles:
    active: {ENV}
  application:
    name: demo
  cloud:
    config:
      uri: http://localhost:8888/config-server

management:
  endpoints:
    web:
      exposure:
        include: "refresh"

최초에 설정 정보를 조회하고 @RefreshScope 기능을 통해 설정 정보를 갱신할 수 있습니다.

  • actuator의 /actuator/refresh 호출
  • 직접 refresh 코드 호출

@RefreshScope 사용 예제

import org.springframework.cloud.context.config.annotation.RefreshScope;
...

@Slf4j
@RestController
@RefreshScope // 새로고침 가능
public class RefreshRestController {

    private final String message;

    // Environment 추상화 덕분에 PropertySource에서 가져오는 방식 그대로 읽어올 수 있음
    @Autowired
    public RefreshRestController(@Value("${application.message}") String message) {
        logger.warn("## RefreshController() is called. message : {}", message);
        this.message = message;
    }

    @GetMapping("/message")
    public String getMessage() {
        return message;
    }
}

@EventListener를 통한 refresh 이벤트 리스너 예제

@Component
public class CustomRefreshListener {

    @EventListener
    public void refresh(RefreshScopeRefreshedEvent e) {
        logger.warn("refresh event occur. name : {} / source : {}", e.getName(), e.getSource());
    }
}

Custom refresh event publisher 예제

import org.springframework.cloud.context.refresh.ContextRefresher;
import org.springframework.cloud.endpoint.RefreshEndpoint;

...

/**
 * See {@link RefreshEndpoint}
 */
@Slf4j
@AllArgsConstructor
@RestController
public class RefreshController {

    private final ContextRefresher contextRefresher;

    @PostMapping("/refresh")
    public Set<String> refresh() {
        logger.warn("## custom /refresh is called");
        return contextRefresher.refresh();
    }
}

Spring Cloud Config with bus

spring cloud config with bus

Spring cloud stream(rabbitmq, kafka, reactor project 등)을 통해 다양한 메시징 방식을 적용할 수 있습니다.

Spring Cloud Eureka

Eureka는 Service Discovery 중 하나이며 Spring Cloud에서는 Eureka, CloudFoundry, Consul, Zookeeper 등을 제공합니다.

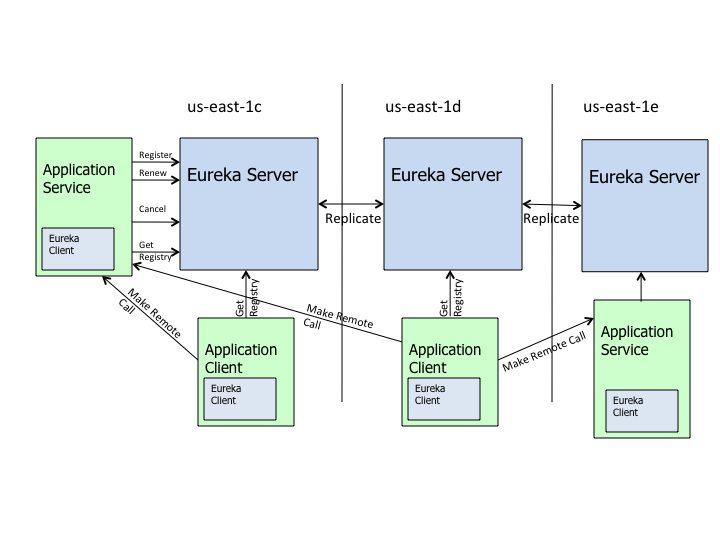

Eureka Architecture

위와 같이 Eureka Server/Client가 존재합니다.

  • ApplicationService는 Eureka Client를 이용하여 Eureka Server에 자신을 등록한다(즉 ServiceDiscovery의 대상이 된다)
  • ApplicationClient는 Get Registry를 호출하여 등록된 서버 정보들을 찾는다(즉 ServiceDiscovery의 대상이 아니다)

Eureka Communication

Note: Understanding eureka client server communication를 통해 자세한 내용을 확인할 수 있습니다.

  • Register: Client -> Server에게 등록 요청을 보낸 후 ServiceDiscovery의 대상이 된다.
  • Renew: 30초마다 heatbeat를 보내서 lease를 갱신한다. Server는 마지막 heatbeat를 보낸 시간보다 90초가 지났으면 해당 서비스를 Registry에서 제거한다.
  • Fetch Registry: Client는 Server로부터 registry 정보를 가져와 로컬 캐시에 담아둔다. 이러한 registry 정보는 service discovery하는데 사용된다.
    아래의 com.netflix.discovery.DiscoveryClient를 살펴보면 delta를 조회하여 client의 이전 delta와 해시코드(문자열)를 비교하여 변경사항이 있으면 갱신한다.
private void getAndUpdateDelta(Applications applications) throws Throwable {
    long currentUpdateGeneration = fetchRegistryGeneration.get();

    Applications delta = null;
    // /apps/delta?regions=... 호출
    EurekaHttpResponse<Applications> httpResponse = eurekaTransport.queryClient.getDelta(remoteRegionsRef.get());
    if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
        delta = httpResponse.getEntity();
    }

    if (delta == null) {
        logger.warn("The server does not allow the delta revision to be applied because it is not safe. "
                + "Hence got the full registry.");
        getAndStoreFullRegistry();
    } else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
        logger.debug("Got delta update with apps hashcode {}", delta.getAppsHashCode());
        String reconcileHashCode = "";
        if (fetchRegistryUpdateLock.tryLock()) {
            try {
                // client의 delta 갱신
                updateDelta(delta);
                // {instance_name}:{count}_{instance_name}_{count} ...
                reconcileHashCode = getReconcileHashCode(applications);
            } finally {
                fetchRegistryUpdateLock.unlock();
            }
        } else {
            logger.warn("Cannot acquire update lock, aborting getAndUpdateDelta");
        }
        ...
    }
    ...
}
  • Cancel: Client는 애플리케이션 종료 시 Server에게 Cancel 요청을 보내 registry에서 제거된다.

Eureka interacts example

Eureka Interacts

  • Service1 : 애플리케이션 시작 시 Eureka 서버에서 Register 요청을 보낸 뒤 서버는 Registry에 추가한다.
  • Service2 : 주기적으로 Heatbeat를 보낸다.(Renew)
  • Service3 : 애플리케이션 종료 시 Eureka 서버에게 Cancel 요청을 보낸 뒤 서버는 Registry에서 제거한다.
  • Service4 : 애플리에키션 종료 시 Cancel 요청을 보내지 않은 상태이다(강제 종료)
  • Eureka Server : Service4에 대하여 마지막 Heatbeat로 부터 90초가 지나서 Registry에서 제거한다.

더 자세한 Endpoint는 WIKI-Eureka-REST-operations에서 확인할 수 있습니다.

Eureka Server HA

HA 구성을 위해 Eureka Server도 다중으로 구성해야합니다. 이때 어떻게 서버간 통신하는지 살펴보겠습니다.

Eureka Peer Awareness

  • Eureka Cluster에서 Eureka Server는 peer 라고 표현하고 아래와 같은 행위를 Peer Awareness 라고 부른다.
  • 각각의 Eureka Server는 Eureka Client 를 이용하여 Register, Fetch Registry 작업이 이루어진다.
  • Register, Renew 등 모든 Operation이 발생하면 다른 Peer(Eureka Server) 에게 동일한 요청(replica==true)을 시도한다.

아래와 같이 PeerAwareInstanceRegistryImpl를 살펴보면 Client -> Server로의 Register 요청에 대하여 자신의 Registry를 업데이트하고
replicateToPeer()를 통해 다른 Peer(Eureka Server)에게 Register with replica 요청을 보냅니다(이때 POST /eureka/v2/app/appID, 헤더에 Replica==true)

@Singleton
public class PeerAwareInstanceRegistryImpl extends AbstractInstanceRegistry implements PeerAwareInstanceRegistry {
    ...
    @Override
    public void register(final InstanceInfo info, final boolean isReplication) {
        int leaseDuration = Lease.DEFAULT_DURATION_IN_SECS;
        if (info.getLeaseInfo() != null && info.getLeaseInfo().getDurationInSecs() > 0) {
            leaseDuration = info.getLeaseInfo().getDurationInSecs();
        }
        super.register(info, leaseDuration, isReplication);
        replicateToPeers(Action.Register, info.getAppName(), info.getId(), info, null, isReplication);
    }
    ...
}

Circuit Breaker

Spring Cloud에서는 CircuitBreaker를 적용하기 위해 Hystrix, resilience4j, Sentinel, spring-retry 를 제공합니다.

@Service
public static class DemoControllerService {
	private RestTemplate rest;
	private CircuitBreakerFactory cbFactory;

	public DemoControllerService(RestTemplate rest, CircuitBreakerFactory cbFactory) {
		this.rest = rest;
		this.cbFactory = cbFactory;
	}

	public String slow() {
		return cbFactory.create("slow").run(() -> rest.getForObject("/slow", String.class), throwable -> "fallback");
	}
}

(출처: https://spring.io/projects/spring-cloud-circuitbreaker)

Circuit Breaker의 주요기능은 아래와 같습니다.

  • Circuit Breaker
    • 메소드의 실행 성공/실패 결과를 기록하여 통계를 낸 후 Circuit open/close 여부를 결정한다
    • (1) 일정 시간동안 (2) 일정 개수 이상의 호출 이 발생한 경우 (3) 일정 비율 이상 의 에러가 발생하면 Circuit Open
    • (4) 일정 시간 경과 후 단 한개의 요청을 허용하며(Half Open) 이 요청이 성공하면 Circuit Close
  • Fallback
    • 실패한 경우(Exception) 사용자가 제공한 메소드를 대신 실행한다

코드로 살펴보면 아래와 같이 이용할 수 있습니다.

hystrix example

// (1) 어노테이션 기반
@HystrixCommand(commandKey = "ExtDep1", fallbackMethod="doSomething11")
public String doSomething() {
    // 다른 서버 API Call
}

public String doSomething11() {
    // fallback method 실행
}

// (2) HystrixCommand 상속
public class SampleCommand extends HystrixCommand<String> {
  @Override
  protected String run() {
    // 다른 서버 API Call
  }
}

spring retry example

public class EnrichmentProcessor {

    private final RestTemplate restTemplate;

    @Recover
    public Foo fallback(Foo foo) {
        foo.setMessage("error-fallback");
        return foo;
    }

    @CircuitBreaker(maxAttempts = 1, resetTimeout = 1000L)
    @Override
    public Foo process(@NotNull Foo foo) {
        final ResponseEntity<String> responseEntity = restTemplate.exchange(
                "http://enrich-service/enrich",
                HttpMethod.GET,
                null,
                String.class
        );
        foo.setMessage(responseEntity.getBody());
        return foo;
    }
}

resilience4j

final CircuitBreakerConfig circuitBreakerConfig =
        CircuitBreakerConfig.custom()
                            .failureRateThreshold(50)
                            .slidingWindowType(SlidingWindowType.COUNT_BASED)
                            .waitDurationInOpenState(Duration.ofMillis(5000))
                            .permittedNumberOfCallsInHalfOpenState(2)
                            .slidingWindowSize(2)
                            .recordExceptions(RestClientException.class, ResourceAccessException.class)
                            .build();

final CircuitBreakerRegistry circuitBreakerRegistry = CircuitBreakerRegistry.of(circuitBreakerConfig);
final CircuitBreaker circuitBreaker = circuitBreakerRegistry.circuitBreaker("demo1");

message = circuitBreaker.executeSupplier(() -> return restTemplate.getForObject(endpoint, String.class));

Circuit Breaker


Circuit Breaker State

(출처: https://martinfowler.com/bliki/CircuitBreaker.html)

Note 🤔 Service Mesh

Spring Cloud에서는 Application에서 직접 Service Discovery, Resilience(retry, backoff, circuit breaker)를 적용합니다.

istio 같은 Service Mesh를 이용하여 인프라 레벨에서 위 문제를 해결할 수 있습니다.

istio archi

(출처: https://istio.io/latest/docs/ops/deployment/architecture/)

예제 구성

해당 예제에서는 아래와 같은 서비스를 구성하고 있고 docker-compose를 이용하여 각각의 서비스를 정의합니다.

Note: 각 서비스의 도커 이미지는 ${service}/Dockerfile에 정의되어 있습니다.

Batch Examples)

DB

docker-compose.yaml

  db:
    image: mysql:8.0.17
    container_name: db
    command: [ '--default-authentication-plugin=mysql_native_password', '--default-storage-engine=innodb' ]
    hostname: db
    environment:
      - MYSQL_ROOT_PASSWORD=p@ssw0rd
      - MYSQL_DATABASE=spring_batch
    ports:
      - "53306:3306"

S3 구성하기

localstack을 이용하여 아래와 같이 s3 서비스를 컨테이너로 구동합니다.
aws-cli를 이용하여 Bucket 생성 및 csv 파일을 업로드합니다.

docker-compose.yaml

  localstack:
    container_name: localstack
    image: localstack/localstack:0.11.4
    ports:
      - "8080:8080"
      - "4572:4572"
    hostname: localstack
    environment:
      - USE_SSL=0
      - SERVICES=s3
      - DATA_DIR=/tmp/localstack/data
      - DEBUG=1
      - DEFAULT_REGION=ap-southeast-2
      - DOCKER_HOST=unix:///var/run/docker.sock
      - PORT_WEB_UI=8080
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - ${TMPDIR:-/tmp/localstack}:/tmp/localstack

  init.s3:
    image: amazon/aws-cli
    entrypoint: /bin/sh -c
    container_name: init.s3
    command: "/s3/init.sh"
    environment:
      - ENVIRONMENT=LOCAL
    depends_on:
      - localstack
    volumes:
      - ${HOME}/.aws:/root/.aws
      - ./s3:/s3/input
      - ./s3/init.sh:/s3/init.sh

init.sh

#!/usr/bin/env bash

echo "Delete bucket: spring-batch"
aws s3 rb s3://spring-batch --force --endpoint-url="http://localstack:4572" --region ap-southeast-2

echo "Create bucket: spring-batch"
aws s3 mb s3://spring-batch --endpoint-url="http://localstack:4572" --region ap-southeast-2

echo "Put objects"
for f in /s3/input/*.csv
do
    filename="$(cut -d'/' -f4 <<<"${f}")"
    aws s3api put-object --bucket spring-batch --key ${filename} --body ${f} --endpoint-url="http://localstack:4572" --region ap-southeast-2
done

config-server

build.gradle

implementation 'org.springframework.cloud:spring-cloud-config-server'

application.yaml

spring:
  cloud:
    config:
      server:
        prefix: /config-server
        git:
          # default 0, 매 요청마다 fetch
          # 단위는 Second 이며 (refresh > 0 && (now() - lastRefresh) < (refreshRate * 1000) 면 fetch 하지 않음
          refresh-rate: 0
          uri: file://${user.home}/config-repo

Main

@SpringBootApplication
@EnableConfigServer
public class ConfigServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ConfigServerApplication.class, args);
    }
}

docker-compose.yaml

  config-server:
    build:
      context: ../../config-server
      dockerfile: Dockerfile
    image: cloud-native-spring-batch/config-server
    hostname: config-server
    container_name: config-server
    ports:
      - "8888:8888"
    restart: always
    environment:
      - SPRING_CLOUD_CONFIG_SERVER_GIT_URI=file:///config-server/config-repo
      - LOGGING_LEVEL_ROOT=INFO
      - LOGGING_LEVEL_COM.GITHUB.ZACSCODING=DEBUG
    volumes:
      - ./config-repo:/config-server/config-repo

eureka-server

build.gradle

// eureka
implementation('org.springframework.cloud:spring-cloud-starter-netflix-eureka-server') {
    exclude group: 'org.springframework.cloud', module: 'spring-cloud-starter-ribbon'
    exclude group: 'com.netflix.ribbon', module: 'ribbon-eurek'
}

application.yaml

spring:
  application:
    name: eureka-server
  cloud:
    loadbalancer:
      ribbon:
        enabled: false

eureka:
  # dashboard에 대한 설정으로, http://localhost:3000/eureka-ui 를 통해 확인할 수 있다.
  dashboard:
    path: /eureka-ui
  instance:
    hostname: localhost
    statusPageUrlPath: /actuator/info
    healthCheckUrlPath: /actuator/health
  # 등록된 인스턴스 중 많은 수가 정해진 시간 내에 Heatbeat를 보내지 않으면 Eureka는 이를 인스턴스 문제가 아닌
  # 네트워크 문제라고 간주하고 Registry를 그대로 유지한다. Example 실행을 위해 false로 설정
  server:
    enableSelfPreservation: false
    # response cache
    responseCacheUpdateIntervalMs: 30000
  client:
    # Eureka client -> Eureka server로 등록 여부
    # standalone mode이므로 자기 자신을 등록할 필요가 없다.
    registerWithEureka: false
    # Eureka Client -> Eureka server로 Registry fetch 여부
    fetchRegistry: false

info:
  app:
    name: Account Example Application
    version: 1.0.0
    discription: This is a demo project for eurkea

Main

@Slf4j
@SpringBootApplication
@EnableEurekaServer
public class EurekaServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(EurekaServerApplication.class, args);
    }
}

docker-compose.yaml

  eureka-server:
    build:
      context: ../../eureka-server
      dockerfile: Dockerfile
    image: cloud-native-spring-batch/eureka-server
    hostname: eureka-server
    container_name: eureka-server
    ports:
      - "3000:3000"
    restart: always
    environment:
      - LOGGING_LEVEL_ROOT=WARN
    depends_on:
      - config-server

enrich-service

application.yaml

spring:
  application:
    name: enrich-service
  config:
    import: "configserver:http://localhost:8888/config-server"

eureka:
  instance:
    instance-id: ${spring.application.name}:${spring.application.instance_id:${random.value}}
    statusPageUrlPath: /actuator/info
    healthCheckUrlPath: /actuator/health
  client:
    service-url:
      defaultZone: http://localhost:3000/eureka/
    register-with-eureka: true
    fetch-registry: false

app:
  message: "Enrich"

management:
  endpoints:
    web:
      exposure:
        include: "refresh"

Controller

@Slf4j
@RestController
@RefreshScope
public class EnrichController {
    private int count = 0;
    private final String message;
    private final String instanceId;

    public EnrichController(@Value("${app.message}") String message,
                            @Value("${eureka.instance.instance-id}") String instanceId) {
        logger.info("Instantiate EnrichController with {}", message);
        this.message = message;
        this.instanceId = instanceId;
    }

    @GetMapping("/enrich")
    public String enrich() {
        this.count++;

        if (this.count % 10 == 0) {
            throw new RuntimeException("I screwed up");
        }

        return String.format("[%s] %s_%d", instanceId, message, count);
    }
}

docker-compose.yaml

  enrich-server1:
    build:
      context: ../../enrich-service
      dockerfile: Dockerfile
    image: cloud-native-spring-batch/enrich-service
    hostname: enrich-service1
    container_name: enrich-service1
    ports:
      - "9890:9890"
    restart: always
    environment:
      - SERVER_PORT=9890
      - SPRING_CONFIG_IMPORT=configserver:http://config-server:8888/config-server
      - EUREKA_CLIENT_SERVICE-URL_DEFAULT-ZONE=http://eureka-server:3000/eureka/
      - LOGGING_LEVEL_ROOT=INFO
    depends_on:
      - config-server
      - eureka-server

  enrich-server2:
    build:
      context: ../../enrich-service
      dockerfile: Dockerfile
    image: cloud-native-spring-batch/enrich-service
    hostname: enrich-service2
    container_name: enrich-service2
    ports:
      - "9891:9891"
    restart: always
    environment:
      - SERVER_PORT=9891
      - SPRING_CONFIG_IMPORT=configserver:http://config-server:8888/config-server
      - EUREKA_CLIENT_SERVICE-URL_DEFAULT-ZONE=http://eureka-server:3000/eureka/
      - LOGGING_LEVEL_ROOT=INFO
    depends_on:
      - config-server
      - eureka-server

batch-service

application.yaml

spring:
  application:
    name: batch-service
  config:
    import: "configserver:http://localhost:8888/config-server"
  cloud:
    loadbalancer:
      ribbon:
        enabled: false
  main:
    allow-bean-definition-overriding: true
  sql:
    init:
      mode: always
      platform: mysql
      schema-locations:
        - classpath:schema-mysql.sql
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:53306/spring_batch?useSSL=false&characterEncoding=UTF-8&serverTimezone=UTC
    username: root
    password: p@ssw0rd
    hikari:
      jdbc-url: jdbc:mysql://localhost:53306/spring_batch?useSSL=false&characterEncoding=UTF-8&serverTimezone=UTC
  batch:
    job:
      enabled: false
    jdbc:
      initialize-schema: always

eureka:
  client:
    service-url:
      defaultZone: http://localhost:3000/eureka/
    register-with-eureka: false
    fetch-registry: true

job:
  resource-path: s3://spring-batch/*.csv

cloud:
  aws:
    s3:
      endpoint: http://localhost:4572
      bucket: spring-batch
    region:
      static: ap-northeast-2
    stack:
      auto: false
#    credentials:
#      instanceProfile: true

DownloadingJobExecutionListener(JobExecutionListener::beforeJob)

@Slf4j
@Component
public class DownloadingJobExecutionListener extends JobExecutionListenerSupport {

    private final ResourcePatternResolver resourcePatternResolver;
    private final String path;

    @Autowired
    public DownloadingJobExecutionListener(ResourcePatternResolver resourcePatternResolver,
                                           AmazonS3Client amazonS3,
                                           @Value("${job.resource-path}") String path) {
        this.resourcePatternResolver = new PathMatchingSimpleStorageResourcePatternResolver(amazonS3,
                                                                                            resourcePatternResolver);
        this.path = path;
    }

    @Override
    public void beforeJob(JobExecution jobExecution) {
        try {
            final Resource[] resources = resourcePatternResolver.getResources(path);
            logger.info("found resources: {} in s3 path: {}", resources.length, path);

            final StringBuilder paths = new StringBuilder();
            for (Resource resource : resources) {
                File file = File.createTempFile("input", ".csv");

                StreamUtils.copy(resource.getInputStream(), new FileOutputStream(file));
                paths.append(file.getAbsolutePath()).append(",");

                logger.info("downloaded file: {}", file.getAbsolutePath());
            }

            final String localFiles = paths.substring(0, paths.length() - 1);
            logger.info("try to put localFiles {} to job execution context", localFiles);
            jobExecution.getExecutionContext().put("localFiles", localFiles);
        } catch (IOException e) {
            logger.error("Exception occur while executing beforeJob", e);
        }
    }
}

ItemReader

@Bean
@StepScope
public MultiResourceItemReader<Foo> reader(@Value("#{jobExecutionContext['localFiles']}") String paths)
        throws Exception {

    logger.info("[ItemReader] >> paths = {}", paths);
    MultiResourceItemReader<Foo> reader = new MultiResourceItemReader<>();

    reader.setName("multiReader");
    reader.setDelegate(delegate());

    final String[] parsedPaths = paths.split(",");
    logger.info("[ItemReader] parsed paths: {}", parsedPaths.length);
    final List<Resource> resources = new ArrayList<>(parsedPaths.length);

    for (String parsedPath : parsedPaths) {
        final Resource resource = new FileSystemResource(parsedPath);
        logger.info("[ItemReader] >> resource = {}", resource.getURI());
        resources.add(resource);
    }
    reader.setResources(resources.toArray(new Resource[resources.size()]));

    return reader;
}

@Bean
@StepScope
FlatFileItemReader<Foo> delegate() throws Exception {
    return new FlatFileItemReaderBuilder<Foo>()
            .name("fooReader")
            .delimited()
            .names("first", "scond", "third")
            .targetType(Foo.class)
            .build();
}

Enrich Processor (Service to service call)

@RequiredArgsConstructor
public class EnrichmentProcessor implements ItemProcessor<Foo, Foo> {

    private final RestTemplate restTemplate;

    @Recover
    public Foo fallback(Foo foo) {
        foo.setMessage("error-fallback");
        try {
            TimeUnit.MILLISECONDS.sleep(100L);
        } catch (Exception ignored) {
        }
        return foo;
    }

    @CircuitBreaker(maxAttempts = 1, resetTimeout = 1000L)
    @Override
    public Foo process(@NotNull Foo foo) {
        final ResponseEntity<String> responseEntity = restTemplate.exchange(
                "http://enrich-service/enrich",
                HttpMethod.GET,
                null,
                String.class
        );

        foo.setMessage(responseEntity.getBody());
        return foo;
    }
}

docker-compose.yaml

  batch-service:
    build:
      context: ../../batch-service
      dockerfile: Dockerfile
    image: cloud-native-spring-batch/batch-service
    hostname: batch-service
    container_name: batch-service
    ports:
      - "8899:8899"
    environment:
      - SPRING_CONFIG_IMPORT=configserver:http://config-server:8888/config-server
      - SPRING_PROFILES_ACTIVE=docker
    restart: always
    volumes:
      - ${HOME}/.aws:/root/.aws
    depends_on:
      - config-server
      - db
      - localstack
      - init.s3

시작하기

아래와 같이 git clone을 받습니다.

$ git clone https://github.com/zacscoding/cloud-native-spring-batch
$ cd cloud-native-spring-batch

다음으로 config-server에서 이용할 git(local)을 초기화합니다.

$ cd tools/compose/config-repo
$ git init -b master
$ tree ./
./
├── batch-service-default.yaml    <-- batch-service 기본 설정 파일
├── batch-service-docker.yaml     <-- batch-service 도커 환경 설정 파일
└── enrich-service-default.yaml   <-- enrich-service 기본 설정 파일
$ git add .
$ git commit -m "initial commit"
$ git log
commit 0acfd11b8c0adf3049debb3464439779cef4584a (HEAD -> master)
...

다음으로 도커 이미지를 생성합니다.
compose.sh build를 수행하면 gradlew clean build로 생성된 jar를 기반으로 도커 이미지를 생성합니다.

$ cd ../../../
$ ./tools/script/compose.sh build

BUILD SUCCESSFUL in 5s
24 actionable tasks: 24 executed
db uses an image, skipping
localstack uses an image, skipping
init.s3 uses an image, skipping
Building config-server
...

아래 명령어를 통해 생성 된 도커 이미지를 확인할 수 있습니다.

$ docker images "cloud-native-spring-batch/*"
REPOSITORY                                 TAG       IMAGE ID       CREATED              SIZE
cloud-native-spring-batch/batch-service    latest    e5552191087e   About a minute ago   165MB  <-- batch service image. enabled service discovery but not register.
cloud-native-spring-batch/config-server    latest    b5aa388448cd   23 minutes ago       158MB  <-- config server image.
cloud-native-spring-batch/enrich-service   latest    297003bd5c9e   3 hours ago          147MB  <-- remote service image. register servie instance but not discovery.
cloud-native-spring-batch/eureka-server    latest    a693354fe9f2   3 hours ago          152MB  <-- eureka server image for service discovery.

위에서 생성된 도커 이미지를 실행합니다.

$ ./tools/script/compose.sh up
Creating network "compose_default" with the default driver
Creating config-server ...
Creating localstack    ...
Creating db            ...
...

$ docker ps -a
CONTAINER ID   IMAGE                                      COMMAND                  CREATED          STATUS          PORTS                                                                                                                NAMES
988af5e5dfa3   cloud-native-spring-batch/batch-service    "java org.springfram…"   16 seconds ago   Up 6 seconds    0.0.0.0:8899->8899/tcp, :::8899->8899/tcp                                                                            batch-service
da906356525f   cloud-native-spring-batch/enrich-service   "java org.springfram…"   18 seconds ago   Up 8 seconds    0.0.0.0:9890->9890/tcp, :::9890->9890/tcp                                                                            enrich-service1
b84f2db40063   cloud-native-spring-batch/enrich-service   "java org.springfram…"   18 seconds ago   Up 10 seconds   0.0.0.0:9891->9891/tcp, :::9891->9891/tcp                                                                            enrich-service2
7ac8437ae9ed   amazon/aws-cli                             "/bin/sh -c /s3/init…"   20 seconds ago   Up 15 seconds                                                                                                                        init.s3
899daa7d0909   cloud-native-spring-batch/eureka-server    "java org.springfram…"   25 seconds ago   Up 17 seconds   0.0.0.0:3000->3000/tcp, :::3000->3000/tcp                                                                            eureka-server
dbeecf4f005b   mysql:8.0.17                               "docker-entrypoint.s…"   29 seconds ago   Up 22 seconds   33060/tcp, 0.0.0.0:53306->3306/tcp, :::53306->3306/tcp                                                               db
325037126dc0   localstack/localstack:0.11.4               "docker-entrypoint.sh"   29 seconds ago   Up 19 seconds   4566-4571/tcp, 0.0.0.0:4572->4572/tcp, :::4572->4572/tcp, 4573-4597/tcp, 0.0.0.0:8080->8080/tcp, :::8080->8080/tcp   localstack
84ff343d694a   cloud-native-spring-batch/config-server    "java org.springfram…"   29 seconds ago   Up 24 seconds   0.0.0.0:8888->8888/tcp, :::8888->8888/tcp                                                                            config-server
7bc5eb40ef08   mysql:5.7                                  "docker-entrypoint.s…"   6 hours ago      Up 35 minutes   0.0.0.0:3306->3306/tcp, :::3306->3306/tcp, 33060/tcp                                                                 kas-th-api_db_1

S3 확인하기

$ aws s3 ls "s3://spring-batch" --endpoint http://localhost:4572
2021-11-16 20:31:11       9131 data1.csv
2021-11-16 20:31:11       6570 data2.csv

Config Server 확인하기

$ curl -XGET http://localhost:8888/config-server/batch-service/default | jq .
{
  "name": "batch-service",
  "profiles": [
    "default"
  ],
  "label": null,
  "version": "0acfd11b8c0adf3049debb3464439779cef4584a",
  "state": null,
  "propertySources": [
    {
      "name": "file:///config-server/config-repo/batch-service-default.yaml",
      "source": {
    }

$ curl -XGET http://localhost:8888/config-server/enrich-service/default | jq .
{
  "name": "enrich-service",
  "profiles": [
    "default"
  ],
  "label": n

Eureka Server 확인하기

Eureka UI인 http://localhost:3000/eureka-ui 를 접속해서 확인할 수 있습니다.

Eureka Dashboard

Batch Service LoadBalancer 확인하기

아래와 같이 enrich-service의 instance id 값을 확인할 수 있습니다.

$ curl -XGET http://localhost:8899/debug/call
[enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_1
$ curl -XGET http://localhost:8899/debug/call
[enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_1
$ curl -XGET http://localhost:8899/debug/call
[enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_2

Batch Service ServiceDiscvoery 확인하기

$ curl -XGET http://localhost:8899/debug/discovery/services | jq .
{
  "enrich-service": [
    {
      "serviceId": "ENRICH-SERVICE",
      "secure": false,
      "uri": "http://enrich-service2:9891",
      "metadata": {
        "management.port": "9891"
      },
      "instanceId": "enrich-service:2682ed042c9168b213d7c72820b140f2",
      "instanceInfo": {
        "instanceId": "enrich-service:2682ed042c9168b213d7c72820b140f2",
        "app": "ENRICH-SERVICE",
        "appGroupName": null,
        "ipAddr": "172.18.0.7",
        "sid": "na",
        "homePageUrl": "http://enrich-service2:9891/",
        "statusPageUrl": "http://enrich-service2:9891/actuator/info",
        "healthCheckUrl": "http://enrich-service2:9891/actuator/health",
        "secureHealthCheckUrl": null,
        "vipAddress": "enrich-service",
        "secureVipAddress": "enrich-service",
        "countryId": 1,
        "dataCenterInfo": {
          "@class": "com.netflix.appinfo.InstanceInfo$DefaultDataCenterInfo",
          "name": "MyOwn"
        },
        "hostName": "enrich-service2",
        "status": "UP",
        "overriddenStatus": "UNKNOWN",
        "leaseInfo": {
          "renewalIntervalInSecs": 30,
          "durationInSecs": 90,
          "registrationTimestamp": 1637062291357,
          "lastRenewalTimestamp": 1637062948311,
          "evictionTimestamp": 0,
          "serviceUpTimestamp": 1637062291575
        },
        "isCoordinatingDiscoveryServer": false,
        "metadata": {
          "management.port": "9891"
        },
        "lastUpdatedTimestamp": 1637062291575,
        "lastDirtyTimestamp": 1637062288748,
        "actionType": "ADDED",
        "asgName": null
      },
      "scheme": "http",
      "host": "enrich-service2",
      "port": 9891
    },
    {
      "serviceId": "ENRICH-SERVICE",
      "secure": false,
      "uri": "http://enrich-service1:9890",
      "metadata": {
        "management.port": "9890"
      },
      "instanceId": "enrich-service:1177a6259f416d83c5853d68e77affd6",
      "instanceInfo": {
        "instanceId": "enrich-service:1177a6259f416d83c5853d68e77affd6",
        "app": "ENRICH-SERVICE",
        "appGroupName": null,
        "ipAddr": "172.18.0.8",
        "sid": "na",
        "homePageUrl": "http://enrich-service1:9890/",
        "statusPageUrl": "http://enrich-service1:9890/actuator/info",
        "healthCheckUrl": "http://enrich-service1:9890/actuator/health",
        "secureHealthCheckUrl": null,
        "vipAddress": "enrich-service",
        "secureVipAddress": "enrich-service",
        "countryId": 1,
        "dataCenterInfo": {
          "@class": "com.netflix.appinfo.InstanceInfo$DefaultDataCenterInfo",
          "name": "MyOwn"
        },
        "hostName": "enrich-service1",
        "status": "UP",
        "overriddenStatus": "UNKNOWN",
        "leaseInfo": {
          "renewalIntervalInSecs": 30,
          "durationInSecs": 90,
          "registrationTimestamp": 1637062291352,
          "lastRenewalTimestamp": 1637062948314,
          "evictionTimestamp": 0,
          "serviceUpTimestamp": 1637062291572
        },
        "isCoordinatingDiscoveryServer": false,
        "metadata": {
          "management.port": "9890"
        },
        "lastUpdatedTimestamp": 1637062291573,
        "lastDirtyTimestamp": 1637062288803,
        "actionType": "ADDED",
        "asgName": null
      },
      "scheme": "http",
      "host": "enrich-service1",
      "port": 9890
    }
  ]
}

Batch Service Job 실행하기

$ curl -XPOST http://localhost:8899/batch/s3jdbcJob
{"exitCode":"COMPLETED","exitDescription":"","running":false}

아래와 같이 DB 값을 확인할 수 있습니다.

$ docker exec -it db /bin/bash
root@db:/# mysql -u root -p
mysql> use spring_batch
mysql> SELECT * FROM foo LIMIT 50;
+--------+-------+--------------------+---------------------------------+-------------------------------------------------------------+
| foo_id | first | second             | third                           | message                                                     |
+--------+-------+--------------------+---------------------------------+-------------------------------------------------------------+
|      1 | data1 | Annamae Luettgen   | isobelfahey@hauck.net           | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_3  |
|      2 | data1 | Ivy Williamson     | murielblick@langworth.name      | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_2  |
|      3 | data1 | Euna Cremin        | carolinarohan@grady.com         | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_4  |
|      4 | data1 | Trevion Rogahn     | marcelinolockman@kozey.net      | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_3  |
|      5 | data1 | Kaleb Blick        | pansyaltenwerth@goyette.io      | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_5  |
|      6 | data1 | Crystel Bayer      | arliebins@simonis.com           | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_4  |
|      7 | data1 | Rosanna West       | odieruecker@prosacco.net        | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_6  |
|      8 | data1 | Armani Leffler     | gilbertbrakus@schaden.name      | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_5  |
|      9 | data1 | Gail Huels         | fosterbaumbach@cummings.name    | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_7  |
|     10 | data1 | Miller Durgan      | hymanhayes@labadie.org          | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_6  |
|     11 | data1 | Daija Gulgowski    | vickybalistreri@kirlin.name     | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_8  |
|     12 | data1 | Susan Hahn         | chasejast@cremin.com            | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_7  |
|     13 | data1 | Marcos Bayer       | marysewuckert@ullrich.org       | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_9  |
|     14 | data1 | Ashley Kuvalis     | kamerongutmann@mohr.org         | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_8  |
|     15 | data1 | Christiana Sanford | emelieshanahan@smith.info       | error-fallback                                              |
|     16 | data1 | Irwin Morissette   | darrellrice@kiehn.biz           | error-fallback                                              |
|     17 | data1 | Tyshawn Volkman    | demarcuswyman@daugherty.info    | error-fallback                                              |
|     18 | data1 | Marianne Kuphal    | daynekoss@bauch.name            | error-fallback                                              |
|     19 | data1 | Myrl Johnston      | careyfritsch@rolfson.io         | error-fallback                                              |
|     20 | data1 | Megane Reichert    | esmeraldamuller@simonis.name    | error-fallback                                              |
|     21 | data1 | Lea Torp           | danrosenbaum@cole.net           | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_9  |
|     22 | data1 | Lessie Ankunding   | quincyleuschke@west.name        | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_11 |
|     23 | data1 | Issac Brakus       | bartonrodriguez@homenick.com    | error-fallback                                              |
|     24 | data1 | Jerome Ernser      | clemmiemills@bergstrom.com      | error-fallback                                              |
|     25 | data1 | Raymundo Schmidt   | mohamedbrakus@hauck.info        | error-fallback                                              |
|     26 | data1 | Tito Windler       | tamiakub@mckenzie.com           | error-fallback                                              |
|     27 | data1 | Annabelle Witting  | newellkling@braun.com           | error-fallback                                              |
|     28 | data1 | Odessa Schaefer    | kylehyatt@nader.info            | error-fallback                                              |
|     29 | data1 | Josefa Leuschke    | vernievon@torp.io               | error-fallback                                              |
|     30 | data1 | Vesta Rempel       | jesusbogan@cummings.net         | error-fallback                                              |
|     31 | data1 | Eladio Roob        | jaidenwilderman@nicolas.biz     | error-fallback                                              |
|     32 | data1 | Dawn Zulauf        | pinkieharvey@nicolas.com        | error-fallback                                              |
|     33 | data1 | Damaris Kirlin     | chaseferry@lang.net             | [enrich-service:016951d3ceb719d1a9a19cd1e321372d] Enrich_12 |
|     34 | data1 | Sven Moore         | lysannegislason@corkery.net     | [enrich-service:df433be8124f5d045b2a1d153cba53a4] Enrich_11 |

위와 같이 enrich-service의 Count 값을 기준으로 Circuit Open 후 Fallback 메소드가 실행된것을 확인할 수 있습니다.

References

About

No description, website, or topics provided.

Resources

Readme
Activity

Stars

0 stars

Watchers

0 watching

Forks

0 forks
Report repository

Releases

No releases published

Packages

No packages published

Languages
