Hello, this is the OTA code of thirdreality company. Please check it #1089

hwzolin · 2022-11-04T07:49:40Z

@puddly Hello, this is the OTA code of thirdreality company. Please check it

dmulcahey · 2022-11-04T12:24:55Z

Install precommit and run the checks. Please address the tagged lint failures

codecov-commenter · 2022-11-07T21:19:08Z

Codecov Report

Base: 99.63% // Head: 99.58% // Decreases project coverage by -0.04% ⚠️

Coverage data is based on head (ea2c469) compared to base (8a2c754).
Patch has no changes to coverable lines.

Additional details and impacted files

@@            Coverage Diff             @@
##              dev    #1089      +/-   ##
==========================================
- Coverage   99.63%   99.58%   -0.05%
==========================================
  Files          46       46
  Lines        7590     7674      +84
==========================================
+ Hits         7562     7642      +80
- Misses         28       32       +4

Impacted Files	Coverage Δ
zigpy/appdb.py	`99.35% <ø> (ø)`
zigpy/appdb_schemas/__init__.py	`100.00% <ø> (ø)`
zigpy/application.py	`98.54% <ø> (ø)`
zigpy/backups.py	`97.59% <ø> (ø)`
zigpy/config/__init__.py	`100.00% <ø> (ø)`
zigpy/config/defaults.py	`100.00% <ø> (ø)`
zigpy/config/validators.py	`82.60% <ø> (ø)`
zigpy/const.py	`100.00% <ø> (ø)`
zigpy/device.py	`99.62% <ø> (ø)`
zigpy/endpoint.py	`100.00% <ø> (ø)`
... and 40 more

Help us with your feedback. Take ten seconds to tell us how you rate us. Have a feature suggestion? Share it here.

☔ View full report at Codecov.
📢 Do you have feedback about the report comment? Let us know in this issue.

puddly · 2022-11-07T21:57:24Z

@3reality-support @xudo-github @hwzolin I've just tested the latest 1.00.21 firmware for the 3RTHS24BZ temperature/humidity sensor and can confirm that the increased binding table size allows for attribute reporting to be properly configured. Thank you!

I've reverse engineered the OTA image format (#1090) of all of the available images. To save you the trouble of having to implement this PR yourself, can you instead add a few more keys to your JSON:

 {
   "modelId": "3RSB22BZ",
   "url": "https://tr-zha.s3.amazonaws.com/firmwares/SmartButton_Zigbee_PROD_OTA_V21_1.00.21.ota",
   "version": "1.00.21",
+  "imageType": 54184,
+  "manufacturerId": 4659,
+  "fileVersion": 33
 }

These three fields are contained within the Zigbee OTA file header. You can extract them yourself from the parsed header:

$ pip install git+https://github.com/zigpy/zigpy-cli.git
$ pip install --upgrade git+https://github.com/zigpy/zigpy.git  # need latest version for OTA format decoder
$ zigpy ota info SmartButton_Zigbee_PROD_OTA_V21_1.00.21.ota
Parsing SmartButton_Zigbee_PROD_OTA_V21_1.00.21.ota
Header: OTAImageHeader(upgrade_file_id=200208670, header_version=256, header_length=56, field_control=<FieldControl.0: 0>, manufacturer_id=4659, image_type=54184, file_version=33, stack_version=2, header_string='Telink OTA Sample Usage', image_size=126738, *device_specific_file=False, *hardware_versions_present=False, *key=ImageKey(manufacturer_id=4659, image_type=54184), *security_credential_version_present=False)
Number of subelements: 1
Validation result: ValidationResult.UNKNOWN

Let me know when this is done and I can make a PR to add Third Reality OTA support to zigpy.

hwzolin · 2022-11-08T02:12:39Z

@puddly Hello, your suggestion has been dealt with, please check if it meets the requirements.

puddly · 2022-11-08T03:16:45Z

Thank you. There is one problem with the firmware images themselves.

When a device asks for a firmware image, it sends the following query:

Ota:QueryNextImageCommand(field_control=<FieldControl.0: 0>, manufacturer_code=4659, image_type=54182, current_file_version=268513281)

The device's current sw_build_id is v1.00.19. According to the JSON in your OTA server, the following image is compatible and has a higher version:

{
    "modelId": "3RSP019BZ",
    "url": "https://tr-zha.s3.amazonaws.com/firmwares/SmartPlug_Zigbee_PROD_OTA_V20_v1.00.20.ota",
    "version": "1.00.20",
    "imageType": 54182,
    "manufacturerId": 4659,
    "fileVersion": 32
}

However, the new OTA file's file_version is 32, while the current device's version is 268513281 (0x10013001). Since the current version is bigger than the file version, the OTA upgrade will not be performed, since it will be considered a downgrade.

Can you make the OTA image file versions (not just what is in the JSON) increasing?

hwzolin · 2022-11-08T05:52:55Z

@puddly Can you please tell me how you got the current device version 268513281 (0x10013001)?

puddly · 2022-11-08T05:54:39Z

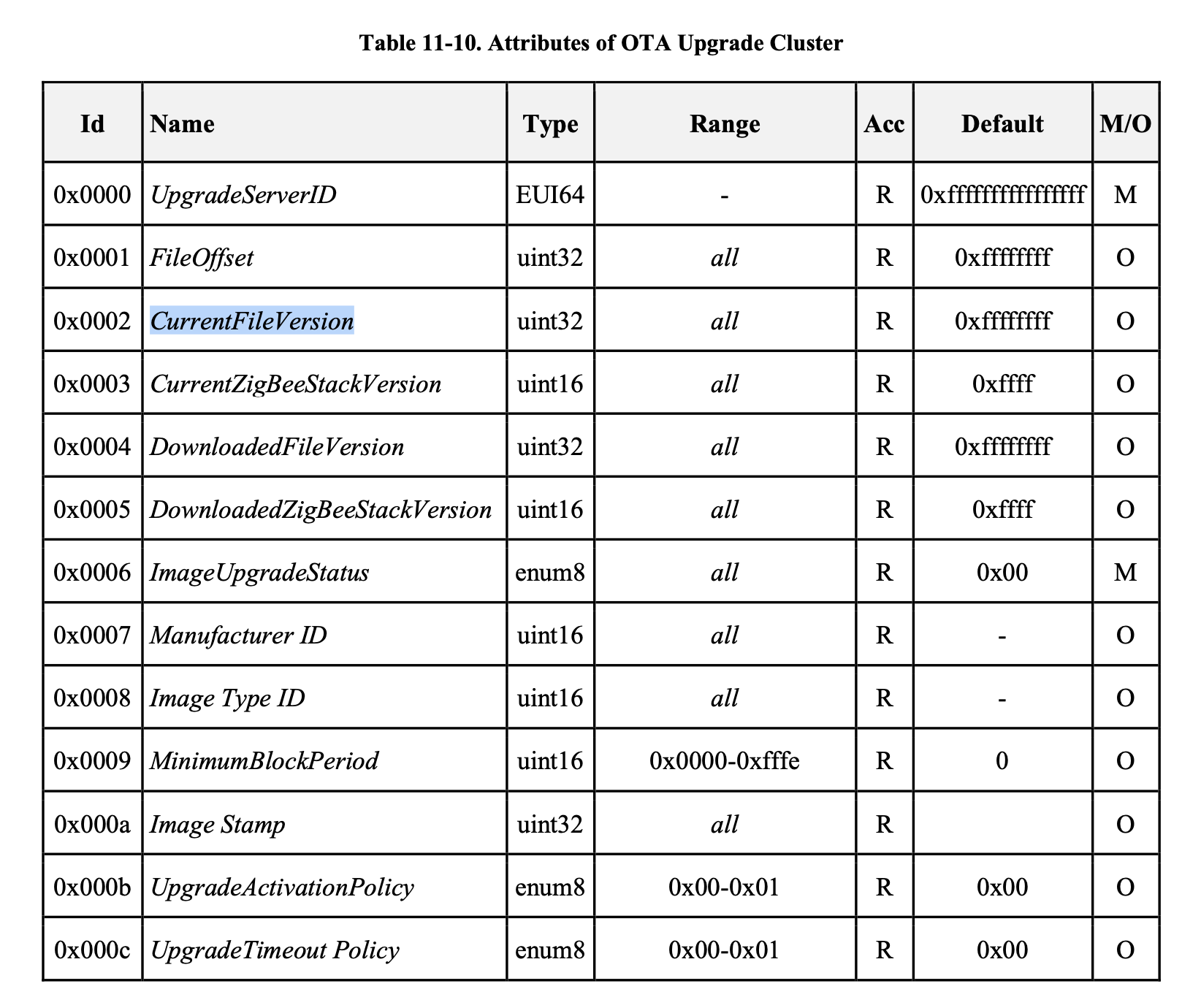

This is what the device is sending when it begins an OTA upgrade. You send it an OTA "image notify" command, it sends back a "query next image" command, which contains this version number.

Your devices do not support reading this attribute, the only way it can be queried is when the device itself sends it during an OTA transaction:

puddly · 2022-11-08T21:12:03Z

Closing in favor of #1096.

Add URL for Third Reality (3reality) OTA provider to OTA_URLs.md https://tr-zha.s3.amazonaws.com/firmware.json FYI; Third Reality (3reality) OTA provider support and custom image format parser was recently added to zigpy library: zigpy/zigpy#1096 zigpy/zigpy#1090 zigpy/zigpy#1089 Official website and Facebook group for reference: https://www.3reality.com/ https://www.facebook.com/ThirdReality.offical/

hwzolin · 2022-11-28T03:15:26Z

@puddly Excuse me, can I update the third reality device on ZHA now?

puddly · 2022-11-28T05:21:15Z

home-assistant/core#82509 did not make it in time for 2022.11.4. Once 2022.11.5 comes out, you can by enabling the OTA provider:

zha:
  zigpy_config:
    ota_config:
      thirdreality_provider: true

And then notify a device of the new image. Progress will be in the debug log.

hwzolin · 2022-11-28T14:32:33Z

home-assistant/core#82509 did not make it in time for 2022.11.4. Once 2022.11.5 comes out, you can by enabling the OTA provider:
zha:
  zigpy_config:
    ota_config:
      thirdreality_provider: true
And then notify a device of the new image. Progress will be in the debug log.

@puddly Ok, I see, thanks.

TheJulianJES · 2022-11-28T18:07:24Z

Not sure if it's important now, since 2022.12.0b0 is just around the corner, but home-assistant/core#82509 is not in the 2022.11.5 milestone.

(but the ThirdReality OTA changes will definitely be available when 2022.12b0 drops)

puddly · 2022-11-28T18:09:35Z

@TheJulianJES Thanks! I've added it to the 2022.11.5 milestone.

hwzolin · 2022-12-01T04:05:27Z

@puddly Hi, I have upgraded HA to version 11.5, but when I was on an OTA device, I still prompted that no OTA image is available. Am I misconfiguring?

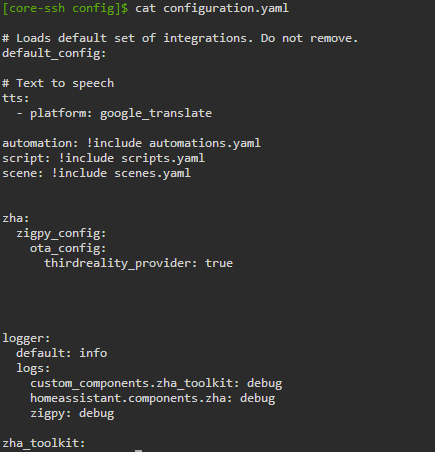

The following pictures are my configuration content, please take a look:

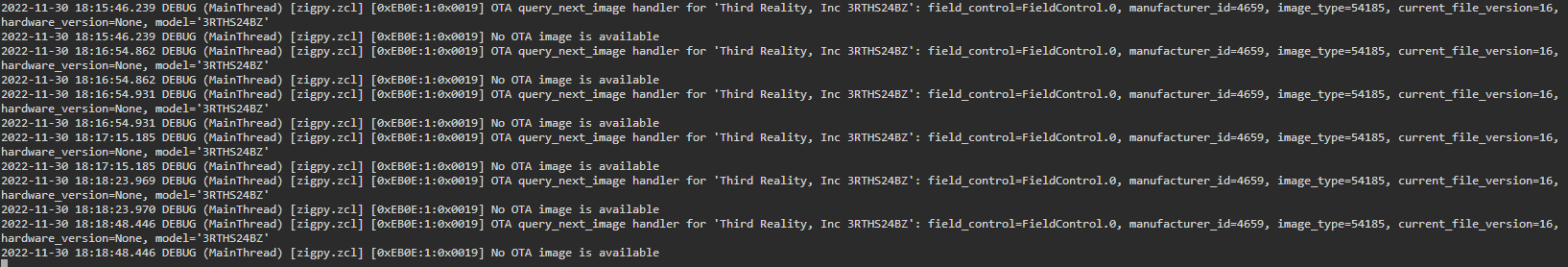

The chart below is the result of OTA：

puddly · 2022-12-01T04:09:00Z

The format of the OTA JSON changed and thus the parser for it in 2022.11.5 is not working. You should see an error initializing the OTA provider.

I fixed it a few hours ago #1119 and it is in the current beta https://github.com/home-assistant/core/releases/tag/2022.12.0b0

hwzolin · 2022-12-08T02:36:25Z

The format of the OTA JSON changed and thus the parser for it in 2022.11.5 is not working. You should see an error initializing the OTA provider.

I fixed it a few hours ago #1119 and it is in the current beta https://github.com/home-assistant/core/releases/tag/2022.12.0b0

@puddly

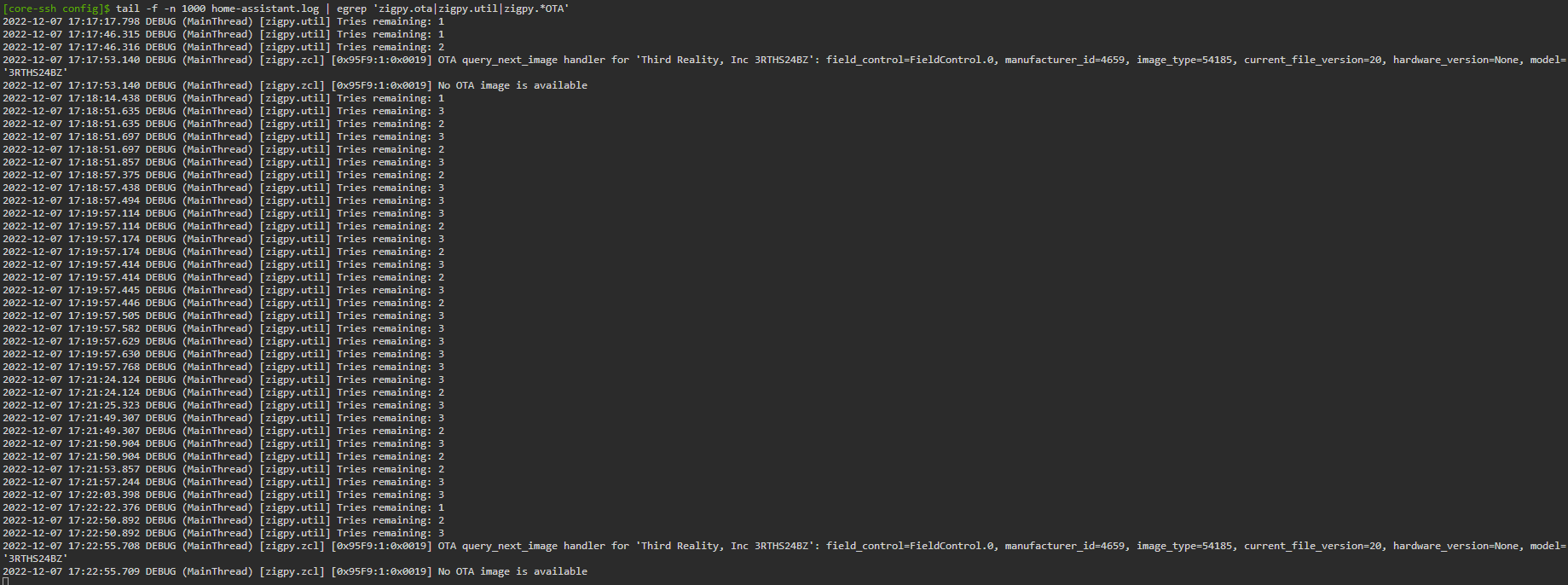

Hello, I have upgraded HA to 2022.12.0. But my OTA for the humidity and temperature sensor still prompts "No OTA image is available".
I'm confused, what's wrong with the configuration? Could you please tell me all the details of your configuration?

puddly · 2022-12-08T02:49:41Z

Ah, my mistake! The ota_config key should instead be ota:

zha:
  zigpy_config:
    ota:
      thirdreality_provider: true

Here is a log of the temperature sensor updating:

2022-12-07 21:42:52.736 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA query_next_image handler for 'Third Reality, Inc 3RTHS24BZ': field_control=FieldControl.0, manufacturer_id=4659, image_type=54185, current_file_version=21, hardware_version=None, model='3RTHS24BZ'
2022-12-07 21:42:52.744 DEBUG (MainThread) [zigpy.ota.provider] Downloading https://tr-zha.s3.amazonaws.com/firmwares/TRTL_ThermalSensor_PROD_OTA_V21_1.00.21.ota for ImageKey(manufacturer_id=4659, image_type=54185)
2022-12-07 21:42:53.093 DEBUG (MainThread) [zigpy.ota.provider] Finished downloading from https://tr-zha.s3.amazonaws.com/firmwares/TRTL_ThermalSensor_PROD_OTA_V21_1.00.21.ota for ImageKey(manufacturer_id=4659, image_type=54185) ver 1.00.21
2022-12-07 21:42:53.095 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA image version: 33, size: 124946. Update needed: True
2022-12-07 21:43:07.778 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA query_next_image handler for 'Third Reality, Inc 3RTHS24BZ': field_control=FieldControl.0, manufacturer_id=4659, image_type=54185, current_file_version=21, hardware_version=None, model='3RTHS24BZ'
...
2022-12-07 21:43:42.310 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.0
2022-12-07 21:43:42.529 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.1
2022-12-07 21:43:42.780 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.1
2022-12-07 21:43:43.032 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.1
2022-12-07 21:43:43.273 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.2
2022-12-07 21:43:43.531 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.2

hwzolin · 2022-12-09T02:24:03Z

Ah, my mistake! The ota_config key should instead be ota:

zha:
  zigpy_config:
    ota:
      thirdreality_provider: true

Here is a log of the temperature sensor updating:

2022-12-07 21:42:52.736 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA query_next_image handler for 'Third Reality, Inc 3RTHS24BZ': field_control=FieldControl.0, manufacturer_id=4659, image_type=54185, current_file_version=21, hardware_version=None, model='3RTHS24BZ'
2022-12-07 21:42:52.744 DEBUG (MainThread) [zigpy.ota.provider] Downloading https://tr-zha.s3.amazonaws.com/firmwares/TRTL_ThermalSensor_PROD_OTA_V21_1.00.21.ota for ImageKey(manufacturer_id=4659, image_type=54185)
2022-12-07 21:42:53.093 DEBUG (MainThread) [zigpy.ota.provider] Finished downloading from https://tr-zha.s3.amazonaws.com/firmwares/TRTL_ThermalSensor_PROD_OTA_V21_1.00.21.ota for ImageKey(manufacturer_id=4659, image_type=54185) ver 1.00.21
2022-12-07 21:42:53.095 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA image version: 33, size: 124946. Update needed: True
2022-12-07 21:43:07.778 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA query_next_image handler for 'Third Reality, Inc 3RTHS24BZ': field_control=FieldControl.0, manufacturer_id=4659, image_type=54185, current_file_version=21, hardware_version=None, model='3RTHS24BZ'
...
2022-12-07 21:43:42.310 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.0
2022-12-07 21:43:42.529 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.1
2022-12-07 21:43:42.780 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.1
2022-12-07 21:43:43.032 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.1
2022-12-07 21:43:43.273 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.2
2022-12-07 21:43:43.531 DEBUG (MainThread) [zigpy.zcl] [0x9253:1:0x0019] OTA upgrade progress: 0.2

@puddly Thank you for your help. Yesterday I tried many times and was able to OTA devices.

hwzolin · 2022-12-11T13:50:32Z

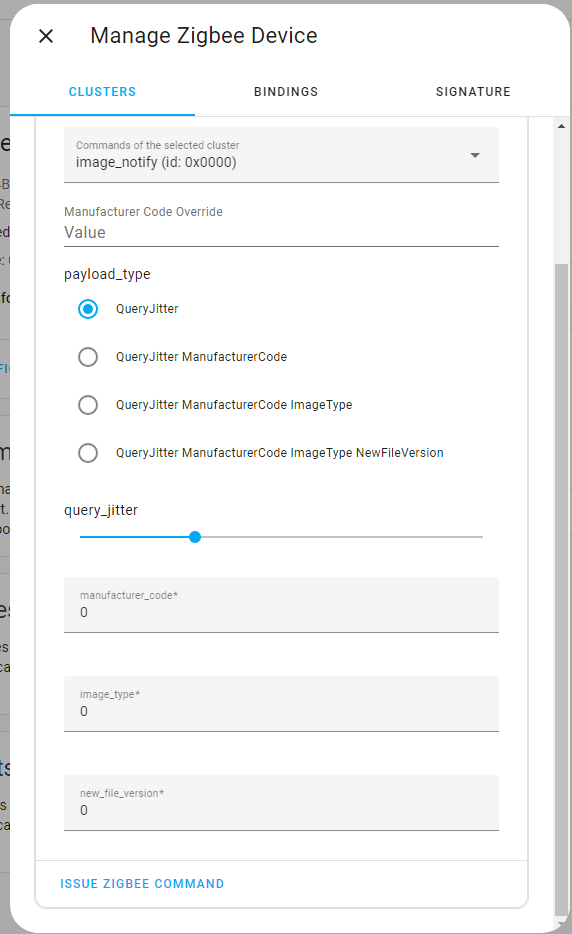

@puddly Hello, excuse me, I still have a question I would like to consult you.
What does the mean of the parameter "query_jitter" in the image_notify? What is the basis for setting this value?

…nkk#4927) Add URL for Third Reality (3reality) OTA provider to OTA_URLs.md https://tr-zha.s3.amazonaws.com/firmware.json FYI; Third Reality (3reality) OTA provider support and custom image format parser was recently added to zigpy library: zigpy/zigpy#1096 zigpy/zigpy#1090 zigpy/zigpy#1089 Official website and Facebook group for reference: https://www.3reality.com/ https://www.facebook.com/ThirdReality.offical/

hwzolin · 2022-12-21T08:03:28Z

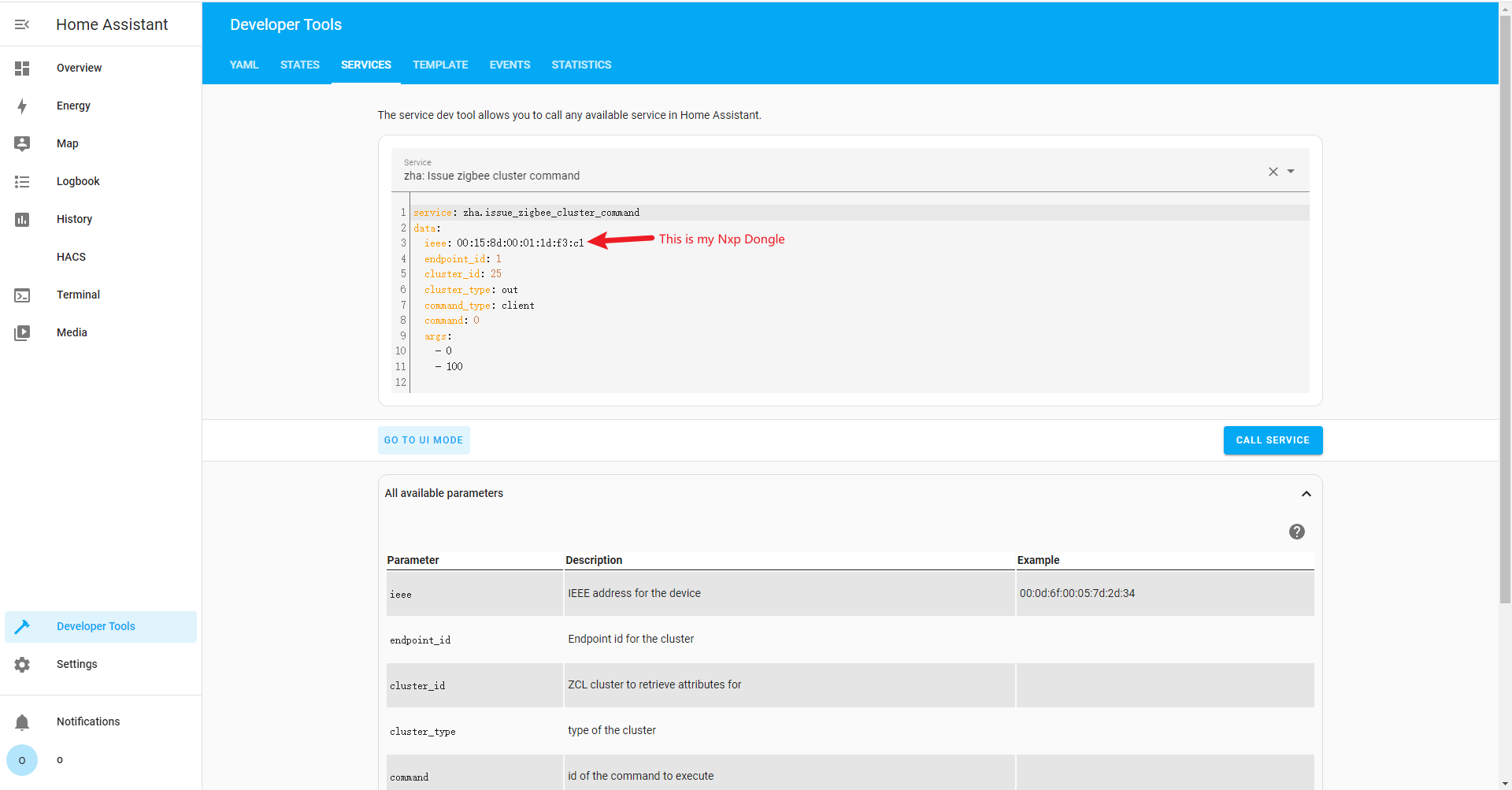

@puddly Hello, I have the following brands of dongle around me now: nortek, conbe, nxp 5169 (zigate firmware), sonoff. I can't use SONOFF's dongle to OTA Third Reality devices. Do you know how to solve this problem?

puddly · 2022-12-21T17:27:34Z

@hwzolin I've been testing using a Silicon Labs radio like the Sonoff and have had no issues. You really need to provide more context here.
