MEOCI: Model Partitioning and Early-Exit Collaborative Inference Framework

A modular and reproducible research framework for adaptive deep reinforcement learning–based optimization in vehicular edge computing environments.

---

🚀 Overview

MEOCI is designed to explore joint optimization of model partitioning and early-exit point selection under resource-constrained vehicular edge systems.
It integrates multi-exit neural networks, ADP-D3QN-based agents, and a dynamic vehicular-edge simulation environment for real-time, distributed inference optimization.

Key Features:

• ADP-D3QN agent with dual replay buffers and adaptive epsilon scheduling
• Multi-exit CNN architectures (AlexNet, VGG16, ResNet50, YOLOv10)
• Integrated vehicular-edge simulation with dynamic bandwidth, latency, and mobility
• Full visualization suite reproducing latency, energy, and accuracy figures (Fig.7–Fig.16)
• Modular experiment scripts and YAML-based configuration system

---

🧩 Project Structure

MEOCI/
│
├── core/                                      # Core algorithm and model logic
│   ├── agent/                                 # ADP-D3QN reinforcement learning module
│   │   ├── network.py
│   │   ├── replay_buffer.py
│   │   ├── epsilon_scheduler.py
│   │   ├── agent_adp_d3qn.py
│   │   ├── agent_baselines.py
│   │   └── __init__.py
│   │
│   ├── environment/                           # Vehicular-edge dynamic simulation
│   │   ├── vec_env.py
│   │   ├── vehicle_node.py
│   │   ├── edge_server.py
│   │   ├── network_channel.py
│   │   ├── mobility_model.py
│   │   ├── workload_generator.py
│   │   └── __init__.py
│   │
│   ├── optimization/                          # Joint optimization of partition and early-exit
│   │   ├── partition_optimizer.py
│   │   ├── early_exit_selector.py
│   │   ├── resource_allocator.py
│   │   ├── reward_function.py
│   │   └── __init__.py
│   │
│   ├── model_zoo/                             # Multi-exit neural network architectures
│   │   ├── base_multi_exit.py
│   │   ├── alexnet_me.py
│   │   ├── vgg16_me.py
│   │   ├── resnet50_me.py
│   │   └── yolov10_me.py
│   │
│   ├── simulation/                            # Edge network simulation modules
│   │   ├── vehicular_network_sim.py
│   │   ├── edge_cluster_manager.py
│   │   ├── latency_estimator.py
│   │   └── __init__.py
│   │
│   └── __init__.py
│
├── datasets/                                  # Dataset loaders and preprocessing
│   ├── bdd100k_loader.py
│   ├── augmentation.py
│   ├── data_preprocessor.py
│   ├── split_dataset.py
│   └── __init__.py
│
├── utils/                                     # Utility tools and helpers
│   ├── metrics.py
│   ├── logger.py
│   ├── checkpoint.py
│   ├── seed_utils.py
│   ├── visualization.py
│   ├── profiler.py
│   ├── registry.py
│   └── __init__.py
│
├── configs/                                   # YAML / JSON configuration files
│   ├── meoci_alexnet.yaml
│   ├── meoci_vgg16.yaml
│   ├── meoci_resnet50.yaml
│   ├── env_cluster.yaml
│   ├── train_hyperparams.yaml
│   ├── ablation_scenarios.yaml
│   └── __init__.py
│
├── experiments/                               # Reproducible experiment scripts
│   ├── train_agent.py
│   ├── evaluate_latency.py
│   ├── analyze_energy.py
│   ├── test_multi_exit.py
│   ├── ablation_study.py
│   ├── heterogeneity_eval.py
│   ├── scalability_test.py
│   ├── parameter_sensitivity.py
│   ├── distributed_training.py
│   └── __init__.py
│
├── visualization/                             # Figure reproduction
│   ├── ablation/
│   ├── exit_analysis/
│   ├── heterogeneous/
│   ├── accuracy_cdf/
│   ├── vehicle_effect/
│   ├── transmission_effect/
│   ├── delay_constraints/
│   ├── energy_constraints/
│   ├── scalability/
│   ├── shared_styles/
│   ├── data_csv/
│   ├── export_all_figures.py
│   └── __init__.py
│
├── deployment/                                # Dockerized runtime and monitoring system
│   ├── docker/
│   │   ├── Dockerfile.vehicle
│   │   ├── Dockerfile.edge
│   │   ├── docker-compose.yml
│   │   └── README.md
│   │
│   ├── scripts/
│   │   ├── run_local.sh
│   │   ├── run_cluster.sh
│   │   ├── evaluate_all.sh
│   │   ├── export_figures.sh
│   │   └── README.md
│   │
│   ├── monitoring/
│   │   ├── dashboard.py
│   │   ├── influx_client.py
│   │   ├── prometheus_exporter.py
│   │   └── __init__.py
│   │
│   └── __init__.py
│
├── results/                                   # Logs, CSV outputs, and plots
│   ├── logs/
│   ├── csv/
│   └── plots/
│
├── run.py                                     # Project entry point (train / eval / visualize)
├── config.py                                  # Global settings and defaults
├── setup.py                                   # Installation script (pip install -e .)
├── requirements.txt                           # Dependencies list
└── LICENSE

---

⚙️ Environment Setup

1. Clone the Repository

git clone https://github.com/Ryan-ZRD/MEOCI.git
cd MEOCI

2. Create and Activate a Conda Environment

conda create -n meoci python=3.9 -y
conda activate meoci

3. Install Dependencies

pip install -r requirements.txt

or (recommended for developers):

pip install -e .

---

🧠 Training and Evaluation

1. Train the ADP-D3QN Agent

python experiments/train_agent.py --config configs/meoci_vgg16.yaml

2. Evaluate Latency and Energy

python experiments/evaluate_latency.py
python experiments/analyze_energy.py

3. Test Multi-Exit Inference

python experiments/test_multi_exit.py

4. Conduct Ablation and Sensitivity Experiments

python experiments/ablation_study.py
python experiments/parameter_sensitivity.py

---

📊 Visualization

All experimental figures (Fig.7–Fig.16) can be reproduced using the scripts in the visualization/ directory.
Since .csv result files are not included in the repository, they can be automatically generated by the provided data generator scripts before plotting.

---

Step 1️⃣ Generate the Experimental CSV Data

Before running any plotting script, please first generate the experimental data using the data generator modules.
Each figure directory contains a corresponding *_data_generator.py or *_data_loader.py script that creates the required CSV files under visualization/data_csv/.

# Generate data for ablation experiments (Fig.7)
python visualization/ablation/ablation_data_generator.py

# Generate data for early-exit analysis (Fig.8)
python visualization/exit_analysis/exit_data_generator.py

# Generate data for heterogeneous device evaluation (Fig.9)
python visualization/heterogeneous/heterogeneity_data_loader.py

# Generate data for scalability and energy analysis (Fig.13–Fig.16)
python visualization/energy_constraints/energy_data_loader.py
python visualization/scalability/scalability_utils.py

After running these scripts, the folder visualization/data_csv/ will be populated automatically with generated .csv files such as:

visualization/data_csv/
├── ablation_reward.csv
├── exit_alexnet.csv
├── heterogeneous_latency.csv
├── energy_constraints.csv
└── scalability.csv

---

Step 2️⃣ Plot Figures Individually

Once the .csv data is ready, you can reproduce each figure by running the corresponding plot_*.py scripts.

# Ablation Study (Fig.7)
python visualization/ablation/plot_ablation_convergence.py
python visualization/ablation/plot_ablation_delay.py

# Early-Exit Analysis (Fig.8)
python visualization/exit_analysis/plot_exit_probability_alexnet.py
python visualization/exit_analysis/plot_exit_probability_vgg16.py

# Heterogeneous Performance (Fig.9)
python visualization/heterogeneous/plot_latency_alexnet.py
python visualization/heterogeneous/plot_latency_vgg16.py

# Scalability and Energy (Fig.13–16)
python visualization/energy_constraints/plot_latency_vs_energy.py
python visualization/scalability/plot_vehicle_scalability.py

Each plotting script will save results automatically under results/plots/.

---

Step 3️⃣ Generate All Figures at Once

If you wish to generate all figures in a single step:

python visualization/export_all_figures.py

This script automatically:

1. Generates all necessary .csv data files (if not found);
2. Calls each plot_*.py module;
3. Exports all figures into results/plots/.

---

Step 4️⃣ View Final Results

The corresponding experimental result figures are shown below

🔹 Convergence and Ablation Results

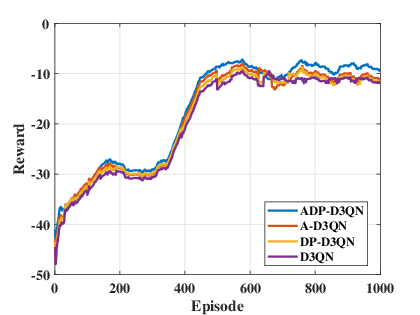

(a) Reward

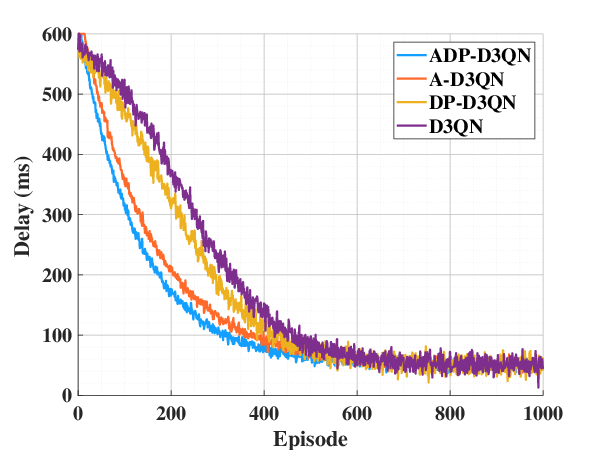

(b) Latency

Fig. 7. Algorithm Ablation Studies.

---

🔹 Exit Probability Analysis

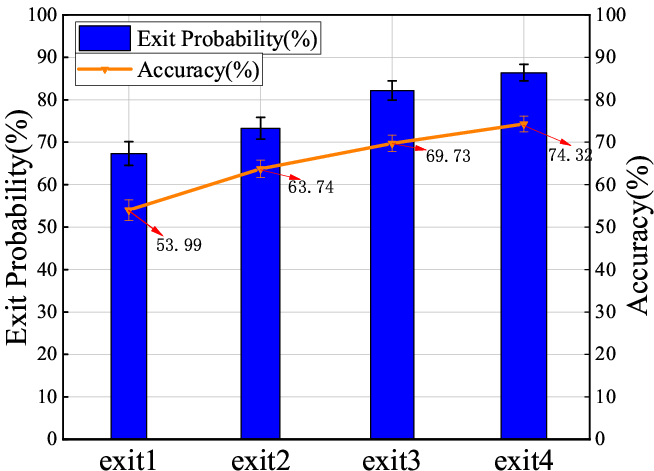

(a) AlexNet

(b) VGG16

Fig. 8. The accuracy and probability of early exit of multi-exit DNN models.

---

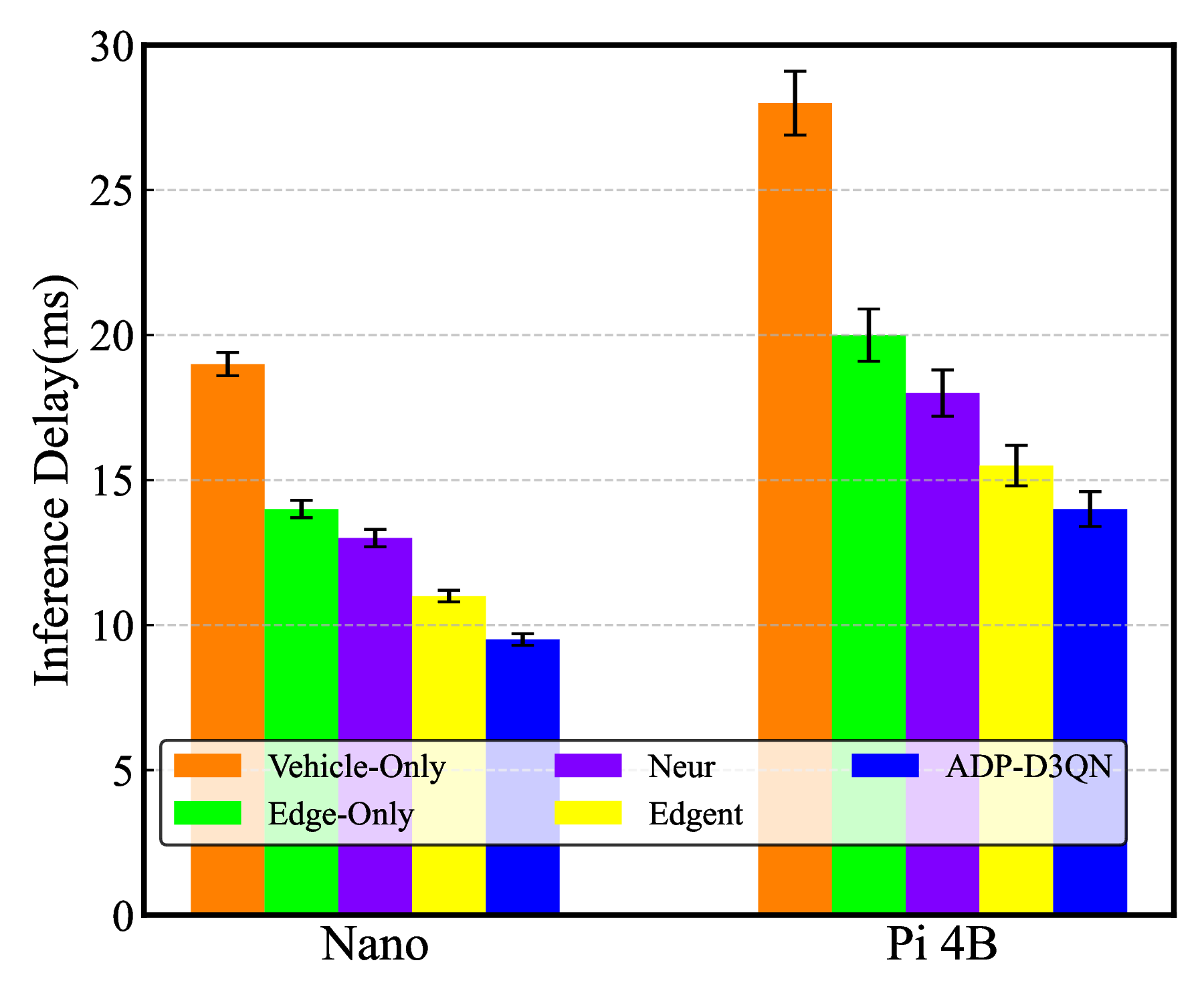

🔹 Heterogeneous Latency Comparison

(a) AlexNet

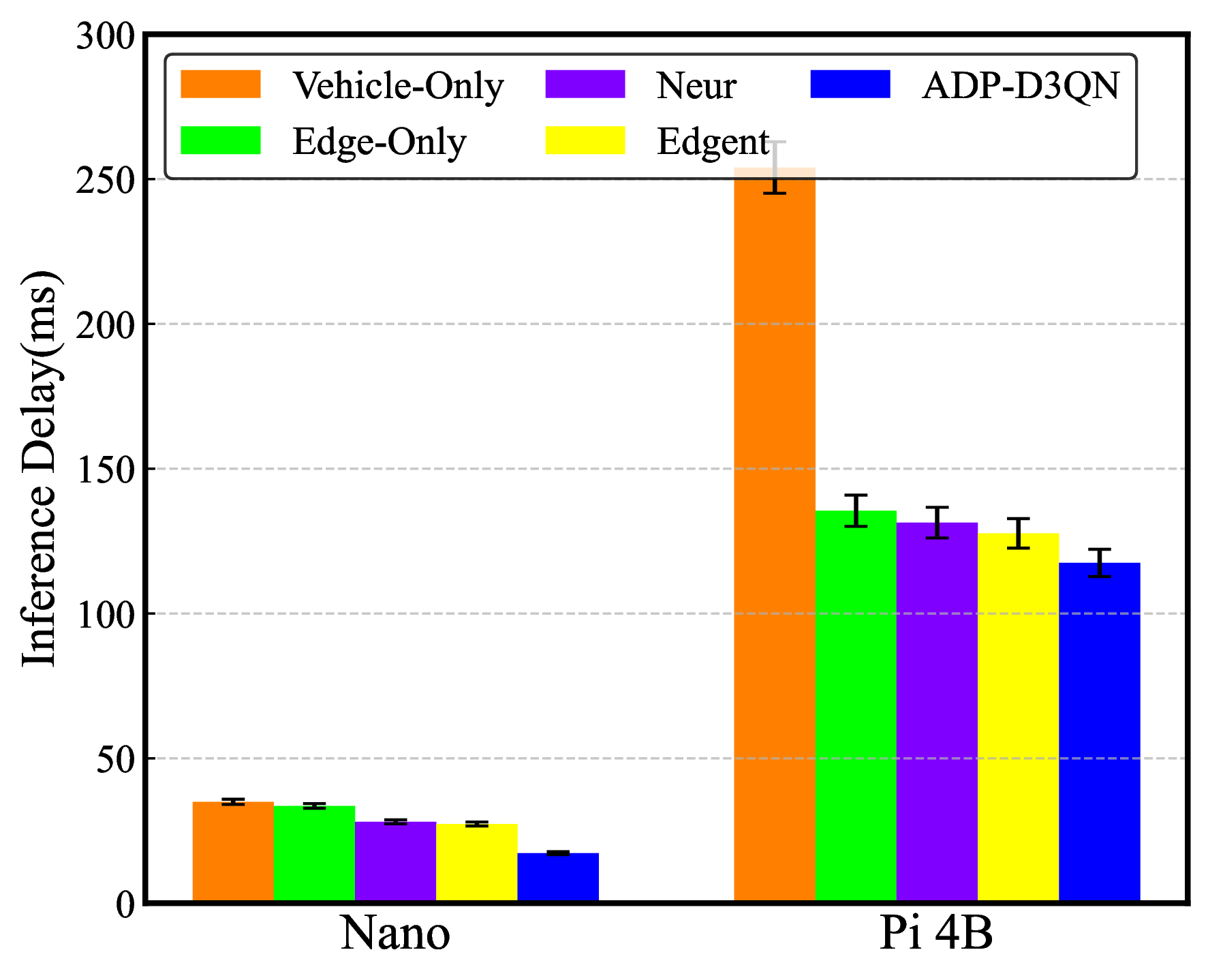

(b) VGG16

Fig. 9. Performance of heterogeneous vehicles in multi-exit DNN models.

---

🔹 Accuracy CDF Curves

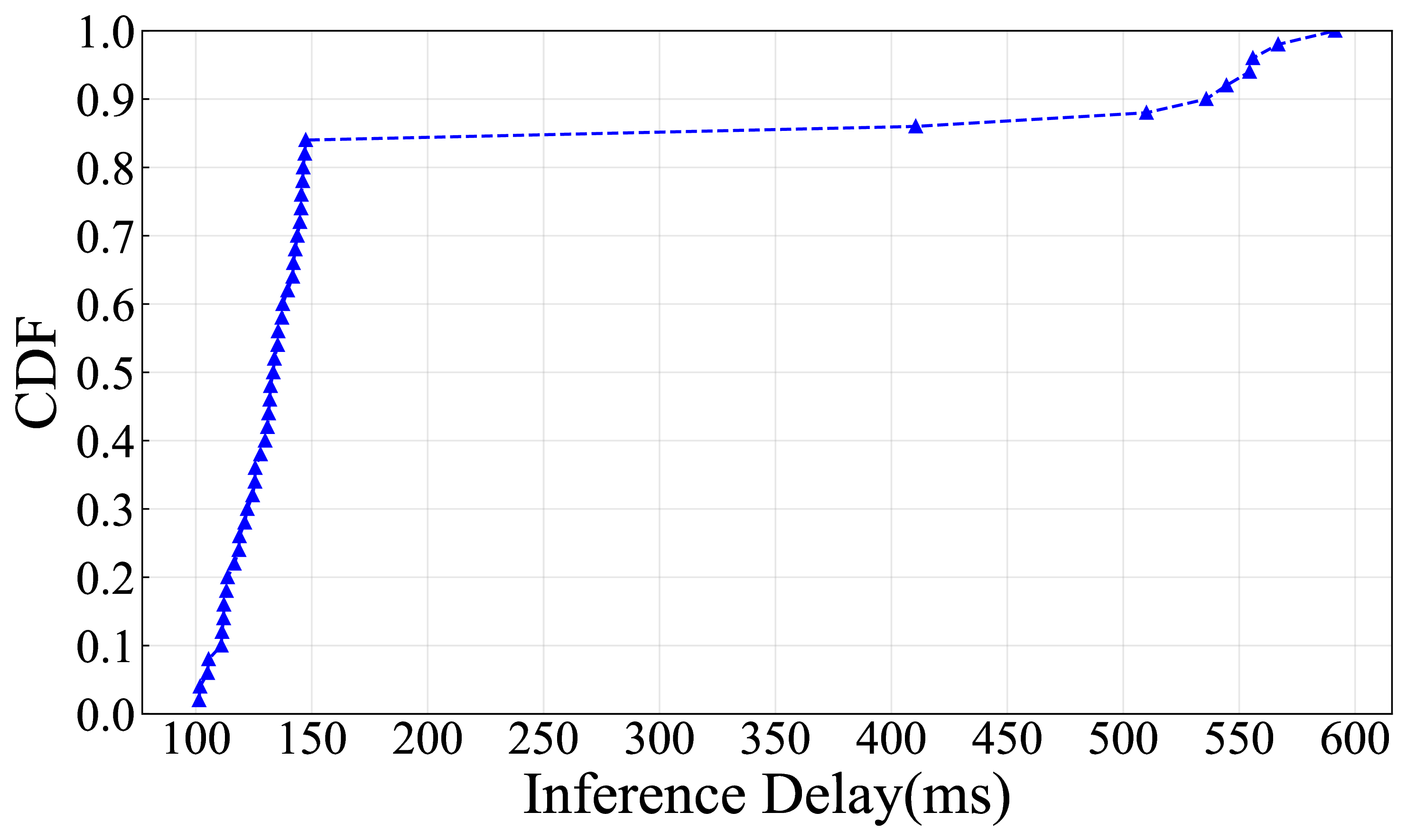

Fig. 11. The delay distribution the ADP-D3QN algorithm.

---

🔹 Vehicle Density and Transmission Rate Effects

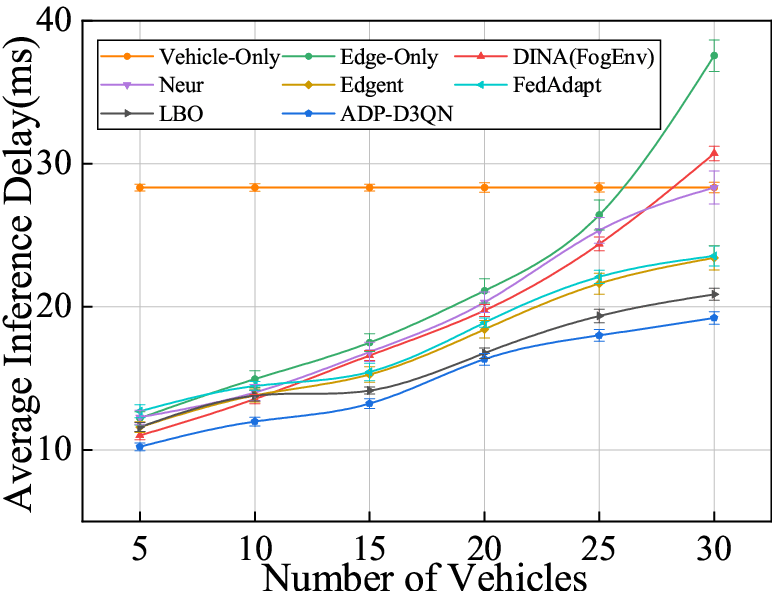

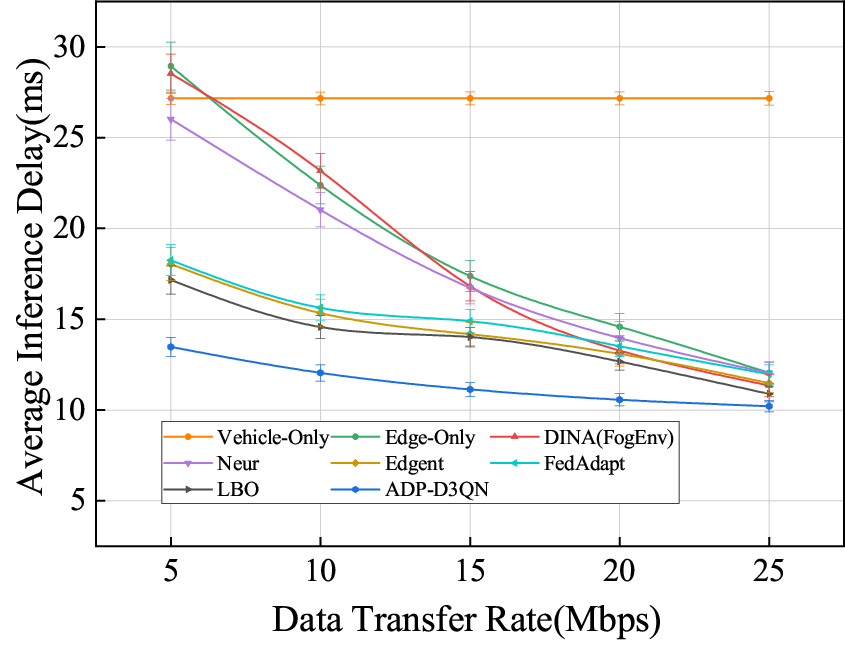

(a) Average inference delay in AlexNet

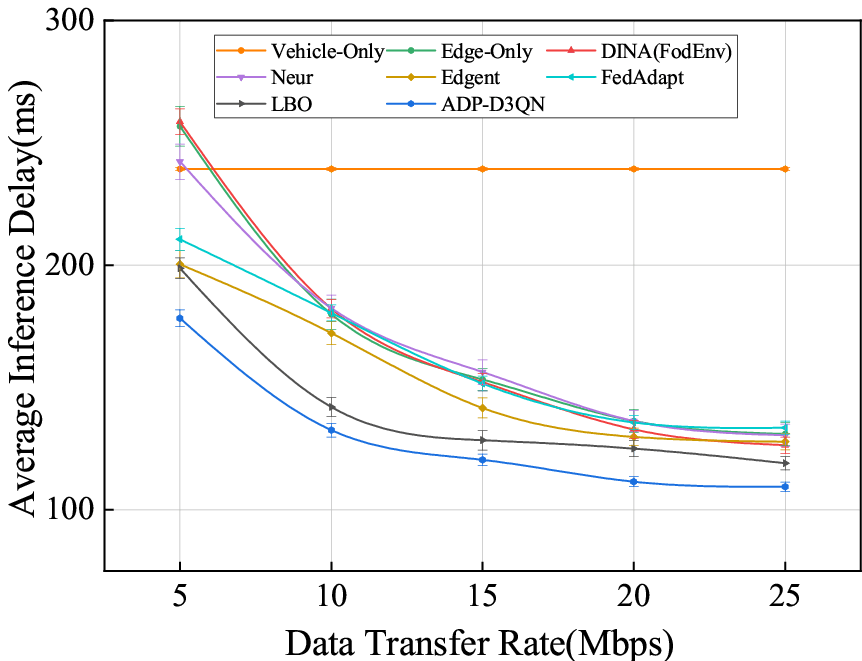

(b) Average inference delay in VGG16

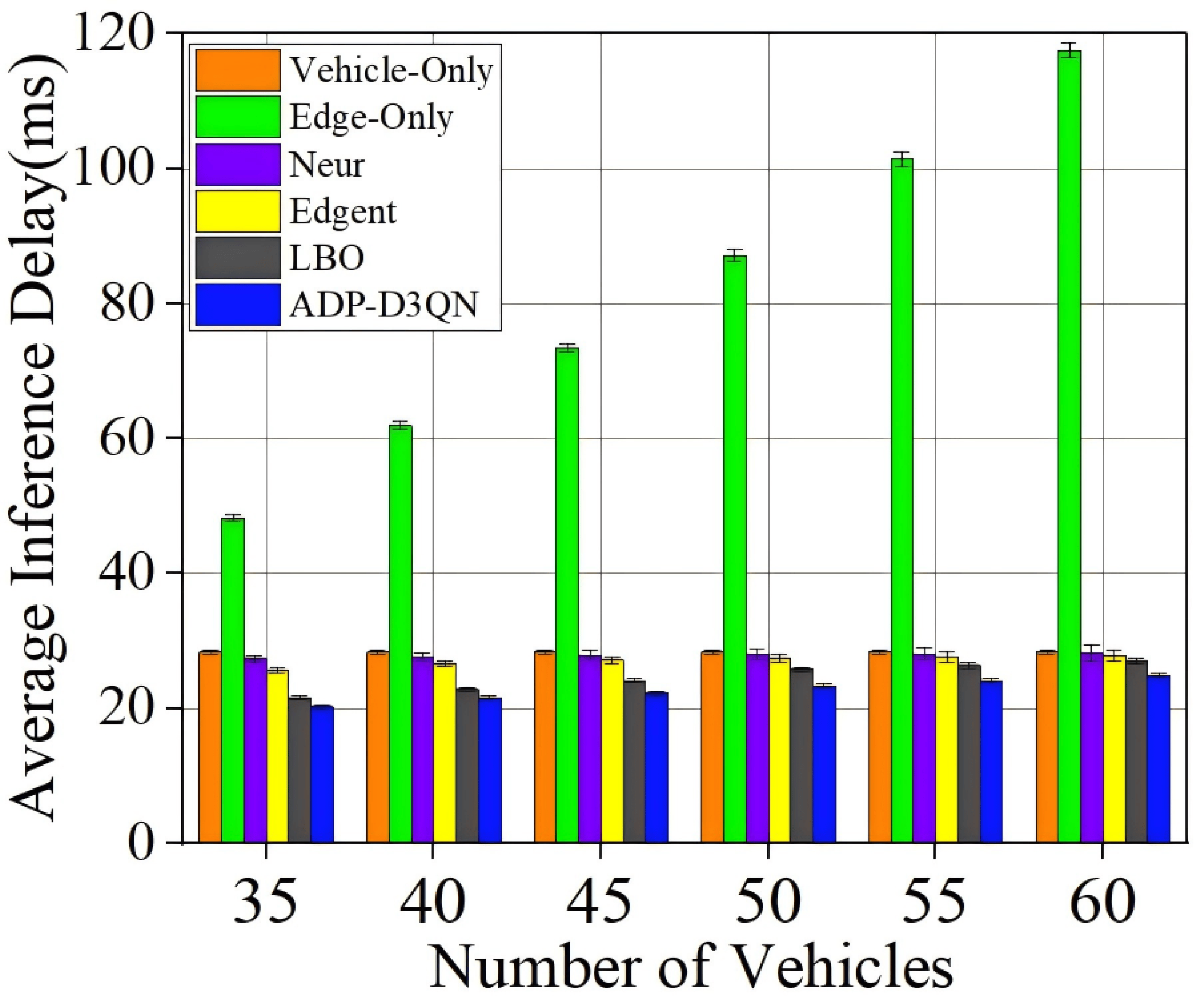

Fig. 12. Effect of number of vehicles.

(a) Average inference delay in AlexNet

(b) Average inference delay in VGG16

Fig. 13. Effect of data transfer rate.

---

🔹 Delay and Energy Constraint Analysis

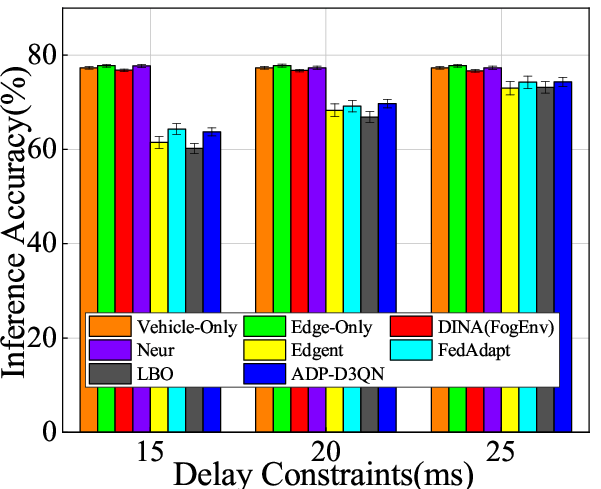

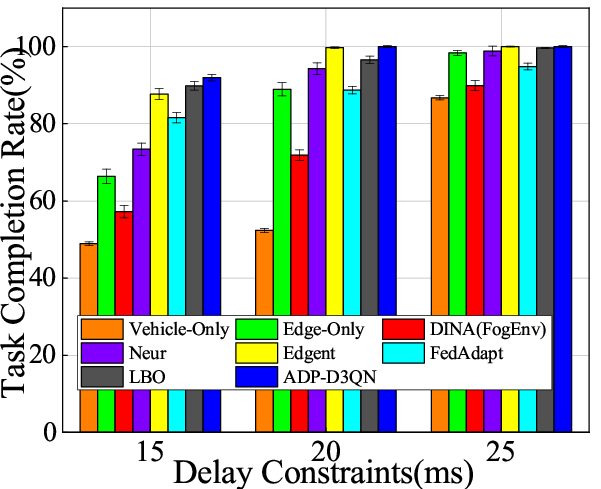

(a) Inference accuracy in AlexNet	(b) Task completion rate in AlexNet

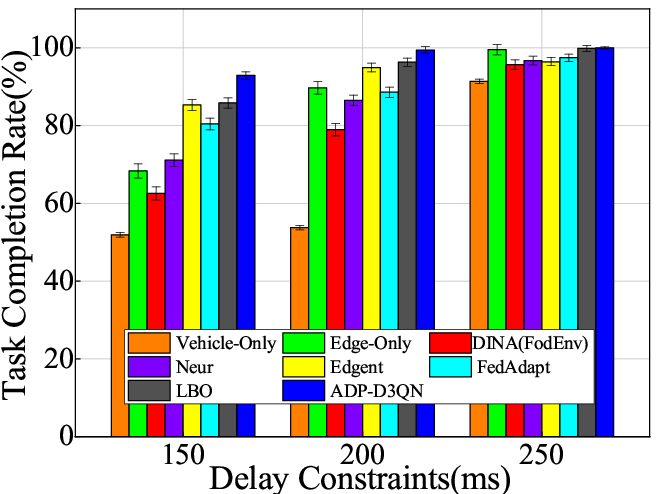

(c) Inference accuracy in VGG16	(d) Task completion rate in VGG16

Fig. 14. Effect of delay constraints.

---

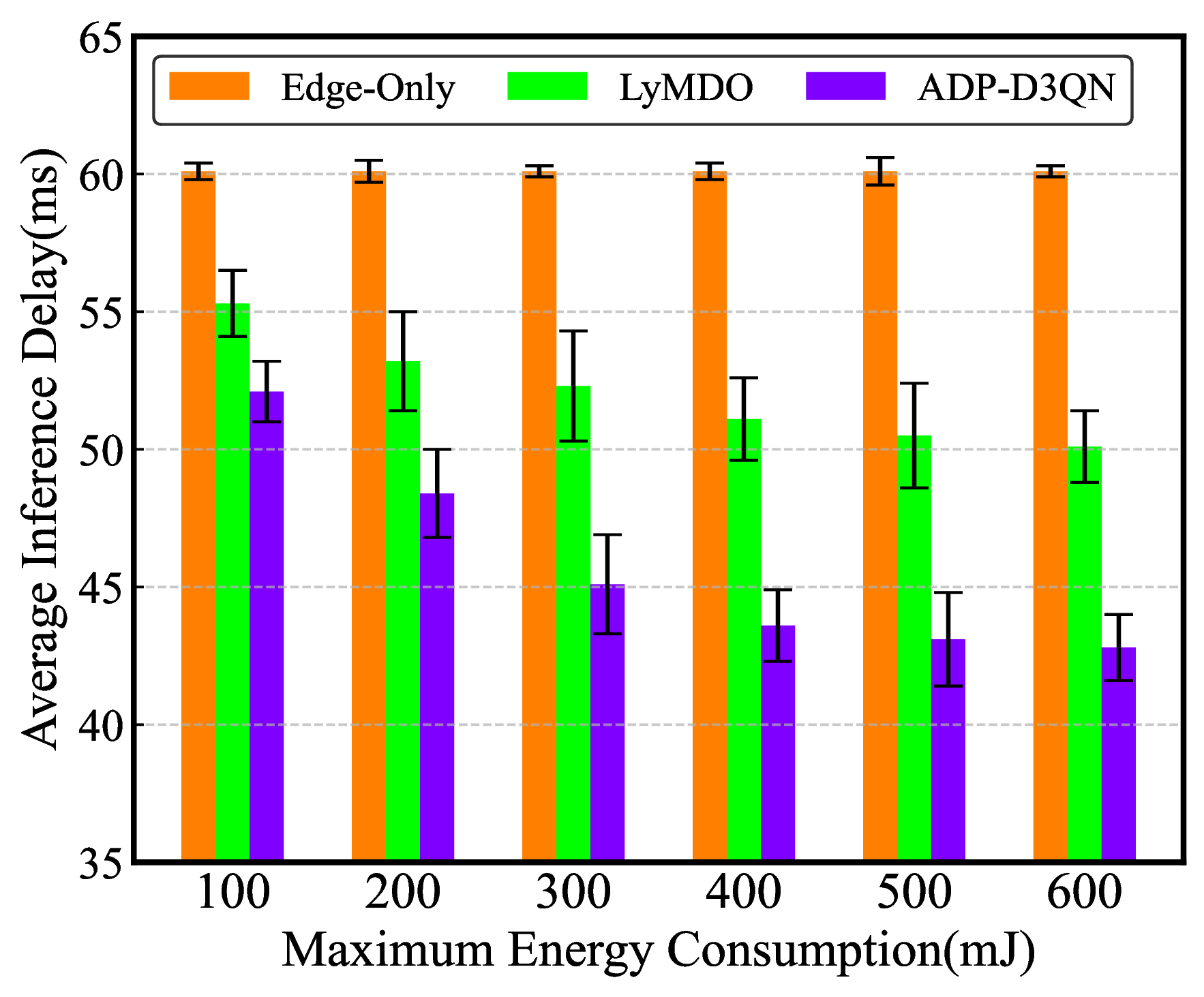

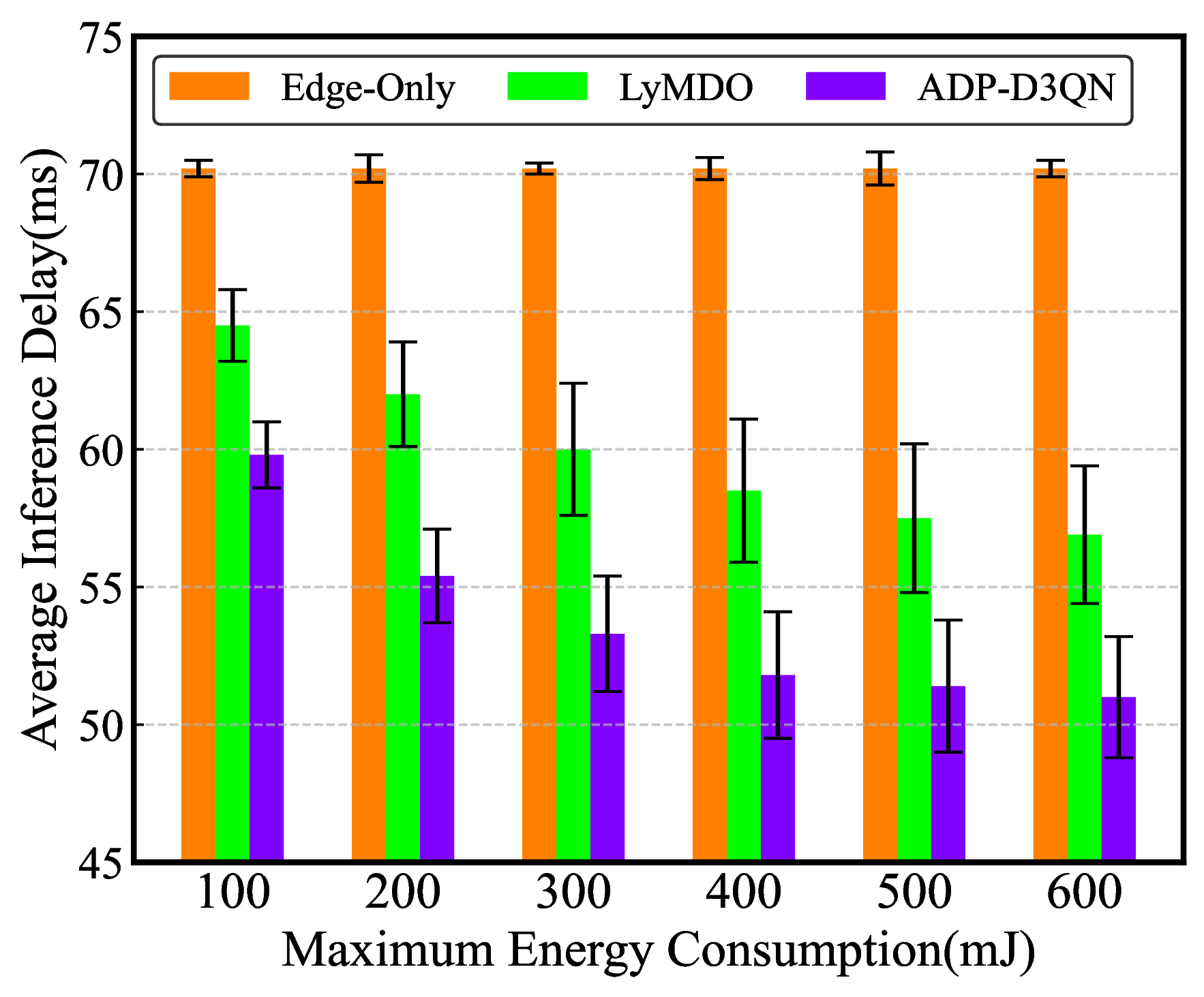

(a) Inference delay in Resnet50	(b) Inference delay in Yolov10n

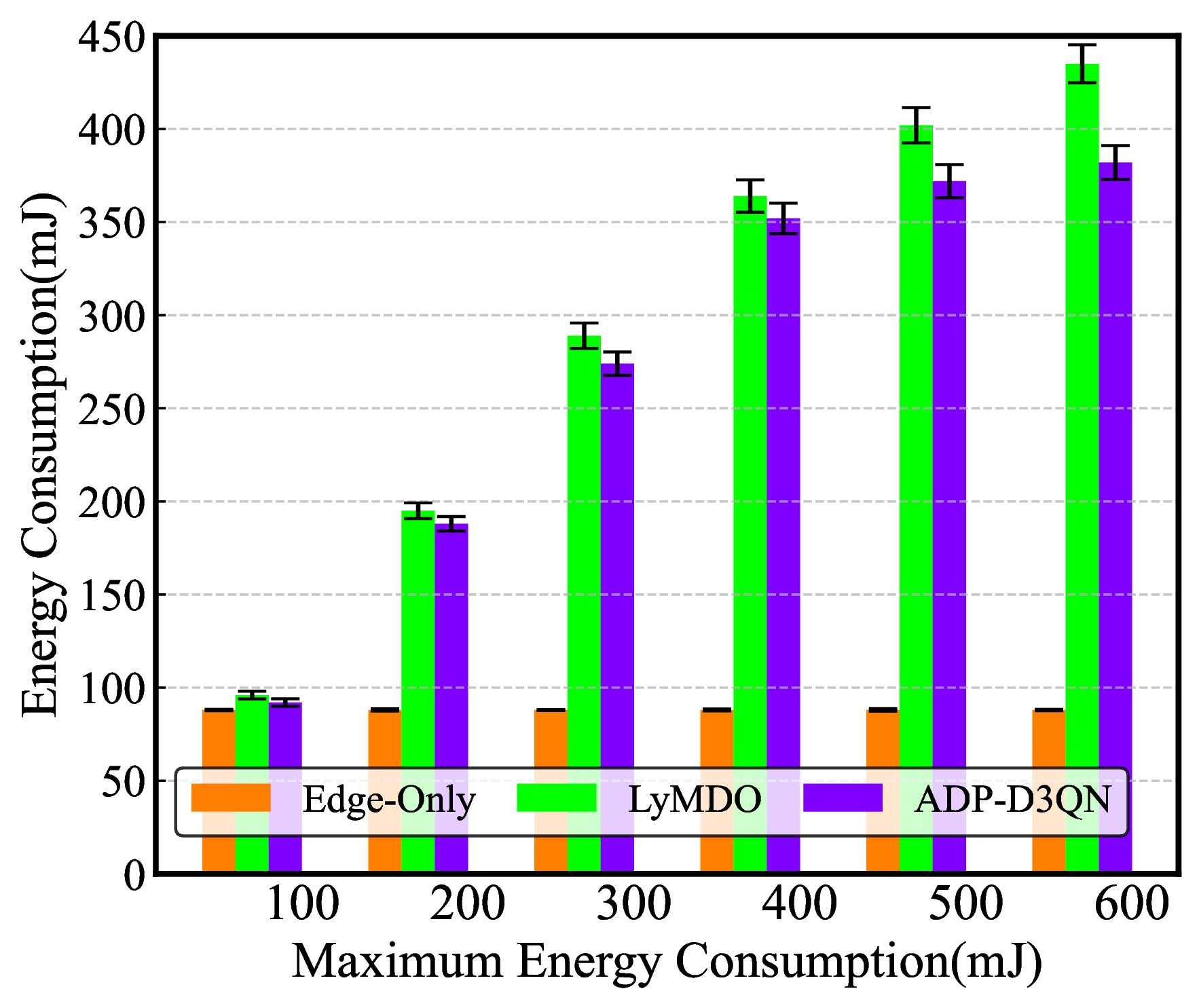

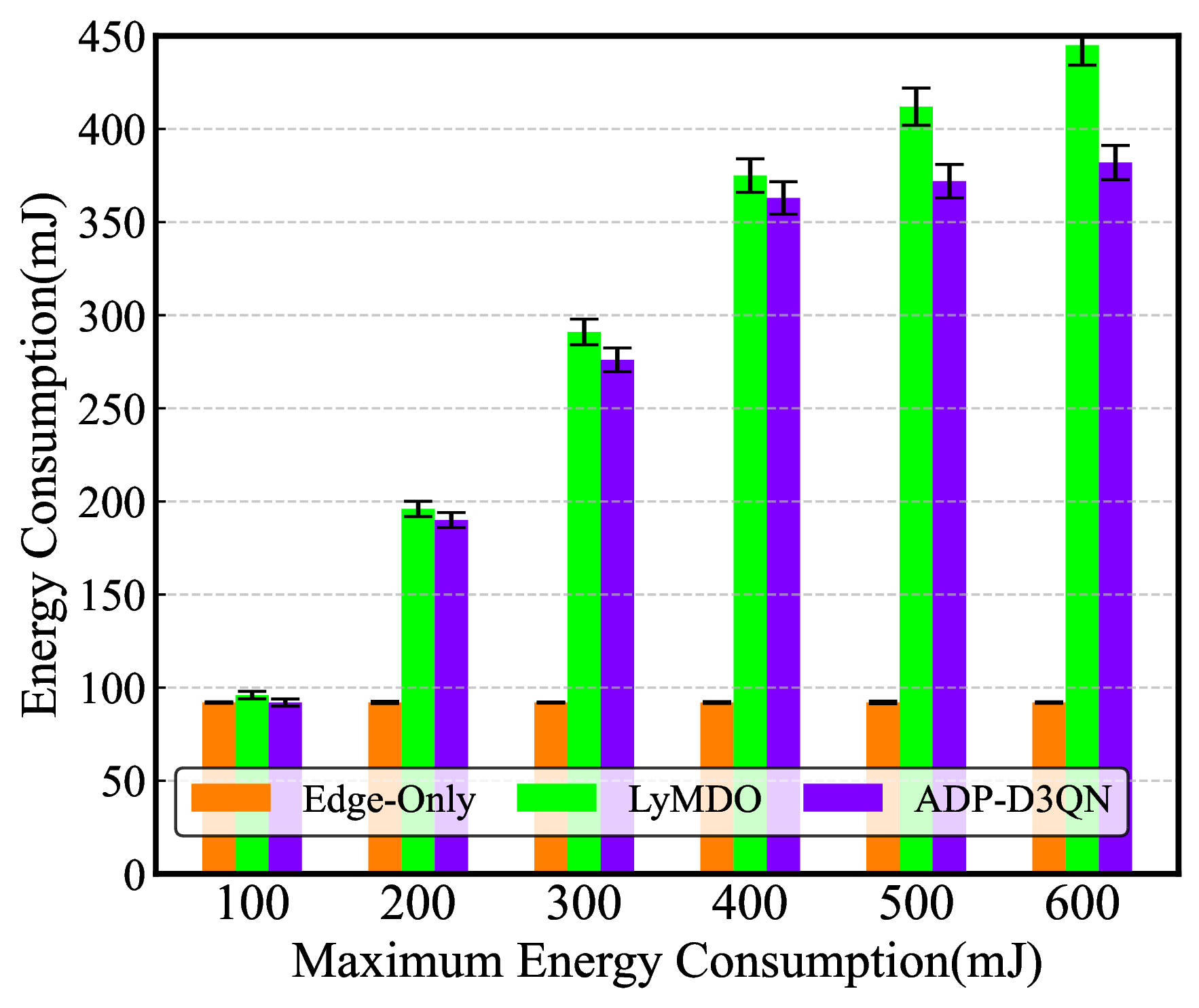

(c) Energy consumption in Resnet50	(d) Energy consumption in Yolov10n

Fig. 15. Effect of energy consumption constraints.

---

🔹 System Scalability Tests

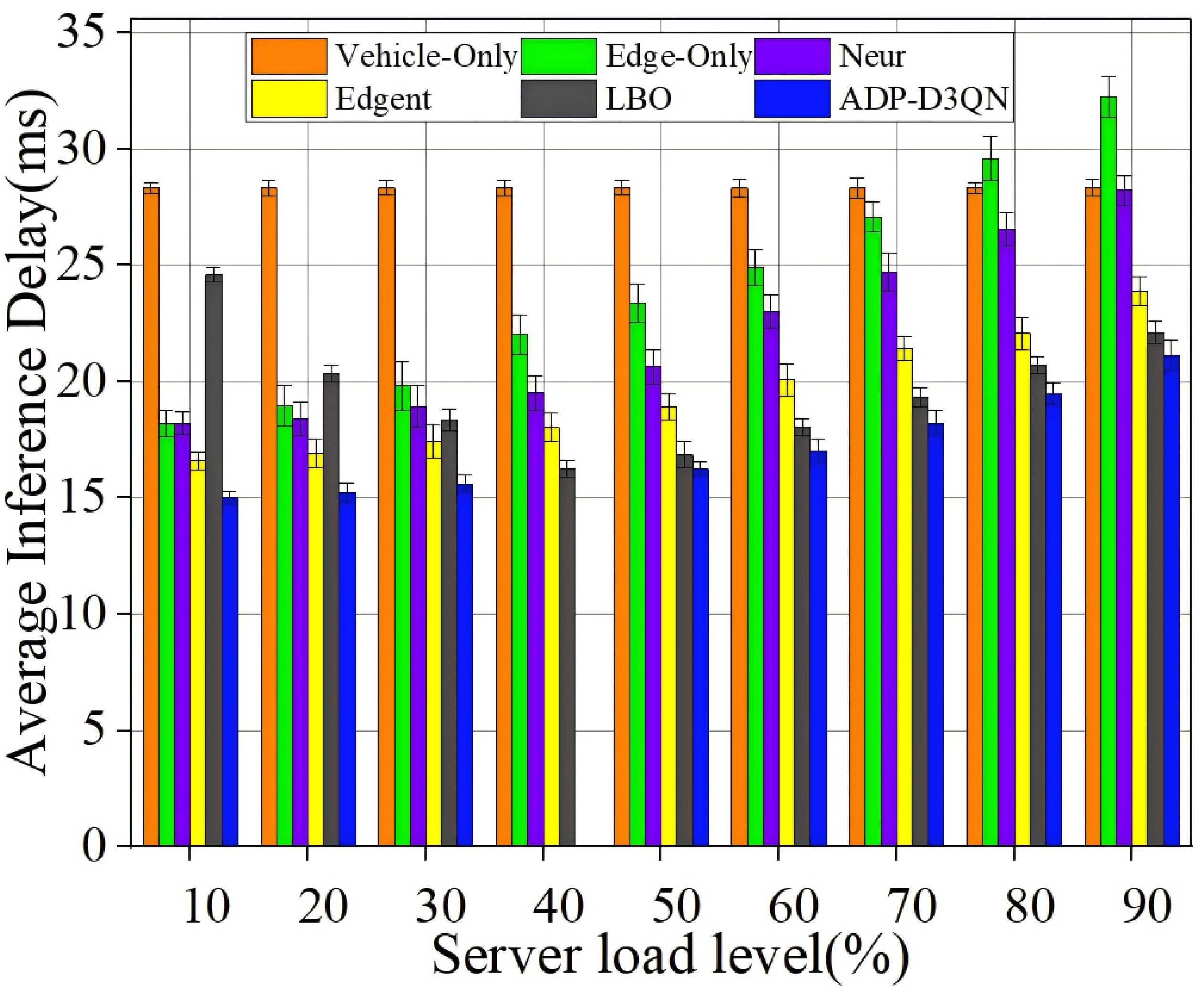

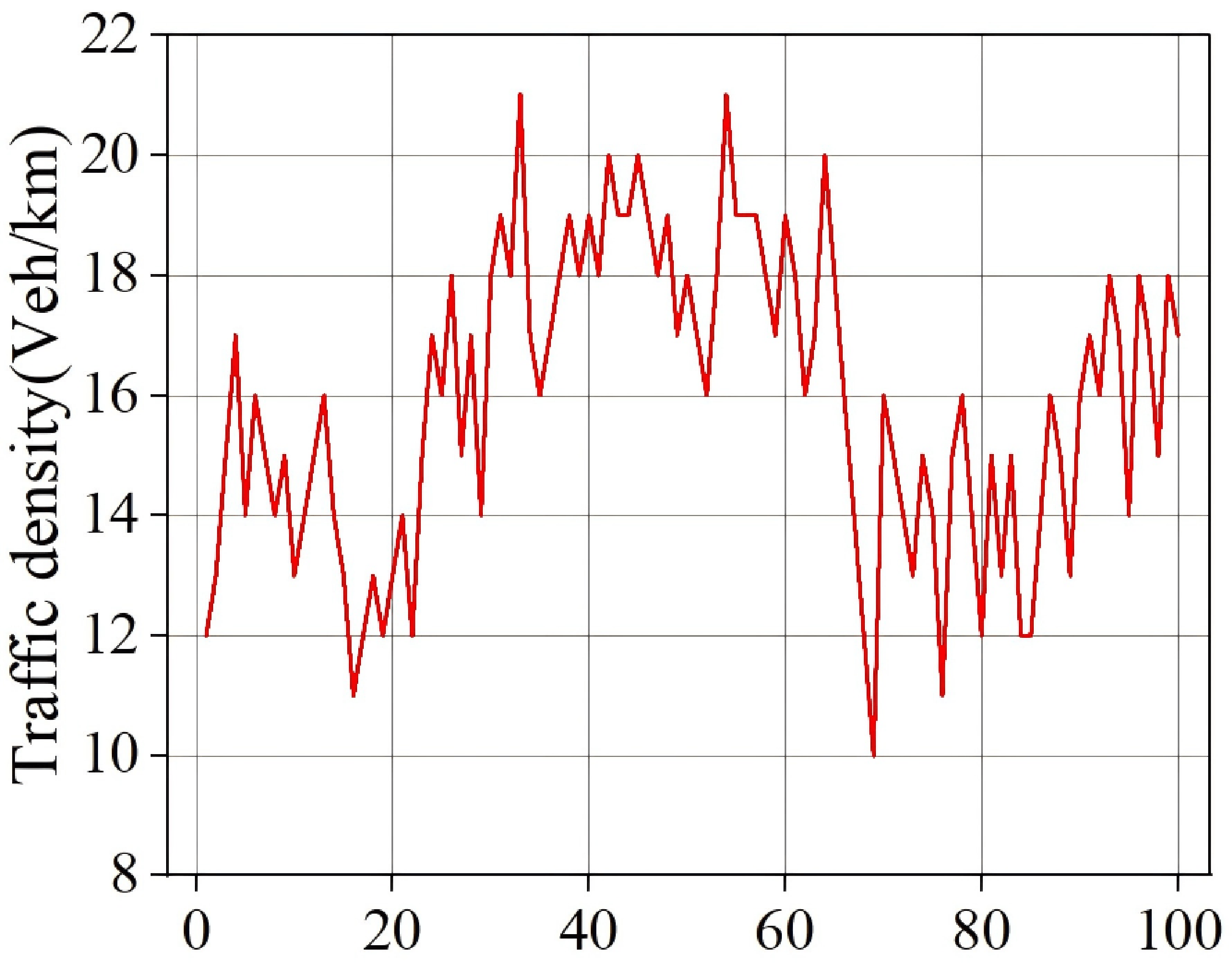

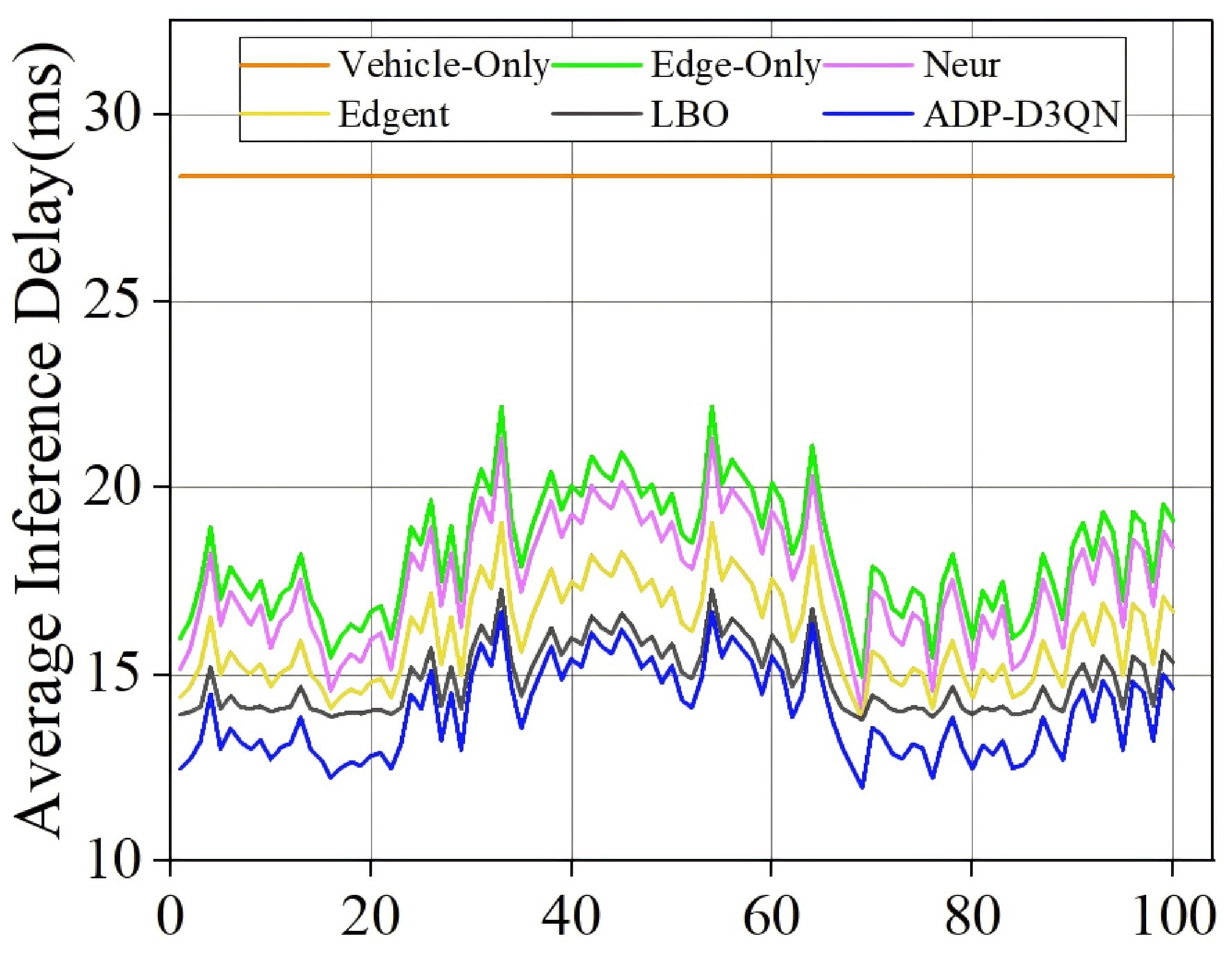

(a) Dynamic variations in traffic density over 100 time sequences	(b) Impact of dynamic traffic density
(c) Impact of number of vehicles	(d) Impact of computational stress

Fig. 16 Scalability experiment.

---

🧭 Deployment and Monitoring

Run the Simulation with Docker

cd deployment/docker
docker-compose up -d

Launch Monitoring Dashboard

python -m deployment.monitoring.dashboard

Export Prometheus Metrics

python -m deployment.monitoring.prometheus_exporter

---

📘 Summary

• Deterministic training ensured via global seeding
• Modular design for agent, environment, and optimization logic
• YAML-configured experiment pipeline for reproducibility
• Integrated visualization and monitoring for result interpretation

MEOCI offers a unified, extensible, and reproducible foundation for studying collaborative inference in vehicular edge intelligence systems.
