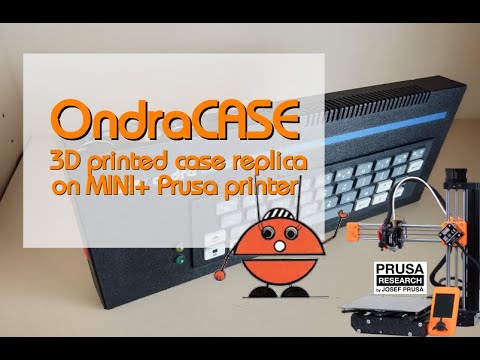

3D printed case replica for the famous czechoslovak home computer TESLA Ondra SPO186
OndraCASE replica of metal case for Ondra SPO186
Whole Ondra functional replica with OndraCASE and OndraKEYBOARD
- Special developed non-visible joints
- You can print it on mini printer (designed for Prusa MINI+ 180x180mm)
- Identical outer shape and dimensions as original
- Designed for home 3D printing
- Print all the parts, some multimaterial manually or automatically
- The direction of bottom layer should be perpendicular to joints
- The body should be printed on rough printplate to obtain the desired surface like original with your default nozzle (0.4mm)
- Recommended material is PETG.
- Weld the parts well fixed on flat surface, see the YouTube video how to do it
- Done, enjoy, share...
- Use the the PrusaSlicer project files
- Each .STP 3D model should be printed as another material/head
- Insert the body colour filament and start print
- After a while, printer will want to change filament, change it to desired colour, clean the nozzle and remove residue. Insert piece of paper on the first print layer and let the printer to "smudge" the nozzle against the paper, it is quick, but this method fixes the unwanted blobs on first layer. Then labels will be printed and again, change the body colour back when the printer wants it and leave it to finish the job. Repeat it for all the three colors.
