Webcellar is an open source Office Add-In for Microsoft Excel that lets developers easily enhance spreadsheets with custom JavaScript and TypeScript.

• Simple and Intuitive: JavaScript module exports become automatically available in Excel.
• Emphasis on Core Application Logic: Spreadsheet UIs (UI ≈ state) emphasize core application logic over possibly auxiliary UI logic.
• Hardened Security (Configurable): External network requests are disabled and file access is restricted to reduce security risks.
• And more!

In practice, Webcellar supports the development of many advanced Excel applications, such as forecasting, risk, simulation, decision and artificial intelligence (AI) models. As an end result, developers can deliver meaningful outcomes faster while preserving a familiar user interface and experience.

Note: Webcellar is currently experimental and depends on undocumented Office.js APIs. Furthermore, the current capabilities of Webcellar mainly reflect the needs of its developer (Acmeon), for example, it is only tested on Windows (although it might work on Mac). Nonetheless, Webcellar may prove useful for others as well.

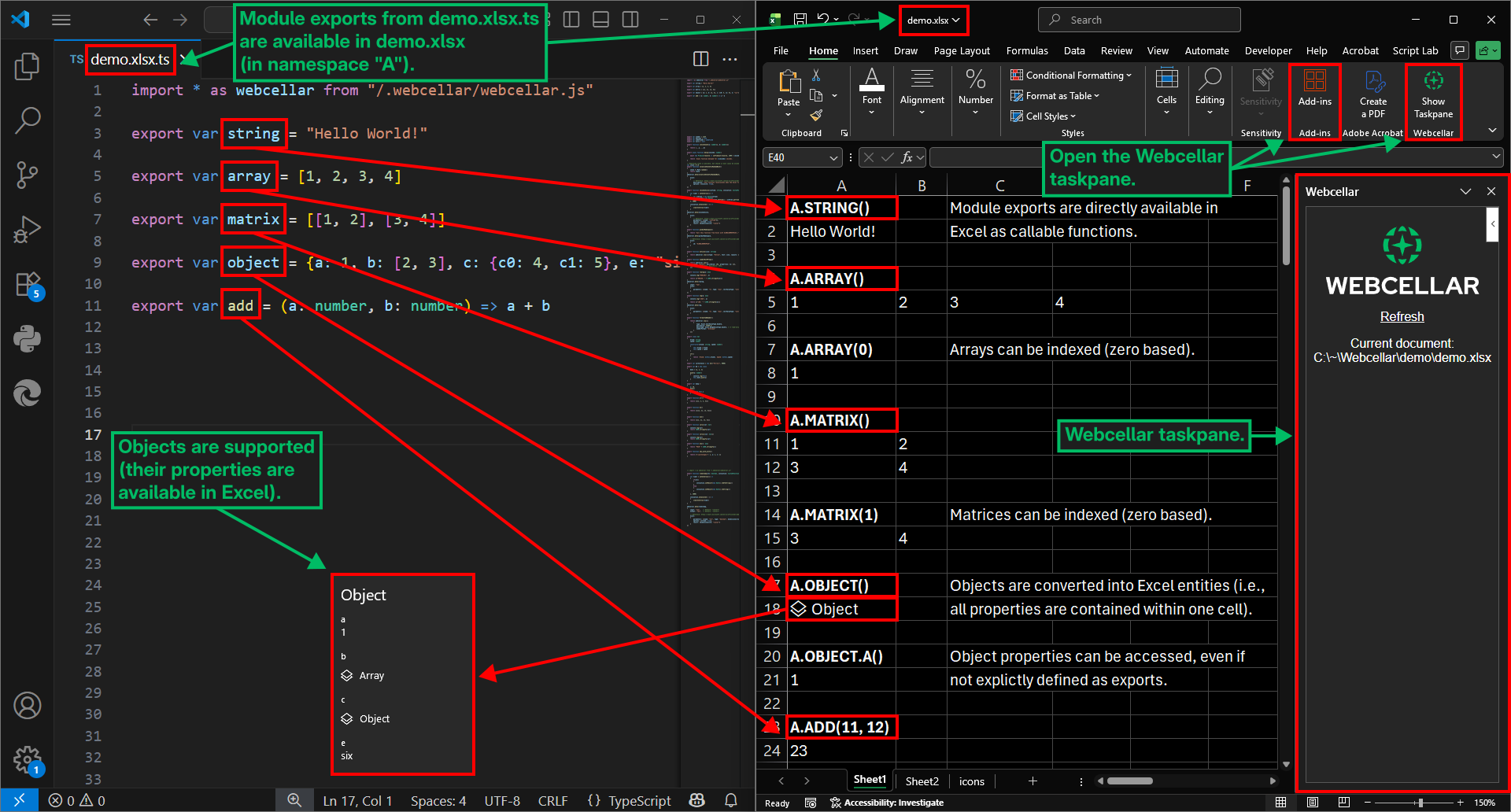

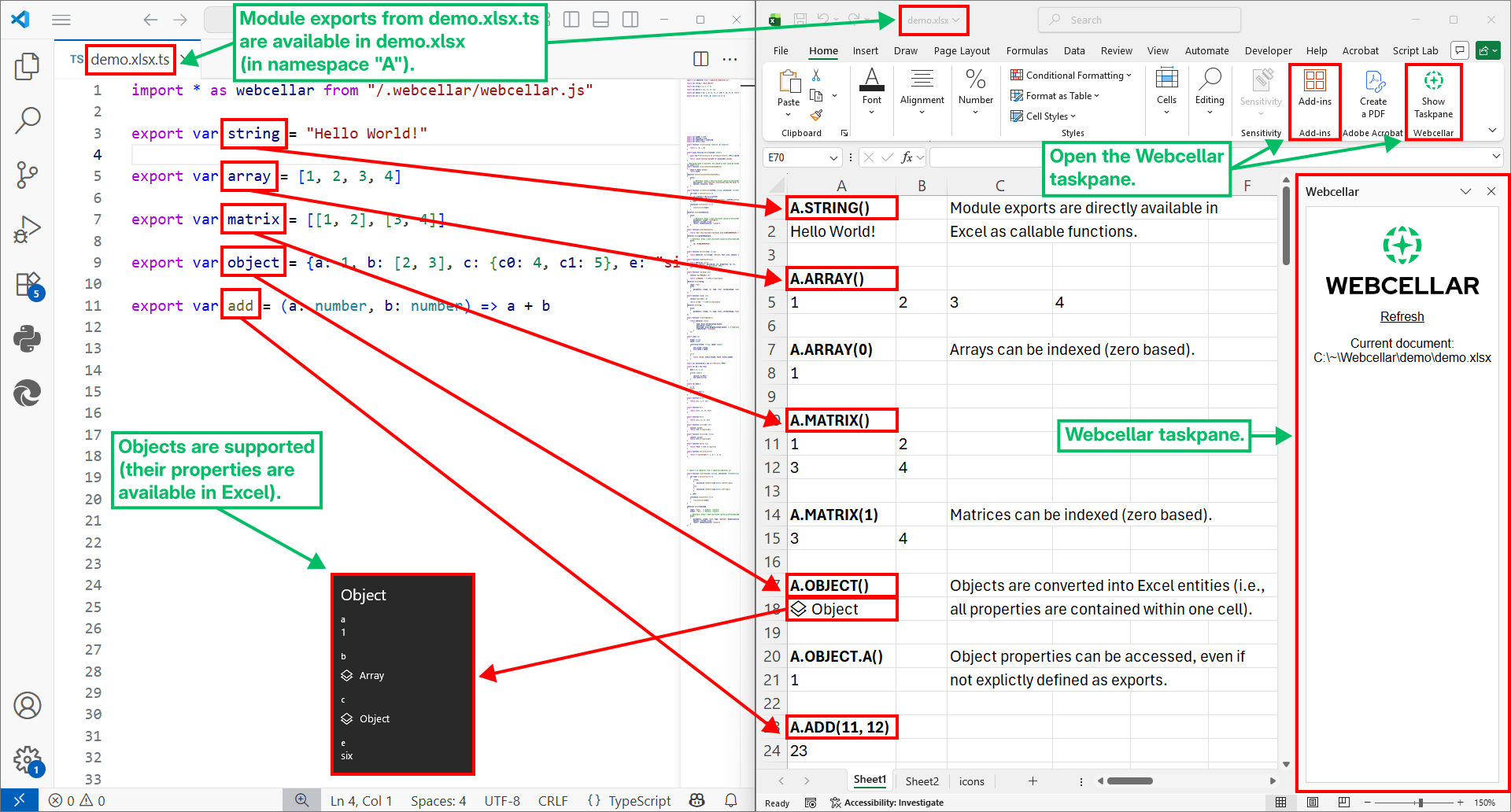

Demo (Annotated Screenshot)

View as PNG: Light Dark

Exports from *.xlsx.js (or *.xlsx.ts) files become automatically available in corresponding *.xlsx files as functions. By default, the exports are prefixed with A. (A as in application or add-in) in Excel.

For a complete demo, run Webcellar (see the "Getting Started" section) and open demo/demo.xlsx in Excel (it is available under the Webcellar installation directory, which is displayed in the console when starting Webcellar).

Getting Started

1. Install Node.js and Microsoft Excel.

2. Install Webcellar (installation without --global is also possible):

   npm install --global webcellar


3. Start Webcellar and specify a directory, i.e., C:/, from which files are served (see the "Security" section for details):

   npx webcellar C:/


4. Webcellar will initialize itself on the first run by installing Office.js (a network connection is required), dependencies and certificates for a local HTTPS server. Answer the questions in the console, OK the dialogs and open the Webcellar taskpane in Excel (there should be a button for Webcellar in the Excel Home tab or under the Add-Ins button, see annotated screenshot in section "Demo (Annotated Screenshot)"). The taskpane indicates when initialization is complete (usually within 10 seconds).

5. Exports from *.xlsx.js (or *.xlsx.ts) files are now available in corresponding *.xlsx files as long as Webcellar is running. The taskpane can be closed.

Notes:

• Webcellar is tested with Node.js 24.14.1 (LTS), however, earlier versions may also be compatible.

• Webcellar can also executed by cloning this repository, installing the dependencies with npm install and starting Webcellar with, for example, node start.ts C:/.

• Sometimes Excel may complain about missing add-ins. Close the complaints and refresh Webcellar from the taskpane.

• For some users Office Add-In runtime logging might be enabled by default, in which case this should appear in the console. Disable Office Add-In runtime logging to improve performance with (optional):

  npx office-addin-dev-settings runtime-log --disable


Differences Between Webcellar and an Office Add-In

The key differences between Webcellar and an Office Add-Ins (using the default configuration) for Excel are below.

1. Webcellar enables developers to define different JavaScript (JS) exports for different Excel files. Concretely, exports from *.xlsx.js (or *.xlsx.ts) files become available in corresponding *.xlsx files. In contrast, an Office Add-In defines the same JS functions for all Excel files, which may not always be appropriate.

2. Webcellar automatically handles dimensionality and data type conversion between JS and Excel for developer convenience. For example, Webcellar automatically converts JS objects to Excel entities (see details in the "Dimensionality Conversion" and "Data Type Conversion" sections), Office Add-Ins often require manual conversion.

3. Webcellar runs entirely locally and offline after installation (i.e., no network external requests are required). Office Add-Ins depend on Office.js from Microsoft servers, thus, a network connection is required.

4. Webcellar disables external network requests by default (by way of a strict content security policy), which means that security risks of running untrusted code is reduced. By comparison, an Office Add-In allows external network requests.

5. Webcellar extracts function argument information directly from the JS source code (TypeScript annotations are utilized if they are available). Office Add-Ins require the use of JSDoc.

Note: Webcellar is an Office Add-In, thus, all capabilities of Webcellar could, in principle, be implemented in a Office Add-In. However, this is not the case by default.

Dimensionality Conversion

Excel supports values whose dimensionalities are either "scalars" (i.e., single cell values) or "matrices" (i.e., ranges, where values are stored in multiple cells). This section documents the dimensionality conversion rules between JS and Excel.

The conversion rules from Excel to JS are below (these are applied, for example, when calling a JS function from Excel).

Excel Dimensionality	JS Dimensionality
Scalar	Scalar
Row array	Array (one dimensional)
Column array	Array (one dimensional)
Matrix	Array of arrays

Note: A standard Office Add-In converts Excel column arrays to JS arrays of arrays of length 1 (e.g., [[1], [2], [3]]). Webcellar deviates from a standard Office Add-In in this regard by converting both Excel row and column arrays to one dimensional JS arrays (i.e., there is no distinction between row and column arrays).

All JS outputs are converted into matrices. This is a useful simplification, because JS must either output scalars or matrices. In other words, the common dimensionality is matrix (note that a scalar can be returned as a 1x1 matrix). The conversion rules from JS to Excel are below.

JS Dimensionality	Excel Dimensionality
Scalar	1x1 matrix
Array (of length n)	1xn matrix (i.e., row array)
Matrix (array of n arrays of length m)	nxm matrix

Note: Developers are unlikely to have to consider how JS dimensionality is converted into Excel dimensionality. For example, visually there is (seemingly) no difference between an Excel scalar and an Excel 1x1 matrix. The main difference is that in Excel, a reference to a cell (e.g., A1) that contains a 1x1 matrix can be referenced with # (e.g., A1#) to refer to the entire matrix. In contrast, scalars do not support this.

Data Type Conversion

All JS types are not supported in Excel. This section documents the data types conversion rules between JS and Excel. Note that the conversion rules are conditional on how Webcellar handles dimensionality conversion (i.e., scalars vs matrices; details in the "Dimensionality Conversion" section).

JS Type	Excel Type
string	string
number	number
boolean	boolean
array	array entity
object	object entity

An Excel entity (e.g., array entity and object entity) is, conceptually, an object with properties that is contained entirely within one cell. For example, the elements of an array entity are all stored in one cell, rather than in multiple cells on a row. In other words, an Excel entity is not, for example, a JSON string representation of a JS object.

Note: Due to how Webcellar handles dimensionality conversion, to directly output an array entity (i.e., not as an object property), you must wrap it in two arrays. For example, if the array is [1, 2, 3], then to output it as an array entity return it as [[[1, 2, 3]]] (i.e., a 1x1 matrix).

Function Argument Types

Webcellar automatically extracts function argument information from JS source code and TypeScript (TS) annotations if they are available. This information is used to make functions callable from Excel. The TS type annotations are primarily used to limit calling functions with incorrect types. Default values for function arguments are currently not supported.

Excel supports the following types (which directly correspond to their TS annotations): string, number, boolean and any. Other annotations (e.g., classes) are treated as any, which allows, for example, Excel entities.

If a function argument's TS type annotation ends with [], then the dimensionality of the argument is matrix (note that 1x1 matrices are allowed). Otherwise, the dimensionality is scalar.

If a function argument has no annotation, then it is treated as any and its dimensionality is matrix.

Note: Currently, type checks are performed only by Excel (i.e., Webcellar performs no type checks). Furthermore, object prototypes are not preserved when converting to Excel entities and back. Thus, runtime types may not always correspond to the annotations. Developers should implement additional type checks where needed.

Security

Excel files often contain sensitive data. Furthermore, execution of untrusted code often poses unnecessarily high security risks. In this context, Webcellar chooses to harden security by default. The key security principles are below.

1. External network requests are disabled with a strict content security policy, which helps prevent data leakage and execution of untrusted code.

2. The user must explicitly define the directories from which files are served (files in subdirectories are also served), which helps prevent data leakage.

3. Only files can be requested (e.g., there are no directory indexes), which limits file discovery.

4. Excel disallows taskpane navigation to external websites, which reduces the risk of executing untrusted code.

5. For each file that is served, the nearest Webcellar file (i.e., a *.xlsx.js or *.xlsx.ts file) in the current or parent directory must have been requested. This limits file exposure, because exact Webcellar file paths must be known upfront (note that for a given Excel file *.xlsx Webcellar automatically requests the corresponding *.xlsx.js or *.xlsx.ts file). Technically, authorization is stored in cookies. Examples of requests and outcomes for a given file structure are below.

   File structure (the demo directory of this repository):

   • bar/
     • bar.xlsx.ts
     • data.json
   • baz/
     • data.json
   • foo/
     • foo.xlsx.js
     • mod.js
   • demo.xlsx
   • demo.xlsx.ts
   • module.ts

   Requests and outcomes (cookies are assumed to be cleared between each list item):

   • demo/demo.xlsx.ts => OK (direct request to a Webcellar file).

   • demo/module.ts => Fail (nearest Webcellar file has not been requested).

   • demo/foo/mod.js => Fail (nearest Webcellar file has not been requested).

   • demo/bar/data.json => Fail (nearest Webcellar file has not been requested).

   • demo/baz/data.json => Fail (nearest Webcellar file has not been requested).

   • demo/demo.xlsx.ts => OK (direct request to a Webcellar file).
     demo/module.ts => OK (nearest Webcellar file has been requested).

   • demo/module.ts => Fail (nearest Webcellar file has not been requested, note that order matters).
     demo/demo.xlsx.ts => OK (direct request to a Webcellar file).

   • demo/demo.xlsx.ts => OK (direct request to a Webcellar file, this file directly imports demo/foo/foo.xlsx.js).
     demo/foo/mod.js => OK (nearest Webcellar file has been requested indirectly).

   • demo/demo.xlsx.ts => OK (direct request to a Webcellar file).
     demo/bar/data.json => Fail (nearest Webcellar file has not been requested).

   • demo/demo.xlsx.ts => OK (direct request to a Webcellar file).
     demo/baz/data.json => OK (nearest Webcellar file has been requested).

   Note: Module fetch order should not be relied on. Thus, Webcellar simultaneously grants authorization to a requested Webcellar file and to other Webcellar files it statically imports.

Command Line Interface

Command to run Webcellar server:

npx webcellar [dirs...] [--mode <modes...>] [--content-security-policy-sources <sources...>]

Arguments and options:

• dirs: Directories from which files are served (for example, use C:/ on Windows to grant access to all files under the C drive).

• --mode <modes...>: Execution mode for Webcellar: 'init' initializes, 'build' builds dependencies, 'run' starts the server, 'deinit' removes it; by default webcellar executes 'init' (if needed), 'build' (if needed) and then 'run'.

• --content-security-policy-sources <sources...>: Additional sources for the Content Security Policy (CSP) default-src directive (allowed by default: 'self', blob:, data:, 'unsafe-inline', 'unsafe-eval').

For example, to serve files from the C and D drives and permit network requests to example.com and jsonplaceholder.typicode.com, execute:

npx webcellar --content-security-policy-sources example.com jsonplaceholder.typicode.com C:/ D:/

API Reference

Meta

class Meta
{
    input?: "convert" | "raw" = "convert"
    output?: "convert" | "raw" = "convert"

    // For references, see https://learn.microsoft.com/en-us/office/dev/add-ins/excel/custom-functions-json#functions (note: the type name is a placeholder)
    excel?: ExcelCustomFunctionMetadata
}

The Meta class is uded to associate metadata with JS module exports. The input and output properties can be used to enable ("convert") or disable ("raw") dimensionality and data type conversion (for details, see sections "Dimensionality Conversion" and "Data Type Conversion"). The excel property corresponds to Excel Custom Function Metadata. Note that using the excel property overrides Webcellar default behavior.

meta

function meta(value: any, meta: Meta): void

The meta function is used to associate metadata (Meta) with JS module exports. For example

import * as webcellar from "/.webcellar/webcellar.js"

export function timestamp(utc: boolean, invocation: CustomFunctions.StreamingInvocation<string>)
{
    var timer = setInterval(() =>
    {
        if(utc)
        {
            invocation.setResult(new Date().toUTCString())
        }
        else
        {
            invocation.setResult(new Date().toString())
        }

    }, 10000)

    invocation.onCanceled = () =>
    {
        clearInterval(timer)
    }
}

webcellar.meta(timestamp,
{
    input: "raw",
    output: "raw",

    excel:
    {
        parameters: [{name: "utc", type: "boolean", dimensionality: "scalar"}],
        options: {stream: true},
        result: {dimensionality: "scalar"}
    }
})

input

function input(value: any, root = false): any

The input function converts an Excel value to the corresponding JS value (for details, see sections "Dimensionality Conversion" and "Data Type Conversion"). If root = true, then value corresponds directly to a cell value, otherwise it is a property in an Excel entity. This function is automatically used if Meta.input = "convert".

output

function output(value: any, root = false): any

The output function converts a JS value to the corresponding Excel value (for details, see sections "Dimensionality Conversion" and "Data Type Conversion"). If root = true, then value corresponds directly to a root object, otherwise it is a property in an object. This function is automatically used if Meta.output = "convert".

initialize

async function initialize(): Promise<void>

The initialize function initializes Webcellar and makes JavaScript module exports available in Excel. Automatically called by the Webcellar taskpane.

Notes

Office Add-Ins documentation: https://learn.microsoft.com/en-us/office/dev/add-ins/

Excel Add-Ins documentation: https://learn.microsoft.com/en-us/office/dev/add-ins/excel/

Excel JS Add-In reference: https://learn.microsoft.com/en-us/javascript/api/excel?view=excel-js-preview

Webcellar files (i.e., *.xlsx.js or *.xlsx.ts) require no manual build step, even if TS annotations are used. Technically, the TS annotations are erased on the client side by way of using es-module-shims and special handling of TS files. The Webcellar TS annotation eraser is custom built, because the eraser in es-module-shims is quite large (approximately 4.6 MB) and because function argument TS annotations are nonetheless processed (see section "Function Argument Types"). Thus, there may be some TS syntax that is not correctly erased.

Data is serialized during communication between Excel and JS, which may cause issues with performance.

The name Webcellar comes from combining web technology (i.e., JavaScript) with Excel cells.

The port used by Webcellar (29640) is derived by mapping each letter in "Webcellar" to its alphabetical position (a = 1, b = 2, ...) and taking their product modulo 65535 (the maximum valid port number), which results in 29640.
