# Project-1

Deploying Java Application into Apache Tomcat and also generating SonarQube Report.

Sample Image

SonarQube Report

To Generate SonarQube-Report:

mvn sonar:sonar


Configure SonarQube sever details in pom.xml:

1-firstway(Password)

 <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
    <!-- <sonar.host.url>SonarQube Server url:Portnumber</sonar.host.url> -->
    <!--- <sonar.login>admin</sonar.login> -->
    <!--- <sonar.password>password</sonar.password> -->
 </properties>


2-Secondway(Token)

 <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
    <!-- <sonar.host.url>SonarQube Server url:Portnumber</sonar.host.url> -->
    <!--- <sonar.login>SonarQube Token</sonar.login> -->
 </properties>

To deploy into Tomcat Server:

Installation

Install Apche-Tomcat

 # TO install java:
  yum install java-11* -y
 # TO install tomcat:
 cd /opt
 wget https://dlcdn.apache.org/tomcat/tomcat-9/v9.0.71/bin/apache-tomcat-9.0.71.tar.gz
 tar -xvzf apache-tomcat-9.0.71
 mv apache-tomcat-9.0.71 tomcat
 #To start Tomcat
 cd tomcat
 cd bin
 sh startup.sh
 #To stop Tomcat
 cd tomcat
 cd bin
 sh shutdown.sh
 # To create softlink for startup.sh
 ln -s /opt/tomcat/bin/startup.sh /usr/bin/tomcatstart
 # To create softlink for shutdown.sh
 ln -s /opt/tomcat/bin/shutdown.sh /usr/bin/tomcatstop

configure users in conf/tomcat-users.xml under this #tomcat-users tag.

<tomcat-users>
<user username="tomcat" password="12345" roles="manager-gui, manager-script, manager-jmx, manager-status"/>
</tomcat-users>

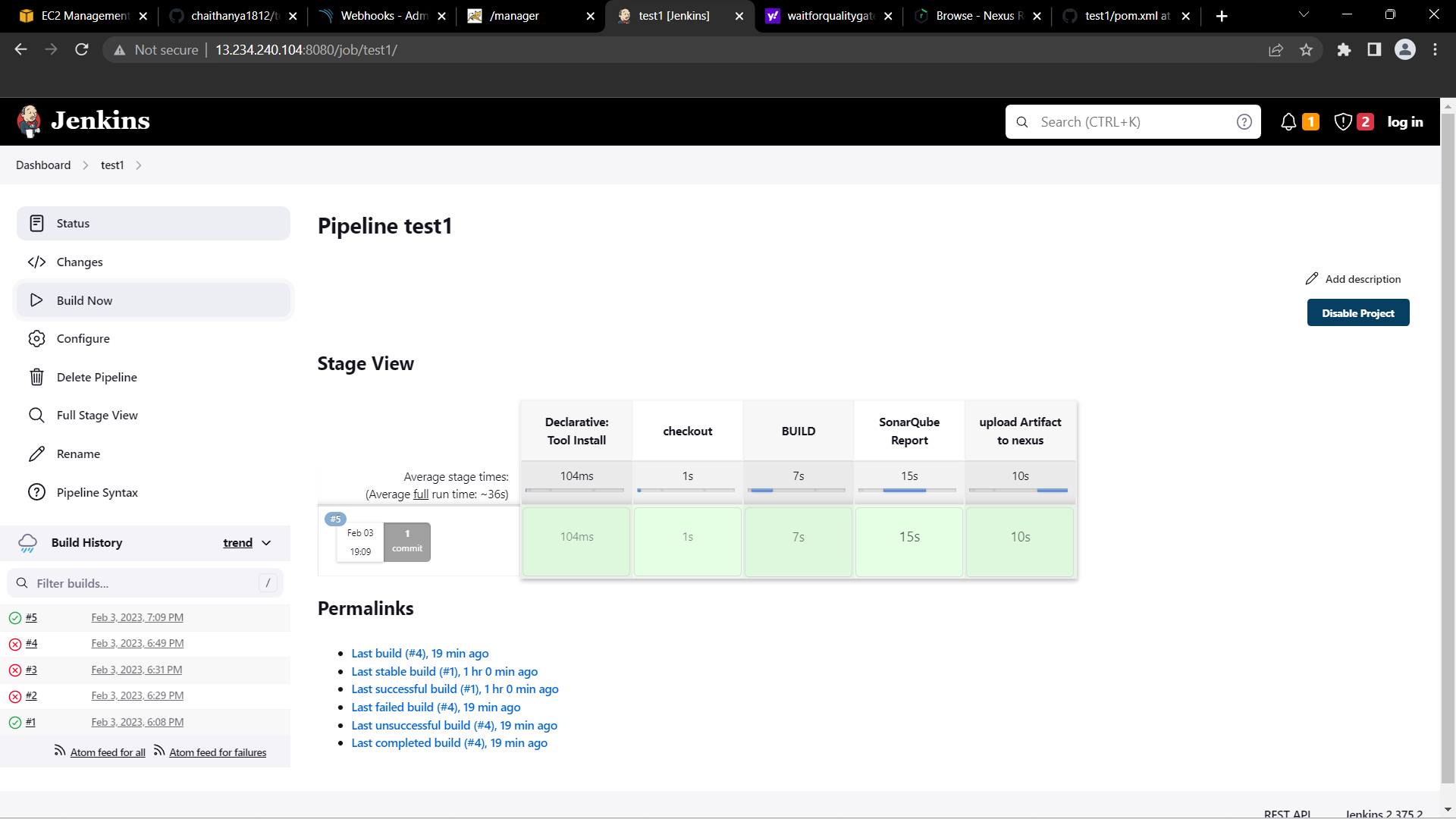

Jenkins-dashboard

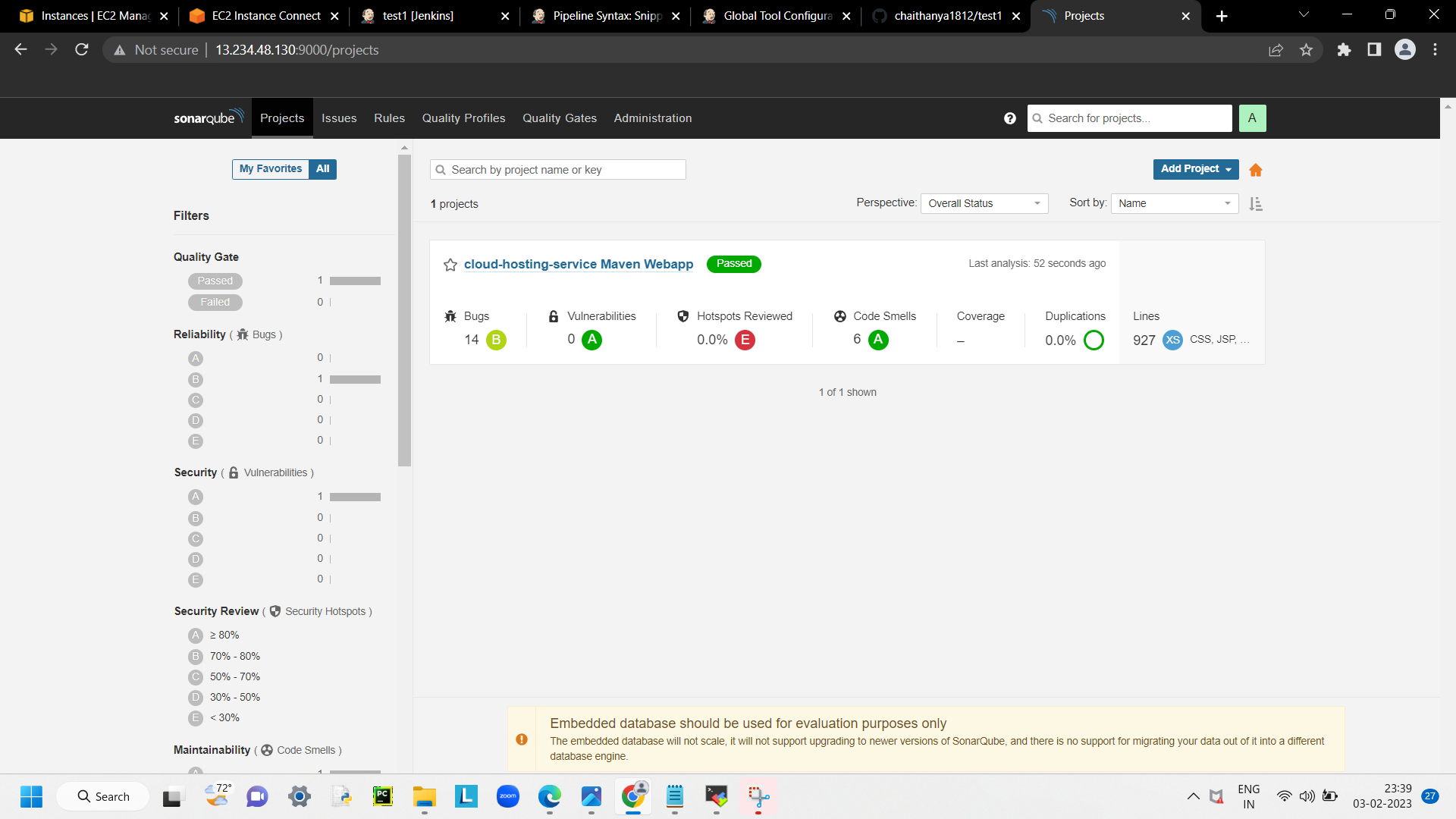

SonarQube-server

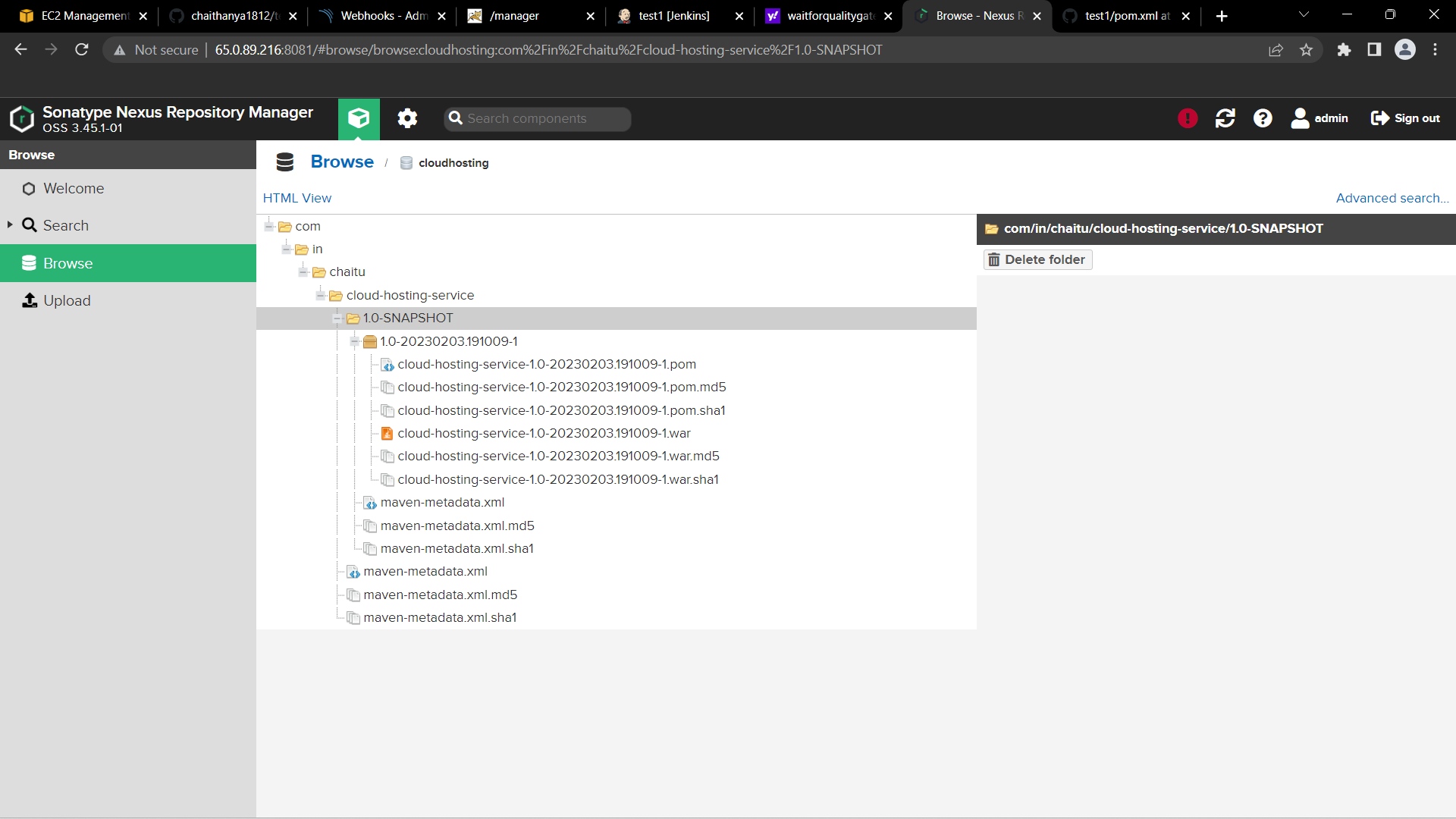

Nexus-server

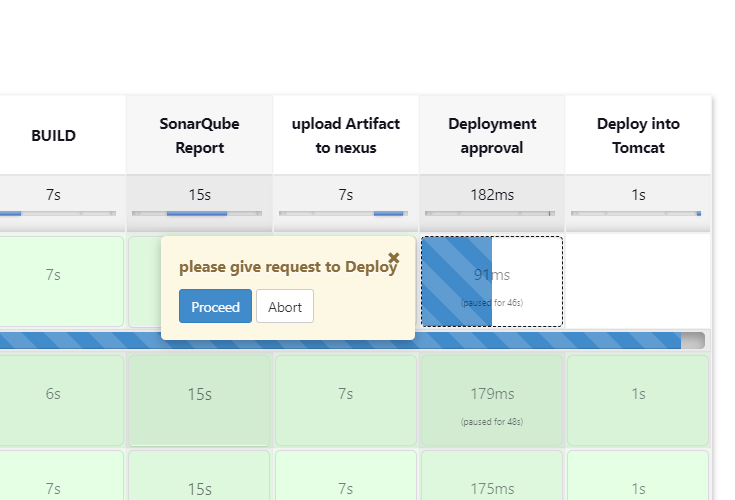

Deployment-Approval

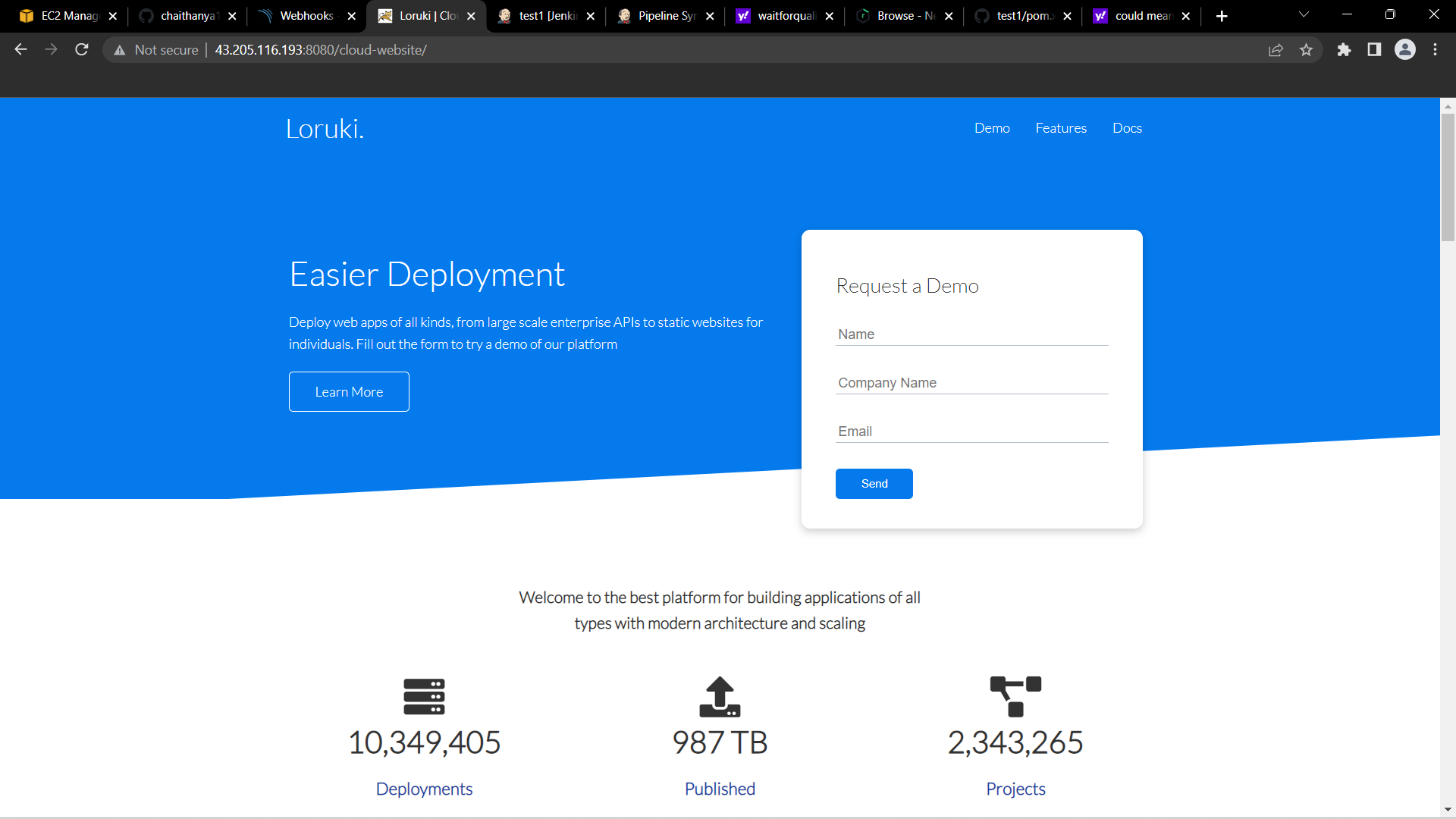

Tomcat-Deploy
