🌊 Hydro-Flow CLI

The Hydrologist's Terminal Assistant Advanced open-channel flow modeling, Monte Carlo risk analysis, and hydraulic auto-design.

(A Digital Twin of the Ona River Basin generated directly in the terminal)

🚀 Overview

Hydro-Flow CLI is an AI-augmented command-line tool designed to bring HEC-RAS caliber hydrology to the terminal.

Hydrologic modeling usually requires expensive, heavy GUI software. Hydro-Flow breaks this barrier by providing a "Headless" engineering engine that helps engineers design channels, visualize flood risks, and stress-test infrastructure using statistical simulations—all from a simple CLI.

Battle-tested on the Ona River Basin (Nigeria), it empowers engineers to perform complex geospatial and hydraulic analysis using Scipy, NumPy, and Docker.

---

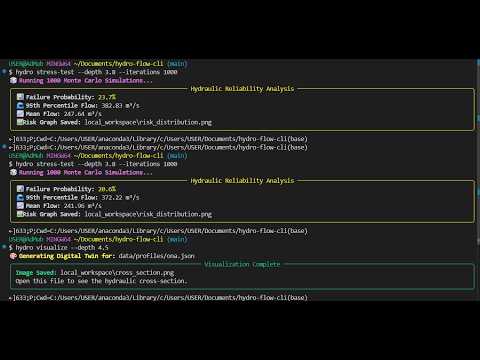

📺 Demo Video

Watch how Hydro-Flow solves complex inverse hydraulic problems with GitHub Copilot CLI.

---

✨ Key Features & Engineering Logic

1. 🤖 Auto-Design (The Inverse Solver)

The Problem: Usually, engineers guess channel dimensions until they find one that works (Trial & Error).

The Solution: Hydro-Flow solves the Inverse Hydraulic Problem using Scipy Optimization (Newton-Raphson Method). It calculates the exact minimum channel width required to handle a target flood while minimizing excavation costs.

hydro design --target-q 500 --max-depth 5.0

# Output:
# ✅ OPTIMAL DESIGN FOUND
# Recommended Width: 8.79 m
# Excavation Volume: 118.97 m²/unit

🎲 Monte Carlo Stress Testing (Stochastic Analysis)

The Problem: Standard calculators assume perfect conditions. They fail to account for real-world variability.

The Solution: Hydro-Flow runs 1,000 parallel simulations with randomized variables (Roughness $n \pm 10%$, Flash Flood Surge $y \pm 20%$) to generate a Probability Density Function of failure.

hydro stress-test --depth 3.8 --iterations 1000
# Output:
# 📊 Failure Probability: 24.5%
# 🖼️ Risk Graph Saved: local_workspace/risk_distribution.png

🎨 Visual Digital Twin

The Solution: Instantly generates professional hydraulic cross-sections (.png) showing water levels against channel banks using procedural Matplotlib plotting.

hydro visualize --depth 4.5
# Output: Image Saved: local_workspace/cross_section.png

🌉 Bridge Scour Analysis

The Solution: Calculates the Backwater Effect (Afflux) caused by bridge constrictions using Bernoulli's Energy Principle, predicting upstream flooding caused by infrastructure.

---

hydro bridge-check --contraction 0.7
# Rise in Water Level: +1.11 m

🤖 The AI Co-Engineer Experience

Built for the GitHub Copilot CLI Challenge, this project pushes the boundaries of what's possible in a BASH environment. I used Copilot as a Domain Expert and DevOps Engineer:

1. Solving Inverse Problems: I asked Copilot to help me map engineering constraints (Max Depth) into a Python cost function that scipy.optimize.minimize_scalar could understand.

2. Containerization Hurdles: When Dockerizing the application, I hit a critical ModuleNotFoundError due to Python path resolution. Copilot CLI helped me debug the PYTHONPATH environment variables and structure the __init__.py files to make the tool truly portable.

3. Visual Engineering: Copilot generated the complex coordinate geometry logic required to plot the trapezoidal banks and water surface fills in Matplotlib.

---

🛠️ Installation

Option A: Docker (Recommended for Production)

Hydro-Flow is fully containerized. You don't need to install heavy libraries manually.

# Build the image
docker build -t hydro-flow .

# Run the Auto-Designer inside Docker
docker run --rm hydro-flow design --target-q 300 --max-depth 4.0

Option B: Local Installation

# Clone the repository
git clone [https://github.com/AdMub/hydro-flow-cli.git](https://github.com/AdMub/hydro-flow-cli.git)
cd hydro-flow-cli

# Install dependencies
pip install -e .

---

⚡ Usage Cheat Sheet

Command	Description
hydro wizard	Create a new Basin Profile interactively.
hydro visualize	Generate a Cross-Section Image (PNG).
hydro design	Calculate optimal channel dimensions (Inverse Solver).
hydro stress-test	Run Monte Carlo Risk Analysis.
hydro bridge-check	Calculate Afflux (Backwater Effect).
hydro scan-dem	Sample elevation from Satellite Data (TIFF).
hydro test-suite	Run automated Unit Tests.

📂 Project Structure

hydro-flow-cli/
├── hydro/
│   ├── simulation/    # Monte Carlo & Scipy Optimization Engines
│   ├── visualization/ # Matplotlib Plotter
│   ├── hazard/        # AI Engineering Advisor
│   └── cli.py         # Typer Application
├── tests/             # Automated Unit Tests
├── Dockerfile         # Production Container
└── requirements.txt   # Dependencies

---

Built with Python, Typer, Rich, Scipy, Matplotlib, and GitHub Copilot.

👨‍💻 Author

Mubarak Adisa

• 🎓 Civil Engineering + Computer Science (Data Science & AI Focus)
• 🔗 GitHub: AdMub
• 💼 LinkedIn: Mubarak Adisa

📄 License

Distributed under the MIT License. See LICENSE for more information.

🌟 Acknowledgements

• Built for the GitHub Copilot CLI Challenge 2026.
• Powered by GitHub Copilot, Typer, Rich, Scipy, and Matplotlib.
• Special thanks to the open-source Python hydrology community.
