Worked end-to-end example — emitting `TricornCalculator.cs`

Walk through the full pipeline from prose math to a checked-in generated calculator. Tricorn is the right tutorial because the math is small (one operator change) but it exercises every emitter path (the conjugate operator changes the Jacobian sign and breaks the perturbation derivation if you do it naively).

Step 1 — the math

The Tricorn (Mandelbar) fixed-point iteration is

$$ z_{n+1} = \overline{z_n}^{,2} + c $$

In component form (z = a + bi):

$$ \begin{aligned} a_{n+1} &= a_n^2 - b_n^2 + c_x \\ b_{n+1} &= -2,a_n,b_n + c_y \end{aligned} $$

Note the sign flip on b_{n+1} versus standard Mandelbrot. This is what makes the perturbation derivation non-trivial — the partial derivatives change sign:

$$ \frac{\partial f}{\partial z} = 2\overline{z}, \qquad \frac{\partial f}{\partial c} = 1 $$

Substituting into the perturbation template

$$ \delta_{n+1} = 2\overline{Z_n},\overline{\delta_n} + \overline{\delta_n}^{,2} + d $$

— note the conjugation propagates through the δ-update. The Differentiator pass picks this up because it walks the AST symbolically.

Step 2 — invoke the CLI

dotnet run --project CalculatorGen -- `
    --name        Tricorn `
    --equation    "Complex.Conjugate(z) * Complex.Conjugate(z) + c" `
    --bailout     4.0 `
    --out         Calculators/Generated/TricornCalculator.cs `
    --selftest

Flag	Meaning
`--name`	Class name. Generator writes `TricornCalculator : IFractalCalculator`.
`--equation`	Raw expression in CalcGen DSL. The parser auto-converts `Complex.Conjugate(z)`.
`--bailout`	Squared bailout radius. `4.0` ⇒ `
`--out`	Target file path. Overwritten on each run.
`--selftest`	Emit `TricornCalculatorSelfTest.cs` (validator: scalar vs SIMD vs perturbation).

Step 3 — what comes out

The emitter produces ~1 200 lines split across five #region blocks:

// Auto-generated by CalculatorGen 0.3. Do not edit by hand.
// Regenerate with the command at the file footer.
public sealed class TricornCalculator : IFractalCalculator
{
    #region Scalar (reference)
    private static int CalcScalar(double cr, double ci, int maxIter, double bailoutSq)
    {
        double zr = 0, zi = 0;
        for (int n = 0; n < maxIter; n++)
        {
            double zrSq = zr * zr;
            double ziSq = zi * zi;
            if (zrSq + ziSq > bailoutSq) return n;
            double nzr =  zrSq - ziSq + cr;
            double nzi = -2.0 * zr * zi + ci;   //   ← sign flip from Mandelbrot
            zr = nzr; zi = nzi;
        }
        return maxIter;
    }
    #endregion

    #region AVX2 (Vector256<double> × 4 pixels)
    private static unsafe void CalcAvx2(Span<double> cr, Span<double> ci, /* … */)
    {
        // … 4-pixel vectorised lane with the same sign flip … //
    }
    #endregion

    #region Perturbation (reference orbit + δ-update)
    private static int CalcPerturbation(double dr, double di, /* … */)
    {
        // δ-update: δ_{n+1} = 2·conj(Z_n)·conj(δ_n) + conj(δ_n)² + d
        // Differentiator-emitted; conjugation propagates through the δ-step.
    }
    #endregion

    #region BLA (auto-fall-back to perturbation)
    private static int CalcBla(/* … */) { /* … */ }
    #endregion

    #region ILGPU GPU kernel
    private static void GpuKernel(Index1D idx, /* … */)
    {
        // Device kernel — same recurrence, packed as (zr, zi) pairs.
    }
    #endregion
}

Step 4 — run the self-test

dotnet run --project CalculatorGen -- --selftest-run Calculators/Generated/TricornCalculatorSelfTest.cs

Expected output:

Tricorn self-test
  Grid: 64 × 64    iter cap: 1024    bailout²: 4
  scalar         vs AVX2          : 0 mismatches
  scalar         vs perturbation  : 0 mismatches
  scalar         vs BLA           : 0 mismatches
  scalar         vs ILGPU (CUDA)  : 0 mismatches
  Total drift   : 0
  Verdict       : pass

Step 5 — register in the FractalType enum

Open Abstractions/Models/FractalType.cs and add an entry above the // — Registered — divider:

public enum FractalType
{
    // …
    Tricorn,
    // …
}

…then wire the enum case in Hosting/CalculatorRegistry.cs:

case FractalType.Tricorn:
    return new TricornCalculator();

Rebuild. The new entry appears in the toolbar Type dropdown.

Step 6 — verify visually

Pick Tricorn in the dropdown, hit R to reset. The view should jump to the three-cornered "Mandelbar" with cusps along the three lobes meeting at the origin. Compare side-by-side with the canonical image in Wikipedia → Tricorn (mathematics).

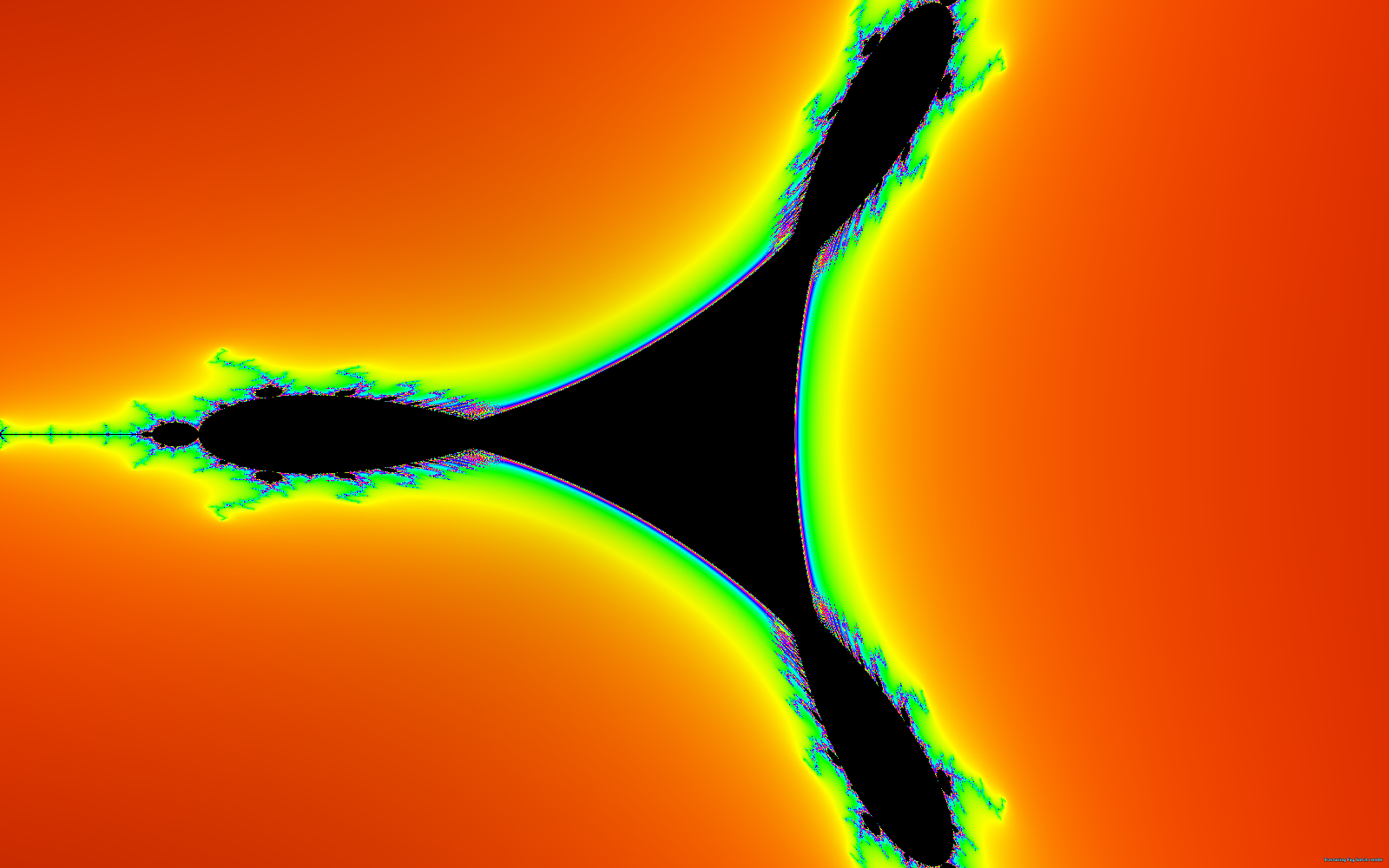

Hand-tuned `TricornCalculator` — `conj(z)² + c`.	CalcGen-emitted `GeneratedTricorn` — same iteration AST, scalar path.

Both renders use HSV at the home view (1600 × 1000). The two outputs are visually indistinguishable — the equivalence is exactly what the test suite asserts.

Tip

The same pipeline produces correct Multibrot (z^d + c), Burning Ship ((|a| + i|b|)² + c), Phoenix (with the second-order term left out, since the AST currently lacks two-step memory), and arbitrary polynomial Julia (with z₀ = c instead of 0). The δ-update derivation falls out of the same ∂f/∂z and ∂f/∂c walks — the writer never has to hand-derive it.

CalculatorGen is a small console tool that turns a user-supplied fractal equation into a drop-in IFractalCalculator class file. The goal: stop hand-writing one C# file per fractal type. Once the generator ships, "promote this sandbox equation to a real calculator" is a CLI invocation, not an LLM session.

The current generator (v0.3) emits a single C# file containing five fully-validated execution paths for every input equation:

Tier	Path	Bound by
1	Scalar	Reference path; `double`
2	AVX2 + FMA	Four pixels per lane; `Vector256<double>`
4	Perturbation	Reference orbit + symbolic δ-update; deep-zoom safe
5	BLA	Per-iter linear approx; auto-falls-back to Tier 4
6	ILGPU GPU	Auto-dispatched device kernel; CPU colour post-pass

A --selftest flag emits a sibling validator that compares all five paths on a fixed 64×64 grid and reports per-path drift. Verified 0 mismatches for z² + c and z³ + c.

A sixth "Tier 0" optimisation (imag-zero ComplexExpr flag) cuts roughly 30 % of the AVX2 prelude by skipping dead Vector256<double>.Zero adds when subexpressions are provably real-valued (constants, real-only arithmetic chains).

This document covers all the above plus the new FractalType .GeneratedMandelbrotZ2 dropdown entry that surfaces the generated calculator in the Avalonia toolbar alongside the hand-tuned MandelbrotCalculator.

Developers extending the generator itself — adding new operators, new emitters, new precision tiers, new GPU backends — should read CalculatorGen-Architecture.md for the internals: the AST pipeline, emitter contracts, template substitution, the deep-zoom path order (perturbation / glitch detection / HP-direct fallback), status labels, and debugging tips. This file is for authors invoking the existing CLI; the architecture file is for modifiers of CalculatorGen itself.

Quick start

From the repo root:

dotnet build CalculatorGen\CalculatorGen.csproj -c Release
dotnet run --project CalculatorGen -c Release -- `
    --equation "z*z + c" `
    --name MandelbrotZ2 `
    --out Calculators\Generated `
    --selftest

This writes:

Calculators\Generated\MandelbrotZ2Calculator.cs
Calculators\Generated\MandelbrotZ2CalculatorSelfTest.cs

Rebuild the main project; the generated class is picked up by the existing Calculators\Generated\** glob.

Verify the five paths agree:

.\bin\x64\Release\net10.0-windows\FracturingFog.exe --gentest MandelbrotZ2
Get-Content .\bin\x64\Release\net10.0-windows\gentest.out

Expected:

MandelbrotZ2CalculatorSelfTest — scalar ↔ AVX2 ↔ GPU agreement
  grid:           64×64 = 4096 pixels
  max iterations: 256
  mismatches:     0 (0.00%)
  mean |Δit|:     0.0000
  max  |Δit|:     0  (tolerance: 1)
  gpu in-set:     cpu=523  gpu=523  diff=0  → PASS
  perturbation:   cpu=523  pt=523  diff=0  → PASS
  bla:            cpu=523  bla=523  diff=0  → PASS
  qd ref orbit:   in-set=523  out=3573  → PASS
  result:         PASS

The self-test runs at Zoom = 1, so it does NOT exercise the deep-zoom paths (DD/QD per-pixel HP-direct, per-pixel glitch detection). To validate those, run the app and zoom past 1e12 — the status bar shows the active path (PT, QD-PT, DD-HP, QD-HP). See CalculatorGen-Architecture.md §6 for the full label scheme.

Select the generated calc in the Avalonia toolbar: Type → "Mandelbrot Z² (Generated)".

Equation grammar

Construct	Example	Notes
Variable z	`z`	The iterating complex value
Variable c	`c`	Pixel coordinate (complex)
Real literal	`2`, `0.5`, `1e-3`	Treated as `(n, 0)` complex
Addition	`z + c`	Complex
Subtraction	`z - c`	Complex
Multiplication	`z * z`, `2 * c`	Complex
Integer power	`z^2`, `z^3`, `c^2`	Exponent must be 0..16
Parentheses	`(z + c) * (z - c)`	Standard precedence
Unary minus	`-z`, `-(z*z + c)`	Complex negation

Not yet supported (use Sandbox or hand-write):

Division (/)
Transcendentals (sin, cos, exp, log, …)
Absolute-value folds (|z.real| → Burning Ship)
Conditional branches
Magnitude / argument decomposition

The polynomial restriction lets the symbolic differentiator and perturbation expansion stay closed-form one-liners with no CAS dependency.

What the generator emits

One .cs file per equation containing:

Class declaration — sealed, implements IFractalCalculator and IDisposable. Holds GPU accelerator handles released on dispose.
Header comment — original equation, auto-derived ∂p/∂z, ∂p/∂c, the dz/dc per-iteration update, and the symbolic δ-expansion p(Z+δ, C+ε) − p(Z, C) used by the perturbation path.
Calculate driver — picks the active path in this order:
1. GPU if UseGpu = true and ILGPU init succeeds.
2. Perturbation if UsePerturbation = true and Zoom ≥ PerturbZoomThreshold. BLA layers on top via UseBla = true.
3. AVX2 + scalar tail (default).
IteratePixelScalar — reference implementation, one pixel, double arithmetic. Emits both the z_{n+1} body and the dz_{n+1}/dc body each iteration.
IteratePixelScalarRaw — iteration-count-only variant (no colour writeback). Used by the self-test.
IterateLaneAvx2 — Vector256<double> over four pixels per lane. Complex multiply via Fma.MultiplyAdd / MultiplyAddNegated. Per-lane bailout via BlendVariable so escaped lanes freeze.
IterateLaneAvx2Raw — iteration-count-only AVX2 variant for the self-test.
Kernel — ILGPU device kernel; one work item per pixel. Uses the same scalar arithmetic body as path 4 (ILGPU accepts the double ops directly).
TryRenderGpu — lazy Context + Accelerator + kernel load, allocates an ArrayView<RawPixel>, dispatches the kernel, reads back, runs the CPU colour post-pass in Parallel.For so the full IColorMap (incl. distance-estimate / normal themes) is honoured.
TryRenderPerturbation — reference orbit at view centre (plain double precision); per-pixel δ-iteration loop using the symbolic Taylor expansion. Auto-aborts and returns false when the reference orbit itself escapes (which means the centre is outside the set).
BLA inner branch — when UseBla = true, computes per-iter A_n = ∂p/∂z(Z_n, C) and B_n = ∂p/∂c(Z_n, C) arrays during reference-orbit construction. In the per-pixel loop, attempts the linear step δ_{n+1} = A·δ + B·ε first; falls back to the full polynomial expansion when |δ| ≥ BlaRelative · |Z_n|.
ColorFor — surface-normal + distance-estimate computation feeding the 9-argument IColorMap.Map overload. Themes that ignore normals/DE inherit the 3-arg fallback through the default interface implementations.

Reading the generated code

Take z*z + c. The scalar inner update (post imag-zero opt):

double dr_new = (((zr + zr) * dr - (zi + zi) * di) + 1.0);
double di_new =  ((zr + zr) * di + (zi + zi) * dr);
double zr_new = ((zr * zr - zi * zi) + cr);
double zi_new = ((zr * zi + zi * zr) + ci);

dr_new/di_new are the symbolic dz/dc update (z + z)·D + 1 (which equals 2z·D + 1 = ∂p/∂z·D + ∂p/∂c for p = z² + c).

The AVX2 path is the same identity in Vector256<double> lanes, emitted as SSA-style temps (the JIT folds redundant copies):

Vector256<double> d_re1 = Avx.Add(zr, zr);
Vector256<double> d_im2 = Avx.Add(zi, zi);
Vector256<double> d_re3 = Fma.MultiplyAddNegated(d_im2, di, Avx.Multiply(d_re1, dr));
Vector256<double> d_im4 = Fma.MultiplyAdd(d_re1, di, Avx.Multiply(d_im2, dr));
Vector256<double> d_re5 = Vector256.Create(1.0);
Vector256<double> d_re6 = Avx.Add(d_re3, d_re5);
Vector256<double> dr_new = d_re6;
Vector256<double> di_new = d_im4;

Fma.MultiplyAddNegated(b, d, a*c) = −(b·d) + a·c = real part of (a+bi)(c+di). Note d_re5 = Create(1.0) binds only Re (no Im temp); the imag-zero optimisation recognises the + 1.0 literal as provably real-valued and elides the dead zero-vector add that earlier generator revisions emitted.

The perturbation comment line shows the symbolic δ-update produced from p(Z+δ, C+ε) − p(Z, C):

//     δ_{n+1}  =  ε + (z + z)*δ + δ*δ

i.e. ε + 2Zδ + δ² (exact, not a Taylor truncation — for polynomials the expansion terminates at the polynomial's total degree).

For z³ + c:

//     δ_{n+1}  =  ε + ((z + z)*z + z*z)*δ + 0.5*(2*z + z + z + z + z)*δ*δ + δ*δ*δ

i.e. ε + 3Z²δ + 3Zδ² + δ³. (The unsimplified coefficients are artefacts of how the multinomial-from-Taylor expansion is built; emitting collected-form polynomials is on the cleanup list but the JIT folds them either way.)

Architecture

CalculatorGen/
├── Parser/
│   ├── AstNodes.cs           — ZRef, CRef, DRef, DeltaRef, EpsRef,
│   │                            RealConst, Neg, Add/Sub/Mul, Pow
│   ├── EquationLexer.cs      — string  → List<Token>
│   ├── EquationParser.cs     — List<Token> → AstNode (recursive descent)
│   ├── AstSimplifier.cs      — peephole: 0+x, 1*x, x^0/^1, const folding
│   ├── AstDifferentiator.cs  — symbolic ∂/∂z, ∂/∂c, dz/dc update builder
│   ├── AstSubstitute.cs      — z → expr, c → expr (used by perturbation)
│   ├── AstExpander.cs        — distributive expansion (reserved)
│   ├── AstPerturbation.cs    — Taylor-series builder for p(Z+δ, C+ε) − p(Z, C)
│   └── AstPrinter.cs         — AST → source string (for header comment)
├── Emitters/
│   ├── EmitterCommon.cs       — abstract EmitterBase; ComplexExpr w/ ImZero
│   ├── ScalarEmitter.cs       — emits double expressions
│   ├── Avx2Emitter.cs         — emits Vector256<double> w/ FMA, SSA temps
│   └── PerturbationEmitter.cs — emits scalar code w/ Z/C/δ/ε bindings
├── Templates/
│   ├── Calculator.template.cs — IFractalCalculator skeleton. Placeholders:
│   │                              {{CLASS_NAME}}, {{EQUATION_SOURCE}},
│   │                              {{DPDZ_TEXT}}, {{DPDC_TEXT}},
│   │                              {{DERIV_TEXT}}, {{TIMESTAMP}},
│   │                              {{SCALAR_Z_BODY}}, {{SCALAR_D_BODY}},
│   │                              {{AVX2_Z_BODY}},   {{AVX2_D_BODY}},
│   │                              {{PERTURB_DELTA_BODY}}, {{PERTURB_DELTA_TEXT}},
│   │                              {{BLA_A_BODY}},    {{BLA_B_BODY}}
│   └── SelfTest.template.cs   — scalar↔AVX2↔GPU↔perturb↔BLA grid validator
└── Program.cs                  — CLI; parses, diffs, simplifies, emits,
                                  writes file(s)

Both arithmetic emitters subclass EmitterBase, which provides the AST walker and per-primitive virtual hooks (Const, OpAdd, OpSub, OpMul, OpNeg). The PerturbationEmitter is a third subclass with different variable bindings (Zr/Zi for reference orbit, dr/di for δ, er/ei for ε). To add a new target (e.g. AVX-512), add an emitter subclass and override those five primitives + provide an EmitBody entry point.

Imag-zero optimisation (Tier 0)

ComplexExpr carries an ImZero boolean. Const(double) sets it true; ZRef/CRef/DRef/DeltaRef/EpsRef set it false (those values are arbitrary complex at runtime). Add / Sub / Mul / Neg propagate:

Op	a.ImZero	b.ImZero	Result
Add	true	true	(a.Re + b.Re, 0, ImZero=true)
Add	true	false	(a.Re + b.Re, b.Im, ImZero=false)
Add	false	true	(a.Re + b.Re, a.Im, ImZero=false)
Add	false	false	(a.Re + b.Re, a.Im + b.Im, false)
Mul	true	true	(a.Re · b.Re, 0, ImZero=true)
Mul	true	false	(a.Re · b.Re, a.Re · b.Im, false)
Mul	false	true	(a.Re · b.Re, a.Im · b.Re, false)
Mul	false	false	full complex multiply (4 muls / 2 adds)

This collapses (2 · zr - 0 · zi, 2 · zi + 0 · zr) → (2 · zr, 2 · zi) and saves the dead Vector256<double>.Zero SSA binds in the AVX2 prelude. Empirically: ~30 % shorter prelude on a derivative-tracking calculator (cuts ~5 SSA temps per iteration on z² + c).

Symbolic differentiation (Tier 1 / Phase B)

AstDifferentiator.Diff(node, Var) implements:

ZRef → 1 if Var = Z, else 0
CRef → 1 if Var = C, else 0
DRef/DeltaRef/EpsRef → 0 (opaque)
Constants → 0
Sum rule, product rule, chain rule on Pow: (u^n)' = n · u^(n-1) · u'

Plus BuildDerivativeUpdate(stepFn) which builds dz_{n+1}/dc = (∂p/∂z) · D + (∂p/∂c) where D = DRef is the symbolic placeholder for the current dz/dc value. The emitter binds DRef to (dr, di) registers at runtime; the result feeds the 9-arg IColorMap.Map for Inigo Quilez normals (z · conj(dz/dc), normalised) and Milnor/Hubbard distance estimate (½ · |z| · log|z| / |dz/dc|).

Perturbation expansion (Tier 4)

AstPerturbation.BuildDeltaUpdate(stepFn) produces the symbolic δ-update via Taylor series:

δ_{n+1}  =  p(Z + δ, C + ε)  −  p(Z, C)

         =  Σ_{k+m≥1}  (1 / k! m!) · (∂^{k+m} p / ∂z^k ∂c^m)|_{Z,C} · δ^k · ε^m

The expansion terminates at total polynomial degree (≤ 32 in the current grammar), so this is exact — no Taylor truncation error. Implementation iterates (k, m) pairs, differentiating the step function k times w.r.t. z and m times w.r.t. c, simplifying after each derivative (otherwise the intermediate tree grows exponentially in the unsimplified form and the run hangs). Constant-zero partials short-circuit the term.

The emitter (PerturbationEmitter) walks the resulting AST with bindings:

AST node	Variable
`ZRef`	`Zr, Zi` — reference orbit iterate at step n
`CRef`	`Cr, Ci` — view centre coordinate
`DeltaRef`	`dr, di` — per-pixel δ
`EpsRef`	`er, ei` — per-pixel ε = c - C

The runtime TryRenderPerturbation:

Computes the reference orbit at the view centre using plain double-precision iteration. Bails to AVX2 path (returns false) if the reference itself escapes.
For each pixel: walks the same number of iterations, but updates δ via the symbolic expansion. Stores final (Zr+δr, Zi+δi) for colour mapping.
Falls back to the AVX2 path if the reference orbit can't be built or Zoom < PerturbZoomThreshold.

BLA (Tier 5)

Bilinear approximation: at each reference iteration n,

δ_{n+1}  ≈  A_n · δ_n  +  B_n · ε

A_n = ∂p/∂z(Z_n, C)
B_n = ∂p/∂c(Z_n, C)

Both A_n and B_n are emitted by the scalar emitter from the already-derived ∂p/∂z and ∂p/∂c ASTs (no new emitter needed). They're computed alongside the reference orbit and cached into blaAr[], blaAi[], blaBr[], blaBi[], plus a validity radius blaR[n] = BlaRelative · |Z_n| (BlaRelative defaults to 1e-3).

The pixel loop attempts the linear step first when UseBla = true; when |δ|² ≥ blaR[n]² it falls back to the full polynomial step. For z² + c the linear step is (A·δ + B·ε) = (2Z·δ + ε); the quadratic δ² term is dropped under the validity threshold.

The current implementation is iteration-filter BLA: it speeds up individual iterations when the linearisation holds, but does not yet skip ranges of iterations via composed multi-level BLA tables. A future enhancement (sketched in Future Work) builds power-of-two compositions A^{(K)}_n = ∏ A_{n+k}, B^{(K)}_n = Σ … · B_{n+k} for skip-K steps.

ILGPU (Tier 6)

The generated calculator emits a Kernel method:

private static void Kernel(Index1D idx, ArrayView<RawPixel> output, GpuParams p)
{
    int x = idx % p.Width;
    int y = idx / p.Width;
    if (y >= p.Height) return;
    double cr = p.CenterX + (x - p.Width  * 0.5) * p.Scale;
    double ci = p.CenterY + (y - p.Height * 0.5) * p.Scale;
    double zr = 0.0, zi = 0.0;
    double dr = 0.0, di = 0.0;
    int it = 0;
    int maxIt = p.MaxIter;
    for (; it < maxIt; it++)
    {
        double r2 = zr * zr + zi * zi;
        if (r2 >= p.Bailout2) break;
        // {{SCALAR_D_BODY}} and {{SCALAR_Z_BODY}} substituted here
        ...
    }
    output[idx] = new RawPixel { Iter = it, Zr = zr, Zi = zi, Dr = dr, Di = di };
}

RawPixel is a value type with int Iter; double Zr, Zi, Dr, Di; captured per pixel. The CPU post-pass reads the buffer back and runs ColorFor in Parallel.For — so the full IColorMap is active even in GPU mode (the kernel itself contains no colour code, which is what lets it stay device-compatible).

Lifecycle:

TryInitGpu lazily creates Context.Create(b => b.Default()) and picks the preferred device via GetPreferredDevice(preferCPU: false). Stores the kernel delegate.
On init failure, sets _gpuInitFailed = true and stashes the exception message in LastGpuError. Subsequent calls short-circuit to the AVX2 fallback.
Dispose() releases the accelerator and context.

The kernel is double-precision. On consumer NVIDIA cards (RTX series) that's ~1/32 the FP32 throughput, so the GPU is most useful for very high iteration counts or large output buffers where the iteration loop dominates.

Self-test (`--selftest`)

--selftest emits <Name>SelfTest.cs alongside the calculator. The test runs four cross-checks on a fixed 64×64 grid at the standard Mandelbrot view (centre −0.75, span 3.5, 256 max iterations):

Scalar ↔ AVX2 per-pixel iteration-count drift. Tolerance: maxAbsDiff ≤ 1 (one ULP shift in the bailout-radius compare).
GPU smoke: render full grid with UseGpu = true, count in-set pixels (those that hit MaxIterations), compare to the scalar count. Tolerance ≤ 4 boundary pixels. Init failure → SKIP (not a hard failure).
Perturbation smoke: same comparison with UsePerturbation = true, PerturbZoomThreshold = 0. Tolerance ≤ 4.
BLA smoke: UseBla = true on top of perturbation. Tolerance ≤ 8 (BLA may admit a few extra boundary pixels under linear approximation).

Hook into the main Program.cs so FracturingFog.exe --gentest MandelbrotZ2 runs it. Because the binary is a WinExe, output is also mirrored to gentest.out next to the exe so a redirected shell can read it.

Toolbar wiring

The generated calculator is exposed via FractalType .GeneratedMandelbrotZ2. Wiring touchpoints (all already in place for the MandelbrotZ2 demo, repeat the pattern for further calcs):

File	Hook
`Abstractions/Models/Enums.cs`	New `FractalType` enum value
`Abstractions/ViewState/FractalViewState.cs`	Default centre/zoom in `SnapToFractalDefault`
`Rendering/FractalRenderHost.cs`	Field + ctor + colour map setter + Resize + `SelectAltCalculator` dispatch
`UI.Avalonia/ViewModels/MainViewModel.cs`	Entry in `BuiltInFractalLabels`

The Avalonia dropdown shows the entry as "Mandelbrot Z² (Generated)". The Server allowlist (Server/Guard/FractalTypeAllowlist.cs) blocks only user-authored types (UserEquation / Sandbox / UserBulb); generated calcs are compiled into the binary and therefore safe to expose over the network — no allowlist change needed.

Extending the generator

Add an arithmetic target (e.g. AVX-512)

Add Emitters/Avx512Emitter.cs mirroring Avx2Emitter.cs but with Vector512<double>, Avx512F.Add, Avx512F.Multiply, Avx512F.FusedMultiplyAdd. Eight pixels per lane.
Add {{AVX512_BODY}} placeholder in Calculator.template.cs and update the template to dispatch when Avx512F.IsSupported.
Wire it through Program.cs (one extra .Replace call).
Add an AVX-512 leg to the self-test template.

Add an operator (e.g. abs-fold for Burning Ship)

Add Abs(AstNode Operand) to AstNodes.cs.
Teach EquationLexer.cs to emit | tokens (or a abs(...) call form).
Add OpAbs virtual to EmitterBase; override in scalar (Math.Abs) and AVX2 (Avx.AndNot(signMask, vec) with signMask = Vector256.Create(-0.0)).
Update AstDifferentiator (Abs is not analytically differentiable along the axis — return Sign(x) by convention, document the cusp).
Update AstPerturbation — Abs makes the iteration anti-holomorphic, so the Taylor expansion picks up axis-discontinuity terms. Burning Ship perturbation typically uses signed components rather than straight Abs to preserve the polynomial chain.

Add a calculator-discovery hook

For multiple generated calcs, replace the per-calc enum value pattern with a registry:

Add a single FractalType.Generated enum value.
Add a GeneratedCalculatorRegistry.Register(name, factory) static class. The generator emits a [ModuleInitializer]-decorated method into each calc file that self-registers on assembly load.
FractalTypeEntry carries the registered name when the entry is Generated. FractalRenderHost.SelectAltCalculator resolves via the registry.

This is sketched but not implemented — the current demo wires GeneratedMandelbrotZ2 directly because it's the only generated calc shipped.

Trade-offs and caveats

Polynomial subset is small but powerful. Covers Mandelbrot z², all Multibrot powers (z^n), Mandelbar via a Conj node (not yet wired), and any polynomial perturbation thereof.
No ^ on subexpressions. (z+c)^2 requires expanding manually to (z+c) * (z+c) in your equation, by design. Keeps the differentiator's life easy.
FMA rounding ≠ separate-mul-add rounding. Scalar and AVX2 outputs may differ by 1 ULP at the per-iteration level, producing ≤1 iteration count divergence near boundary pixels. This is the same trade-off MandelbrotCalculator.cs already makes; documented in the self-test tolerance.
Perturbation expansion is unsimplified. The Taylor builder produces e.g. 0.5*(2*z + z + z + z + z)*δ*δ for the ½·∂²p/∂z²·δ² term of z³+c instead of 3z·δ². The JIT folds these but the source is noisier than necessary. Adding term- collection to the simplifier is a future cleanup.
BLA is iteration-filter only. No multi-level skip table yet — the linear step doesn't yet skip iterations, only avoids the polynomial expansion within a single iter. The composition algebra is sketched in Future Work below.
GPU is double-precision. Best for high-iter / large-buffer renders where the iteration loop dominates. Consumer NVIDIA cards (RTX) run double at ~1/32 of single-precision throughput; data- centre cards (A100/H100) run at full speed.
CPU colour pass on GPU path. Trade-off: keeps the GPU kernel device-portable (no IColorMap virtual call on device) at the cost of a 36 MB readback for a 1080p render. Acceptable on PCIe Gen3+.
One accelerator per generated calc. If you ship several generated calcs each instantiates its own Context / Accelerator. A shared static pool is a future refactor.

Future work

Multi-level BLA composition. Build A^{(K)}_n, B^{(K)}_n for K = 2, 4, 8, … log2(maxIt). Validity radius shrinks with K. Per-pixel: walk the largest level whose radius covers the current δ. Real Yang-style skip BLA — expected 10-100× speedup for deep zooms.
Series Approximation (SA). Symbolic Taylor expansion of δ as a power series in ε, truncated to order 8-16. The AST already lets us extract the per-order coefficients; the runtime caches them per skip block and applies the series for any pixel whose ε falls in the validity disk.
Double-double SIMD path. Vector256<double> lanes that hold hi+lo of a DD number; complex multiply becomes DD-multiply + DD- add chains (~40 flops per lane per iter). Unlocks zoom past 1e15 without perturbation.
Burning Ship / Tricorn via Abs and Conj. Add the AST nodes
- emitter hooks; the perturbation expansion needs an extension rule for the anti-holomorphic case.
Registry-driven UI. Drop the per-calc enum values in favour of a single FractalType.Generated + name-based registry as sketched above.

Reference reading

Inigo Quilez — Rendering the Mandelbrot Set https://iquilezles.org/articles/mandelbrot/ (Normal-vector + distance-estimator formulas used by the template's ColorFor helper.)
Claude Heiland-Allen — Perturbation and BLA for the Mandelbrot set. The polynomial-AST approach for Tier 4/5 follows his derivation.
Zhuoran Yang — Multi-level BLA tables. The composition algebra that the iteration-skip future-work entry references.
ILGPU documentation — Context.Create, Accelerator, AutoGroupedStreamKernel, the JIT path used by the GPU emitter.

CalculatorGen Authoring

CalculatorGen — Authoring guide

Worked end-to-end example — emitting TricornCalculator.cs

Step 1 — the math

Step 2 — invoke the CLI

Step 3 — what comes out

Step 4 — run the self-test

Step 5 — register in the FractalType enum

Step 6 — verify visually

Quick start

Equation grammar

What the generator emits

Reading the generated code

Architecture

Imag-zero optimisation (Tier 0)

Symbolic differentiation (Tier 1 / Phase B)

Perturbation expansion (Tier 4)

BLA (Tier 5)

ILGPU (Tier 6)

Self-test (--selftest)

Toolbar wiring

Extending the generator

Add an arithmetic target (e.g. AVX-512)

Add an operator (e.g. abs-fold for Burning Ship)

Add a calculator-discovery hook

Trade-offs and caveats

Future work

Reference reading

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Worked end-to-end example — emitting `TricornCalculator.cs`

Self-test (`--selftest`)
