The project is about employees in a few companies and their statuses in them. The users can do CRUD operations on the employees and the admins can view the the pie chart of all employees distributed by companies.
Default users for the application: (username: password)
- user: user
- admin: admin
The application gives the possibility to login, register functionality. To use the application the user needs to log in first. All forms have validation and notifications for errors or successful event.
Registration page
Login page
In the application there are two roles: user and admin. The user role can view the list with employees. Perform a create, edit and delete functionality. Also, can search by name for employees.

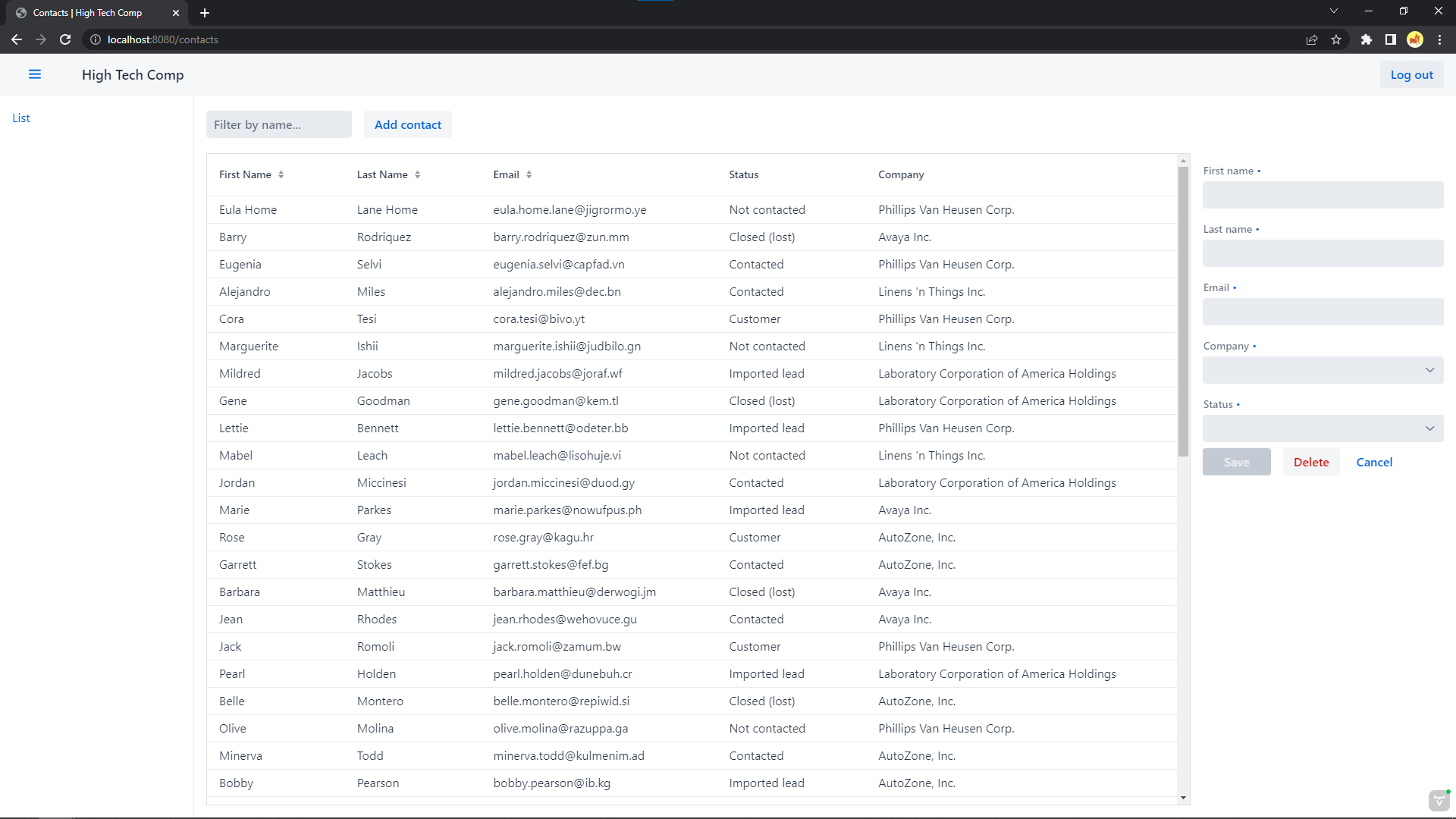

Contact page with all employees
Contact page with "he" as search parameter
Side bar with fields for adding contact
When you click on someone on the list he is populated in the sidebar form where you can edit the information about him

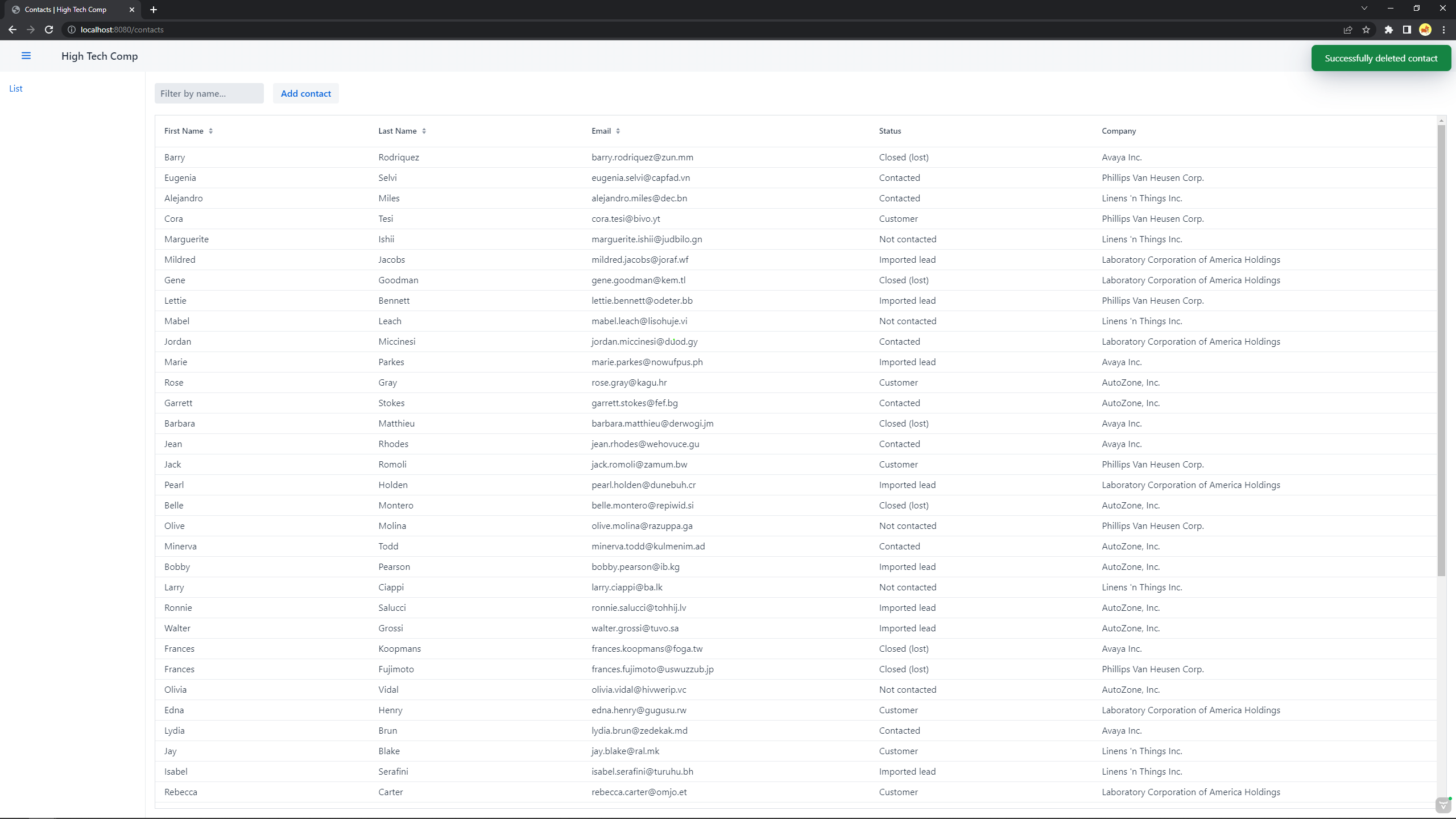

Deleted contact with success message in the top left corner

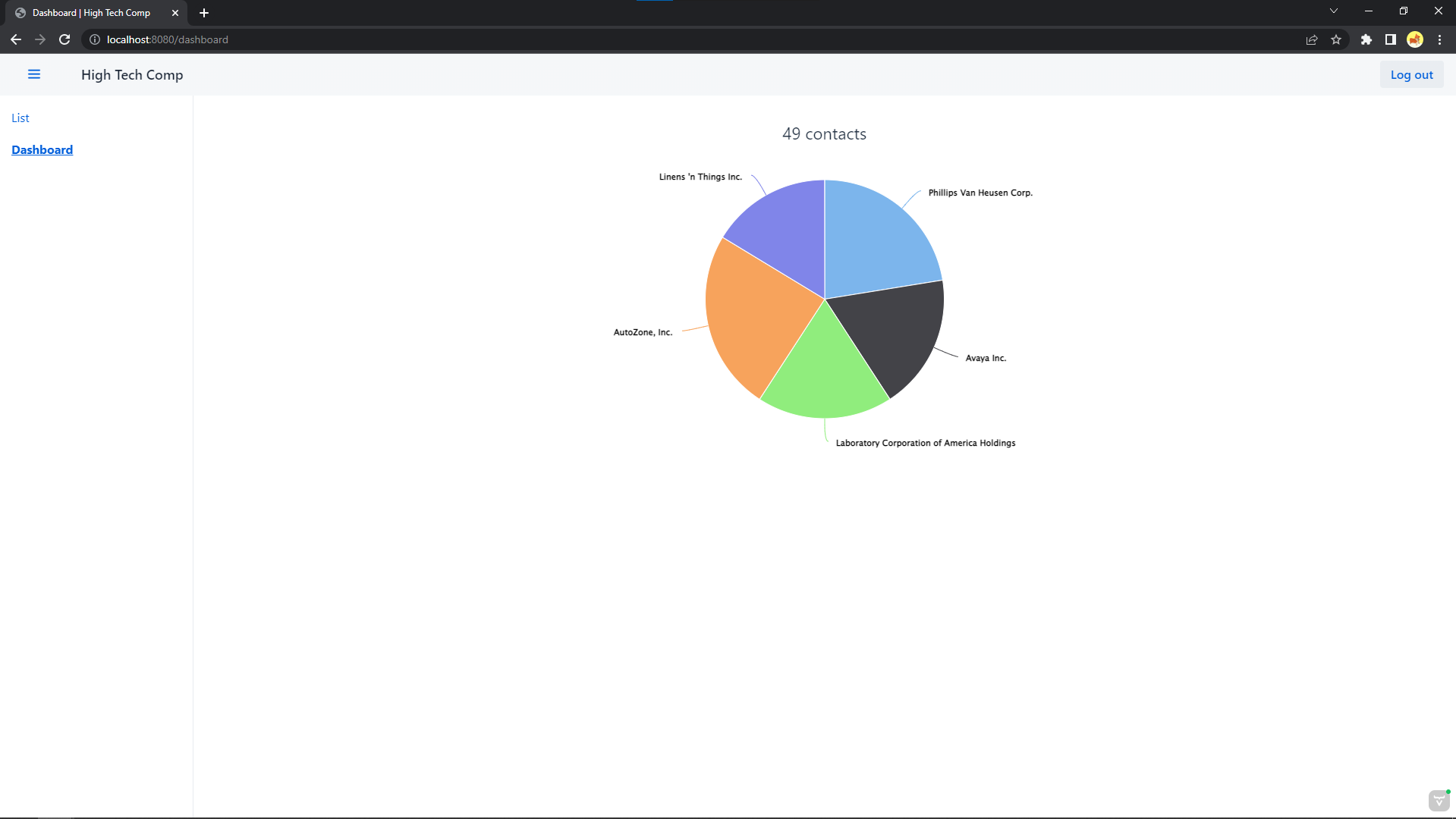

The admin role has the same functionality as the user but in addition he has the rights to see the Dashboard page where he can check the pie chart of all employees.
Every entity is AbstractEntity child AbstractEntity:
- id: long, AutoGenerated starting from 1000
- version: int
Users:
- username: string
- passwordSalt: string
- passwordHash: string
- roleId: int - enum (User, Admin)
- isActive: boolean
Status:
- name: string
Company:
- name: string
Contact:
- firstName: string
- lastName: string
- company: Company (foreign key to Company)
- status: Status (foreign key to Status)
- email: string
- CompanyRepository
- ContactRepository
- StatusRepostiry
- UserRepository
The repositories are our way to access the data in the database. They are inheritating JpaRepository<T, D>.
- AuthService
- CompaniesService
- ContactsService
- StatusesService
In the services we have the logic for getting the information, saving and deleting. Also, we have validation there.
- ListView
- ContactForm - the form is like partial view of the ListView
- DashboardView
- LoginView
- LogoutView
- MainLayout
- RegisterView
I have used Bean for the update functionality of contact. When you click any row of the table the Bean is reading the contact and populating him. After the save buttong is clicked the Bean is writing to the object and then we can save it.
- ExceptionMessages
- GlobalContants
- Notifications
- Queries
