Weight Up

Video Walkthrough

Here's a walkthrough of our app:

Table of Contents

1. Overview
2. Product Spec
3. Wireframes
4. Schema

Overview

Description

The purpose of this app is to bring fellow gym goers to work out together based on their stats, plans and preferences.

App Evaluation

• Category: Social / Health
• Mobile: Mobile only app
• Story: Allows users to find other users with similar stats from the gym to accopany them to a gym session.
• Market: Anyone that enjoys going to the gym can use this app. With the ability to meet other gym goers based on stats, no matter how unique your Personal Records are and schudules.
• Habit: Users can swipe/ chose someone else who they believe they can work out equal with and can message eachother if they are matched.
• Scope: Start off just finding fellow users to go to gym with. Then we can grow the features as the platform grows to make it even more interactive.

Product Spec

1. User Stories (Required and Optional)

Required Must-have Stories

• User can register
• User can login & logout
• User can see user profile
• User can match based preference (Years of experience....)
• User can create a profile
• User can edit profile and preferences
• User can chat with matched people

Optional Nice-to-have Stories

• User can chat with unmatched people
• User can have friends list
• User can post pictures and videos
• User can have chat logs
• User can have favorite exercise

2. Screen Archetypes

• Login Screen
  • User can login
• Registration Screen
  • User can create a new account
• Profile and Preference Screen
  • User can edit their own profiles and stats
• Match Screen
  • User can swipe left or right based on profiles
• Chat Screen
  • User can chat to their matched profiles
  • Have list of chatted to people

3. Navigation

Tab Navigation (Tab to Screen)

• Profile Screen
• Setting Screen
• Matching Screen

Flow Navigation (Screen to Screen)

• Forced Login
• List of all Chat screen
• Settings and preferences
  • Chat screen
• Tap on Matched person
  • Can see their stats, videos, pictures

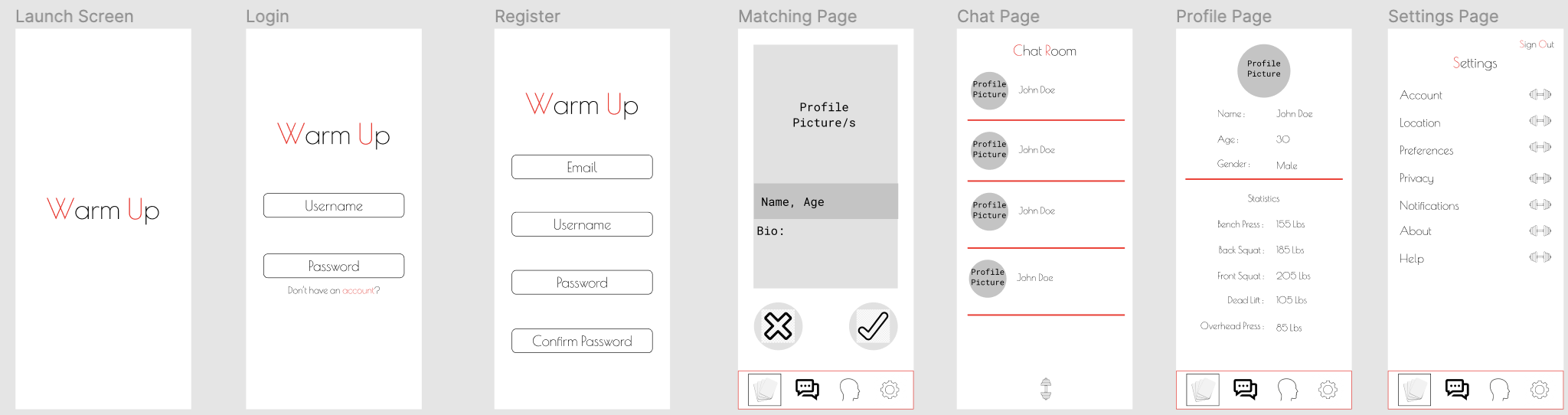

Wireframes

Schema

Models

Post

Property	Type	Description
objectId	String	unique id for the user profile (default field)
author	Pointer to User	image author
image	File	image that user posts
caption	String	image caption by author
swipeCount	Number	number of swipes for the profile
createdAt	DateTime	date when profile is created (default field)
updatedAt	DateTime	date when profile is last updated (default field)
weightStats	Number	statistics of user's profile

Networking

List of network requests by screen

• Login Screen

  • N/A

• Register Screen

  • (Create/POST) Creat new user with email, username, password

• Chat Screen

  • (Read/GET) Query all text messages

    let query = PFQuery(className:"Post")
    query.whereKey("author", equalTo: currentUser)
    query.order(byDescending: "createdAt")
    query.findObjectsInBackground { (posts: [PFObject]?, error: Error?) in
      if let error = error {
        print(error.localizedDescription)
      } else if let posts = posts {
        print("Successfully retrieved \(posts.count) posts.")
      // TODO: Do something with posts...
      }
    }

  • (Create/POST) Send text messages

    let post = PFObject(className:"Post")
    post["text"] = "Sending Text!"
    post.saveInBackground { (succeeded, error)  in
      if (succeeded) {
        print("Successfully saved \(posts.count) posts.")
      } else {
        print("error.localizedDescription")
      }
    }

  • (Read/GET) Query the users' profile picture as icon

  • (Read/GET) Query the users' name

• Matching Screen

  • (Read/GET) Query all posts where user's statistics are similar
  • (Create/POST) Create a new chat on a post
  • (Delete) Delete existing profile
  • (Create/POST) Query users' profile's information such as name, age, bio and picture for each user

• Profile Screen

  • (Read/GET) Query logged in user object
  • (Read/GET) Query current user profile's statistics
  • (Update/PUT) Update user profile's image
  • (Update/PUT) Update user profile's basic info
  • (Update/PUT) Update user profile's statistics

• [OPTIONAL: List endpoints if using existing API such as Yelp]
