Bessel zero finding cleanup #596

chris-langfield · 2022-03-15T17:03:17Z

The functions num_besselj_zeros, besselj_zeros, check_besselj_zeros are almost exact ports from the MATLAB code, but are lacking clear comments.

These in turn are modifications of this script by Jonas Lundgren:

https://www.mathworks.com/matlabcentral/mlc-downloads/downloads/submissions/26639/versions/5/previews/zerobess.m/index.html

When attempting to work out what exactly these functions are doing to estimate the first few zeros, I came across several tricks that I haven't been able to find a single definitive source for. e.g.,

ASPIRE-Python/src/aspire/basis/basis_utils.py

Lines 165 to 174 in 6cb389e


           # Guess first zeros using powers of nu

           c0 = np.array(

               [

                   [0.1701, -0.6563, 1.0355, 1.8558],

                   [0.1608, -1.0189, 3.1348, 3.2447],

                   [-0.2005, -1.2542, 5.7249, 4.3817],

               ]

           )

           z0 = nu + c0 @ ((nu + 1) ** np.array([[-1, -2 / 3, -1 / 3, 1 / 3]]).T)

Roughly, this computes initial guesses based on powers of nu, the real number order of the Bessel function. The closest literature I could find for this is in the following paper:

Elbert, Árpád. “Some recent results on the zeros of Bessel functions and orthogonal polynomials.” Journal of Computational and Applied Mathematics 133 (2001): 65-83.

(Section 1.3 starting around eqn 1.7)

The powers as well as the hardcoded values in our code also appear here.

See also: https://www.boost.org/doc/libs/1_63_0/libs/math/doc/html/math_toolkit/bessel/bessel_root.html

It may be a lesser concern to be able to find the theoretical justification here, but it would probably be ideal if we could. Regardless, I'm going to use this PR to comment and clean up these functions as much as possible so that it is easier to understand in the future

codecov · 2022-03-15T17:16:19Z

Codecov Report

Merging #596 (1a6a273) into develop (b7a3398) will increase coverage by 0.89%.
The diff coverage is n/a.

@@             Coverage Diff             @@
##           develop     #596      +/-   ##
===========================================
+ Coverage    86.48%   87.38%   +0.89%
===========================================
  Files          108      108
  Lines         8273     8942     +669
===========================================
+ Hits          7155     7814     +659
- Misses        1118     1128      +10

Impacted Files	Coverage Δ
src/aspire/basis/basis.py	`87.83% <ø> (ø)`
src/aspire/basis/basis_utils.py	`98.17% <ø> (ø)`
src/aspire/noise/noise.py	`97.50% <0.00%> (-0.84%)`	⬇️
src/aspire/utils/__init__.py	`100.00% <0.00%> (ø)`
src/aspire/covariance/covar.py	`88.88% <0.00%> (+0.09%)`	⬆️
src/aspire/reconstruction/estimator.py	`92.66% <0.00%> (+0.16%)`	⬆️
src/aspire/source/simulation.py	`99.61% <0.00%> (+0.19%)`	⬆️
src/aspire/source/image.py	`97.15% <0.00%> (+0.40%)`	⬆️
src/aspire/ctf/ctf_estimator.py	`99.25% <0.00%> (+0.67%)`	⬆️
src/aspire/volume/__init__.py	`96.48% <0.00%> (+1.74%)`	⬆️
... and 1 more

📣 Codecov can now indicate which changes are the most critical in Pull Requests. Learn more

chris-langfield · 2022-03-15T18:19:59Z

It would be good to have another pair of eyes on this line:

ASPIRE-Python/src/aspire/basis/basis_utils.py

Lines 27 to 31 in 6cb389e


           if nu >= 0.5:

               result = result and all(ddz < 16 * np.spacing(z[1:-1]))

           else:

               result = result and all(ddz > -16 * np.spacing(z[1:-1]))

np.spacing returns the distance to the nearest machine-representable float. My understanding of this check is that ddz, the second order differences between the zeros, should be zero up to 16x machine precision.

chris-langfield · 2022-03-16T19:28:11Z

Created #597 for continuing conversation, as we can merge this PR with just the docstrings maybe

j-c-c

Looks good. Much clearer!

src/aspire/basis/basis_utils.py

janden · 2022-03-31T13:31:22Z

It would be good to have another pair of eyes on this line:

ASPIRE-Python/src/aspire/basis/basis_utils.py

Lines 27 to 31 in 6cb389e

if nu >= 0.5:

result = result and all(ddz < 16 * np.spacing(z[1:-1]))

else:

result = result and all(ddz > -16 * np.spacing(z[1:-1]))

np.spacing returns the distance to the nearest machine-representable float. My understanding of this check is that ddz, the second order differences between the zeros, should be zero up to 16x machine precision.

I think it's rather checking that the second-order differences are zero or negative. If they were all zero, we'd have a three-term recurrence formula for the zeros and wouldn't need to find them this way (although maybe that's true for large zeros).

janden · 2022-03-31T13:31:50Z

(although maybe that's true for large zeros)

Sorry I should say asymptotically. It might be a decent approximation.

janden · 2022-03-31T13:40:31Z

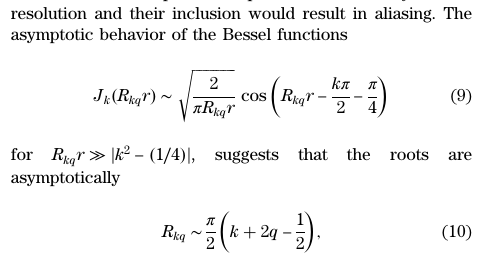

Right. Of course. From Zhao & Singer (2013):

So at large q the approximate spacing between zeros is π. In fact, we use this in

ASPIRE-Python/src/aspire/basis/basis_utils.py

Line 193 in 6cb389e

dz = pi * np.ones((j, 1))

to initialize the search for zeros by using the last zero and adding multiples of π when the number of zeros is large enough.

chris-langfield · 2022-03-31T14:23:31Z

Added your comments to #597 and made the docstring changes to this PR. Thanks!

janden

LGTM!

* docstring for besselj_zeros * rest of docstrings * remove pdb import * second order differences comment * comments and docstring for num_besselj_zeros * formatting * tiny fixes; * docstring fixes * NumPy * NumPy again * sanity check * parentheses inside sentence
