A machine learning project in Python. The project includes both training and testing GUI. The aim of this project is (English) characters recognition.
The two main programs created in this project and described below are trainGUI.py and testGUI located in the root folder. Other files in the root folder are mainly testing files used to test certain things during the development of the project. The folder images contains samples that can be used when testing the created model. The folder nets contains the saved networks of the trainGUI. The folder GUIpreview contains the previews of the old versions of the main programs. The folder 91Model contains the structure and training process images of the final 91% model.
- The training GUI
- The test GUI
- The CNN model
- The old backend
- Future plans
- This project's resources
- Required python libraries
- Other requirements
- TODO List
This simple GUI allows the user to make a machine learning model without even typing any code. The structure of the program allows easy expansion of it, that is, adding more layers, optimizers etc. to the program is not a hassle. The training program currently only allows the usage of images as training data, given that these images are already sorted in test/train folders. Further documentation is yet to be written, but generally speaking, the program is easy to use and yet offers a decent amount of functionality.
The usage of the program is simple:
- Select the training, and the test folder by clicking on the Train folder, and the Test folder buttons and choose the correct folders.
- Select the model save location with the Save folder button.
To start building the model, use the interface on the left:
-
Enter the training set size next to the Train Size button. Clicking on the Train Size button sets the train size to auto, meaning all the images are used in the training process.
-
Enter the test set size next to the Test Size button. Clicking on the Test Size button sets the test size to auto, meaning all the images are used in the training process.
-
Enter the number of classes next to the Classes button. Clicking on the Classes button sets the number of classes to auto, identifying the number of classes automatically before the training process.
-
Enter the image size next to the Image Size button. Clicking on the Image Size button sets the image size to a default value of 64 by 64 pixels.
-
Enter the batch size below the Batch Size button. Clicking on the Batch Size button sets the batch size to a default value of 32.
-
Enter the number of epochs below the Epochs button. Clicking on the Epochs button sets the number of epochs to a default value of 10.
-
Select the model optimizer below the Optimizers field:
- Adam,
- SGD.
The selected optimizer is also displayed in the widget on the right part of the interface below the Optimizer field.
-
Enter the learning rate below the LR button. Clicking on the LR button sets the learning rate to a default value of 0,01.
-
Select the loss function below the Loss function field by clicking on the desired loss function:
- Binary CE (Binary Cross-Entropy),
- Categorical CE (Categorical Cross-Entropy),
- MSE (Mean squared error).
The selected loss function is also displayed in the widget on the right part of the interface below the Loss function field.
-
Select the metrics below the Metrics field by clicking on the desired metrics:
- ACC (Accuracy),
- MAE (Mean Absolute Error).
The selected metrics is also displayed in the widget on the right part of the interface below the Metrics field.
-
Now start building the model by adding the layers located below the Add Layer button. First select the desired layer and by clicking on the Add Layer button add the selected layer to the model. The most important available layers are:
- Input (Input layer, not necessary, a convolution layer can be used instead),
- Convolution2D (Convolutional 2D layer),
- MaxPooling2D (Max Pooling 2D layer),
- Dropout (Dropout layer),
- Flatten (Flatten layer).
Each layer has its corresponding properties, which can be set inside the layer itself. All the values in the layer(s) have to be set, or the model won't compile and run. Layer properties need to be entered inside the corresponding text fields equipped with the property label name. To remove a specific layer, click on the Remove button located inside the layer itself.
Below the Output shape field are displayed the final output layer shape (after and before flatten). To obtain the following information, first build or load the model and after that use the Get shape button, to get the output shapes.
After a model has been built, its structure can be saved into a .nets file. To do so, after the model is built, click on the Save network button and select the save location, and the file save name. Models can also be loaded from these same files by using the Load network button. After clicking the Load network button, select the network that you want to load. Clicking on select in the explorer window will result into the old model being deleted and the new model being loaded into the program.
This program offers an easy way to test the model performance. First the user selects a model and after that an image. The last thing that needs to be done after this, is clicking the predict button, which, of course, gives back the prediction made by the model. The program was adapted to work only with 62 characters dataset. Further improvements might be made in the near future.
The CNN model was made using the training GUI and the best model I managed to train so far reaches 86 % test accuracy. The main reason for this average score is the dataset I used since using other datasets I managed to achieve much better accuracy using the same model. Another reason for the average performance of the model is the large amount of classes, since this model was trained using 62 different characters. Better performance might be achieved by increasing the number of layers in the network.
I managed to create a better model (91% val acc). Explanation below:

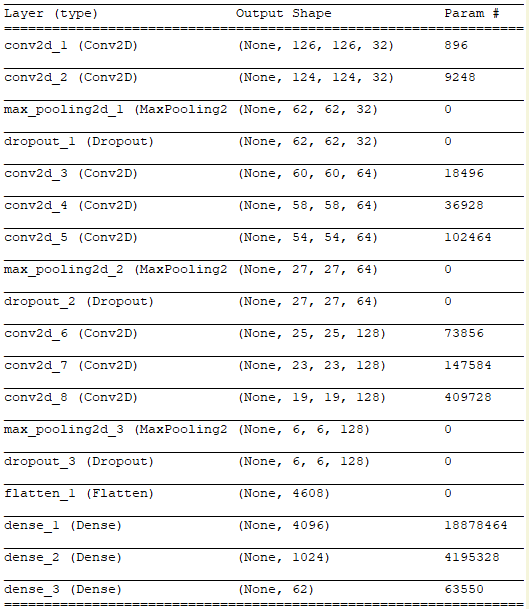

The model structure used in this project is the following:
The structure is pretty simple. I only used the Convolutional-2D and MaxPooling-2D layers, and of course at the end, the Flatten and the Dense layers. After each MaxPooling layer I also added a Dropout layer to avoid over-fitting the model. The dropout rate used on each dropout layer was 0.25. Input shape of the images was 128x128x1.

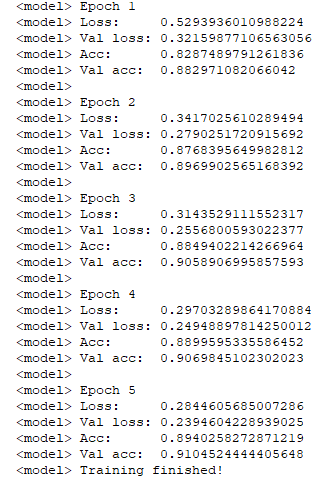

After training the model for 5 epochs, the model achieved accuracy of 91%, reaching the desired goal of 90%. Thus, this project was a success!
The backend in this project is not Tensorflow/ Tensorflow GPU as usually. Instead, the backend used in this project is PlaidML: https://github.com/plaidml/plaidml. The main reason for usage of this backend is the lack of an Nvidia GPU in my computer, since Tensorflow GPU works only with GPUs that support CUDA core technology (that means Nvidia GPUs only). PlaidML relies on OpenCL instead, allowing the usage of any GPU (Amd GPU in my case) to speed up the model learning process. A GPU can speed up the learning process by at least 50%.
Later in the project the backend was updated from PlaidML to Tensorflow GPU due to hardware change in my personal computer. I changed from an AMD (RX 480) GPU, which does not support CUDA to an Nvidia (RTX 3080) GPU, which does support CUDA and thus I was able to use Tensorflow GPU which is based on the CUDA technology.
The idea is to improve the model performance and expand the training/testing program functionality.
