FlowGuard

Machine-checked proofs that safety does not compose in multi-agent AI systems.

FlowGuard is a Lean 4 formalization of a fundamental and underappreciated problem in AI safety: an AI pipeline can be dangerous even when every agent inside it is individually safe. We prove this across six layers — capability hypergraphs, information-flow control, a free monad model of agent programs, a unified safety certificate, Cedar incompleteness, and a structural impossibility result — and unify them into a single compile-time safety certificate verified by the Lean kernel.

Alongside the proofs, FlowGuard ships a Python proof-of-concept pipeline that reads real agent source files, infers capability specifications dynamically (either from AST analysis or via an LLM), runs the same hyperedge-closure and IFC checks implemented in the Lean proofs, and then cites the exact theorem covering each finding — reading the theorem text live from the compiled .lean files, not from any hardcoded strings.

All theorems are fully kernel-checked. There are zero sorrys.

The Problem — Explained Without Lean

Imagine you hire two contractors for your house.

Contractor A has a key to the front door. Nothing else. Safe.
Contractor B has access to your safe. Nothing else. Safe.

Now imagine they work together — and together, they can open your safe, copy its contents, and leave through the front door. Suddenly the system is unsafe, even though each individual contractor was vetted and trusted.

This is not a contrived example. It is the central problem in multi-agent AI security.

Modern AI assistants are increasingly built as pipelines of specialised agents — one agent searches the web, another executes code, another reads a database, another sends emails. Each agent is designed with a limited, audited set of capabilities. Safety reviews happen per-agent. But when these agents are composed into a team:

A webSearch agent + a codeExec agent → can together exfiltrate data to an external server, even if neither agent could do it alone.
A medical pipeline where each data-sharing hop is individually approved → can create a transitive path where secret patient records reach a public report.

This property — that safety is not preserved under composition — is formally called non-compositionality. It is known in the academic literature, but to our knowledge this is the first machine-checked, compiler-verified proof of it in the context of AI agent systems.

FlowGuard provides those proofs.

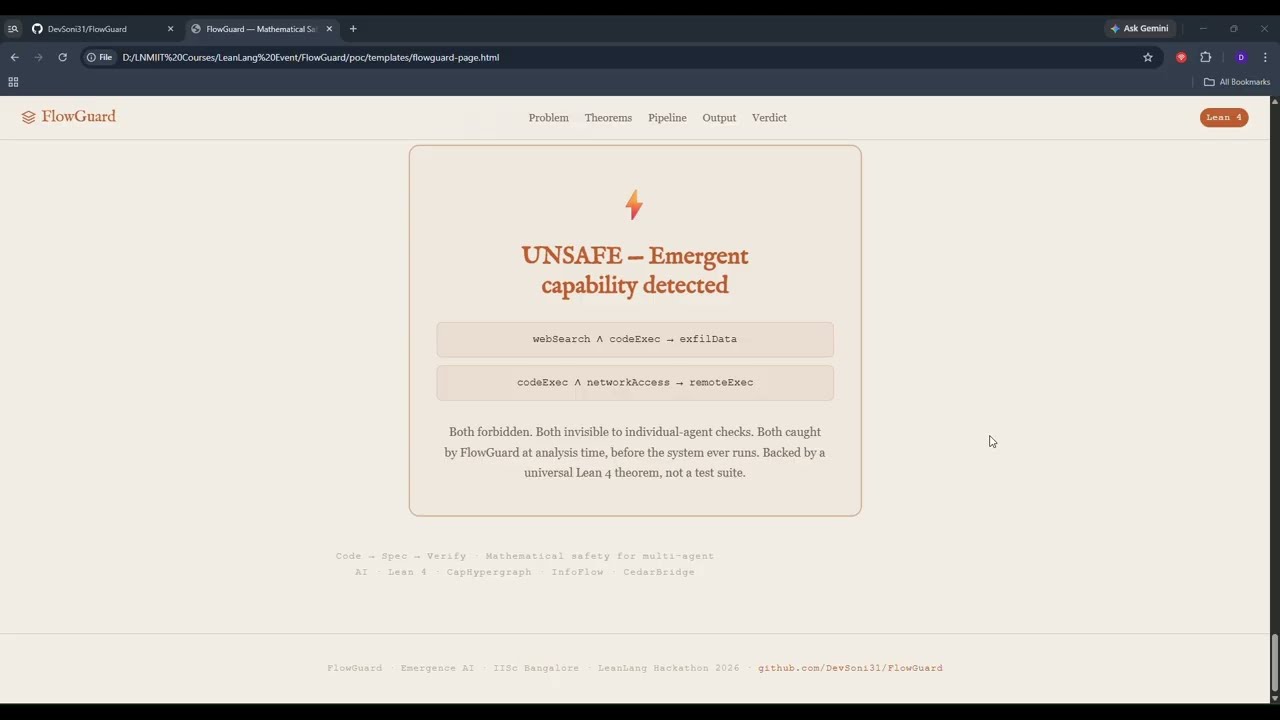

Demo

A full walkthrough of the FlowGuard PoC pipeline — capability extraction, hyperedge closure, Cedar comparison, and live Lean theorem citation — is available here:

The video covers:

Cloning the repo and running lake build (time-lapsed)
Running python analyze.py --demo --no-dashboard --mode ast --skip-lean
The three-phase terminal output: extraction → individual checks → composition verdict
The Cedar blind-spot panel and its connection to cedar_nonCompositionality_gap
Live theorem citation: statement text read directly from CapHypergraph.lean
Brief walkthrough of the --medical-demo path and the isTransitivelySafe vs isHopwiseSafe distinction

Origin

This project was built during the LeanLang for Verified Autonomy Hackathon (April 17–18 + online through May 1, 2026) at the Indian Institute of Science (IISc), Bangalore. Organized by Emergence India Labs in collaboration with IISc Bangalore. Sponsored by Emergence AI.

What This Repository Contains

FlowGuard is a Lean 4 project. Lean is a proof assistant — a programming language where you write not just code, but mathematical proofs, and the compiler checks every proof for correctness with zero tolerance for errors. If the Lean compiler accepts a theorem, it is guaranteed to be true. No human reviewer can introduce a mistake.

The project is structured in six layers, each building on the last.

git clone https://github.com/DevSoni31/FlowGuard.git
cd FlowGuard
lake build
# Expected: Build completed successfully (3304 jobs).

Architecture

Lean Proof Layers

┌────────────────────────────────────────────────────────────────────────────┐
│  CedarIncompleteness.lean  (Layer 6)                                       │
│  Structural impossibility: no Cedar policy can be complete for pipelines   │
│  Key: cedar_blind_to_capsets, cedar_incomplete_universally,                │
│       cedar_capability_separation, joint_closure_strictly_larger           │
└───────────────────────────┬────────────────────────────────────────────────┘
                                          │ imports
┌───────────────────────────▼────────────────────────────────────────────────┐
│  CedarBridge.lean  (Layer 5)                                               │
│  Concrete counterexample: Cedar denies ∧ FlowGuard detects emergence       │
│  Key: cedar_nonCompositionality_gap, cedar_ifc_gap, cedar_is_incomplete,   │
│       cedarAware_strictly_weaker                                            │
└───────────────────────────┬────────────────────────────────────────────────┘
                                          │ imports
┌───────────────────────────▼────────────────────────────────────────────────┐
│  FlowCheck.lean  (Layer 4)                                                 │
│  Unified certificate: ValidPipeline ↔ capSafe ∧ ifcSafe (biconditional)   │
│  Key: validPipeline_iff, flowguard_sound, flowguard_complete,              │
│       hopwiseValidPipeline_full_certificate, validPipeline_hierarchy       │
└────────────────┬──────────────────────────────────────┬────────────────────┘
                         │ imports                               │ imports
┌────────────────▼───────────────────┐   ┌──────────────▼────────────────────┐
│  CapHypergraph.lean  (Layer 1)     │   │  InfoFlow.lean  (Layer 2)          │
│  Hyperedge closure, fixed-point    │   │  IFC lattice, cascaded declassif., │
│  theory, universal non-            │   │  hopwise vs transitive safety      │
│  compositionality, safe-region     │   │  hierarchy, parametric IFC theorem │
│  Moore family structure            │   └───────────────────────────────────-┘
└────────────────────────────────────┘
               ▲
               │ bridge: safeProg_implies_capSafe_empty_edges
┌─────────┴──────────────────────────┐
│  AgentProgram.lean  (Layer 3)      │
│  Prog free monad, SafeProg,        │
│  program-level ↔ contract-level    │
│  separation of concerns            │
└────────────────────────────────────┘

Python PoC Pipeline

   agent1.py, agent2.py, ...
            │
            ▼
   ┌─────────────────────────────────────────────────────────────────────┐
   │  extractor.py                                                        │
   │  Mode: ast  → Python AST walk, regex, filename heuristics           │
   │  Mode: llm  → Gemini 2.0 Flash semantic inference                   │
   │  Mode: both → AST first; LLM refines with AST as prior              │
   │  Output: AgentSpec {name, base: Set[Cap], forbidden: Set[Cap],      │
   │          data_label: Label, pipeline_channels: List[Channel]}       │
   └──────────────────────────┬──────────────────────────────────────────┘
                                           │
                                           ▼
   ┌─────────────────────────────────────────────────────────────────────┐
   │  verifier.py + hyperedges.py                                        │
   │  · isCapSafe: per-agent check (mirrors CapHypergraph.isCapSafe)    │
   │  · cap_closure: fixed-point iteration (mirrors capClosure)          │
   │  · is_transitively_safe / is_hopwise_safe (mirrors InfoFlow)        │
   │  · cedar_team_eval: Cedar simulation (mirrors CedarBridge)          │
   │  Output: full result dict — verdict, fired edges, IFC flags,        │
   │          Cedar comparison, theorem citations                         │
   └──────────────────────────┬──────────────────────────────────────────┘
                                           │
                                           ▼
   ┌─────────────────────────────────────────────────────────────────────┐
   │  lean_bridge.py                                                     │
   │  · run_lake_build(): invokes `lake build`, streams output           │
   │  · verify_demo_in_lean(): evaluates #eval / #check in Lean kernel   │
   │  · extract_theorems(): regex-parses *.lean → theorem name +         │
   │    statement (live, not hardcoded)                                  │
   │  · get_all_theorems(): indexes all 6 files at startup               │
   └──────────────────────────┬──────────────────────────────────────────┘
                                           │
                                           ▼
   ┌─────────────────────────────────────────────────────────────────────┐
   │  analyze.py                                                         │
   │  Terminal reporter — Rich panels, three-phase output, theorem       │
   │  citations with live statement text read from compiled .lean files  │
   │  Flags: --demo, --medical-demo, --mode [ast|llm|both],             │
   │         --skip-lean, --no-dashboard                                 │
   └─────────────────────────────────────────────────────────────────────┘

Quick Start

Prerequisites

Two things need to be installed before anything else.

Lean 4 + elan - Install from the official Lean setup page following the instructions for your operating system. elan (the Lean version manager) is installed alongside Lean and handles toolchain management automatically. The correct Lean toolchain for this project is pinned in lean-toolchain at the repo root - elan will read this file and switch to the right version without any manual intervention.

Python 3.11+ - Standard installation from python.org. No special package manager is needed beyond the standard venv module that ships with Python.

Step 1 - Clone the repository and fetch the Lean cache

git clone https://github.com/DevSoni31/FlowGuard.git
cd FlowGuard

Before building, fetch the pre-compiled Mathlib cache. This is a one-time step that downloads already-compiled proof objects from the Lean cache server, avoiding a full Mathlib recompile from source (which would take several hours):

lean exe cache get

Time estimate: approximately 30 minutes on the first run, depending on your network. On subsequent runs, the cache is already present and this step is instant. If you skip this step, lake build will attempt to rebuild Mathlib from source and will take considerably longer.

Step 2 - Build the Lean proofs

lake build

This compiles all six .lean files through the Lean 4 kernel. The kernel does not merely type-check - it reconstructs and verifies the full mathematical derivation of every theorem. If it completes without errors, every proof in the repository is mathematically guaranteed to be correct.

Expected output: Build completed successfully (3304 jobs).

Time estimate: approximately 25 minutes on the first run. On subsequent runs with no .lean file changes, all 3304 jobs are cached and the build completes in about 5-10 minutes.

This step must complete successfully before running the PoC. The Python pipeline sends live queries to the Lean kernel at runtime and resolves theorem statements directly from the compiled .lean files. If the build has not run, those queries will fail.

Step 3 - Set up the Python environment

The PoC lives in the poc/ subdirectory and has its own isolated Python environment.

cd poc
python -m venv .venv

Activate the environment:

# Windows - run this once to allow script execution, then activate
Set-ExecutionPolicy -ExecutionPolicy RemoteSigned -Scope CurrentUser
.venv\Scripts\activate

# macOS / Linux
source .venv/bin/activate

Install dependencies:

pip install -r requirements.txt

The requirements.txt contains: rich, google-genai, python-dotenv, requests. These are all standard, well-maintained packages and install in under a minute.

Step 4 - Run the PoC pipeline

With the virtual environment active and the Lean build complete, run:

python analyze.py --demo --mode ast

What each flag does:

Flag	Purpose
`--demo`	Runs the canonical capability-emergence scenario: `web_search_agent.py` + `code_exec_agent.py`
`--mode ast`	Uses the AST (Abstract Syntax Tree) extractor - reads agent source code directly, requires no API key, runs fully offline

The pipeline will work through three phases: capability extraction from the agent source files, individual safety checks per agent, and finally composition analysis with hyperedge closure. At the end, it cites the exact Lean theorem covering each finding, with the theorem statement read live from the compiled .lean files - not hardcoded.

Time estimate: approximately 30 minutes for the full run. The bulk of this time is the live Lean kernel queries during verification.

Expected final output: COMPOSITION RESULT - UNSAFE Emergent capability detected: webSearch ∧ codeExec → exfilData codeExec ∧ networkAccess → remoteExec Theorem cited: nonCompositionality_universal (CapHypergraph.lean)

Once the pipeline finishes, the demo page (flowguard-page.html) will open automatically in your default browser - no server required. It presents the full FlowGuard story interactively: the problem, the proofs, the pipeline walkthrough, Cedar's structural blind spot, and the final verdict.

Optional - LLM extraction mode

--mode ast is the recommended path for replication because it requires no external credentials and runs entirely offline. If you have a Gemini API key available, the LLM extraction mode provides richer semantic capability inference:

Copy .env.example to .env at the repo root and add your key: GEMINI_API_KEY=your_key_here
Pass --mode llm instead:

python analyze.py --demo --mode llm

Or use --mode both, which runs AST extraction first and passes those results to Gemini as a prior - this generally produces the most accurate capability spec:

python analyze.py --demo --mode both

The --mode flag is the only change required. Everything else - the Lean queries, hyperedge closure, theorem citations, and the dashboard - works identically across all three modes.

Layer 1 — Capability Hypergraphs (`CapHypergraph.lean`)

The idea: Agent capabilities are not just sets — they interact. Give one agent webSearch and another codeExec, and the hyperedge {webSearch, codeExec} → exfilData fires: the composed team now holds exfilData, which neither agent held alone.

We model this with a hypergraph closure operator — starting from the base capabilities of a team, we repeatedly fire all applicable hyperedges until no new capabilities emerge. The result is the emergent capability set of the pipeline. The full fixed-point theory guarantees this process terminates and delivers the tightest possible safety boundary.

Fixed-Point Theory

Theorem	Mathematical Content
`capClosure_mono`	S ⊆ T → capClosure(S) ⊆ capClosure(T)
`capClosure_extensive`	S ⊆ capClosure(S) — base caps survive
`capClosure_is_fixpoint`	step(capClosure(S)) = capClosure(S) — it converges
`capClosure_is_least_fixpoint`	If S ⊆ T and step(T) ⊆ T, then capClosure(S) ⊆ T

capClosure_is_least_fixpoint is the strongest property: capClosure is not merely a closed superset — it is the smallest possible one. This is the mathematical guarantee that FlowGuard's safety boundary is tight, not conservative.

Non-Compositionality

Theorem	Plain English
`webAgent_is_safe`	The web-search agent alone cannot exfiltrate data
`execAgent_is_safe`	The code-execution agent alone cannot exfiltrate data
`composedTeam_is_unsafe`	Together, `exfilData` emerges via hyperedge closure
`nonCompositionalityCounterexample`	Headline: both safe individually, unsafe together
`nonCompositionality_exists`	∃-form: there exist edges and agents where safety fails to compose
`nonCompositionality_universal`	∀-form: for ANY edges, ANY two agents fitting the structural premises, composition is unsafe
`coalition_nonCompositionality_universal`	Coalition form: for ANY agent list, ANY dangerous pair poisons the whole coalition

nonCompositionality_universal is the research-paper-level result: it is not tied to any specific agents. It holds for any hyperedge set and any two agents where neither holds all premises alone, together they do, and the conclusion is forbidden for one.

Safe Region Structure (Moore Family)

Theorem	Plain English
`safeRegion_downward_closed`	A smaller base set is always at least as safe
`safeRegion_closed_under_intersection`	The intersection of two safe base sets is safe
`compose_forbidden_union_justified`	Union of forbidden sets is the correct semantics for composition

The safe-region theorems establish that the set of all safe agent base-sets forms a Moore family (closed under intersection, downward-closed). This is a structural result independent of any specific hyperedge configuration: no matter what capabilities exist, the safe region always has this algebraic shape. This means that safety can in principle be characterised by its boundary — the set of maximal safe base-sets — and this boundary is unique and computable.

coalition_nonCompositionality_universal extends the pairwise result to any finite coalition: if any dangerous pair exists within a list of agents, the entire coalition is unsafe. This is the theorem the PoC invokes when more than two agents are passed on the command line.

Layer 2 — Information-Flow Control (`InfoFlow.lean`)

The idea: Data carries a confidentiality label — low, medium, or high. A secure system must never allow high-confidentiality data to reach a low-confidentiality output. We check this not just for individual channels, but for the transitive composition of the entire pipeline.

The medical counterexample: A hospital's diagnostic agent holds High-labelled patient records. A summarisation step is locally approved (High → Medium). An anonymisation step is locally approved (Medium → Low). The composed pipeline creates High → Low: secret patient data reaches a public report. Each hop was approved; the system violates noninterference.

Core IFC Theorems

Theorem	Plain English
`nonInterference_nonCompositional`	Headline: local approval ≠ global security
`localApproval_not_transitive`	∃-form: there exist labels where local approval fails to compose
`secureFlow_transitive`	The global lattice IS transitive — the flaw is in local policy
`insecure_flows_characterised`	Complete characterisation: exactly 3 downward flows are insecure

Parametric IFC Theorem

Theorem	Plain English
`cascaded_declassification_parametric`	For ANY local policy, if it approves a two-hop chain with a net insecure flow, it is compositionally dangerous
`medical_hops_dangerous_for_any_policy`	Even a restrictive policy approving only the two medical hops is provably dangerous

cascaded_declassification_parametric is the universal IFC result: it holds for any policy function, not just the maximally permissive locallyApproved. The problem is structural.

Hopwise vs Transitive Safety

Theorem	Plain English
`transitive_safety_misses_intermediate`	∃ pipeline: `isTransitivelySafe = true` yet `isHopwiseSafe = false`
`hopwise_safe_not_implies_transitive_safe`	∃ pipeline: `isHopwiseSafe = true` yet `isTransitivelySafe = false`
`isTransitivelySafe_only_checks_endpoints`	∀ pipelines with secure src→dst endpoints pass the transitive check regardless of intermediate hops
`hopwise_is_necessary_for_intermediate_safety`	Only `isHopwiseSafe` can detect interior violations

The two checks are genuinely incomparable — neither implies the other, proven by witnesses in both directions. Both are required for a maximally certified pipeline.

The incomparability of isTransitivelySafe and isHopwiseSafe is one of the most practically significant results in the project. It means:

A pipeline that passes the transitive endpoint check can still have a dangerous intermediate hop — transitive_safety_misses_intermediate proves this with a concrete witness.
A pipeline that passes every individual hop check can still have insecure endpoints — hopwise_safe_not_implies_transitive_safe proves this in the other direction.

The --medical-demo path in the PoC exercises exactly the first case: isTransitivelySafe returns true (the endpoints look fine), but isHopwiseSafe returns false (the High → Medium → Low intermediate hop violates the lattice). This is the distinction between a policy audit that only checks source and destination versus one that inspects every data-sharing hop independently.

Layer 3 — Agent Programs as Free Monads (`AgentProgram.lean`)

The idea: Rather than reasoning only about what capabilities an agent holds, we also reason about what programs an agent runs. An agent program is a tree of effects modelled as a free monad, directly inspired by Prof. Gadgil's FileM in LeanLangur.

Key Definitions and Theorems

Name	What it is
`AgentEffect`	5 primitive operations: webSearch, codeExec, readDB, sendEmail, exfilData
`Prog`	Free monad: pure value or effect followed by a continuation
`SafeProg`	Inductive safety predicate over program trees
`bindSafe`	If `x` is safe and every continuation `f a` is safe, then `x >>= f` is safe
`searchProg_safe`	A web-search-only program is safe for `webAgent`
`exfilProg_unsafe`	A search-then-exfiltrate program is not safe for `webAgent`

The Free Monad Model

Prog is a free monad over AgentEffect — the standard way to represent effectful programs as pure data structures in functional programming and type theory. A Prog value is either a pure return value or an effect constructor (WebSearch, CodeExec, ReadDB, SendEmail, ExfilData) paired with a continuation. This representation allows us to reason about what a program does (its effects) without ever running it.

SafeProg is an inductive safety predicate over the Prog tree. It is defined by recursion on the structure of the program: a pure computation is always safe, and an effect f k computation is safe if the effect's capability is in contract.base ∖ contract.forbidden and every continuation k a is also safe. The result is a compositional, program-level safety certificate.

Bridge to Layer 1

Theorem	Plain English
`safeProg_caps_in_base`	Every effect in a SafeProg-safe program uses only caps in `contract.base`
`safeProg_base_forbidden_disjoint`	Every used cap is in `base \ forbidden`
`safeProg_implies_capSafe_empty_edges`	Adequacy: SafeProg-safe + disjoint contract → `isCapSafe [] = true`
`safeProg_does_not_imply_capSafe`	Independence: SafeProg is a program-level check; `isCapSafe` is a contract-level check — both are needed and neither implies the other in general

safeProg_does_not_imply_capSafe is a separation of concerns theorem. It says that even a provably-safe program (per SafeProg) can be deployed in a context where the hyperedge environment causes capability emergence — the program itself is fine, but the composition of the environment with the program's contract is not. Layer 3 is therefore not a replacement for Layer 1; it is a complementary check at a different level of abstraction.

Layer 4 — The Unified Certificate (`FlowCheck.lean`)

The idea: All layers are unified into a single typeclass ValidPipeline. A pipeline receives this certificate only if it simultaneously satisfies capability safety (Layer 1) and transitive IFC (Layer 2). If it cannot, the Lean compiler rejects it. Safety becomes a compile-time guarantee, not a runtime check.

Core Certificate Theorems

Theorem	Plain English
`validPipeline_iff`	Complete characterisation: `ValidPipeline P ↔ capSafe ∧ ifcSafe`
`flowguard_sound`	`ValidPipeline P` → both guarantees hold
`flowguard_complete`	Both guarantees hold → construct a `ValidPipeline` certificate
`validPipeline_reject_capUnsafe`	Any cap-unsafe agent → no certificate exists
`validPipeline_reject_ifcUnsafe`	Any downward net flow → no certificate exists
`trustedPipeline_valid`	A concrete pipeline does receive a full certificate

validPipeline_iff is the only biconditional theorem in the project. Every other layer proves one direction (safety implies some property, or some property implies unsafety). Layer 4 closes the loop: ValidPipeline P ↔ capSafe ∧ ifcSafe means the certificate is both sound (no false approvals) and complete (no false rejections for pipelines that genuinely satisfy both conditions). This is the mathematical content of "compile-time guarantee": if your pipeline builds with a ValidPipeline certificate, it is provably safe; if it does not build, it is provably not certifiable under the current spec.

trustedPipeline_valid is the existence proof — it shows that safe pipelines are not an empty class. A concrete pipeline that satisfies both conditions is constructed and its certificate is machine-checked, confirming the system is neither vacuously sound (no pipeline ever passes) nor vacuously complete (every pipeline passes).

The Strongest Certificate — `HopwiseValidPipeline`

ValidPipeline enforces transitive IFC, which checks only the pipeline's two endpoints. HopwiseValidPipeline extends it with a third obligation: every individual hop must also respect the security lattice.

Theorem	Plain English
`hopwiseValidPipeline_full_certificate`	Three-way certificate: cap safety + hopwise IFC + transitive IFC
`hopwiseValidPipeline_rejects_intermediate_violations`	Any intermediate hop violation → no certificate
`validPipeline_hierarchy`	`HopwiseValidPipeline → ValidPipeline`, not vice versa (witness provided)

Layer 5 — Cedar Concrete Counterexample (`CedarBridge.lean`)

The idea: Cedar is Amazon's production authorization language — formally verified, used in AWS, and the current state of the art in deployed AI access control. CedarBridge defines a minimal but faithful embedding of Cedar's evaluation model — CedarPolicy, CedarRequest, CedarDecision, cedarEval — and then constructs concrete Cedar policies for the demo agents. It proves that Cedar is sound: the policies it writes correctly deny what they are supposed to deny. Then it proves the critical gap: Cedar's correct denial for each individual agent is not sufficient to detect that the composed team can exfiltrate data.

Theorem	Plain English
`cedar_nonCompositionality_gap`	Cedar denies exfilData for every individual principal ∧ FlowGuard proves the composed team has exfilData in its closure
`cedar_ifc_gap`	Cedar approves every hop in the medical pipeline ∧ FlowGuard proves the transitive flow is insecure
`cedar_is_incomplete`	Master result: Cedar is sound but incomplete — both gaps checked simultaneously
`cedarAware_strictly_weaker`	Cedar approves the pipeline; FlowGuard rejects it — FlowGuard is strictly stronger

cedar_is_incomplete is a conjunction: it proves both the capability-emergence gap and the IFC gap in a single theorem. This is the "master" Cedar result — the one that would appear in a paper abstract.

Layer 6 — Cedar Structural Impossibility (`CedarIncompleteness.lean`)

The idea: CedarBridge showed Cedar fails on the concrete examples. CedarIncompleteness proves why Cedar must fail — not because of any specific policy choice, but because of a fundamental mismatch between Cedar's input model and the information required for pipeline safety analysis.

The argument has three steps, each formalised as a theorem:

Cedar is request-local — cedar_is_request_local and cedar_request_determines_decision establish that Cedar's decision depends only on (principal, action, resource). No Cedar policy can inspect a Finset Cap or a List HyperEdge. This is enforced at the type level: CedarPolicy := CedarRequest → CedarDecision.
Capability closure is not request-local — emergence_requires_joint_inspection and joint_closure_strictly_larger prove that whether exfilData emerges requires inspecting the joint base capability set of both agents together. This information is not encoded in any individual CedarRequest.
Therefore Cedar cannot be complete — cedar_incomplete_universally and cedar_capability_separation prove that for any Cedar policy, there exists an unsafe composition it cannot detect.

Theorem	Plain English
`cedar_is_request_local`	Cedar's decision is a pure function of the request — type-enforced
`cedar_request_determines_decision`	Same (principal, action, resource) → same decision, always
`cedar_blind_to_capsets`	Two agents sharing a principal name are Cedar-indistinguishable on any request — the blindness is not a policy gap, it is enforced by the type of `CedarPolicy`
`cedar_capability_separation`	FlowGuard gives different verdicts for webAgent alone vs webAgent+execAgent; Cedar gives identical decisions — this is the separation theorem
`joint_closure_strictly_larger`	`exfilData ∉ closure(webAgent)` ∧ `exfilData ∉ closure(execAgent)` ∧ `exfilData ∈ closure(webAgent ∪ execAgent)` — the information gap in one theorem
`emergence_requires_joint_inspection`	You cannot detect capability emergence by inspecting agents one at a time
`closure_union_ge_union_closures`	`closure(A) ∪ closure(B) ⊆ closure(A ∪ B)` — monotonicity of composition
`cedar_incomplete_universally`	For any agents where composition is unsafe, no Cedar policy can detect it

The comment in the source is worth quoting directly: "This is not a criticism of Cedar. Cedar is designed for per-request authorization. It is a theorem about the fundamental mismatch between Cedar's input model and the information required for pipeline safety."

The PoC Pipeline — How It Works

The Python PoC is not a reimplementation of the Lean proofs in Python. It is a dynamic front-end that: (a) reads real agent source files and infers their capability specifications, (b) runs the same logical checks as the Lean formalisation using a Python implementation of the same algorithms, and (c) queries the compiled Lean files at runtime to cite the exact theorem — with its verbatim statement text — that covers each finding.

Capability Extraction (`extractor.py`)

The extractor infers an AgentSpec from a Python source file. It operates in three modes:

ast mode — walks the Python AST, matches function calls and attribute access patterns (e.g., requests.get(...) → webSearch, subprocess.run(...) → codeExec, smtplib.SMTP(...) → sendEmail), and applies filename heuristics as a secondary signal. Fully offline; no credentials required.
llm mode — sends the source file to Gemini 2.0 Flash with a structured prompt requesting a JSON AgentSpec. Produces richer semantic inference (catches higher-level patterns that AST walks miss), but requires a GEMINI_API_KEY in .env.
both mode — runs AST extraction first, passes the result as a structured prior into the LLM prompt, and merges the outputs. This is the most accurate mode because the LLM receives concrete AST evidence to confirm or expand.

The extractor also infers pipeline_channels for the IFC layer: a list of (src_label, dst_label) tuples representing data-sharing steps in the agent file.

Verification Engine (`verifier.py` + `hyperedges.py`)

hyperedges.py implements the core algorithms as a direct mirror of the Lean formalisation:

Python function	Lean theorem it mirrors
`cap_closure(edges, base)`	`capClosure` fixed-point iteration (CapHypergraph)
`is_cap_safe(edges, agent)`	`isCapSafe` (CapHypergraph)
`compose_list(agents)`	`compose` + `coalition_nonCompositionality_universal` (CapHypergraph)
`get_fired_edges(edges, agent)`	hyperedge premise check (CapHypergraph)
`is_transitively_safe(channels)`	`isTransitivelySafe` (InfoFlow)
`is_hopwise_safe(channels)`	`isHopwiseSafe` (InfoFlow)
`cedar_team_eval(cap, policies)`	`cedarEval` (CedarBridge)

verifier.py orchestrates the three-phase check: individual safety per agent, composition with hyperedge closure, and Cedar comparison. It produces a structured result dict that is consumed by both the terminal reporter (analyze.py) and the HTML dashboard.

The hyperedge library (HYPEREDGE_LIBRARY in hyperedges.py) is not hardcoded to the demo agents. It is a general-purpose library of capability interaction rules. Running the PoC on any Python agent file will apply the same closure rules to whatever capabilities the extractor infers — the demo is just a concrete entry point into a general system.

Live Lean Bridge (`lean_bridge.py`)

This is what makes the PoC dynamic rather than a static display:

extract_theorems(lean_file) — reads a compiled .lean file with a regex over theorem/lemma declarations, extracting name, statement text (up to 400 characters), and the preceding docstring. This runs against the actual source files in the repo, not a cached snapshot.
get_all_theorems() — indexes all 6 .lean files at startup, building a dict {filename: [theorem_dicts]}.
verify_demo_in_lean() — writes a temporary .lean file containing #eval and #check calls, invokes lake env lean as a subprocess, and matches the Lean kernel's output against expected values. This is a live round-trip: the kernel re-evaluates isCapSafe demoEdges webAgent, isCapSafe demoEdges (compose webAgent execAgent), and cedarEval teamPolicy {...} from scratch on every run.

When the terminal output says ↑ text read directly from CapHypergraph.lean, it means exactly that: the theorem statement was parsed from the file on disk in that run, not retrieved from any database or hardcoded string in the Python source.

Running on Your Own Agents

The --demo flag is a shorthand for two specific files in poc/sample_agents/. The PoC accepts any Python files directly:

Extending the PoC

The current PoC is a solid foundation for more complex versions. Natural next steps include:

New hyperedge rules — adding entries to HYPEREDGE_LIBRARY in hyperedges.py immediately extends the capability interaction model without any change to the verifier or bridge. New rules should ideally be mirrored by a corresponding theorem in CapHypergraph.lean.
New agent types — adding a new Python file to poc/sample_agents/ and running it through the extractor. The system handles coalitions of arbitrary size via compose_list.
Richer IFC labelling — the current IFC layer uses a three-level lattice (low < medium < high). Extending InfoFlow.lean to a four-level or lattice-ordered poset would require updating is_transitively_safe and is_hopwise_safe in hyperedges.py to match.
LLM-based hyperedge inference — rather than a fixed library, a future version could prompt an LLM to propose candidate hyperedges from the agent descriptions, then verify the proposed edges against the Lean closure theorems.
Automated Lean proof generation — lean_bridge.py already writes and evaluates temporary .lean files. A natural extension would generate a fresh #eval check for each new composition at runtime, making the Lean verification truly dynamic rather than limited to the five pre-defined DEMO_CHECKS.
Integration with real orchestration frameworks — extractor.py currently reads standalone Python files. Adding parsers for LangChain agent definitions, AutoGen ConversableAgent configs, or CrewAI task YAML files would make FlowGuard applicable to production multi-agent deployments without any change to the core verification logic.

Why This Matters

Current AI safety tools — guardrails, red-teaming, constitutional AI — almost universally evaluate agents in isolation. FlowGuard demonstrates, with machine-checked mathematical proof, that this is insufficient.

AI governance frameworks that certify individual models are incomplete without compositional guarantees.
Multi-agent orchestration platforms (LangChain, AutoGen, CrewAI) need pipeline-level safety analysis, not just per-agent evaluation.
Production authorization languages (Cedar, OPA, RBAC) have structural blind spots for emergent capabilities — FlowGuard proves this, not merely argues it.
Formal verification of AI systems is tractable today — the proofs in this repository compile, are machine-checked, and can be extended.
The PoC demonstrates production tractability — FlowGuard's verification pipeline runs on real Python agent source files today, infers capability specifications without manual annotation, and cites machine-checked theorems against its findings. This is not a research prototype requiring a PhD to operate.
Dynamic theorem citation bridges formal and operational — the PoC reads theorem statement text live from the compiled .lean files on each run. Every verdict is traceable to a specific line of machine-checked mathematics, not to a hardcoded string in the analysis tool.

Theorem Index

Theorem	File	What it proves
`capClosure_mono`	CapHypergraph	S ⊆ T → capClosure(S) ⊆ capClosure(T)
`capClosure_extensive`	CapHypergraph	S ⊆ capClosure(S) — base caps always survive
`capClosure_is_fixpoint`	CapHypergraph	step(capClosure(S)) = capClosure(S) — convergence
`capClosure_is_least_fixpoint`	CapHypergraph	capClosure is the smallest closed superset
`webAgent_is_safe`	CapHypergraph	Web-search agent alone cannot exfiltrate
`execAgent_is_safe`	CapHypergraph	Code-execution agent alone cannot exfiltrate
`composedTeam_is_unsafe`	CapHypergraph	Composed team: `exfilData` enters closure
`nonCompositionalityCounterexample`	CapHypergraph	Both safe individually ∧ unsafe together (concrete)
`nonCompositionality_exists`	CapHypergraph	∃-form: there exist edges and agents where safety fails to compose
`nonCompositionality_universal`	CapHypergraph	∀-form: for any edges and agents fitting structural premises, composition is unsafe
`coalition_nonCompositionality_universal`	CapHypergraph	∀ agent lists: any dangerous pair poisons the whole coalition
`safeRegion_downward_closed`	CapHypergraph	Smaller base set → at least as safe
`safeRegion_closed_under_intersection`	CapHypergraph	Intersection of two safe base sets is safe (Moore family)
`compose_forbidden_union_justified`	CapHypergraph	Union of forbidden sets is correct composition semantics
`nonInterference_nonCompositional`	InfoFlow	All local hops approved ∧ transitive flow globally unsafe
`localApproval_not_transitive`	InfoFlow	∃-form: local approval fails to compose
`secureFlow_transitive`	InfoFlow	The global security lattice IS transitive — the flaw is in local policy
`insecure_flows_characterised`	InfoFlow	Complete characterisation: exactly 3 downward flows are insecure
`cascaded_declassification_parametric`	InfoFlow	∀ policies approving a downward two-hop chain → compositionally dangerous
`medical_hops_dangerous_for_any_policy`	InfoFlow	Even a maximally restrictive two-hop policy is provably dangerous
`transitive_safety_misses_intermediate`	InfoFlow	∃ pipeline: `isTransitivelySafe = true` yet `isHopwiseSafe = false`
`hopwise_safe_not_implies_transitive_safe`	InfoFlow	∃ pipeline: `isHopwiseSafe = true` yet `isTransitivelySafe = false`
`isTransitivelySafe_only_checks_endpoints`	InfoFlow	∀ good-endpoint pipelines pass transitive check regardless of middle
`hopwise_is_necessary_for_intermediate_safety`	InfoFlow	Only `isHopwiseSafe` catches interior violations
`bindSafe`	AgentProgram	SafeProg is closed under monadic bind
`safeProg_implies_capSafe_empty_edges`	AgentProgram	SafeProg-safe + disjoint contract → `isCapSafe [] = true`
`safeProg_does_not_imply_capSafe`	AgentProgram	SafeProg and isCapSafe are independent checks (separation of concerns)
`validPipeline_iff`	FlowCheck	`ValidPipeline P ↔ capSafe ∧ ifcSafe` — biconditional certificate
`flowguard_sound`	FlowCheck	`ValidPipeline P` → both guarantees hold
`flowguard_complete`	FlowCheck	Both guarantees hold → construct a `ValidPipeline` certificate
`trustedPipeline_valid`	FlowCheck	A concrete pipeline does receive a full certificate
`hopwiseValidPipeline_full_certificate`	FlowCheck	Three-way certificate: cap + hopwise IFC + transitive IFC
`validPipeline_hierarchy`	FlowCheck	`HopwiseValidPipeline → ValidPipeline`, not vice versa
`cedar_is_request_local`	CedarIncompleteness	Cedar's decision is a pure function of the request — type-enforced
`cedar_blind_to_capsets`	CedarIncompleteness	Same-name agents are Cedar-indistinguishable on any request
`cedar_capability_separation`	CedarIncompleteness	FlowGuard gives different verdicts for webAgent vs composed team; Cedar gives identical decisions
`joint_closure_strictly_larger`	CedarIncompleteness	`exfilData` absent from individual closures but present in joint closure
`emergence_requires_joint_inspection`	CedarIncompleteness	Cannot detect capability emergence by inspecting agents one at a time
`closure_union_ge_union_closures`	CedarIncompleteness	`closure(A) ∪ closure(B) ⊆ closure(A ∪ B)` — monotonicity
`cedar_incomplete_universally`	CedarIncompleteness	∀ agents where composition is unsafe, no Cedar policy can detect it
`cedar_nonCompositionality_gap`	CedarBridge	Cedar denies ∧ FlowGuard detects emergence — concrete gap
`cedar_ifc_gap`	CedarBridge	Cedar approves every medical hop ∧ FlowGuard proves transitive flow insecure
`cedar_is_incomplete`	CedarBridge	Cedar is sound but incomplete — both gaps machine-checked simultaneously
`cedarAware_strictly_weaker`	CedarBridge	Cedar approves pipeline; FlowGuard rejects it — FlowGuard strictly stronger

References

Spera, M. (2026). Safety is Non-Compositional: A Formal Framework for Capability-Based AI Systems. arXiv:2603.15973
Costa, et al. (2025). Securing AI Agents with Information-Flow Control. arXiv:2505.23643
Clarkson, M. R., & Schneider, F. B. (2010). Hyperproperties. Journal of Computer Security, 18(6), 1157–1210
Gadgil, S. (2026). LeanLangur — Language and formal verification experiments. github.com/siddhartha-gadgil/LeanLangur
de Moura, L., & Ullrich, S. (2021). The Lean 4 theorem prover and programming language. CADE 2021
Cutler, J. & others. (2024). Cedar: A new language for expressive, fast, safe, and analyzable authorization. Amazon Science

Acknowledgements

This project was made possible by: Emergence AI — Hackathon sponsor
Emergence India Labs — Event organizer and research direction
Indian Institute of Science (IISc), Bangalore — Academic partner, hackathon co-design, tutorials, and mentorship

Links

Hackathon Page · Emergence India Labs · Emergence AI

The question is not whether individual AI agents are safe. The question is whether their composition is.

Name		Name	Last commit message	Last commit date
Latest commit History 48 Commits
.github/workflows		.github/workflows
FlowGuard		FlowGuard
poc		poc
.env.example		.env.example
.gitignore		.gitignore
FlowGuard.lean		FlowGuard.lean
LICENSE		LICENSE
README.md		README.md
lake-manifest.json		lake-manifest.json
lakefile.toml		lakefile.toml
lean-toolchain		lean-toolchain

Folders and files

Latest commit

History

Repository files navigation

FlowGuard

The Problem — Explained Without Lean

Demo

Origin

What This Repository Contains

Architecture

Lean Proof Layers

Python PoC Pipeline

Quick Start

Prerequisites

Step 1 - Clone the repository and fetch the Lean cache

Step 2 - Build the Lean proofs

Step 3 - Set up the Python environment

Step 4 - Run the PoC pipeline

Optional - LLM extraction mode

Layer 1 — Capability Hypergraphs (CapHypergraph.lean)

Fixed-Point Theory

Non-Compositionality

Safe Region Structure (Moore Family)

Layer 2 — Information-Flow Control (InfoFlow.lean)

Core IFC Theorems

Parametric IFC Theorem

Hopwise vs Transitive Safety

Layer 3 — Agent Programs as Free Monads (AgentProgram.lean)

Key Definitions and Theorems

The Free Monad Model

Bridge to Layer 1

Layer 4 — The Unified Certificate (FlowCheck.lean)

Core Certificate Theorems

The Strongest Certificate — HopwiseValidPipeline

Layer 5 — Cedar Concrete Counterexample (CedarBridge.lean)

Layer 6 — Cedar Structural Impossibility (CedarIncompleteness.lean)

The PoC Pipeline — How It Works

Capability Extraction (extractor.py)

Verification Engine (verifier.py + hyperedges.py)

Live Lean Bridge (lean_bridge.py)

Running on Your Own Agents

Extending the PoC

Why This Matters

Theorem Index

References

Acknowledgements

Links

About

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases 1

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Layer 1 — Capability Hypergraphs (`CapHypergraph.lean`)

Layer 2 — Information-Flow Control (`InfoFlow.lean`)

Layer 3 — Agent Programs as Free Monads (`AgentProgram.lean`)

Layer 4 — The Unified Certificate (`FlowCheck.lean`)

The Strongest Certificate — `HopwiseValidPipeline`

Layer 5 — Cedar Concrete Counterexample (`CedarBridge.lean`)

Layer 6 — Cedar Structural Impossibility (`CedarIncompleteness.lean`)

Capability Extraction (`extractor.py`)

Verification Engine (`verifier.py` + `hyperedges.py`)

Live Lean Bridge (`lean_bridge.py`)

Packages
