Wokwi-Chip-Analog-Plot3 (depreciated)

The capabilities of this chip (and more) are now part of the new Scope chip, therefore this repository is now marked as archived and read-only.

Wokwi-Chip-Scope

---

Description

Plot up to 3 Analog Signals.

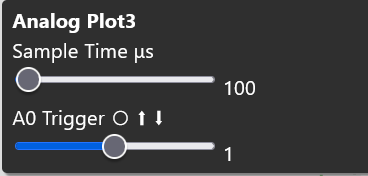

• Plotter Sample Time μs range is 50-10000 µs (default 100 µs).
• Width of plot is 250 samples.
• A0 Trigger modes are Off (0) Rising (default) ⬆ and Falling ⬇
• Displays peak voltsVmax, and minimum volts Vmin
• Displays Sample Time us and Capture Time ms

Name	Description
A0	Input configured as ANALOG, also the trigger pin.
A1	Input configured as ANALOG.
A2	Input configured as ANALOG.

Usage

To use this chip in your project, include it as a dependency in your diagram.json file:

  "dependencies": {
    "chip-analog-plot3": "github:Dlloydev/Wokwi-Chip-Plot3@1.0.2"
  }

Then, add the chip to your circuit by adding a chip-analog-plot3 item to the parts section of diagram.json:

  "parts": {
    ...,
    { "type": "chip-analog-plot3", "id": "chip-analog-plot3-1" }
  },

The actual source code for the chip lives in src/main.c, and the pins are described in chip.json.

Example

Plot Analog Signals Example

License

This project is licensed under the MIT license. See the LICENSE file for more details.
