[G2M] POIMap clusters #91

geoerika · 2021-09-22T23:03:08Z

Cluster implementation:

Users have the choice to select between cluster or icon mode
When cluster mode is used, cluster layer will be replaced with icon layer when, at any given zoom, cluster calculations don't return any cluster node for the POIs that are displayed in the current viewport.

Storybook: https://60f06c1c5a1772003b824d76-dbmgbrqtav.chromatic.com/
Logic for state use: https://www.figma.com/file/g2ww5nK6pazEWRTlmPKXXV/POIMap---cluster-logic

Recording:

Screen.Recording.2021-09-28.at.9.27.59.AM.mov

…setLayer in it from shared/utils

…lusterLayerData

… we see or not clusters in the current viewport

…luster to state and use it to change map layers and view

…erclusterRadius from constants and shared/utils

…tate; refactor useEffect for showClusters state; add onViewStateChange to get zoom; refactor onInteractionStateChange

…add switch for Show Clusters; adjust mapLayers to the new state; add conditions for switch elements

… to calculate clusters

…onViewStateChange; move setLayerVisibleData to onAfterRender; fix useEffect fro clusterZoom

woozyking

Looks good, minor suggestions

woozyking · 2021-09-28T13:48:56Z

src/components/poi-map/index.js

+    if (mapLayers.includes('POICluster')) {
+      setClusterClick(true)
+    } else {
+      setClusterClick(false)
+    }


perhaps

Suggested change

if (mapLayers.includes('POICluster')) {

setClusterClick(true)

} else {

setClusterClick(false)

}

setClusterClick(mapLayers.includes('POICluster'))

woozyking · 2021-09-28T13:51:21Z

src/components/layers/poi-cluster.js

      const index = new Supercluster({
        maxZoom: props.superclusterZoom,
-        radius: props.getSuperclusterRadius(this.context.viewport.zoom, props.sizeScale),
+        radius: props.getSuperclusterRadius({ zoom: this.context.viewport.zoom }),


```suggestion

radius: props.getSuperclusterRadius(this.context.viewport),

kc-leung

After I get zoom in by clicking a POI and I toggle the show cluster or show radius it zooms me back to its map original view. Is this how it supposed to behave?

Screen.Recording.2021-09-28.at.10.18.27.AM.mov

geoerika · 2021-09-28T16:21:01Z

After I get zoom in by clicking a POI and I toggle the show cluster or show radius it zooms me back to its map original view. Is this how it supposed to behave?

Yes, the integration with POIManage will use the onClick event that will select an activePOI with the result of selecting that activePOI as the only POI on the map, so this is not seen in POIManage. Here is how it works:

Screen.Recording.2021-09-28.at.12.19.24.PM.mov

…state in useLayoutEffect; simplify conditions for switch rendering

… useResizeObserver

…k; reset clusterClick at the end of useLayoutEffect"

woozyking

approved with some minor observations

woozyking · 2021-10-01T19:35:18Z

src/components/poi-map/utils.js

+ */
+const setLayer = ({ layer, props, visible }) =>
+  layer === 'POICluster' ?
+    new eqMapLayers[layer]({ ...props, visible }) :


why does the POICluster type layer require new to instantiate?

Cluster layer is a class component - I am pretty sure you asked that before, like a year ago LOL. When I have time will try change it into function.
Source: https://github.com/visgl/deck.gl/blob/8.5-release/examples/website/icon/icon-cluster-layer.js

woozyking · 2021-10-01T19:37:19Z

src/components/poi-map/utils.js

+ */
+export const isClusterZoomLevel = ({ layerVisibleData, viewportBBOX, zoom }) => {
+  const visiblePOIs = layerVisibleData.reduce((agg, elem) => {
+    return elem.objects ? [...agg, ...elem.objects] : [...agg, elem.object]


would you mean

return Array.isArray(elem.objects) ? [...agg, ...elem.objects] : [...agg, elem.object]

No need, as 'objects' key doesn't exist when we have just one element in Cluster layer. It only exists at all when we have a cluster of locations.
So, this is how an icon with number one looks like in layerVisibleData:

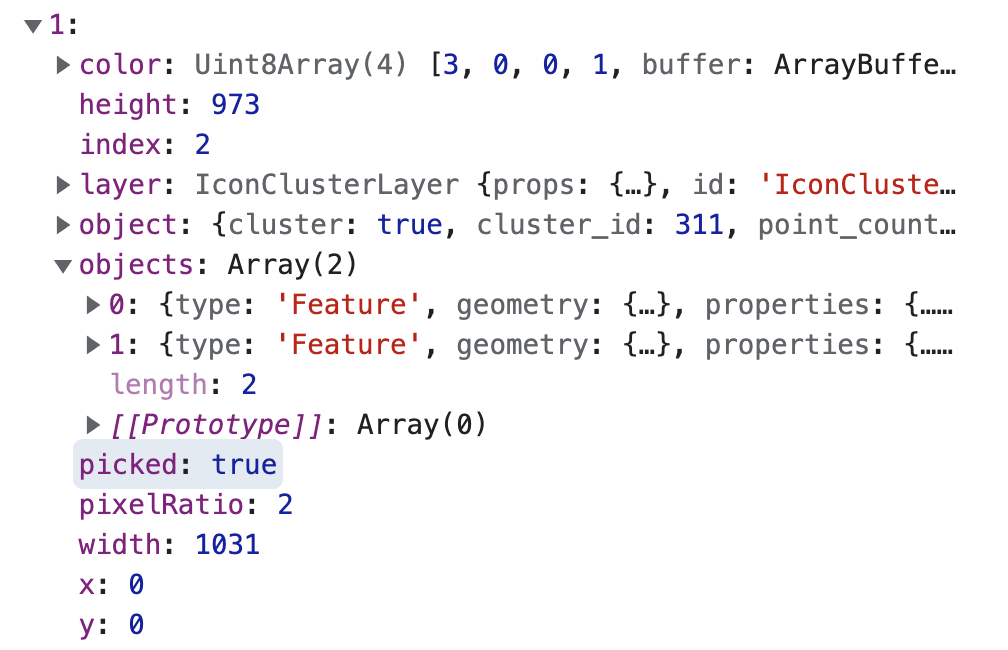

This is how a cluster with several locations looks like:

woozyking · 2021-10-01T19:38:03Z

src/components/poi-map/utils.js

+    return elem.objects ? [...agg, ...elem.objects] : [...agg, elem.object]
+  }, [])
+
+  if (visiblePOIs?.length) {


with a reduce operation like ^ visiblePOIs should be guaranteed as an Array, thus the optional chain should be unnecessary

… there was a delay in the POICluster of calc zoom and we had cluster icons changing quick between 2 zooms; set transitionDuration to 2 sec; remove optional chain for visiblePOI in isClusterZoomLevel
