NV14: Deadzone option

[pfeerick]

Summary of changes:

• adds deadzone option from open-flysky/Flysky-OpenTX-Test-Branch to radio firmware
• teaches Companion about it enough to not nuke the radio setting

Currently, untested. Is now upgraded to status of "deadzone works, but monkey implementing settings storage screwed up". Weekend problem.

Also, radio hardware option would probably be better as a Choice rather than NumberEdit since it is limited to 7 options. However, it should be sufficient to see if this is the resolution.

May resolve #1756

[Ktr128]

I compiled edgetx with deadzone.
Deadzone works great!!! )) Didn't notice any problems.

But there are problems with saving the settings.

On reboot, the settings are lost:

• voice language spontaneously set to Czech;
• switches SG to toggle;
• switches SH to none.

[pfeerick]

Well, I can update "Currently, untested. " to "Tested, but settings borked". 🤪 Thanks for the feedback... it's probably in how I modified the yaml struct to save the setting... I was honestly surprised it let me just add add it without spitting the dummy... so have to play with that tomorrow or Sunday.

[Ktr128]

I agree with you, you can add that it was tested and bugs were found while saving the settings.
Compiled with both nightly build and v2.7.0-rc1...
I tried to help you, look at the YAML struct, but I didn’t find anything wrong there.
But this is not surprising, because I'm a "great" programmer, only monkeys from the zoo are taller than me)))))))

[Ktr128]

Found two suspicious things in radio/src/targets/nv14/CMakeLists.txt:

• 3: option(STICKS_DEAD_ZONE "Enable sticks dead zone" YES)
  Perhaps it is necessary to write ON instead of YES?

• three lines of code
  if(STICKS_DEAD_ZONE)
  add_definitions(-DSTICK_DEAD_ZONE)
  endif()
  repeated in the file 2 times.

I tried to change it, but the bug didn't go away...

[Ktr128]

Is there a need to check #1777 on NV14 now?

[raphaelcoeffic]

Is there a need to check #1777 on NV14 now?

It should work now with the latest changes. But I think we should avoid adding the extra byte if we can avoid it: there are some padding bits (implicit) at the end of the structure.

[pfeerick]

@Ktr128 I'm off to bed now, but I'm hoping the next build is looking more like final state if you want to give it a spin...

[Ktr128]

pfeerick goodnight!
When the need arises to test, I will be happy to help you.

[pfeerick]

@raphaelcoeffic I think this raises a couple of points to discuss...

• Was this the right way to settle down the tests?
• Is setting a small deadzone (value 2, so 4) by default when deadzone feature enabled how we want it?

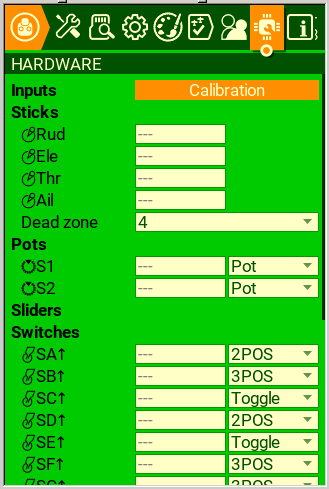

• Placement of the option - I opted to place it directly under the stick naming options since it was stick related, but I am wondering if it should be moved down next to ADC filter... (and it's now a Choice BTW, rather than NumberEdit, since it's a limited list of options)?


Another thought, if it stays where it is... full or half width?

[Ktr128]

If the user's point of view is appropriate at this stage...
I quickly found the Deadzone location, despite expecting it to be in an old location that I knew about earlier. Therefore, from my point of view, you can leave the current one.
From the point of view of the beauty of the interface, I think half-width is better.
P.S. The main thing is that the dead zone is alive again! ))

[pfeerick]

If the user's point of view is appropriate at this stage...

IMO it's the most important view! 😄 You have to use it, after all... if the option being there was quickly found, sounds like it is in the right place. And I'm more inclined towards half-width also... seems consistent and it's not like the width is needed.

[Ktr128]

Compiled the firmware with the latest release of the Dead Zone.
Everything works! 👍

I suggest renaming the pull request "Live Zone"! 😄

[elecpower]

@pfeerick would you like me to finish the Companion side (Hardware) for you?

[pfeerick]

Oops... Nearly forgot that... Yes please! But please hold off until I check in with Raphael on status of PR incase I need to change radio side...

[pfeerick]

@elecpower All good... go for it... it's staying as it is.

[elecpower]

@elecpower All good... go for it... it's staying as it is.

Try this out and advise if needs tweaking

[pfeerick]

No tweaking necessary... reading, changing and writing new value works perfectly... thanks! :)

[SlipstreamFPV]

Can this be added for all radios?
