Rotary encoder additional invert options for B&W screens

[breadoven]

Adds 2 additional rotary encoder invert options for B&W screens changing behaviour of menu navigation including popup menus. Not used for colour screens due to different navigation method.

Rotary Invert setting changed from Check box to Combo with OFF, ON, V-N, V-A where:

ON = vertical and horizontal inverted
V-N = vertical movement inverted (Normal), horizontal row movement behaviour unchanged (always cycles through all settings in rows)
V-A = vertical movement inverted (Alternative), horizontal row movement behaviour changed so left scroll moves selection directly down LH settings without cycling through multiple settings in rows. Movement along rows of settings only happens when right scrolling, moving up a row when scrolling beyond last setting in row.

LUA API function added providing rotary encoder inverted status.

Sim tested OK on X9D+ 2019, ZORRO, TX16S, TPRO, T18, TX12, T12. QX7 ACCESS, X10 EXPRESS. Fully tested on ZORRO radio.

[pfeerick]

This looks really good! Looking forward to trying it out :)

I guess for the moment you are relying on 1 & 0 being true and false in order for the change to the Combo box in companion still being valid for colorlcd for the supported options? I'll leave the Companion changes up to @elecpower to review. I wonder if we may need to

Can you revert the changes to radio/src/opentx.cpp since there are no actual PR related changes to the file.

Any attempt to introduce this to colorlcd will probably have to wait until later in the 2.8 cycle as I would think it would changes to libopenui, and no changes are to that will be allowed until the LVGL re-write has finally been merged into the main dev branch. Plus once that is in place, some of the new capabilities may help with things like this.

[breadoven]

I guess for the moment you are relying on 1 & 0 being true and false in order for the change to the Combo box in companion still being valid for colorlcd for the supported options? I'll leave the Companion changes up to @elecpower to review. I wonder if we may need to

Yes keeping OFF and ON as the first 2 options keeps it aligned with the colour LCD. The only drawback to this is that selecting the 2 vertical options is a bit tricky because the rotary encoder reverses when you select ON via right scroll so you have to left scroll to get to the vertical options otherwise you just go back to OFF. Confusing until you work out what it's doing but since this is a set and forget type of setting it only needs doing once.

The other thing is this change doesn't allow the horizontal movement to be reversed independently. Personally can't see much use for this given all the rotary encoders are aligned essentially vertically and you just end up with counterintuitive movements. Would require another BIT if more settings were to be added.

was just trying to clear change request state

[breadoven]

Is this likely to get merged any time soon ? Gets a little tedious having to resolve conflicts and other changes to keep it current.

[raphaelcoeffic]

Is this likely to get merged any time soon ? Gets a little tedious having to resolve conflicts and other changes to keep it current.

You should rebase instead of merging main into your branch. It makes the PR totally unreviewable, as it contains lots of unrelated changes.

[raphaelcoeffic]

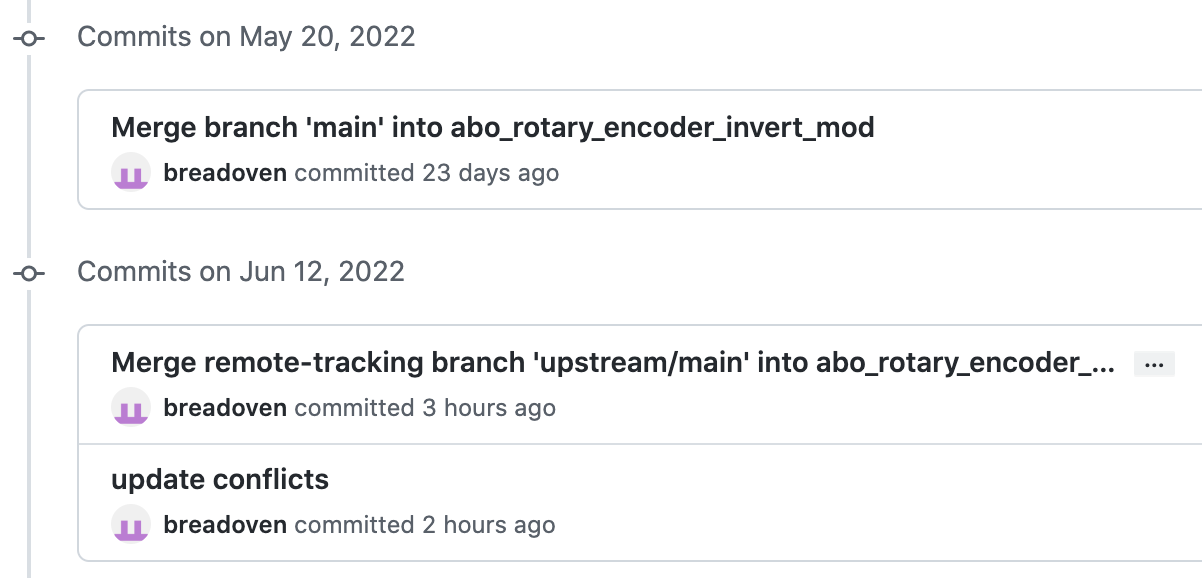

These should not be here:

[raphaelcoeffic]

@breadoven i think you’re taking the wrong route. You should read about how it rebase ;-) let me know if you need some help.

[breadoven]

Probably is the wrong way but I've never had a problem merging main/master in before and in fact the first merge caused no issues. However, nothing worked today, couldn't build due to cmake errors, references to missing files etc, etc, and various other problems that didn't exist before. Don't have time to sort this out now with the repetitive conflicts to fix, so some other time.

[raphaelcoeffic]

@breadoven I just did it for you. Now please verify that everything is alright. DO NOT MERGE while pulling the changes, use a force pull (basically force-reset your local branch on the remote one after fetching the remote). Otherwise you will break everything.

[breadoven]

Well I managed to break it probably because I use Github desktop and I'm not sure it does force pull + I'm no Github expert if that isn't already obvious. Having said that I don't know what Github did with that upstream/main merge because fundamentally as I understand it merging isn't much different to rebasing as far as changes are concerned.

However, I have managed to use the commits you made to bring the changes into a new branch which looks OK except I can't build the firmware to check it because of problems with thirdparty stuff. One relates to:

CMake Error at radio/src/targets/common/arm/stm32/f4/CMakeLists.txt:56 (add_library):
  Cannot find source file:

    thirdparty/FreeRTOS/list.c

This is using a clean Build folder set up with:
cmake -DPCB=X7 -DPCBREV=ZORRO -DDEFAULT_MODE=2 -DGVARS=YES -DPPM_UNIT=PERCENT_PREC1 -DHELI=NO -DINTERNAL_GPS=NO -DCMAKE_BUILD_TYPE=Release ../

Built using:
make -jnproc firmware

The radio/src/thirdparty/FreeRTOS folder is empty.

Also if I create a new branch or switch branches I keep getting changes related to "libopenui" appearing even though nothing was changed. This wasn't happening before. Do these third party libraries need to be added somewhere as separate repositories or accounted for in some way ?

If I can get the new branch to work then it might be easier to bin this PR and open new replacement.

[raphaelcoeffic]

@breadoven merging is a lot different from rebasing!

In your particular case it makes the following differences:

• merge newer main into your branch: at once, the pull request contains lots of changes not related to your PR (totally impossible to review then).
• rebase on top of main: only your changes are seen, and you are forced to port the original code the new main by resolving conflicts as it gets rebased (on a commit-by-commit base). It is then very easy to review as only the feature specific changes are seen.

Also, and believe me on this one (+20 years experience), lots of things go wrong / lost in this kind of merges and subsequent fix commits. Most of the time some changes get lost, or land doubled somewhere in the code.
