monitor-ui

Three-level React UI for monitor-api: a compact pill that shows live metrics, an inspector panel with detailed sections, and a full dashboard with charts and tables. Each level is independently usable or wired together into a drill-down flow.

MonitorPill  →  MonitorInspector  →  Dashboard
   (pill)          (inspector)        (full view)

Installation

npm install monitor-ui monitor-api

Peer dependencies (install if not already present):

npm install react react-dom \
  @gnome-ui/react @gnome-ui/core @gnome-ui/hooks \
  @gnome-ui/charts @gnome-ui/layout

Usage

1. MonitorPill — compact live indicator

A small interactive button that shows a live metric at a glance. Click it to open the inspector.

import { useEffect, useMemo, useState } from 'react'
import { createMonitor } from 'monitor-api'
import { MonitorPill, MonitorInspector } from 'monitor-ui'

export function App() {
  const monitor = useMemo(() => createMonitor({ maxHistory: 120 }), [])
  const [open, setOpen] = useState(false)

  useEffect(() => {
    monitor.start()
    return () => monitor.destroy()
  }, [monitor])

  return (
    <>
      <MonitorPill monitor={monitor} scope="performance" onClick={() => setOpen(true)} />
      {open && <MonitorInspector monitor={monitor} />}
    </>
  )
}

scope values: "performance" (default) · "network" · "events"

2. MonitorInspector — detailed panel

A panel with collapsible sections: performance, Web Vitals, network, React internals, and custom events.

<MonitorInspector monitor={monitor} />

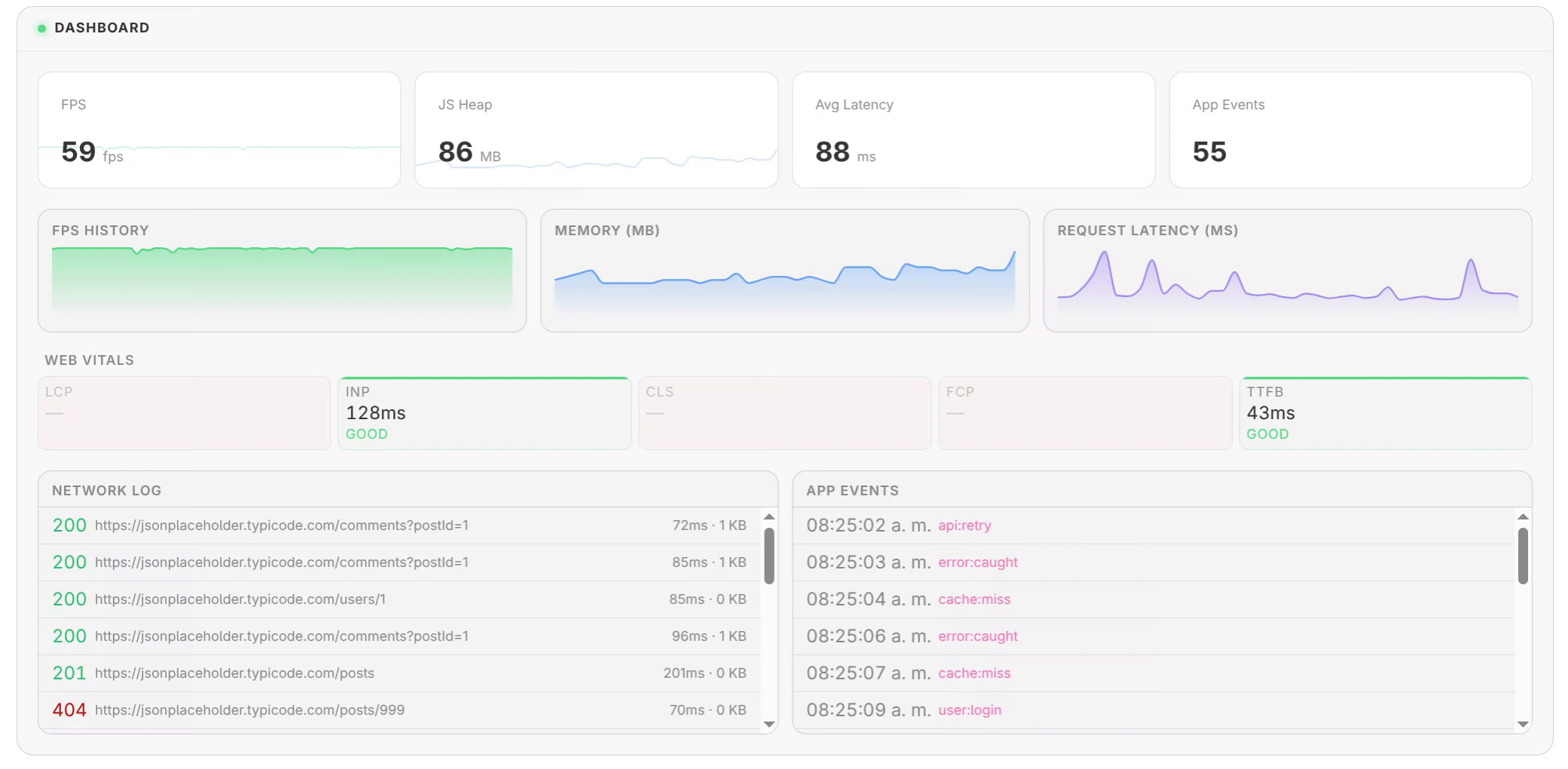

3. Dashboard — full view

A full-page dashboard with KPI cards, time-series charts, a network log, and an events log.

<Dashboard
  monitor={monitor}
  title="Performance Dashboard"
  onBack={() => setView('inspector')}
/>

Complete drill-down example

import { useEffect, useMemo, useState } from 'react'
import { createMonitor } from 'monitor-api'
import { MonitorPill, MonitorInspector, Dashboard } from 'monitor-ui'

type View = 'pill' | 'inspector' | 'dashboard'

export function MonitorFlow() {
  const monitor = useMemo(() => createMonitor({ maxHistory: 120 }), [])
  const [view, setView] = useState<View>('pill')

  useEffect(() => {
    monitor.start()
    return () => monitor.destroy()
  }, [monitor])

  if (view === 'dashboard') {
    return <Dashboard monitor={monitor} onBack={() => setView('inspector')} />
  }

  if (view === 'inspector') {
    return (
      <>
        <button type="button" onClick={() => setView('pill')}>Close</button>
        <button type="button" onClick={() => setView('dashboard')}>Dashboard</button>
        <MonitorInspector monitor={monitor} />
      </>
    )
  }

  return <MonitorPill monitor={monitor} onClick={() => setView('inspector')} />
}

API

MonitorPill

Prop	Type	Default	Description
monitor	Monitor	—	Monitor instance from monitor-api
scope	'performance' | 'network' | 'events'	'performance'	Which metric to display
label	string	'Open monitor'	Accessible label
...button	ButtonHTMLAttributes	—	All native button props

MonitorInspector

Prop	Type	Default	Description
monitor	Monitor	—	Monitor instance
...div	HTMLAttributes<HTMLDivElement> except title	—	Native div props

Dashboard

Prop	Type	Default	Description
monitor	Monitor	—	Monitor instance
title	string	'Dashboard'	Dashboard heading
onBack	() => void	—	Shows a Back button when provided

Utility exports

import {
  fpsColor,       // (fps: number) => string — CSS color for FPS value
  latencyColor,   // (ms: number) => string — CSS color for latency value
  memoryColor,    // (ratio: number) => string — CSS color for memory ratio
  formatBytes,    // (bytes: number) => string — e.g. "42.1 MB"
  formatMemory,   // (bytes: number) => string — heap-aware formatting
  formatTime,     // (ms: number) => string — e.g. "1.2s" or "340ms"
  toChartData,    // (history: Sample[]) => ChartData
} from 'monitor-ui'

License

MIT © pilmee
