🔬 goscope

CLI tool for Go backend codebase intelligence — analyze microservices, generate dependency graphs, detect tech stack, and produce an interactive HTML report.

Built in pure Go with zero external dependencies.

---

⚡ Generate Report in 10 Seconds

cd goscope
go run ./cmd/goscope ~/backend --open

Where ~/backend is the parent folder where all your backend service repositories are cloned:

~/backend/
├── api-gateway/      ← cloned repo (.git inside)
├── user-service/     ← cloned repo
├── payment-service/  ← cloned repo
├── proto/            ← shared proto definitions
├── auth-service/     ← cloned repo
└── docker-compose.yml

Services are auto-detected up to 3 levels deep, so layouts like src/<service>/ or services/<service>/ also work. Non-Go services (Python, Java, PHP, etc.) are detected and shown in the report with language badges.

---

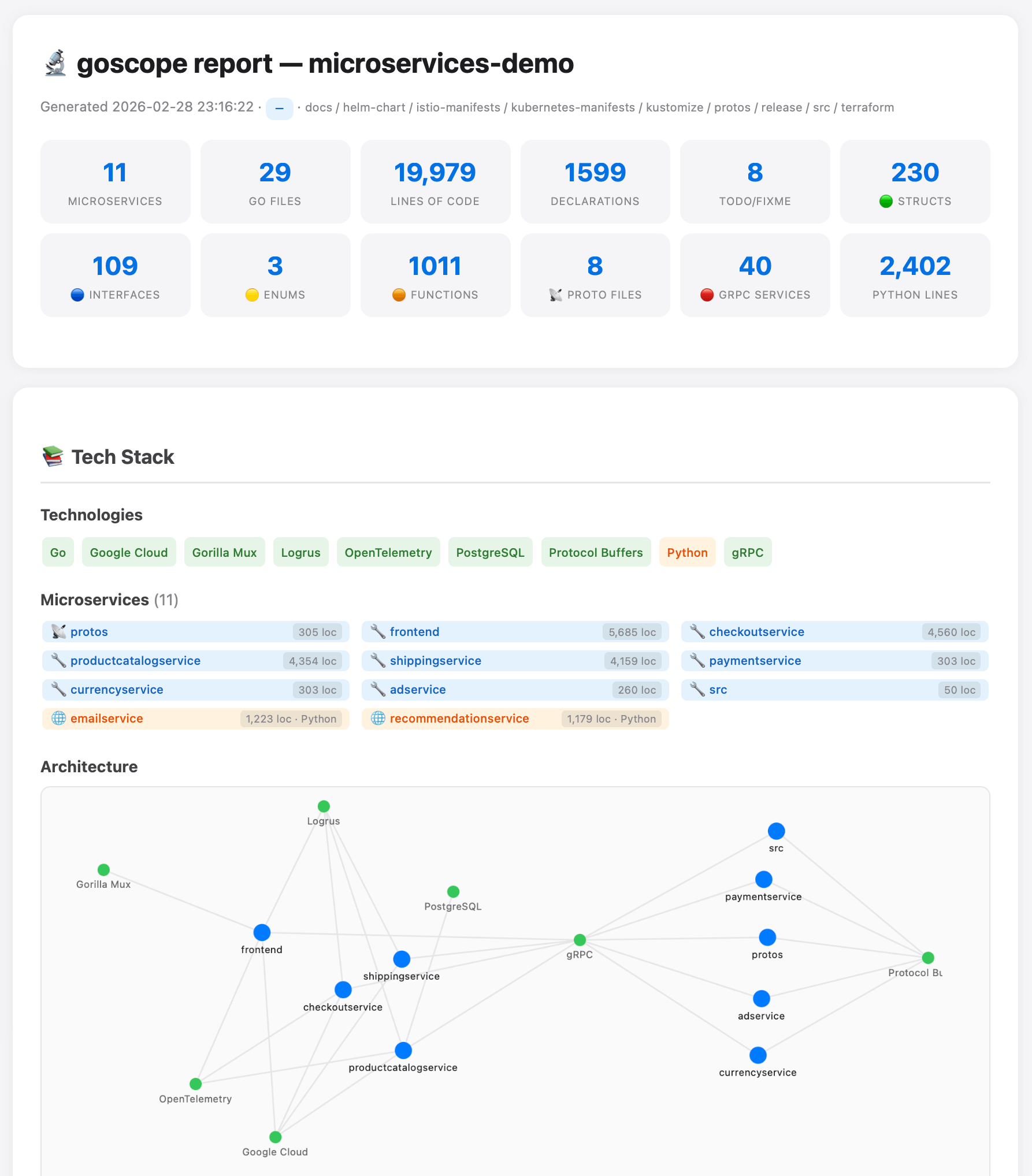

What the Report Contains

1. 📊 Summary — microservice count, Go files, lines of code, declarations by type (structs, interfaces, enums, functions), proto files, gRPC services. Non-Go services detected in the repo tree get line count cards per language (Python, Java, etc.)

2. 👥 Team Contribution Map — developer activity with files modified, commit counts, first/last change dates, and top-3 microservices per author. Git history is collected from each cloned repo's .git independently

3. 📚 Tech Stack — three subsections:

   • Technologies — auto-detected from Go imports (pgx → PostgreSQL, sarama → Kafka, etc.), go.mod dependencies, docker-compose.yml images/ports, and Makefile hints. Non-Go languages shown with orange badges
   • Microservices — clickable grid of all detected microservices, including non-Go services with language badges
   • Architecture — interactive force-directed graph showing how microservices connect to technologies

4. 🔗 Microservices Penetration — which microservice is imported by the most other microservices, plus TODO/FIXME density per microservice

5. 🔥 Hot Zones — top 10 most interconnected files by PageRank dependency score, with clickable microservice badges

6. 📏 Longest Functions — ranked list of functions by line count, with clickable microservice badges

7. 🔧 Microservices — detailed breakdown of each microservice (starting with API Gateway, then Proto, then by size):

   • Complete file inventory sorted by lines of code
   • Declaration statistics (structs, interfaces, enums, funcs, gRPC services/RPCs)
   • Interactive force-directed dependency graph per microservice (includes big functions ≥50 lines)

---

🚀 Quick Start

cd goscope

# Build
go build -o goscope ./cmd/goscope

# Analyze a Go backend (point to the parent folder with all repos)
./goscope ~/backend

# See help
./goscope --help

---

🏗️ Build & Install

Option 1: Go Run (Recommended for first try)

go run ./cmd/goscope ~/backend --open

Option 2: Build Binary

go build -o goscope ./cmd/goscope
./goscope ~/backend --open

Option 3: Install System-Wide

go build -o goscope ./cmd/goscope
sudo mv goscope /usr/local/bin/
goscope ~/backend --open

---

⚙️ Configuration

Create .goscope.json in your project root (or run goscope init):

{
  "excludePaths": [".git", "node_modules", "vendor", "dist", "build", ".idea"],
  "maxFilesAnalyze": 50000,
  "gitCommitLimit": 1000,
  "enableCache": false,
  "enableParallel": true,
  "hotspotCount": 15,
  "fileExtensions": ["go", "proto"]
}

---

📁 Project Structure

goscope/
├── go.mod
├── cmd/goscope/
│   └── main.go              # CLI entry point
├── internal/
│   ├── config/
│   │   └── config.go        # Config models + loader
│   ├── scanner/
│   │   └── scanner.go       # Directory walker, microservice detection, tech scanning
│   ├── parser/
│   │   ├── models.go        # ParsedFile, Declaration, GitMetadata
│   │   └── parser.go        # Go + Proto parsers
│   ├── git/
│   │   └── analyzer.go      # Multi-repo batch git log analysis
│   ├── graph/
│   │   ├── graph.go         # Dependency graph + PageRank
│   │   └── util.go          # File helpers
│   └── report/
│       └── report.go        # HTML report generator
└── README.md

---

Requirements

• Go 1.22+ (uses standard library only — no external dependencies)
• git (for repository history analysis)
