Informática II

Laboratorio: Generación de Microservicio

Integrantes

• Anjhelo Giovanny Ramírez Suárez Codigo: 20221099014
• Daniel Ricardo Galván Torres Codigo: 20221099003

This is an example of a simple Entity DSL through python and Jinja2 This project was based on this example

You have to have installed

• Python
• pip
• textX
• Jinja2

To create a new entity, follow the next steps:

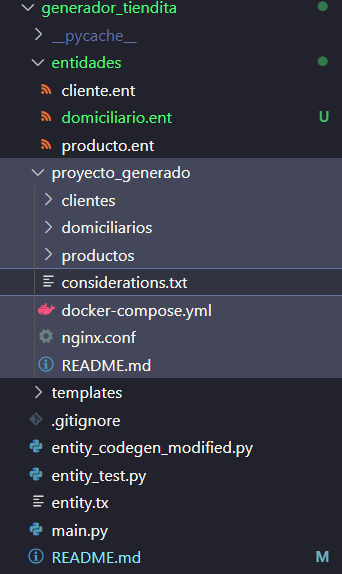

1. Go to entidades folder.
2. Create new file with .ent extension.
3. File must to contain next structure:

   entity [name] {
       [attribute] : [type]
   }


   • Example:

   entity domiciliario {
       nombre : string
       apellido : string
       telefono : integer
       placa : string
   }


4. Save your file.

Run with python main.py

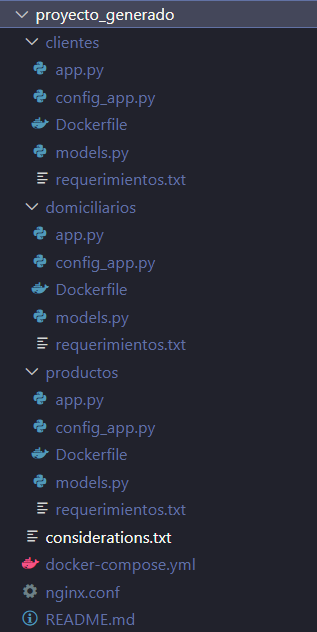

As a result of the script generates a structure into proyecto_generado folder with next files and folders:

1. Main files of project:
   • README.md.
   • nginx.conf
   • docker-compose.yml
   •
2. A folder for every entity in entidades folder with the next files:
   • app.py
   • config_app.py
   • models.py
   • Dockerfile
   • requerimientos.txt
   •
