ForceLAT is an open source project meant to help other people to create and export images of any type of graph thru the use of a custom parser.This was originally meant to help draw finite state machine diagrams so there are more features helping with that.
Clone this repo into your IDE (preferably InteliJ IDEA) and run the build.gradle file then run the project.
Alternatively,if you don't want to build it from source yourself,you can use the executable provided in the releases section.

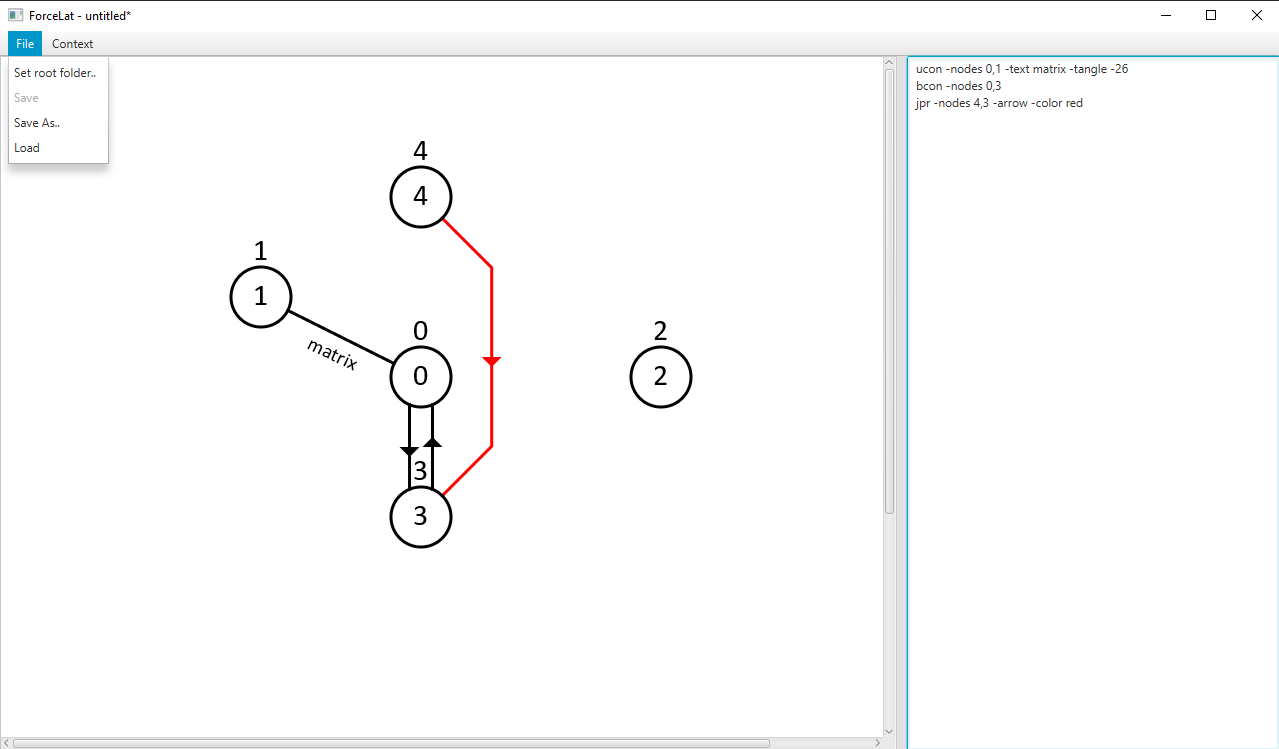

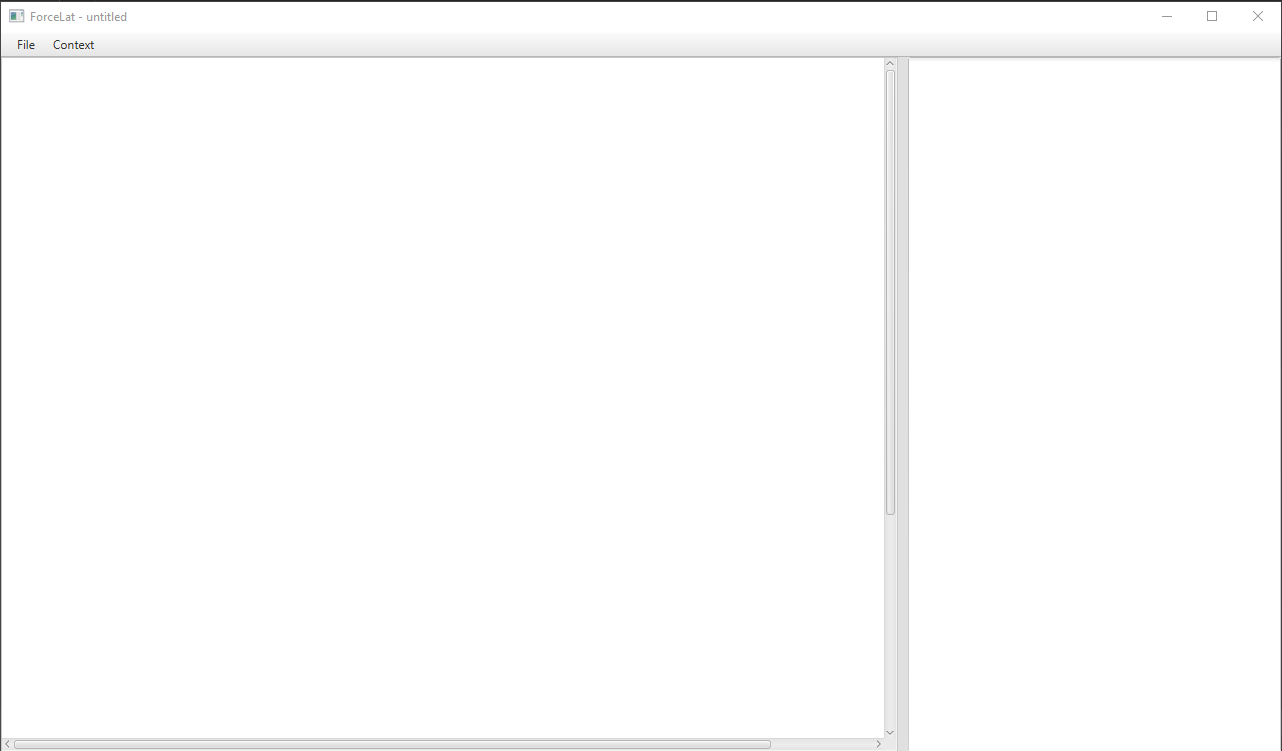

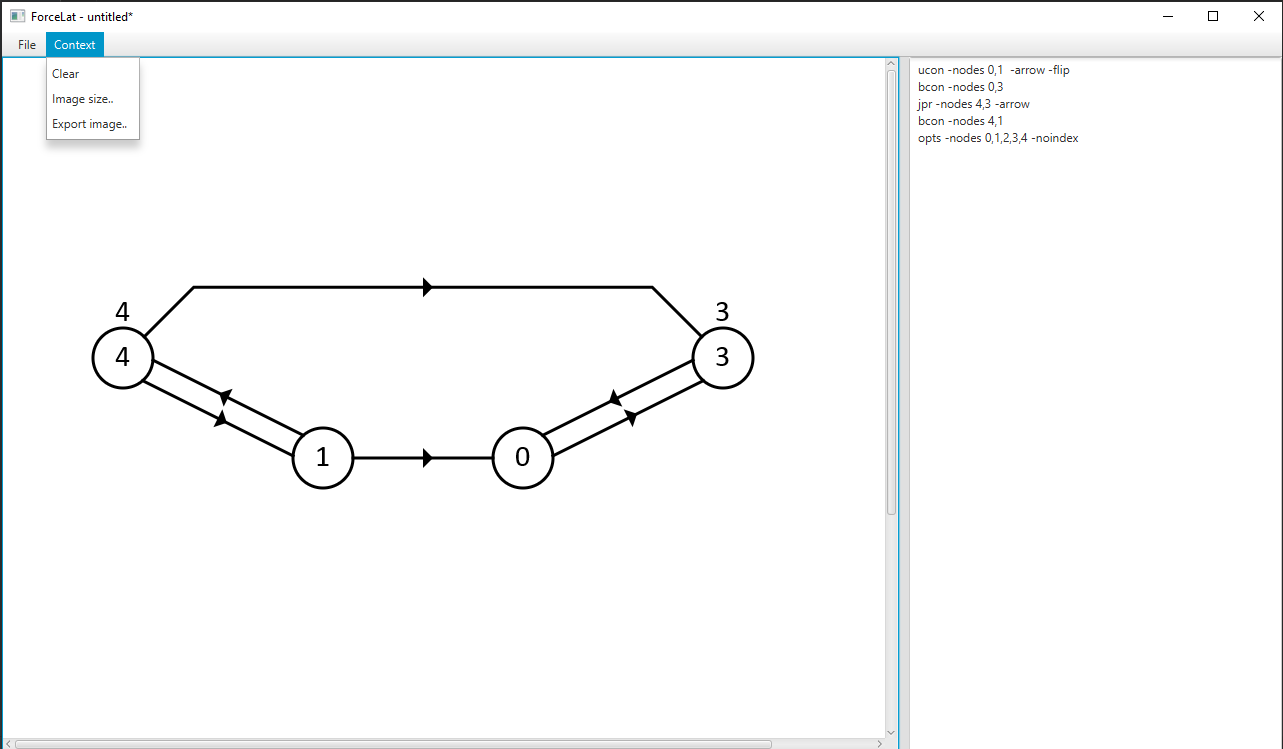

The GUI is mainly divided in 2 parts (the canvas and the command line area) and a common menu options bar at the top.The canvas is situated
at the left and the command line area at the right.
Commands will be parsed and displayed in realtime so you don't have to worry about pushing a "run" button anywhere.
REMARK 1 : commands should be written one per line.
REMARK 2 : the CLI won't show you where there's an error so be aware of argument count and spelling errors.
REMARK 3 : the order in which options are specified does not matter.
- Keyboard/Mouse commands table
| COMMAND | EFFECT |
|---|---|
| CTRL + LMB | Place node at mouse position |
| CTRL + RMB | Delete node at mouse position |
| LMB DRAG | Drag node at mouse position |
| SHIFT + LMB DRAG | Pan inside the canvas |
- Commands & Usage
Description: Adjust the snap factor of a node when dragging it.
Command schema:dragstep <value>
Available options: no specific options
Examples:
1. dragstep 20 <- this will snap the node at every 20px
Description: Assign custom options to a node or a list of nodes. opts can have multiple options chained together separated by spaces.
Command schema:opts -nodes <list of nodes separated by comma> ( -<option name> <option args> )*
Available options:
| CHANGES | OPTION SCHEMA |
|---|---|
| Radius | radius [number] |
| Color | color [hex] |
| Text size | tsize [number] |
| Node ring width | width [number] |
| Fill entire node | fill [no argument!] |
| Hide node text | notext [no argument!] |
| Hide index identifier | noindex [no argument!] |
Examples:
1. opts -nodes 2 -color 00aaffff -noindex
2. opts -nodes 0,3,1,2 -width 2.1 -notext
Description: Assign an alias to a node or a list of nodes (change the text displayed in the node).By default,
each node is aliased using it's index identifier.The number of nodes provided should be equal to the number of aliases to be specified.
Command schema:alias -nodes <list of nodes separated by comma> -text <list of aliases separated by comma>
Available options: no specific options.
Examples:
1. alias -nodes 2 -text myAliasFor2
2. alias -nodes 0,3,2 -text aliasFor0,aliasFor3,aliasFor2
3. alias -nodes 5,3 -text aliasFor5,aliasFor3,aliasForSomethingElse <- Incorrect,too many arguments
Description: Connect the first node specified to the rest of the nodes in the list.ucon can have multiple options chained together separated by spaces.If the text option is
specified,every line created should get a text value.Text values are separated by spaces.
Command schema:ucon -nodes <list of nodes separated by comma> ( -<option name> <option args> )*
Available options:
| CHANGES | OPTION SCHEMA |
|---|---|
| Puts text | text [string] |
| Put arrow | arrow [number] |
| Flip arrow direction | flip [no argument!] |
| Color | color [hex] |
| Text angle | tangle [number degrees] |
| Text size | tsize [number] |
| Flip text about line | tflip [no argument!] |
| Text height | theight [number] |
| Line width | lwidth [number] |
Examples:
1. ucon -nodes 2,1 -lwidth 4 -arrow
2. ucon -nodes 0,3,1,2 -width 2.1 -text textFor03 textFor31 textFor12
3. ucon -nodes 0 -width 2.1 -text textFor0 -tangle 30
Description: Connect the first node in the list to the second,the second to the third, and so on.flow can have multiple options chained together separated by spaces.
Command schema:flow -nodes <list of nodes separated by comma> ( -<option name> <option args> )*
Available options:
| CHANGES | OPTION SCHEMA |
|---|---|
| Puts text | text [string] |
| Put arrow | arrow [number] |
| Color | color [hex] |
| Text angle | tangle [number degrees] |
| Text size | tsize [number] |
| Flip text about line | tflip [no argument!] |
| Text height | theight [number] |
| Line width | lwidth [number] |
Examples:
1. flow -nodes 0,2,4 -theight 10 -text textFor01 textFor24
2. flow -nodes 0,3,1,2 -color 3344ffff
Description: Connect the first node to the second one with 2 directed arrows.bcon can have multiple options chained together separated by spaces.
Command schema:bcon -nodes <node1,node2> ( -<option name> <option args> )*
Available options:
| CHANGES | OPTION SCHEMA |
|---|---|
| Puts text | text [string] |
| Color | color [hex] |
| Text angle | tangle [number degrees] |
| Text size | tsize [number] |
| Text height | theight [number] |
| Line width | lwidth [number] |
Examples:
1. bcon -nodes 0,2 -color 112233ff -text thisIsText
2. bcon -nodes 0,3,1,2 -color 3344ffff
<-INCORRECT,too many nodes specified
1. bcon -nodes 5,3
Description: Connect the first node to the second node with a line that rises from the nodes at an angle.jpr can have multiple options chained together separated by spaces.
Command schema:jpr -nodes <node1,node2> ( -<option name> <option args> )*
Available options:
| CHANGES | OPTION SCHEMA |
|---|---|
| Puts text | text [string] |
| Put arrow | arrow [number] |
| Flip arrow direction | flip [no argument!] |
| Color | color [hex] |
| Line extend factor | extf [number] |
| Rise angle | rangle [number degrees] |
| Text angle | tangle [number degrees] |
| Text size | tsize [number] |
| Flip text about line | tflip [no argument!] |
| Text height | theight [number] |
| Line width | lwidth [number] |
Examples:
1. jpr -nodes 0,2 -rangle 90 -arrow -extf 40
2. jpr -nodes 1,5 -tflip -text thisIsText
Description: Connect a node to itself.self can have multiple options chained together separated by spaces.
Command schema:self -node <node> ( -<option name> <option args> )*
Available options:
| CHANGES | OPTION SCHEMA |
|---|---|
| Puts text | text [string] |
| Color | color [hex] |
| Text angle | tangle [number degrees] |
| Text size | tsize [number] |
| Flip text about line | tflip [no argument!] |
| Text height | theight [number] |
| Angle about node | angle [number degrees] |
| Line width | lwidth [number] |
Examples:
1. self -node 3
2. self -nodes 5 -tangle 30 -text thisIsText
Description: Mark a node as being the starting node of a finite state machine.start can have multiple options chained together separated by spaces.
Command schema:start -node <node> ( -<option name> <option args> )*
Available options:
| CHANGES | OPTION SCHEMA |
|---|---|
| Color | color [hex] |
| Line extend factor | length [number] |
| Angle about node | angle [number degrees] |
| Line width | lwidth [number] |
Examples:
1. start -node 0
2. start -nodes 5 -angle 180 -lwidth 3
Description: Mark a list of nodes as being the final nodes of a finite state machine.
Command schema:final -nodes <list of nodes separated by comma>
Available options: no specific options
Examples:
1. final -node 0
2. final -node 4,2,1
