git-commit-tree

English | 简体中文

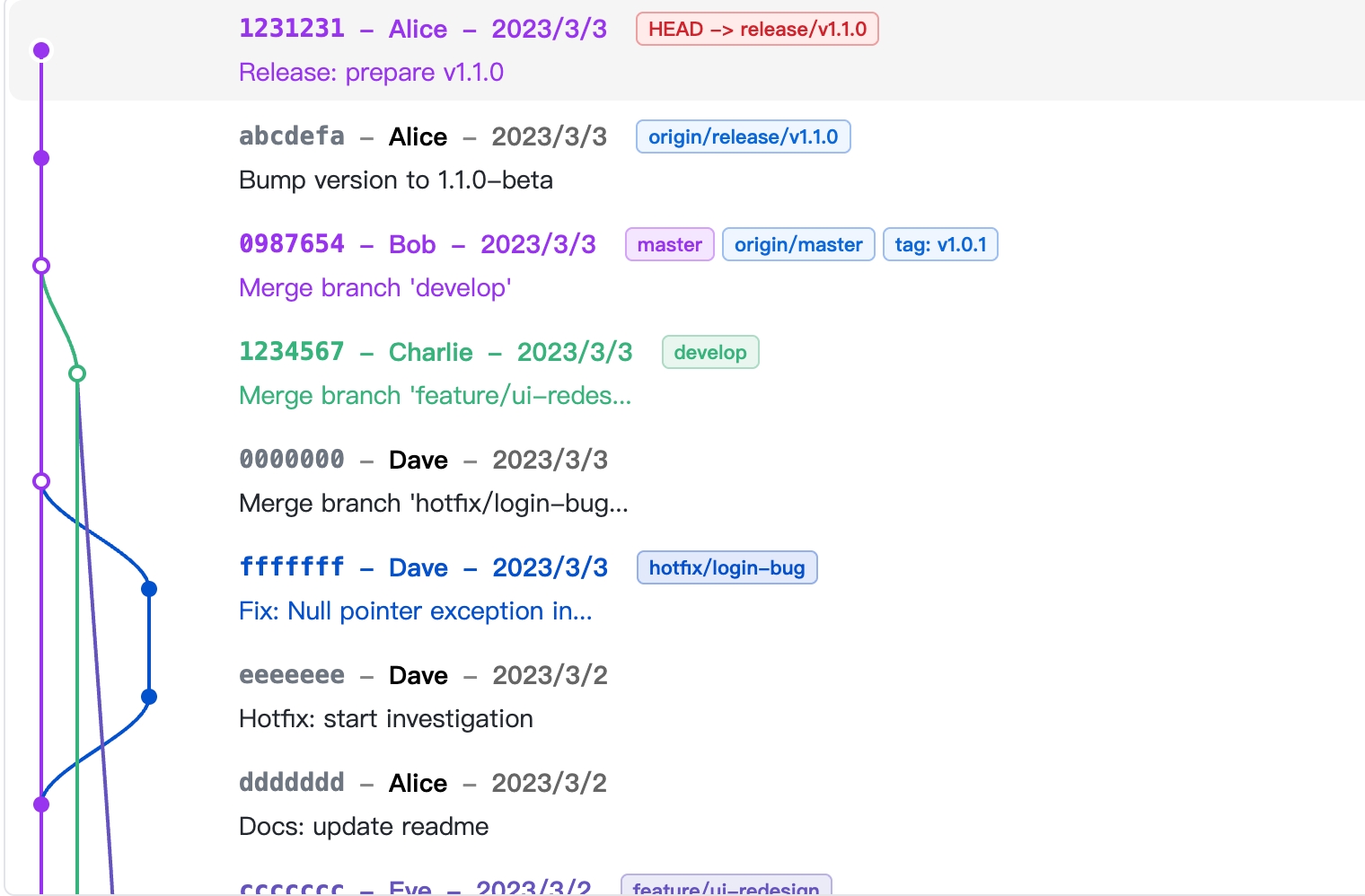

A performant and customizable React component for visualizing git commit history as a graph, similar to GitHub's network graph or SourceTree.

Features

• 🎨 GitHub-like Design: Clean and familiar visual style with branch coloring.
• 🚀 High Performance: Built-in virtual scrolling to handle thousands of commits smoothly.
• 🌲 SVG Rendering: Crisp and scalable graph visualization using SVG.
• 🖱️ Interactive: Hover effects, selection support, and tooltip for long commit messages.
• 📏 Responsive: Auto-calculates layout width and adapts to container size.
• ⚡ Lazy Loading: Supports infinite scrolling / loading more commits on demand.

Installation

npm install @hayrsiane/git-commit-tree

Usage

import React from 'react';
import { GitCommitTree, Commit } from '@hayrsiane/git-commit-tree';

const App = () => {
  const commits: Commit[] = [
    {
      hash: '9b0c2b6',
      parents: ['a1b2c3d'],
      author: {
        name: 'Alice',
        email: 'alice@example.com',
        timestamp: 1672531200,
      },
      message: 'Fix bug in parser',
      refs: ['HEAD', 'master'],
    },
    {
      hash: 'a1b2c3d',
      parents: [],
      author: {
        name: 'Bob',
        email: 'bob@example.com',
        timestamp: 1672444800,
      },
      message: 'Initial commit',
      refs: ['tag: v1.0.0'],
    },
  ];

  const handleLoadMore = async () => {
    // Fetch more commits...
    console.log('Loading more...');
  };

  return (
    <div style={{ height: '600px', border: '1px solid #ccc' }}>
      <GitCommitTree
        commits={commits}
        height="100%" // Container height for virtualization
        rowHeight={60} // Optional: custom row height
        onLoadMore={handleLoadMore}
        hasMore={false}
      />
    </div>
  );
};

export default App;

Props

Prop	Type	Default	Description
commits	Commit[]	Required	Array of commit objects to render.
width	number | string	'100%'	Width of the container.
height	number | string	500	Height of the container (crucial for virtual scrolling).
rowHeight	number	60	Height of each commit row in pixels.
graphWidth	number	undefined	Manually set width of the graph area. If not provided, it's calculated automatically.
onLoadMore	() => Promise<void> | void	undefined	Callback function triggered when scrolling near the bottom.
hasMore	boolean	false	Whether there are more commits to load.
loading	boolean	false	Loading state indicator.
threshold	number	200	Distance in pixels from bottom to trigger onLoadMore.

Types

Commit

interface Commit {
  hash: string;
  parents: string[];
  author: {
    name: string;
    email: string;
    timestamp: number; // Unix timestamp in seconds or milliseconds
  };
  message: string;
  refs?: string[]; // e.g., ['HEAD', 'master', 'tag: v1.0.0']
}

License

MIT
