EchoPath Web + Backend (Local Run)

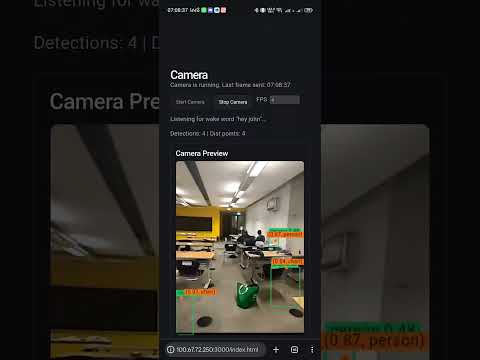

Demo Video: https://youtube.com/shorts/SjxQXo5ecP4

Prerequisites

• Install Node.js
• Install Poetry

Setup and run

1. If you did not clone with submodules, initialize the backend submodule:

   git submodule update --init --recursive

2. In the repository root, install frontend dependencies and build:

   npm i
   npm run build

3. Copy the generated dist/ folder into backend/dist/.

   cp -r dist backend/dist

4. Go into the backend folder and install backend dependencies:

   cd backend
   poetry install

5. Activate the virtual environment:

   source .venv/bin/activate

6. Start the backend development server:

   poe dev

The webapp will be hosted at http://localhost:3000/index.html.

Important note

The environment description feature requires an OpenAI-compatible backend server running a multimodal model.

Inspiration

EchoPath was built to address a gap in accessibility tools: many systems assume visual interaction first. This project treats audio as the primary interface for blind and low-vision users.

What it does

EchoPath is a real-time voice-and-vision navigation assistant that:

• Streams live camera frames to the backend for perception.
• Listens for the wake phrase “hey john.”
• Captures a spoken command after wake-word detection.
• Sends command + current frame to the backend (query_llm).
• Speaks concise, non-visual responses from the backend (query_llm_response).
• Plays spatial audio cues for nearby obstacles using 3D position data.

How it is built

• Frontend: React + TypeScript + Capacitor camera integration.
• Transport: WebSocket for continuous frame and message streaming.
• Voice loop: Browser speech recognition + speech synthesis.
• Spatial audio: Custom Web Audio directional cue engine.
• Backend: FastAPI orchestration, Hugging Face Transformers (depth), Ultralytics YOLO (detection), and llama.cpp exposed via an OpenAI-compatible API.
• Message contracts: image, query_llm, query_llm_response.

Challenges

• Stable wake-word behavior in continuous recognition.
• Avoiding stale transcript and repeated-command state bugs.
• Recovery and retries after speech/WebSocket failures.
• Keeping responses actionable without visual-only language.
• Meeting real-time timing constraints across capture, network, inference, and TTS.

Accomplishments

• End-to-end wake-word → command → backend → spoken-response loop.
• Live camera streaming integrated with backend vision + LLM querying.
• Spatial audio cues for obstacle direction and proximity.
• Improved robustness with timeout and retry safeguards.
• Hands-free, accessibility-first interaction flow.

What we learned

• Accessibility-first design changes system architecture, not only UI text.
• Reliability and state handling are as important as model quality.
• Clear protocol contracts accelerate iteration in real-time systems.
• Helpful guidance for blind users should be concise, actionable, and sensory-aware.

What’s next

• Stronger on-device/offline fallback for voice commands.
• Better personalization (voice style, verbosity, route preferences).
• Expanded route safety signals (surface, curb, and crossing cues).
• Confidence-aware responses when model certainty is low.
• Broader testing with blind and low-vision participants.
