MusicPad

Made for Hackclub's Blueprint

A super simple music control pad.

Features:

• Skip track
• Rewind track
• Play / Pause
• Mute / Unmute
• Display - Does nothing for right now. I might change it later to include playback info from the plugged in device.

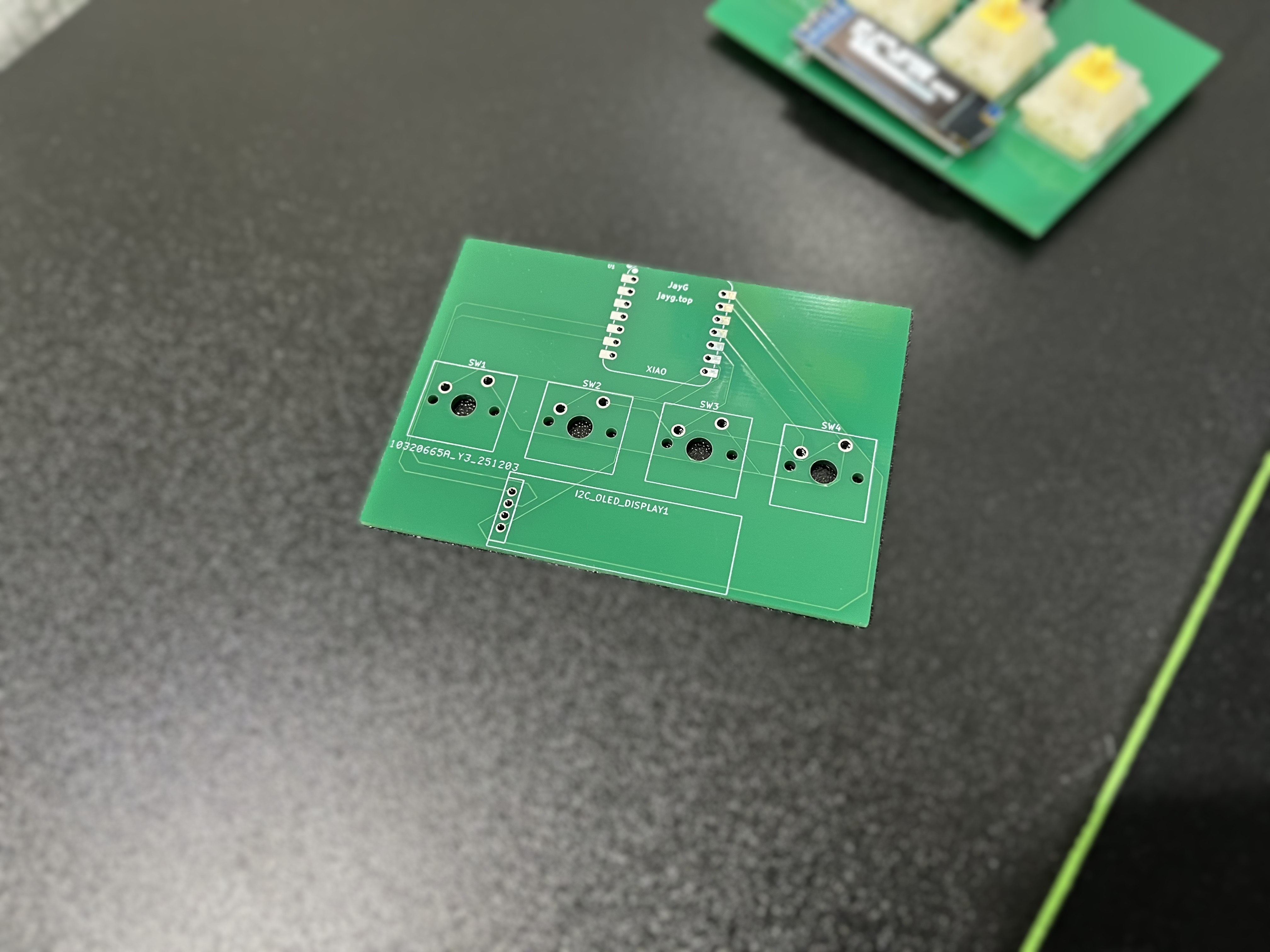

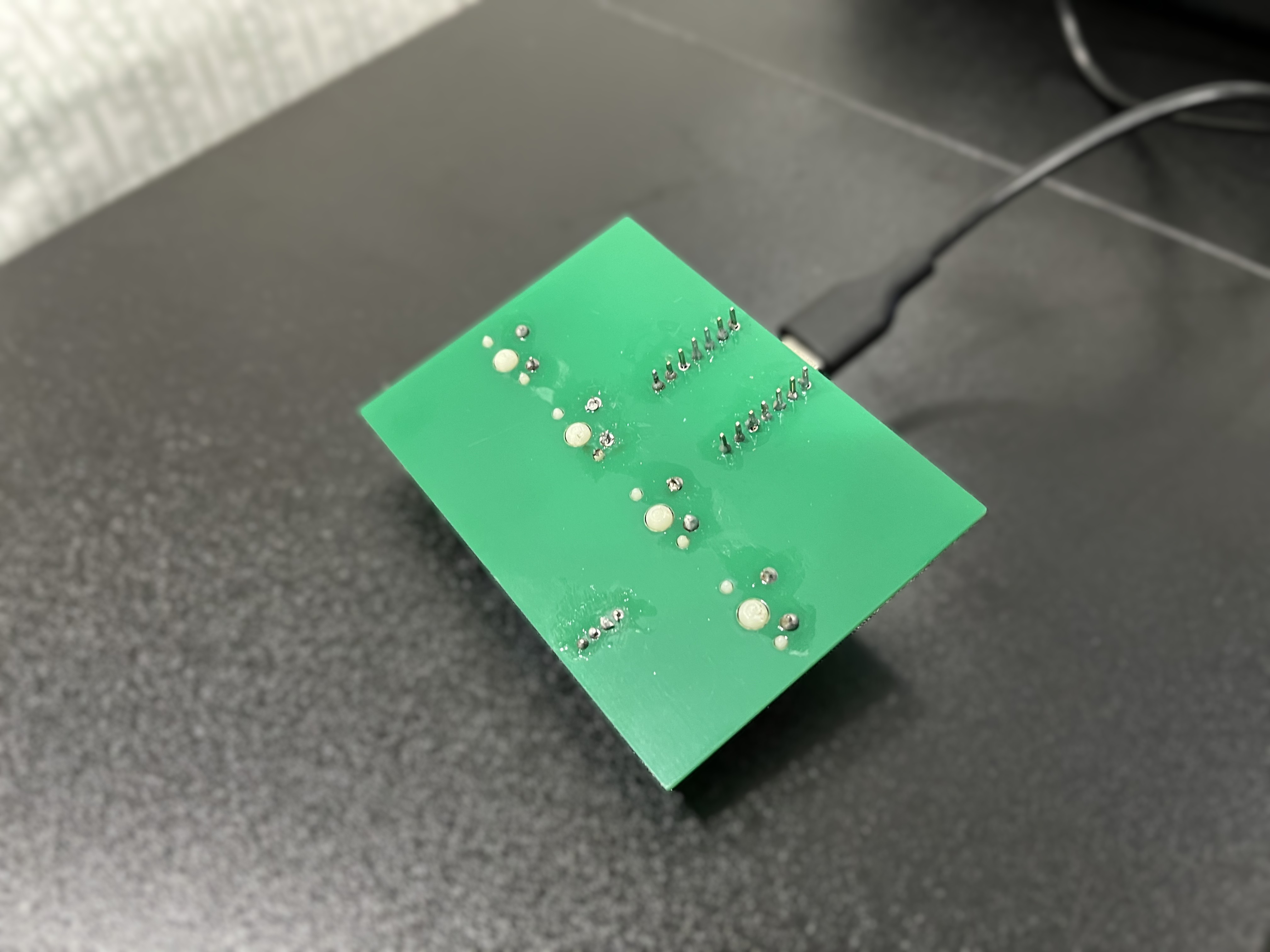

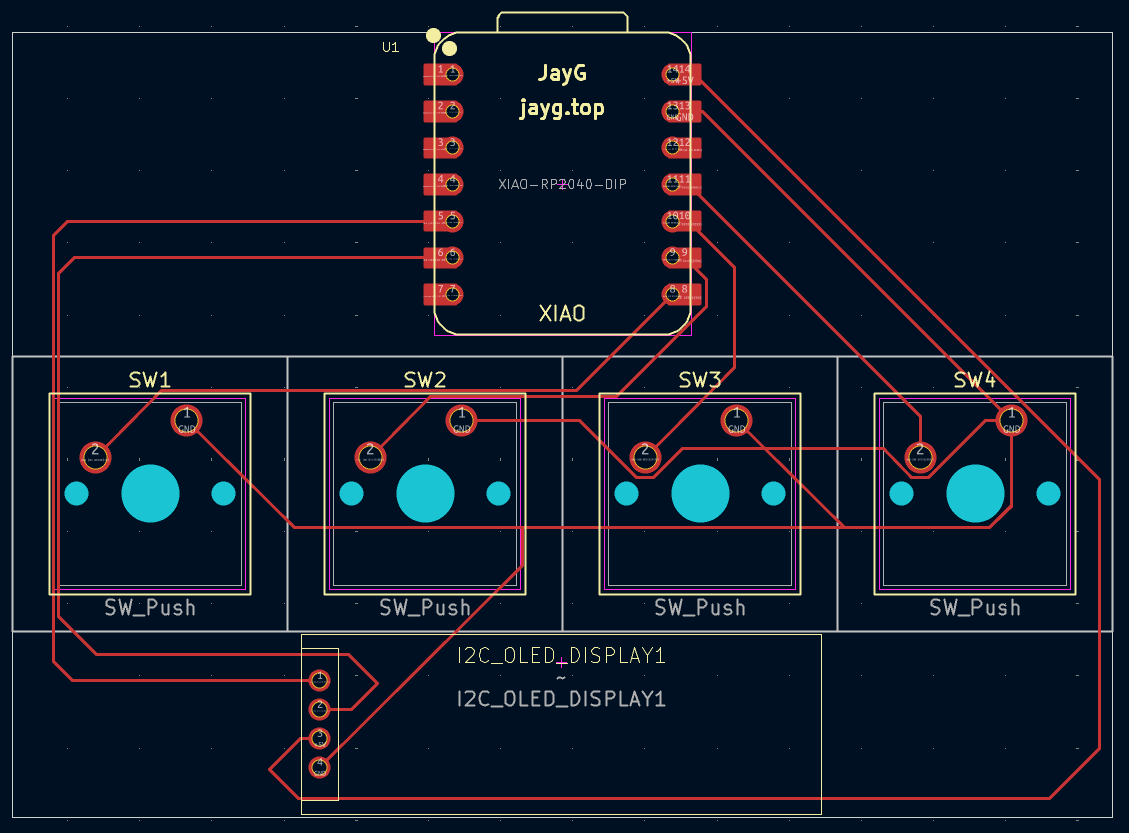

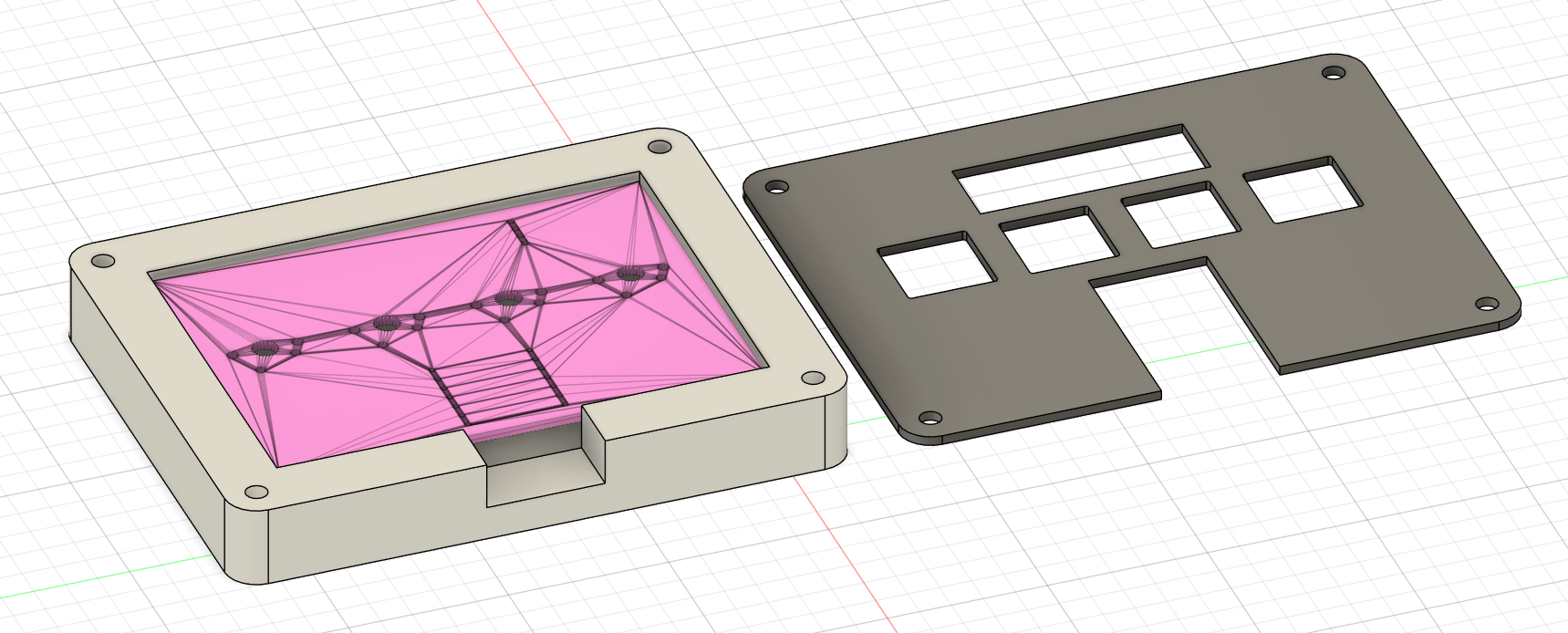

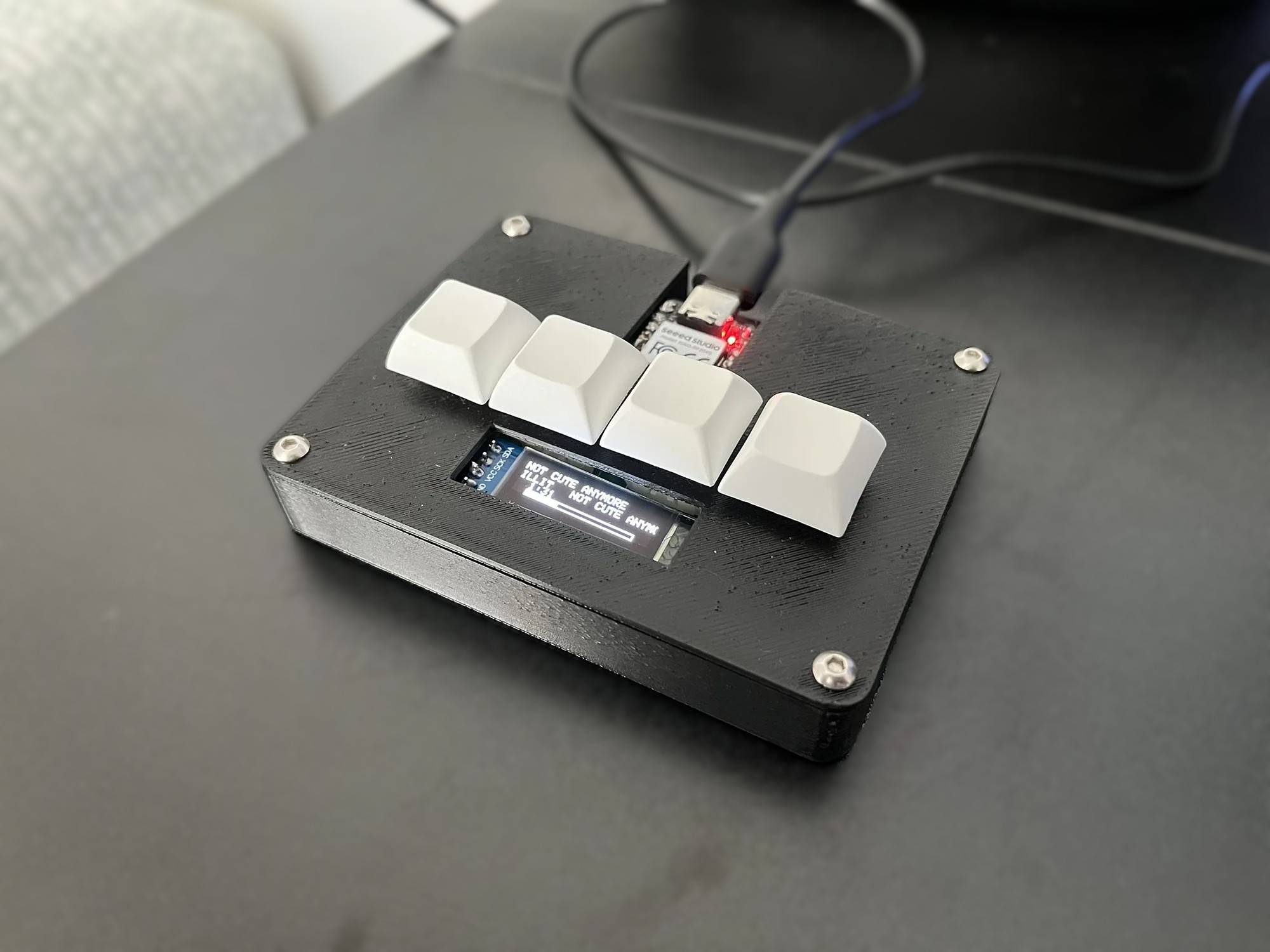

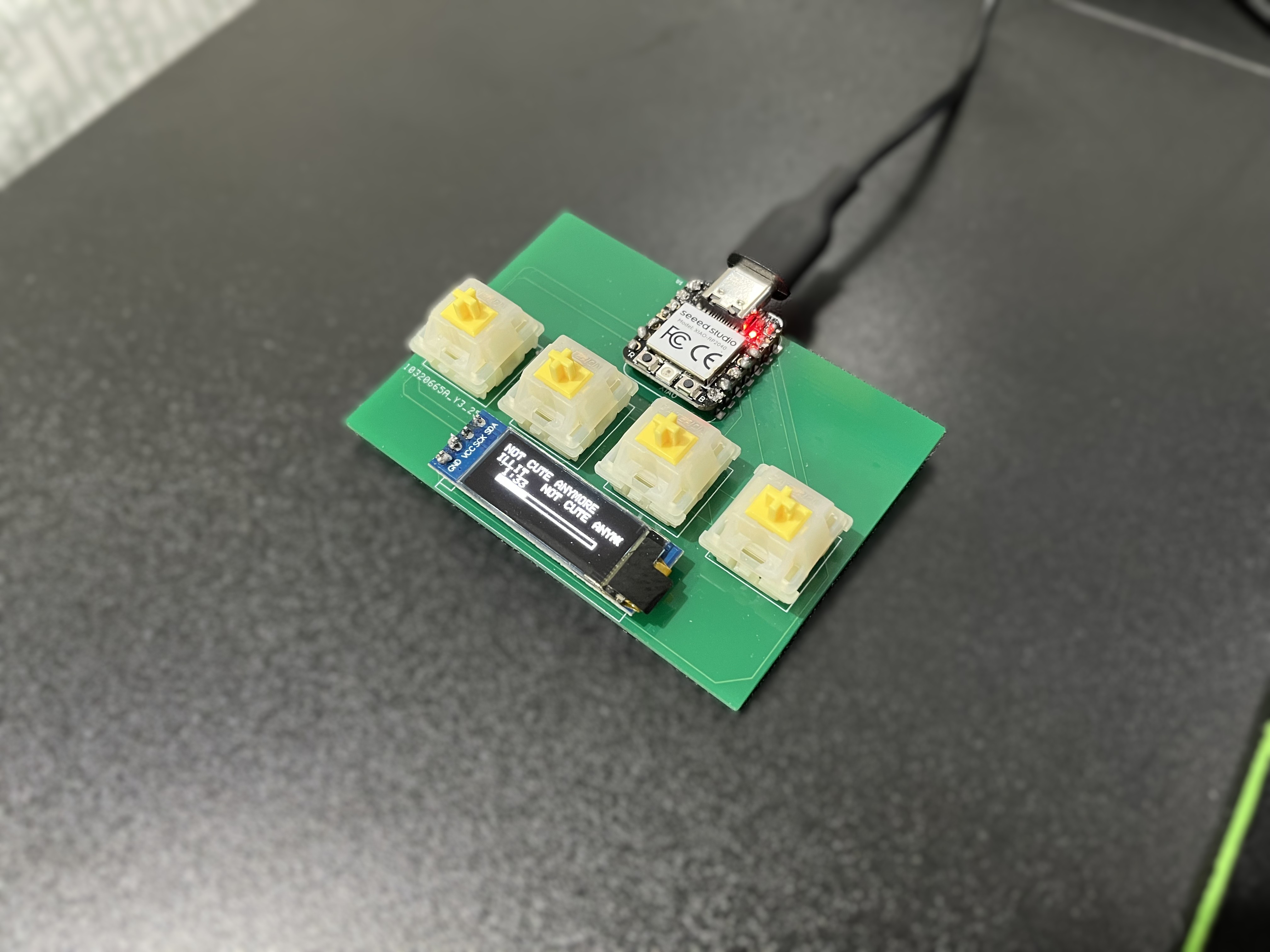

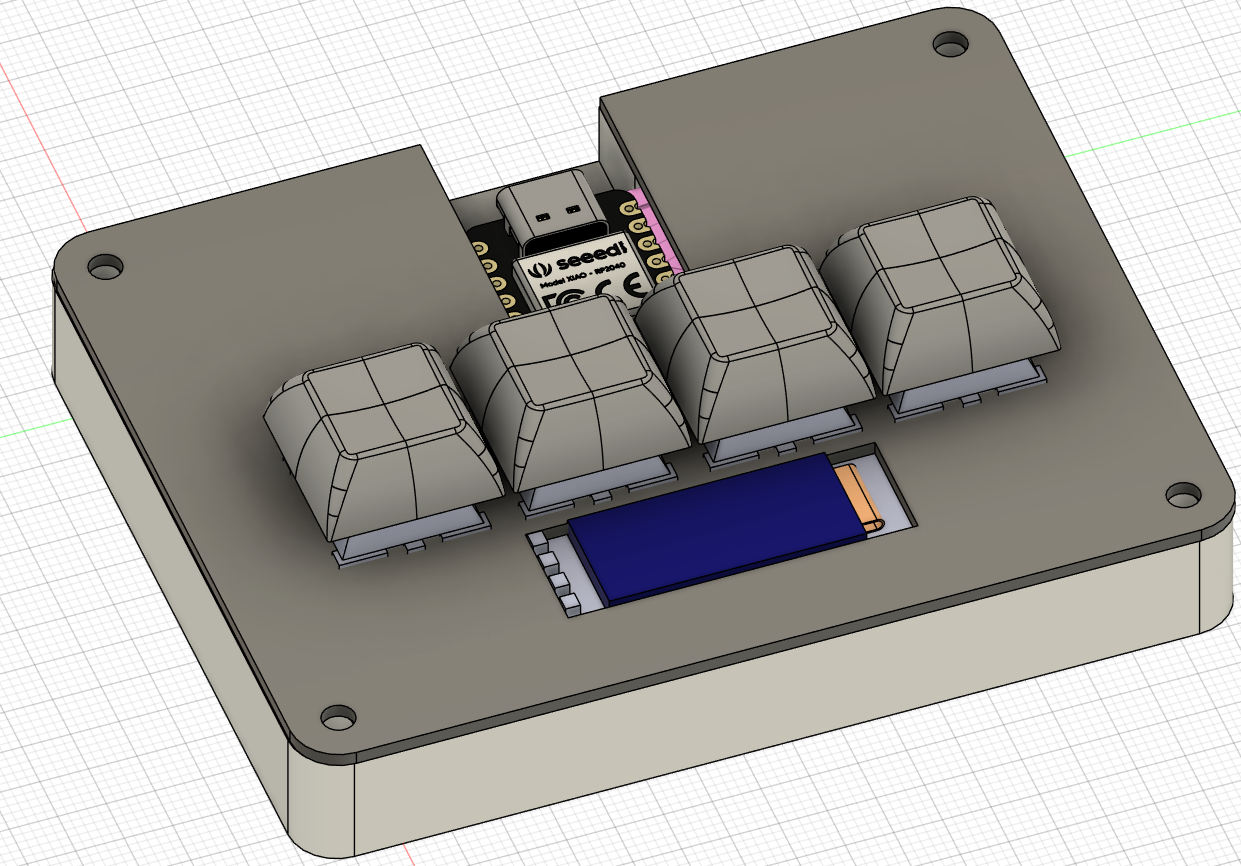

Full MusicPad PCB: 3d Printed Case:

BOM:

• 4x - Cherry MX Switches
• 1x - XIAO RP2040
• 1x - 128x32 0.91in OLED Display
• 4x - Blank DSA Keycaps
• 4x - M3x16 Bolts
• 4x - M3 Heatset
• (3d printed parts)
