Add mdpa generator app

[jginternational]

Adding MDPA generator

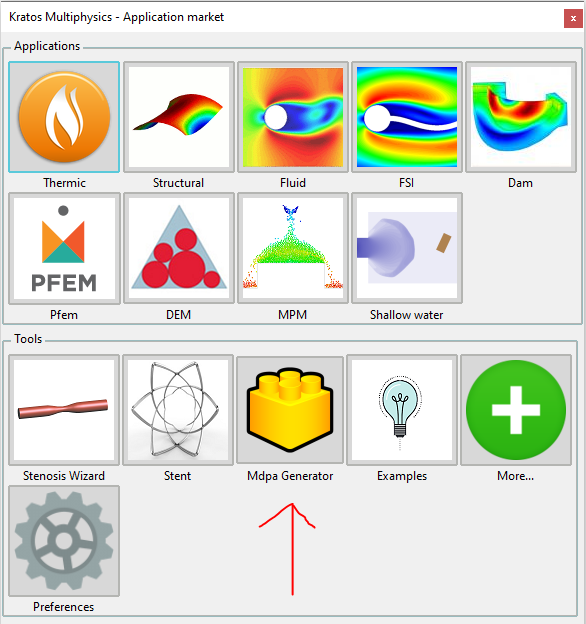

That lego block

You can choose between 2 modes when writing conditions id:

If we apply 2 conditions over the same geometrical entity, there are 2 policies for the condition id numeration:

• Unique ids
• No repeat

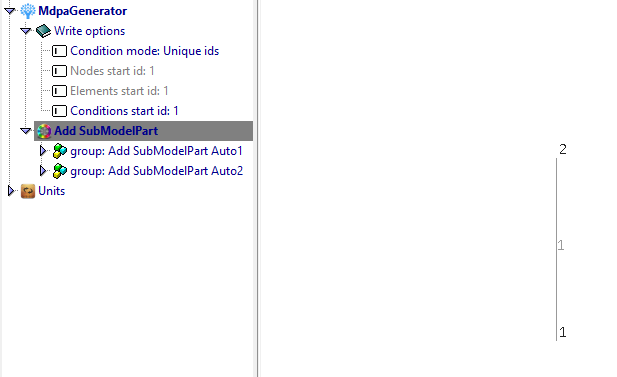

In the following figure, both groups contain the same line (1)

Unique ids:

We remember the past assigned ids, so a face using the same entity will have always the same id

Begin Nodes
    1  -8.6507900000   1.2018100000   0.0000000000
    2  -8.6507900000   5.3514700000   0.0000000000
End Nodes


Begin Conditions LineCondition3D2N// GUI group identifier: Add SubModelPart Auto1
    1 0 2 1
End Conditions

Begin Conditions LineCondition3D2N// GUI group identifier: Add SubModelPart Auto2
End Conditions

Begin SubModelPart GENERIC_Add_SubModelPart_Auto1 // Group Add SubModelPart Auto1 // Subtree GENERIC
    Begin SubModelPartNodes
            1
            2
    End SubModelPartNodes
    Begin SubModelPartElements
    End SubModelPartElements
    Begin SubModelPartConditions
            1
    End SubModelPartConditions
End SubModelPart
Begin SubModelPart GENERIC_Add_SubModelPart_Auto2 // Group Add SubModelPart Auto2 // Subtree GENERIC
    Begin SubModelPartNodes
            1
            2
    End SubModelPartNodes
    Begin SubModelPartElements
    End SubModelPartElements
    Begin SubModelPartConditions
            1
    End SubModelPartConditions
End SubModelPart

No repeat ids

Every time we assign a condition to an entity, a new id is generated.

Begin Nodes
    1  -8.6507900000   1.2018100000   0.0000000000
    2  -8.6507900000   5.3514700000   0.0000000000
End Nodes


Begin Conditions LineCondition3D2N// GUI group identifier: Add SubModelPart Auto1
    1 0 2 1
End Conditions

Begin Conditions LineCondition3D2N// GUI group identifier: Add SubModelPart Auto2
    2 0 2 1
End Conditions

Begin SubModelPart GENERIC_Add_SubModelPart_Auto1 // Group Add SubModelPart Auto1 // Subtree GENERIC
    Begin SubModelPartNodes
            1
            2
    End SubModelPartNodes
    Begin SubModelPartElements
    End SubModelPartElements
    Begin SubModelPartConditions
            1
    End SubModelPartConditions
End SubModelPart
Begin SubModelPart GENERIC_Add_SubModelPart_Auto2 // Group Add SubModelPart Auto2 // Subtree GENERIC
    Begin SubModelPartNodes
            1
            2
    End SubModelPartNodes
    Begin SubModelPartElements
    End SubModelPartElements
    Begin SubModelPartConditions
            2
    End SubModelPartConditions
End SubModelPart

Condition numeration start

User can also set the starting id for conditions id, 1 by default

[rubenzorrilla]

I think this is exactly what we need.

[rubenzorrilla]

In write options I'd put

• Unique condition
• Overlap conditions
