Chainlink: Data Feeds

Introduction

Connect Your Smart Contracts to the Outside World

Chainlink Data Feeds are the quickest way to connect your smart contracts to the real-world market prices of assets. For example, one use for data feeds is to enable smart contracts to retrieve the latest pricing data of an asset in a single call.

Use case

Often, smart contracts need to act upon prices of assets in real-time. This is especially true in DeFi.

For example, Synthetix use Data Feeds to determine prices on their derivatives platform. Lending and Borrowing platforms like AAVE use Data Feeds to ensure the total value of the collateral.

The Decentralized Data Model describes how Data Feeds are aggregated from many data sources and published on-chain.

BUIDL IT

What will we be building?

Sometimes people want to send the same worth of Ether as a specific amount of fiat currency for like payment.

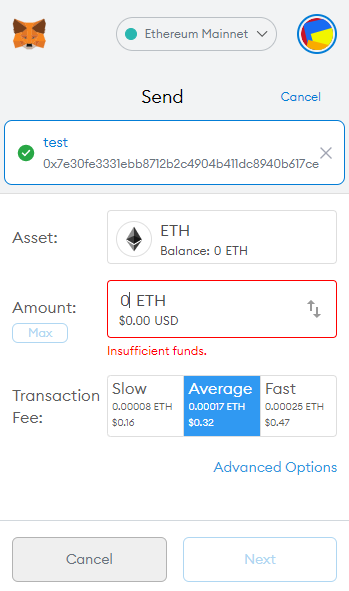

Let’s say, you want to send $500 worth of Ether, then you realize you can’t set the amount of Ether which is worth of a specific amount of US dollar in Metamask.

It shows what’s your Ether worth in US dollar, but like you cannot set $500 worth of Ether.

That’s where this dApp comes in. You can send the amount of Ether based on fiat currency.

How will it work?

Well, the idea will be simple:

You enter the value you want to send, in USD
The dApp fetches the current prices for the ETH/USD pair
Converts the USD amount into ETH according to the pair prices
Sends that amount of Ether across

Setup a new Hardhat project

We'll work on web later. For now, switch inside the eth directory, and setup a new Hardhat boilerplate

cd eth
npm init --y
npx hardhat

This will ask you a few questions to setup the new project. You must be familiar to this by now.

I've chosen a basic Hardhat sample project.

Writing the contract

Let's cd into contracts and start a new contract SendEthInUsd.sol:

//SPDX-License-Identifier: Unlicense
pragma solidity ^0.8.0;

contract SendEthInUsd {

}

To consume price data, your smart contract should reference AggregatorV3Interface, which defines the external functions implemented by Data Feeds.

Thus, we'll start by importing this and initialise it in our contract:

Therefore, we'll yarn add @chainlink/contracts and then:

//SPDX-License-Identifier: Unlicense
pragma solidity ^0.8.0;

import "@chainlink/contracts/src/v0.8/interfaces/AggregatorV3Interface.sol";

contract SendEthInUsd {

}

Now, initialise it:

//SPDX-License-Identifier: Unlicense
pragma solidity ^0.8.0;

import "@chainlink/contracts/src/v0.8/interfaces/AggregatorV3Interface.sol";

contract SendEthInUsd {
   AggregatorV3Interface internal priceFeed;

    constructor(aggregatorAddress) {
        priceFeed = AggregatorV3Interface(aggregatorAddress);
    }

}

Let's see what's happening here:

We first declared a new internal variable called priceFeed of the type AggregatorV3Interface: https://github.com/smartcontractkit/chainlink/blob/master/contracts/src/v0.8/interfaces/AggregatorV3Interface.sol
Next, we'll call the aggregator interface with the exact contract address of the price feed we want. We can find different price feeds for different networks here: https://docs.chain.link/docs/reference-contracts/. This is the aggregatorAddress in code.
We'll use the ETH/USD data feed on the Kovan network which has the address: 0x9326BFA02ADD2366b30bacB125260Af641031331.

You can find the different price feeds for the Kovan network here: https://docs.chain.link/docs/ethereum-addresses/#Kovan%20Testnet

Once we have the priceFeed initialised, we can move forward to getting the latest price for this pair:

/**
 * Returns the latest price
*/
function getEthUsd() public view returns (int) {
 (
            uint80 roundID,
            int price,
            uint startedAt,
            uint timeStamp,
            uint80 answeredInRound
        ) = priceFeed.latestRoundData();
}

Well, what are these new values and where did they come from?

Let's try to understand everything the (AggregatorV3Interface.sol interface)[https://github.com/smartcontractkit/chainlink/blob/master/contracts/src/v0.8/interfaces/AggregatorV3Interface.sol] has:

Name	Description
Decimals	The number of decimals in the response.
description	The description of the aggregator that the proxy points to.
getRoundData	Get data from a specific round.
latestRoundData	Get data from the latest round.
version	The version representing the type of aggregator the proxy points to.

We're calling the latestRoundData function right now, which returns us:

uint80 roundId: the round ID
int256 answer,: the price
uint256 startedAt,: timestamp of when the round started
uint256 updatedAt: timestamp of when the round was updated
uint80 answeredInRound: the round ID of the round in which the answer was computer

Seeing this, the return values should make a lot of sense.

The one we're interested in, for the scope of our dApp, is the answer, or the price.

Thus,

//SPDX-License-Identifier: Unlicense
pragma solidity ^0.8.0;

import "@chainlink/contracts/src/v0.8/interfaces/AggregatorV3Interface.sol";

contract SendEthInUsd {
   AggregatorV3Interface internal priceFeed;

    constructor(aggregatorAddress) {
        priceFeed = AggregatorV3Interface(aggregatorAddress);
    }

    /**
    * Returns the latest price
    */
    function getEthUsd() public view returns (int) {
        (
            ,
            int price,
            ,
            ,

        ) = priceFeed.latestRoundData();
        return price;
    }
}

We can exclude abstracting values separated with commas.

Let's add the final function to allow sending Ether to a recipient

/**
* Sends the ether in msg.value across to the recipient
*/
function sendEther(address payable _to) public payable {
    // Call returns a boolean value indicating success or failure.
    // This is the current recommended method to use.
    (bool sent, bytes memory data) = _to.call{value: msg.value}("");
    require(sent, "Failed to send Ether");
}

There are multiple ways to send ether, the best of which is by call. Refer to this for more details: https://solidity-by-example.org/sending-ether/

NOTE: the Chainlink feed aggregators have 8 decimals of precision, you have to divide returned price by 10⁸ later when consuming this value on the frontend.

The contract, in entirety, should look like this now:

//SPDX-License-Identifier: Unlicense
pragma solidity ^0.8.0;

import "@chainlink/contracts/src/v0.8/interfaces/AggregatorV3Interface.sol";

contract SendEthInUsd {
   AggregatorV3Interface internal priceFeed;

    constructor(address aggregatorAddress) {
        priceFeed = AggregatorV3Interface(aggregatorAddress);
    }

    /**
    * Returns the latest price
    */
    function getEthUsd() public view returns (int) {
        (
            ,
            int price,
            ,
            ,

        ) = priceFeed.latestRoundData();
        return price;
    }
    /**
    * Sends the ether in msg.value across to the recipient
    */
    function sendEther(address payable _to) public payable {
        // Call returns a boolean value indicating success or failure.
        // This is the current recommended method to use.
        (bool sent, ) = _to.call{value: msg.value}("");
        require(sent, "Failed to send Ether");
    }

}

Let's write the deploy script for this (eth/scripts/deploy.js), and get the contract address:

const hre = require("hardhat");
const config = require("../config");

async function main() {
  const SendEthInUsd = await hre.ethers.getContractFactory("SendEthInUsd");
  const contract = await SendEthInUsd.deploy(config.aggregatorAddress);
  console.log("deploying...");

  await contract.deployed();

  console.log("SendEthInUsd deployed to:", contract.address);
}

main()
  .then(() => process.exit(0))
  .catch((error) => {
    console.error(error);
    process.exit(1);
  });

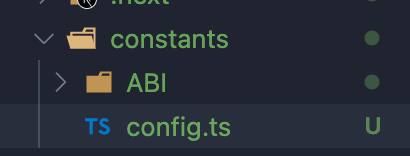

Make sure to setup a config file/add the aggregator address to be fed in this deploy script.

That's it!! Let's start writing the web part for this now and integrate the contract:

Integrating with the webapp

My weapons of choice for the webapp will be Next with TypeScript.

We are going to be making a very very simplistic vanilla looking UI for this. The real beauty lies in what's happening behind the scenes.

Let's start with going into the web directory and initing a new Next app:

cd ../web
npx create-next-app@latest --typescript

This should setup a boilerplate app for you.

Inside of /pages, create a new component called Main.tsx:

const Main = () => {

}

export default Main;

This will be our component that will be doing all the heavy-lifting. Let's render it inside index.tsx:

import type { NextPage } from "next";
import Main from "./Main";
import Head from "next/head";
import Image from "next/image";
import styles from "../styles/Home.module.css";

const Home: NextPage = () => {
  return (
    <div className={styles.container}>
      <Head>
        <title>Send ETH in USD</title>
        <meta name="description" content="Send ETH in USD" />
        <link rel="icon" href="/favicon.ico" />
      </Head>

      <main className={styles.main}>
        <Main />
      </main>

      <footer className={styles.footer}>
        <a
          href="https://vercel.com?utm_source=create-next-app&utm_medium=default-template&utm_campaign=create-next-app"
          target="_blank"
          rel="noopener noreferrer"
        >
          Made with ❤️ by LW3DAO
          <span className={styles.logo}>
            <Image src="/vercel.svg" alt="Vercel Logo" width={72} height={16} />
          </span>
        </a>
      </footer>
    </div>
  );
};

export default Home;

Now that this is done, let's go back to Main.tsx and code it up:

First, we need to ensure wallet connections. Let's use ethers.js and web3modal: yarn add ethers web3modal

Add this function:

  useEffect(() => {
    if (!walletConnected) {
      web3ModalRef.current = new Web3Modal({
        network: "kovan",
        providerOptions: {},
        disableInjectedProvider: false,
      });

      connectWallet().then(() => {});
      getEthPrice();
    }
  }, [walletConnected]);

This runs everytime the wallet is connected/disconnected and/or the component refreshes.

What is this connectWallet?

  const connectWallet = async () => {
    try {
      await getProviderOrSigner();
      setWalletConnected(true);
    } catch (error) {
      console.error(error);
    }
  };

Let's also fetch our provider/signer helper:

 // Helper function to fetch a Provider/Signer instance from Metamask
  const getProviderOrSigner = async (needSigner = false) => {
    const provider = await web3ModalRef!.current!.connect();
    const web3Provider = new providers.Web3Provider(provider);

    const { chainId } = await web3Provider.getNetwork();
    if (chainId !== 42) {
      window.alert("Please switch to the Kovan network!");
      throw new Error("Please switch to the Kovan network");
    }

    if (needSigner) {
      const signer = web3Provider.getSigner();
      return signer;
    }
    return web3Provider;
  };

Now that our wallet connection is good, let's jump to the good part.

Fetch the contract instance:

  const getContractInstance = (
    providerOrSigner: providers.Provider | Signer
  ) => {
    return new Contract(
      config.contractAddress,
      config.contractAbi,
      providerOrSigner
    );
  };

Let's start with initialising a few state variables:

  const [ethPriceInUsd, setEthPriceInUsd] = useState<number>();

  const [amountToSend, setAmountToSend] = useState<number>();

  const [recipientAddress, setRecipientAddress] = useState<string>();

  // True if user has connected their wallet, false otherwise
  const [walletConnected, setWalletConnected] = useState(false);

  const web3ModalRef = useRef<Core>();

If you're thinking about the getEthPrice function in the useEffect, we call the contract to fetch the latest ETH price that we'll use to convert our USD value => Ether

 const getEthPrice = async () => {
    try {
      const signer = await getProviderOrSigner(true);
      const contract = getContractInstance(signer);
      const _ethPriceInUsd = await contract.getEthUsd();
      setEthPriceInUsd(
        parseInt(BigNumber.from(_ethPriceInUsd).toString()) / 100000000
      );
    } catch (error: any) {
      console.error(error);
      alert(error?.message);
    } finally {
    }
  };

Remember: we divide the gotten ETH price by 10^8 because of the decimal precision we previously discussed.

Let's now bootstrap a quick form that will be responsible for taking in inputs:

<div>
      <h1 className="flex justify-center underline my-8">Send ETH in USD</h1>
      <div className="flex flex-col">
        <label className="my-2">
          Recipient:
          <input
            onChange={(event) => {
              setRecipientAddress(event.target.value);
            }}
            name="recipient"
            type={"text"}
          />
        </label>
        <label className="my-2 flex flex-col">
          Anount to send (in USD):
          <span className="text-xs mb-1">
            Current ETH price (in USD): {ethPriceInUsd}
          </span>
          <input
            onChange={(event) => {
              setAmountToSend(parseFloat(event.target.value));
            }}
            name={"amount"}
            step={"any"}
            type={"number"}
          />
        </label>
      </div>
      <span className="flex justify-center">
        <button
          disabled={
            ethPriceInUsd && recipientAddress && amountToSend ? false : true
          }
          className={`rounded-full border p-2 my-2 ${
            ethPriceInUsd && recipientAddress && amountToSend
              ? "bg-blue-500"
              : "bg-red-500"
          }`}
          onClick={async () => {
            await sendEth();
          }}
        >
          Send ETH
        </button>
      </span>
    </div>

I've used TailwindCSS for styling: you don't need to know TailwindCSS for working on this project. You can write vanilla CSS too :)

The state variables used were defined in the start, and they change values based on various functions we've written.

Let's now work on the main sendEth function that'll be responsible of calling the payable function in the contract:

const sendEth = async () => {
    try {
      if (!amountToSend || !recipientAddress) {
        alert("please fill the form");
        console.log({ amountToSend, recipientAddress });
        return;
      }

      const ethToSend = amountToSend / ethPriceInUsd!;

      const signer = await getProviderOrSigner(true);
      const contract = getContractInstance(signer);
      const txn = await contract.sendEther(recipientAddress, {
        value: parseEther(ethToSend.toString()),
      });
      txn.wait();
      alert("txn sent");
      console.log({ txn });
    } catch (error: any) {
      console.error(error);
      alert(error?.message);
    }
};

Here, we first check the form validity.

If everything's good, we calculate the Ether format of the USD price entered by the user (Amount of Ether to send = Amount to send in USD / Price of 1 ETH in USD)

Once that's done, we send the transaction adding the recipient address and msg.value 🚀

Before going further to test it out, make sure to have your config and ABI setup:

You can choose how you want to structure it for yourself. The way I've done it is:

It lives in ./constants/ of my root directory.

And my config.ts looks like:

export const config = {
  contractAddress: "0xFd6c3404D9eCb450fe9361FB9CD36A0265Ea74De",
  contractAbi: require("./ABI/SendEthInUsd.json"),
};

where contractAddress is the address of my earlier deployed contract.

That's about it. 🚀

This is what our Main.tsx looks like, at the end:

import { useEffect, useRef, useState } from "react";
import { BigNumber, Contract, providers, Signer } from "ethers";
import Web3Modal from "web3modal";
import Core from "web3modal";
import { config } from "../constants/config";
import { parseEther } from "ethers/lib/utils";

const Main = () => {
  const [ethPriceInUsd, setEthPriceInUsd] = useState<number>();

  const [amountToSend, setAmountToSend] = useState<number>();

  const [recipientAddress, setRecipientAddress] = useState<string>();

  // True if user has connected their wallet, false otherwise
  const [walletConnected, setWalletConnected] = useState(false);

  const web3ModalRef = useRef<Core>();

  // Helper function to connect wallet
  const connectWallet = async () => {
    try {
      await getProviderOrSigner();
      setWalletConnected(true);
    } catch (error) {
      console.error(error);
    }
  };

  // Helper function to fetch a Provider/Signer instance from Metamask
  const getProviderOrSigner = async (needSigner = false) => {
    const provider = await web3ModalRef!.current!.connect();
    const web3Provider = new providers.Web3Provider(provider);

    const { chainId } = await web3Provider.getNetwork();
    if (chainId !== 42) {
      window.alert("Please switch to the Kovan network!");
      throw new Error("Please switch to the Kovan network");
    }

    if (needSigner) {
      const signer = web3Provider.getSigner();
      return signer;
    }
    return web3Provider;
  };

  // Helper function to return a provider/signer
  const getContractInstance = (
    providerOrSigner: providers.Provider | Signer
  ) => {
    return new Contract(
      config.contractAddress,
      config.contractAbi,
      providerOrSigner
    );
  };

  //  piece of code that runs everytime the wallet is connected/disconnected and/or the component refreshes
  useEffect(() => {
    if (!walletConnected) {
      web3ModalRef.current = new Web3Modal({
        network: "kovan",
        providerOptions: {},
        disableInjectedProvider: false,
      });

      connectWallet().then(() => {});
      getEthPrice();
    }
  }, [walletConnected]);

  const getEthPrice = async () => {
    try {
      const signer = await getProviderOrSigner(true);
      const contract = getContractInstance(signer);
      const _ethPriceInUsd = await contract.getEthUsd();
      setEthPriceInUsd(
        parseInt(BigNumber.from(_ethPriceInUsd).toString()) / 100000000
      );
    } catch (error: any) {
      console.error(error);
      alert(error?.message);
    } finally {
    }
  };

  const sendEth = async () => {
    try {
      if (!amountToSend || !recipientAddress) {
        alert("please fill the form");
        console.log({ amountToSend, recipientAddress });
        return;
      }
      console.log({ amountToSend, recipientAddress });

      const ethToSend = amountToSend / ethPriceInUsd!;

      const signer = await getProviderOrSigner(true);
      const contract = getContractInstance(signer);
      const txn = await contract.sendEther(recipientAddress, {
        value: parseEther(ethToSend.toString()),
      });
      txn.wait();
      alert("txn sent");
      console.log({ txn });
    } catch (error: any) {
      console.error(error);
      alert(error?.message);
    }
  };

  return (
    <div>
      <h1 className="flex justify-center underline my-8">Send ETH in USD</h1>
      <div className="flex flex-col">
        <label className="my-2">
          Recipient:
          <input
            onChange={(event) => {
              setRecipientAddress(event.target.value);
            }}
            name="recipient"
            type={"text"}
          />
        </label>
        <label className="my-2 flex flex-col">
          Anount to send (in USD):
          <span className="text-xs mb-1">
            Current ETH price (in USD): {ethPriceInUsd}
          </span>
          <input
            onChange={(event) => {
              setAmountToSend(parseFloat(event.target.value));
            }}
            name={"amount"}
            step={"any"}
            type={"number"}
          />
        </label>
      </div>
      <span className="flex justify-center">
        <button
          disabled={
            ethPriceInUsd && recipientAddress && amountToSend ? false : true
          }
          className={`rounded-full border p-2 my-2 ${
            ethPriceInUsd && recipientAddress && amountToSend
              ? "bg-blue-500"
              : "bg-red-500"
          }`}
          onClick={async () => {
            await sendEth();
          }}
        >
          Send ETH
        </button>
      </span>
    </div>
  );
};

export default Main;

Congratulations! Your own dApp which can take in a USD amount of ETH and transfer it to a recipient is now active! 🚀

Testing

Connect your wallet on Kovan
Enter the recipient address you want to send the Ether to, and the amount in USD
This should now open the Metamask prompt to send the transaction. Make sure your account is well funded.
We send the transaction, and then we wait.
If everything goes well, you should see the transaction gotten mined and the Ether transfered!

Push to Github

Make sure to push all this code to Github before proceeding to the next step.

Website Deployment

What good is a website if you cannot share it with others? Let's work on deploying your dApp to the world so you can share it with all your LearnWeb3DAO frens.

Go to Vercel Dashboard and sign in with your GitHub account.
Click on the New Project button and select your Chainlink-DataFeeds repo.
When configuring your new project, Vercel will allow you to customize your Root Directory
Since our Next.js application is within a subfolder of the repo, we need to modify it.
Click Edit next to Root Directory and set it to my-app.
Select the framework as Next.js
Click Deploy
Now you can see your deployed website by going to your Vercel Dashboard, selecting your project, and copying the domain from there!

CONGRATULATIONS! You're all done!

Hopefully you enjoyed this tutorial. Feel free to go artistic on the frontend and add animations or whatever! :D Don't forget to share your verifiable on-chain coin flip website in the #showcase channel on Discord ❤️

Name		Name	Last commit message	Last commit date
Latest commit History 5 Commits
eth		eth
web		web
.gitignore		.gitignore
README.md		README.md

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

Chainlink: Data Feeds

Introduction

Connect Your Smart Contracts to the Outside World

Use case

BUIDL IT

What will we be building?

How will it work?

Setup a new Hardhat project

Writing the contract

Integrating with the webapp

Testing

Push to Github

Website Deployment

CONGRATULATIONS! You're all done!

About

Uh oh!

Releases

Packages

Uh oh!

Contributors

Uh oh!

Languages

Folders and files

Latest commit

History

Repository files navigation

Chainlink: Data Feeds

Introduction

Connect Your Smart Contracts to the Outside World

Use case

BUIDL IT

What will we be building?

How will it work?

Setup a new Hardhat project

Writing the contract

Integrating with the webapp

Testing

Push to Github

Website Deployment

CONGRATULATIONS! You're all done!

About

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
