P03 Scheduling-Algorithm-Simulator

Description :

Simulator will show a graphical represestation of how processes done in a CPU . There are 5 Scheduling algorithm implemneted. They are :

• First-Come, First-Served (FCFS) Scheduling.
• Shortest-Job-Next (SJN) Scheduling.
• Priority Based (PB) Scheduling.
• Shortest Remaining Time First (SRTF).
• Round Robin(RR) Scheduling. Each algorithm can be choosen by user . User can add process and select 6 CPUs max . GUI will show the realtime execution of the processes and create a Gantt chart.

Files

#	File	Description
1	Main.py	Main driver of my project that launches Simulator.
2	fcfs.py	Implementation of FCFS Scheduling algorithm.
3	pb.py	Implementation of Priority Based Scheduling algorithm.
4	rr.py	Implementation of Round Robin Scheduling algorithm.
5	sjf.py	Implemnetation of sortest job first scheduling algorithm.
6	srtf.py	Implementation of sortest remaining time first scheduling algorithm
7	cpu.py	Hold CPU class .
8	process.py	processing the input data
9	scheduler.py	Record the history of the process.

Instructions

• Make sure you install library PyQt5
• Run the Main.py file then give all the necessary data.

Important

Total BT for a process = CPU Burst time + I/O Burst time + CPU Burst time.

I/O Burst time= I/O Burst time .

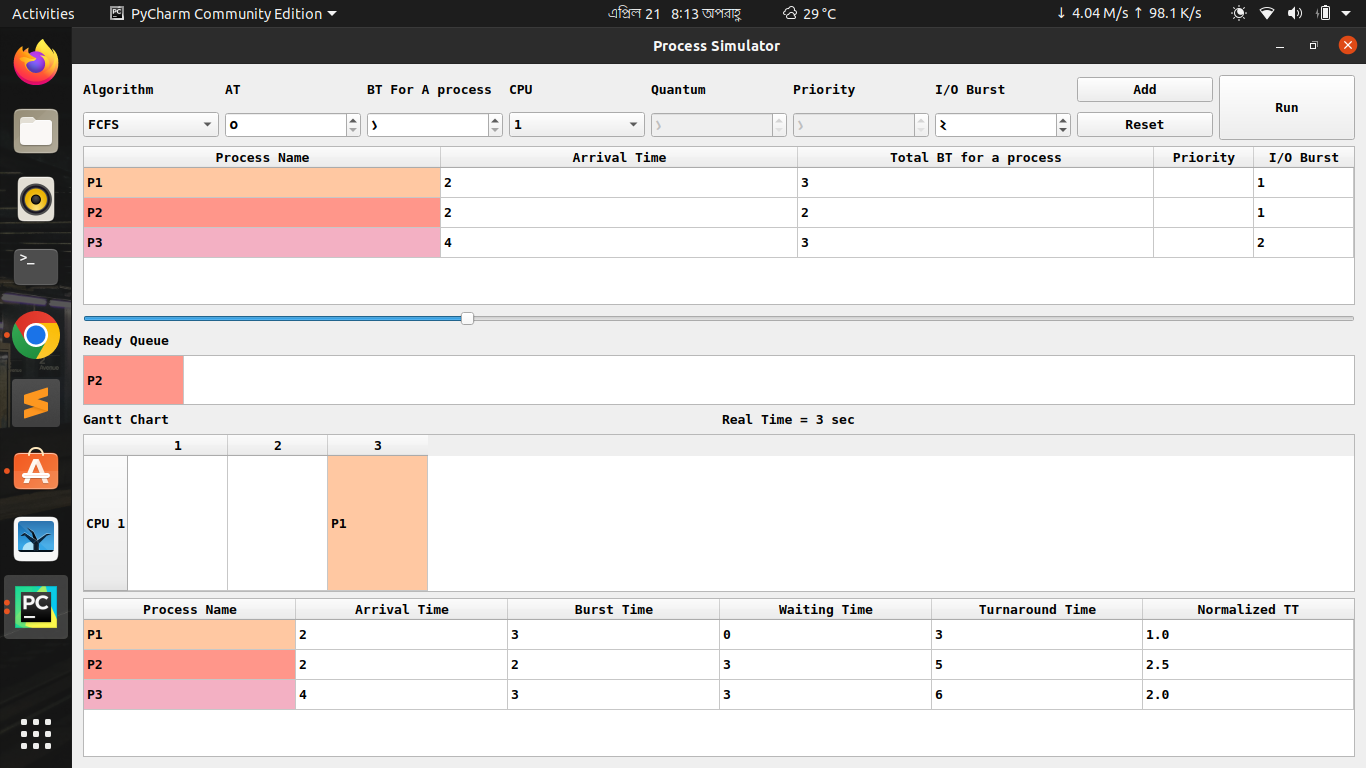

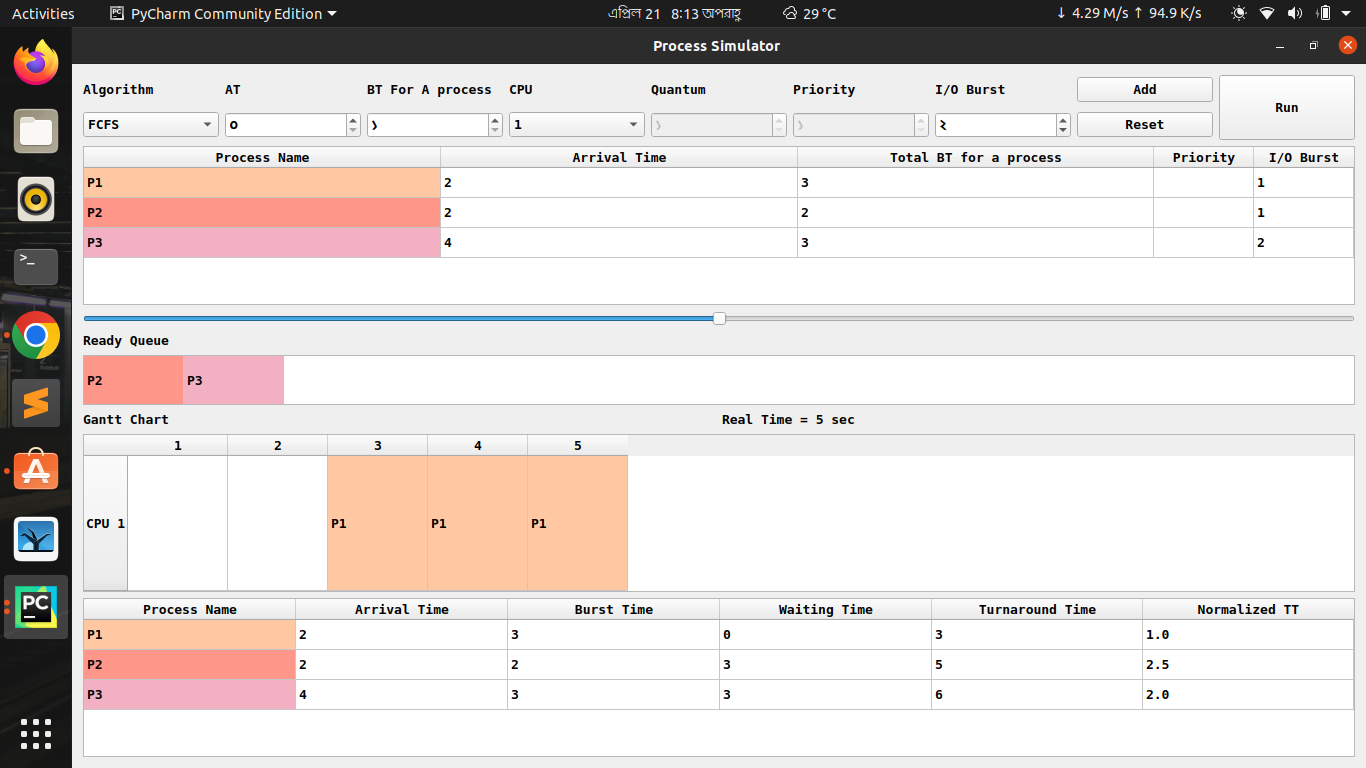

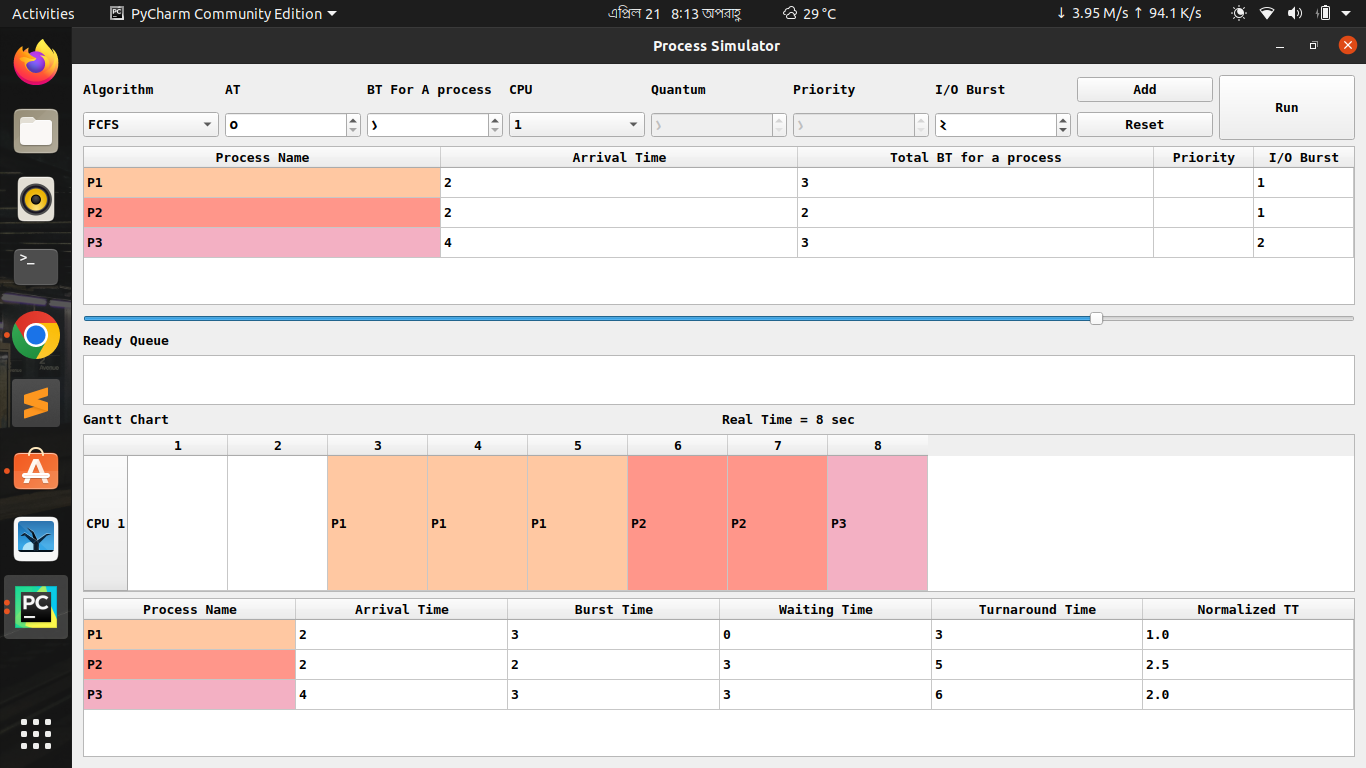

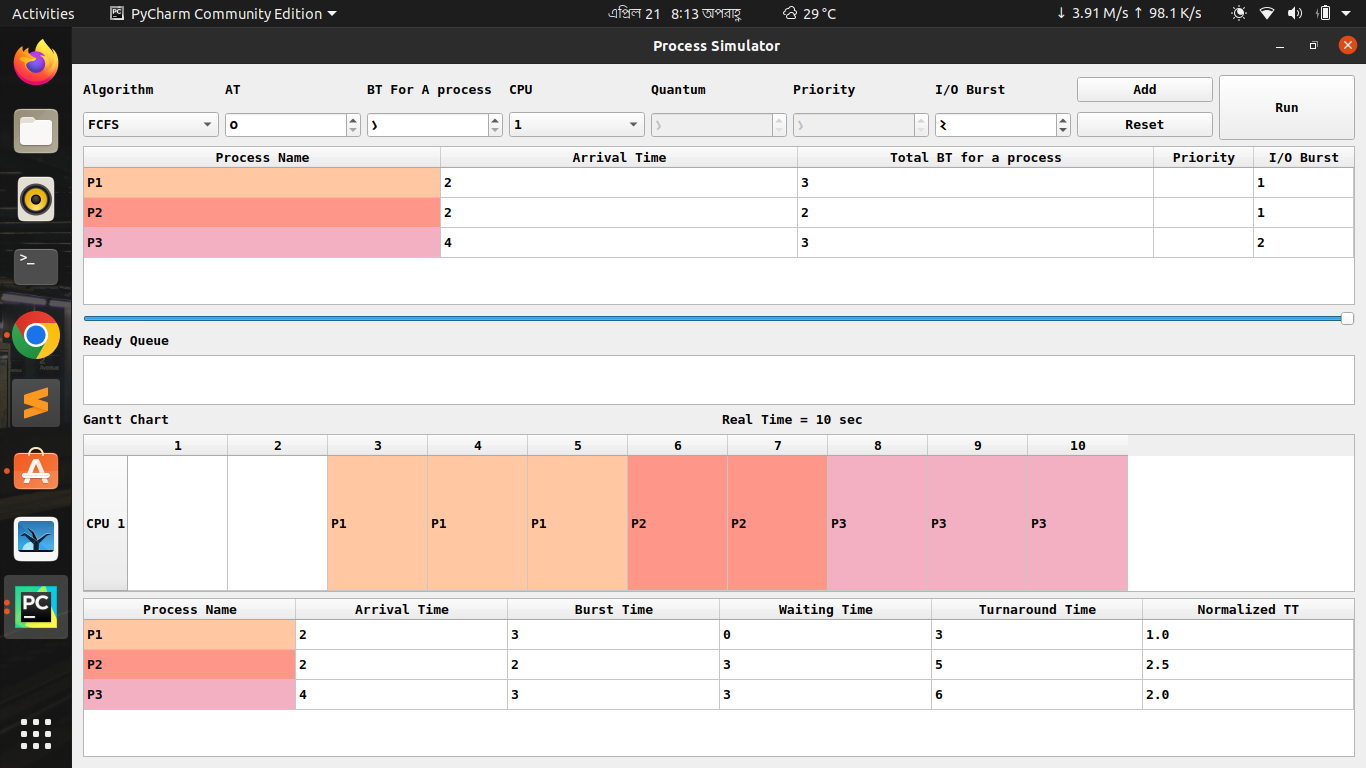

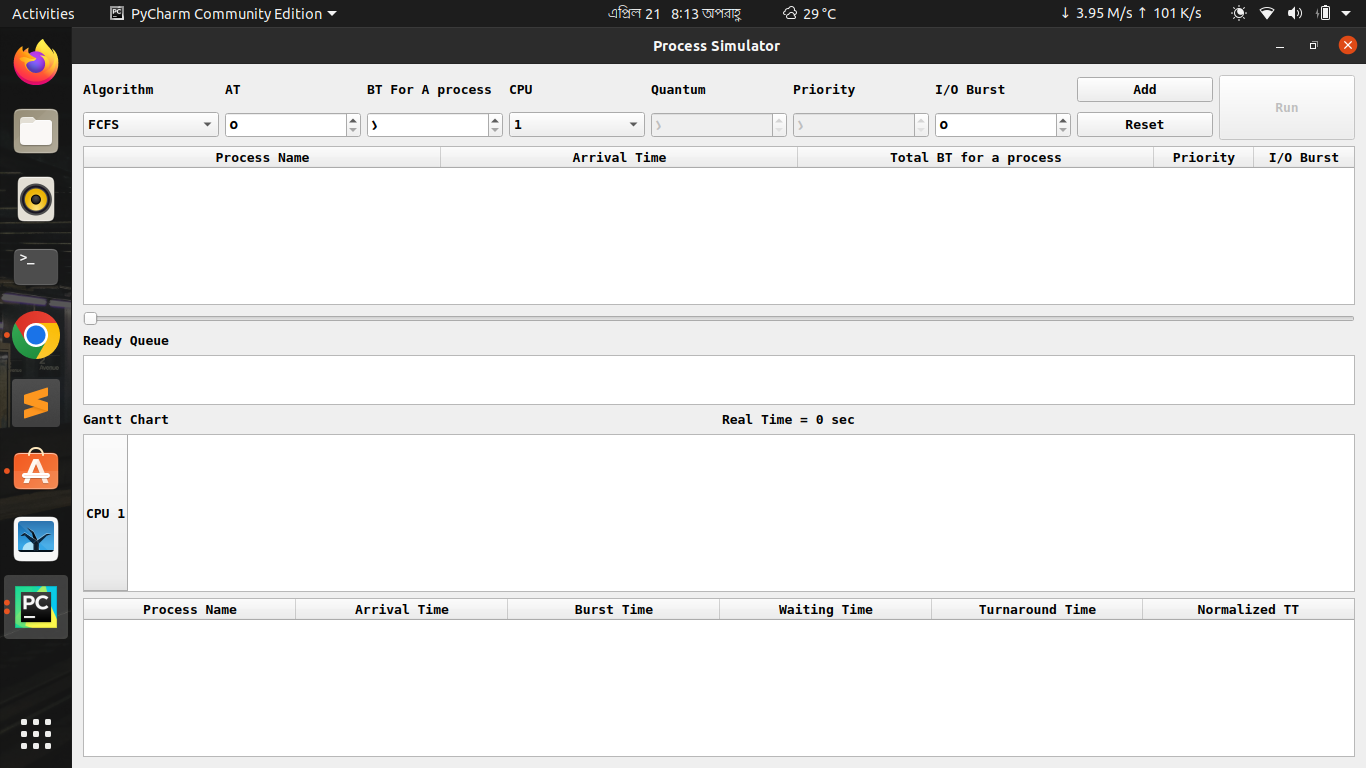

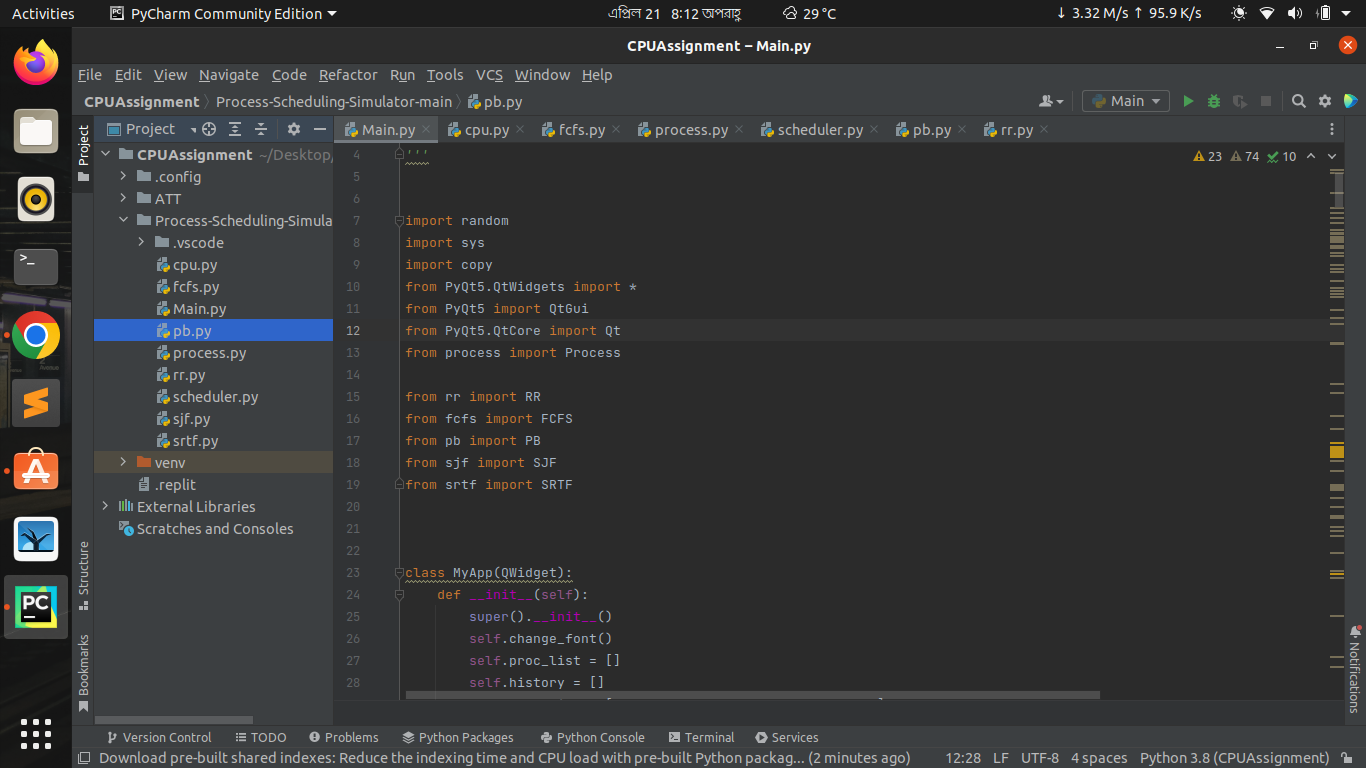

Screen Shots

VIDEO

assingment.mp4
