Issues with Setting Debug Breakpoints via F9

[sgtoj]

Version 1.9.0-insider
Commit f2379e882b415e2c503a723776c4431a40d7c1aa
Date 2017-01-02T07:11:43.247Z
Shell 1.4.6
Renderer 53.0.2785.143
Node 6.5.0

Steps to Reproduce:

• Create a JS and/or TS (with source mapping)
  • My Example: sgtoj/dynamo-localdb
    • Script: ./scripts/test.js
• Set debug point on couple random lines using the F9 key.
• Enter debug mode.
  • Normally, the breakpoints will randomly move around.
• Set more debug point on other lines.
  • Normally, the setting a new breakpoint affects the other existing points.

Issues

• Breakpoint set via F9 key randomly move once debug is executed.
  • Normally, but not always, it will move down a line.
  • Somes times, breakpoints are removed altogether.
• While debug mode is active, VS Code or Node-Debug doesn't respect the line number a new breakpoint (via F9) was set.
• While debug mode is active, existing breakpoints will randomly move around when another breakpoint (via F9) is added.

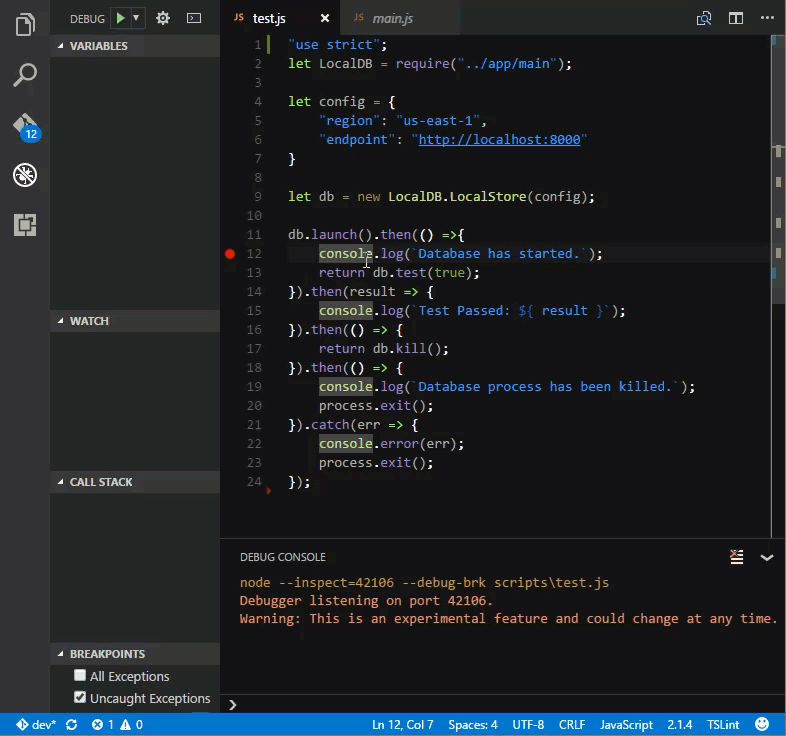

Breakpoints Set via F9 - Better quality

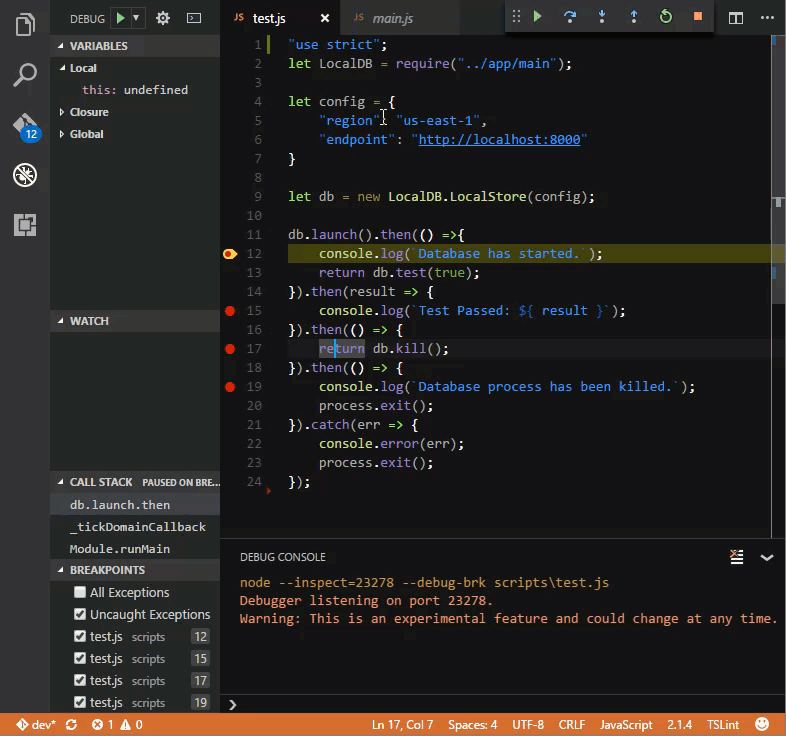

Breakpoints Set via Mouse Clicking on the Sidebar (set on the same lines above)

Troubleshooting

• Affects multiple systems and OS (Windows 10 Insiders and Ubuntu 16.10)
• Affects multiple Node versions: v6.9.2 and v7.3.0
• Seems to only affect breakpoints set via F9 key.
• Seems affect only VS Code Insiders
• Enabling or Disabling SmartStep doesn't change the outcome.
  • Module in the GIFs are written in TS before compiled.

launch.json

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "Launch - Test Script",
            "type": "node2",
            "request": "launch",
            "program": "${workspaceRoot}/scripts/test.js",
            "cwd": "${workspaceRoot}",
            "outFiles": [],
            "stopOnEntry": false,
            "sourceMaps": true,
            "smartStep": true
        }
    ]
}

Also posted issue at microsoft/vscode#18015.

[roblourens]

Good analysis - we just made a change so that when a bp is set with F9, it will be set at the column of the cursor, not at column 0 as when setting by clicking in the margin. I'll investigate, maybe I need to make a change.

In your example, are you using sourcemaps?

[sgtoj]

@roblourens Yes. I updated the original post with more information including link to my repo and launch.json. Below is the tsconfig.json`.

tsconfig.json

{
    "compilerOptions": {
        "module": "commonjs",
        "target": "es2016",
        "noLib": false,
        "declaration": true,
        "declarationDir": "declaration",
        "allowJs": false,
        "pretty": true,
        "watch": false,
        "sourceMap": true,
        "strictNullChecks": true,
        "outDir": "app",
        "traceResolution": false,
        "alwaysStrict": true
    },
    "exclude": [
        "declaration/",
        "node_modules/",
        "app/",
        "scripts/",
        "test/",
        "tmp/",
        "**/*.js"
    ]
}

[roblourens]

I realized that there's an issue with this and left a comment in the vscode bug.

[roblourens]

We reverted the change that caused this, so it should be fixed now. Will be revisiting breakpoints on columns in a month or two.
