Network Security Groups (NSGs) and Inspecting Traffic Between Azure Virtual Machines

In this tutorial, we observe various network traffic to and from Azure Virtual Machines with Wireshark as well as experiment with Network Security Groups.

Environments and Technologies Used

• Microsoft Azure (Virtual Machines/Compute)
• Remote Desktop
• Various Command-Line Tools
• Various Network Protocols (SSH, RDH, DNS, HTTP/S, ICMP)
• Wireshark (Protocol Analyzer)

Operating Systems Used

• Windows 10 (21H2)
• Ubuntu Server 20.04

High-Level Steps

• Creating VM's (Windows 10 & Linux/Ubuntu)
• Observe ICMP Traffic
• Observe SSH Traffic
• Observe DHC Traffic
• Observe RDP Traffic
• Observe DNS Traffic
• Obserev DHCP Traffic

Actions and Observations

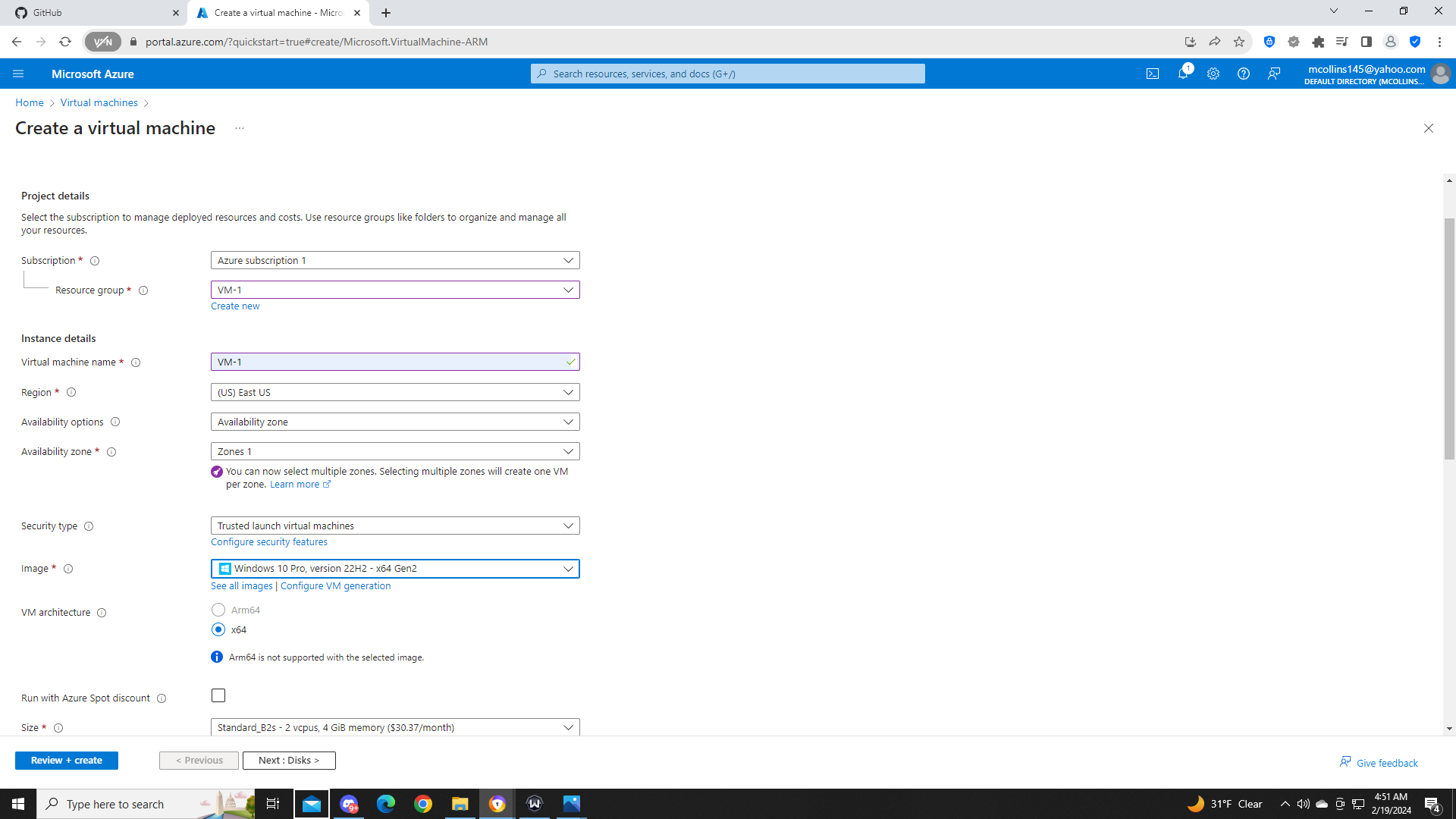

• Creating your VM's

  -Create a windows 10 virtual machine

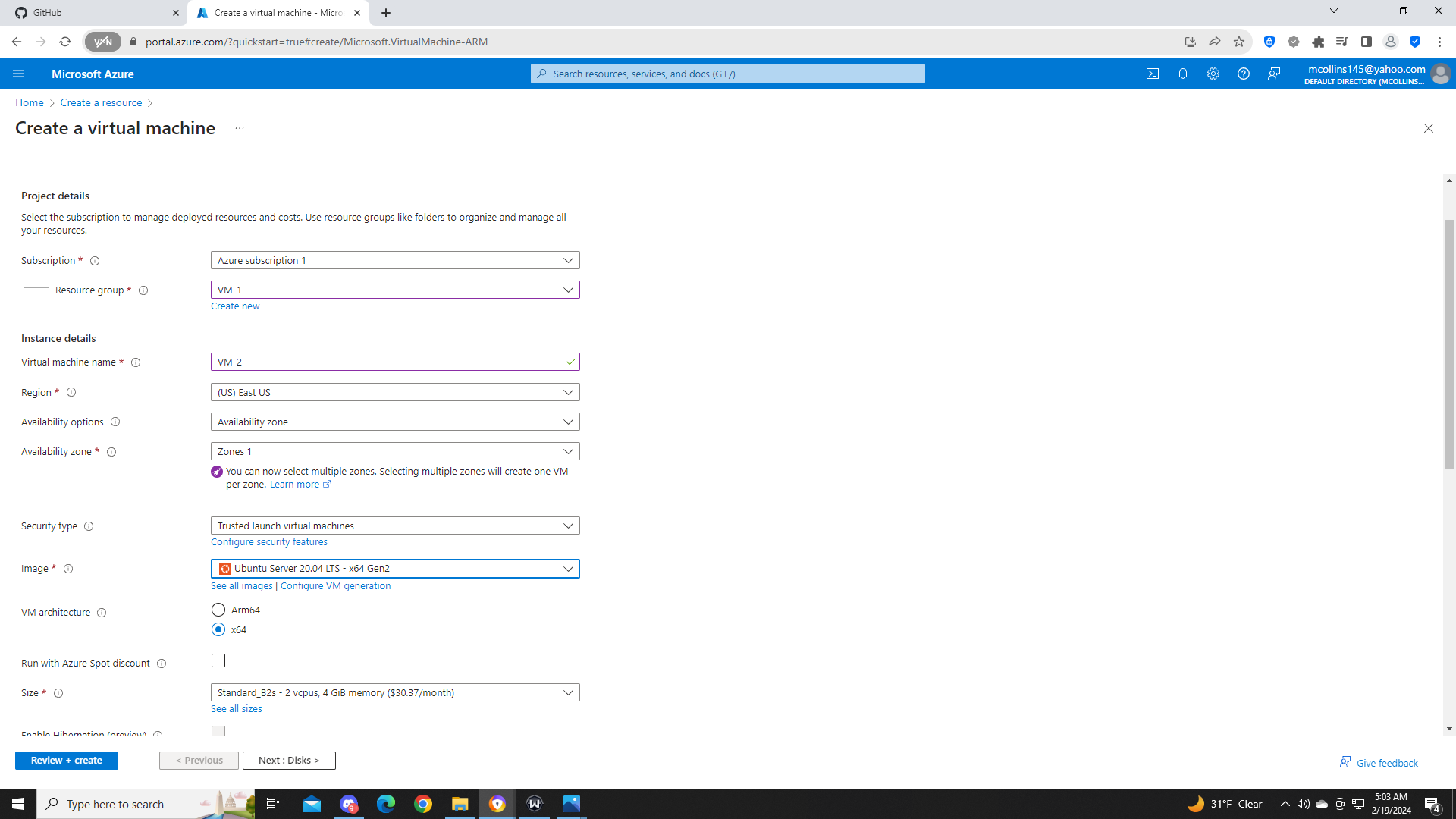

  -Create a linux/Ubuntu virtual machine

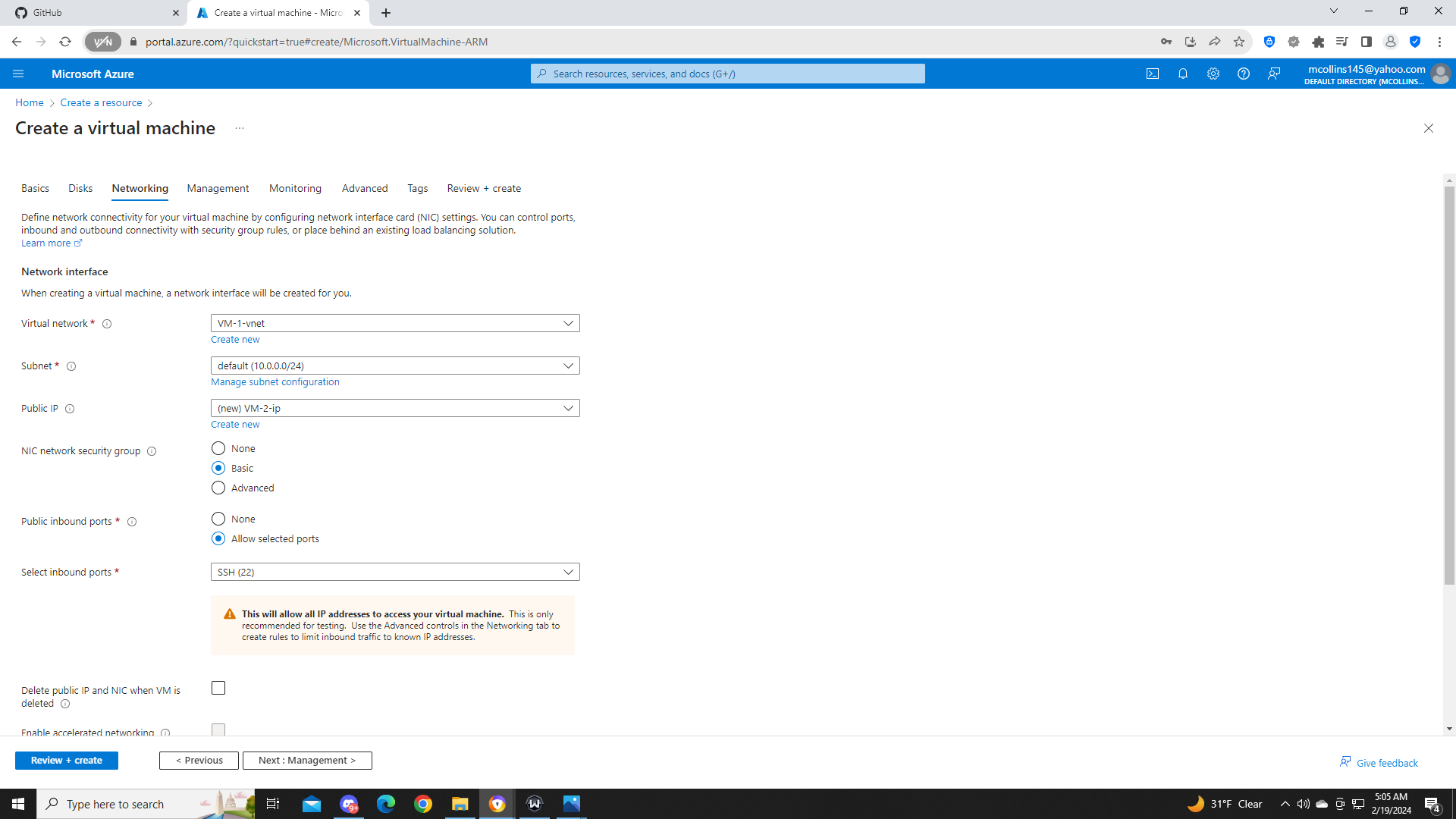

-While creating the Linux/Ubuntu VM be sure to chose the same vnet (Virtual Network) as the windows 10 VM

• Observe ICMP traffic

  -Remote desktop into the windows 10 virtual machine and while in the VM download and install wireshark

  -Open WireShark and filter for ICMP traffic

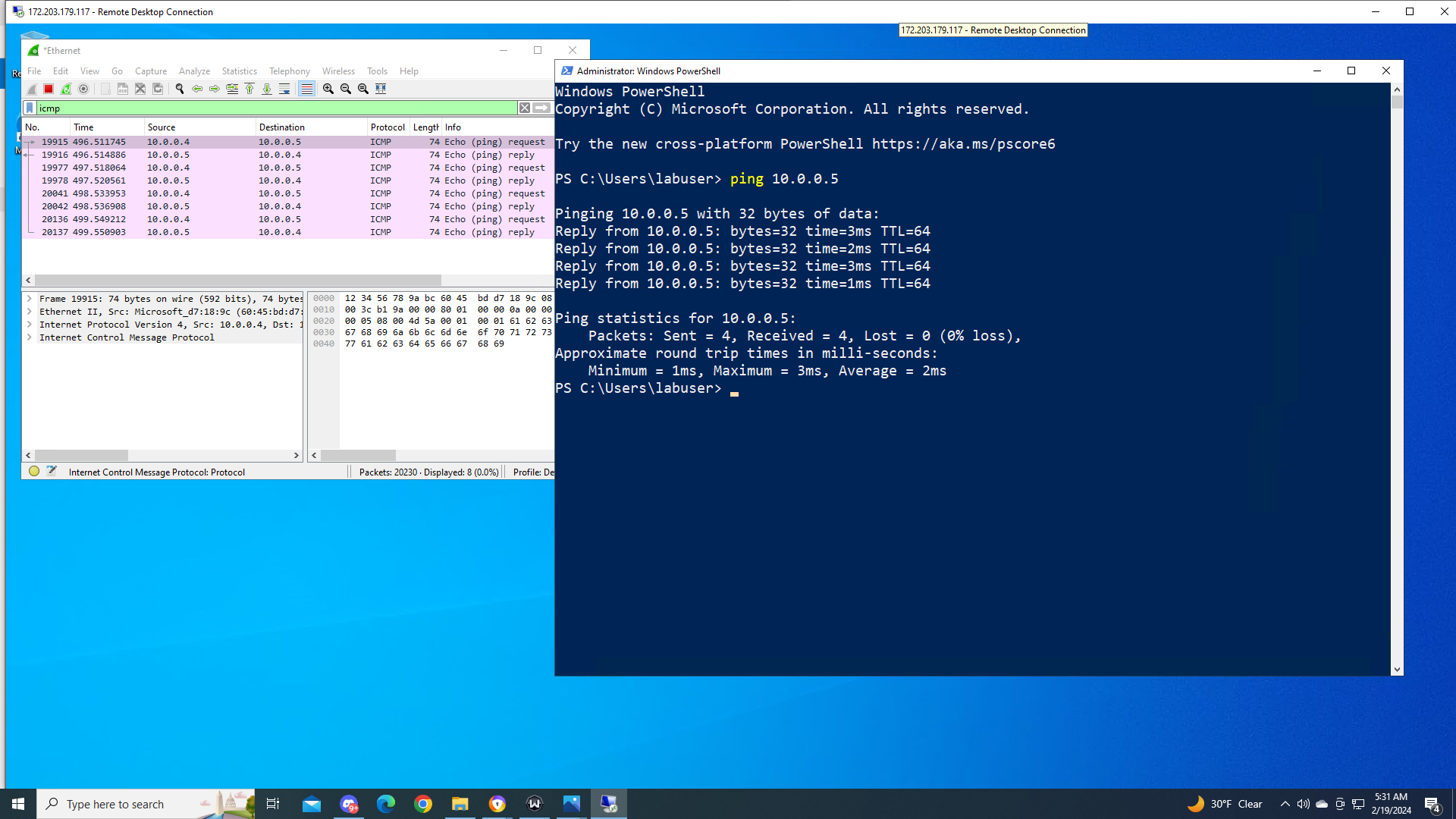

  -Go into VM-2 (Linux/Ubuntu) and retrieve its private ip address and attepmt to ping it from within the Windows 10 VM.

  -View the request and replys between VM-1 and VM-2 within WireShark after pinging VM-2

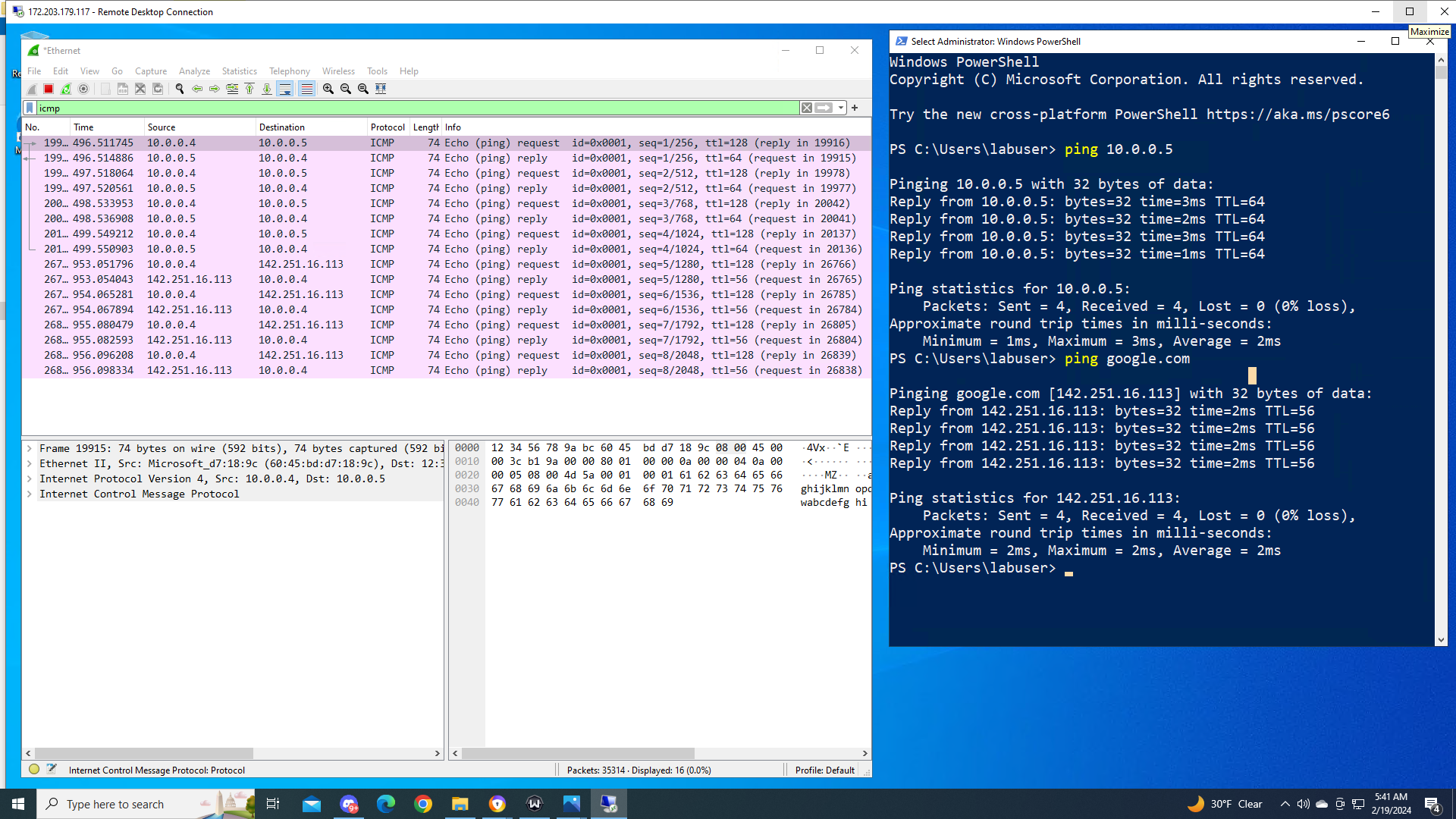

  -In VM-1 using PowerShell attempt to ping googles public ip address and observe the traffic within WireShark

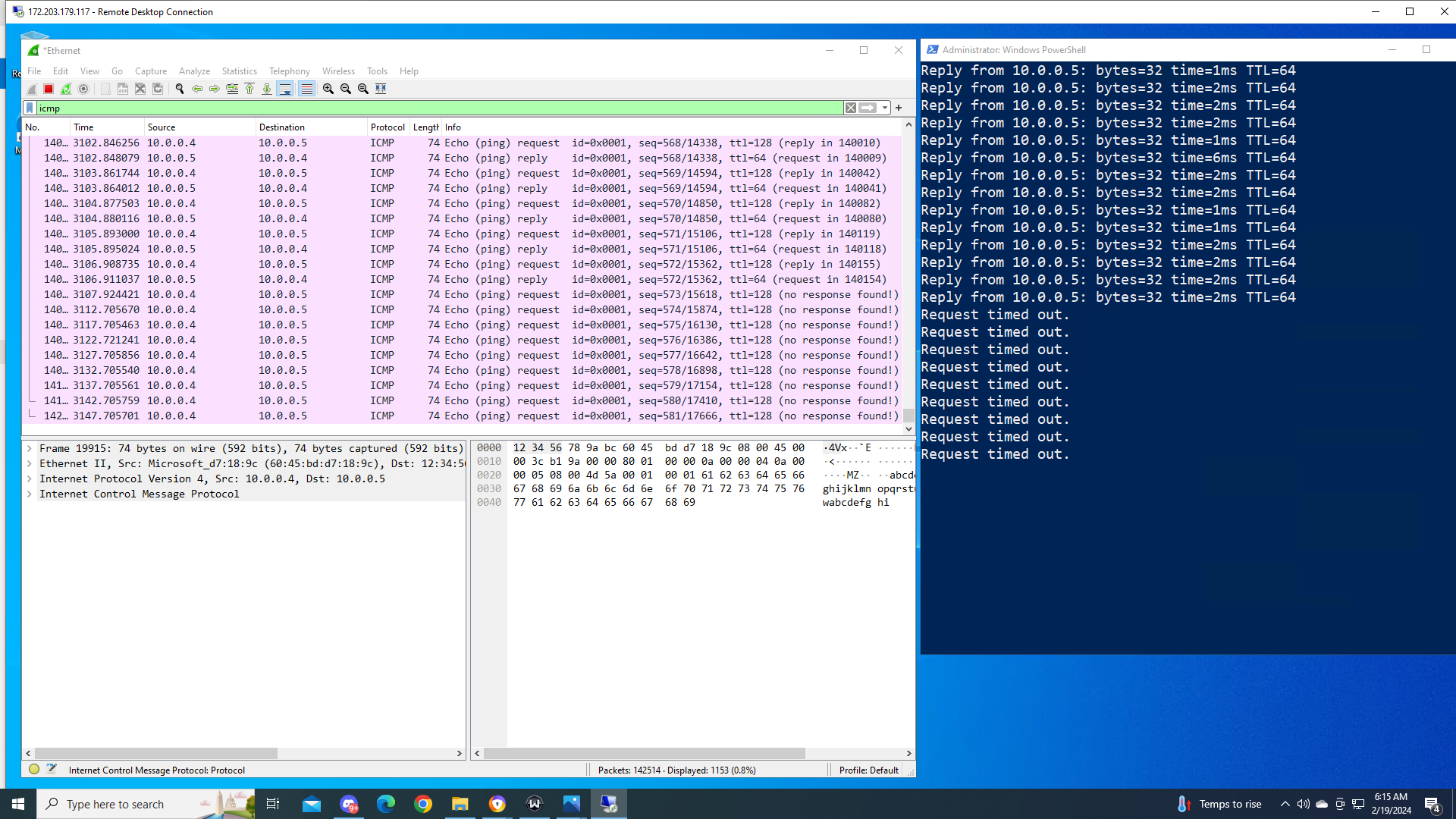

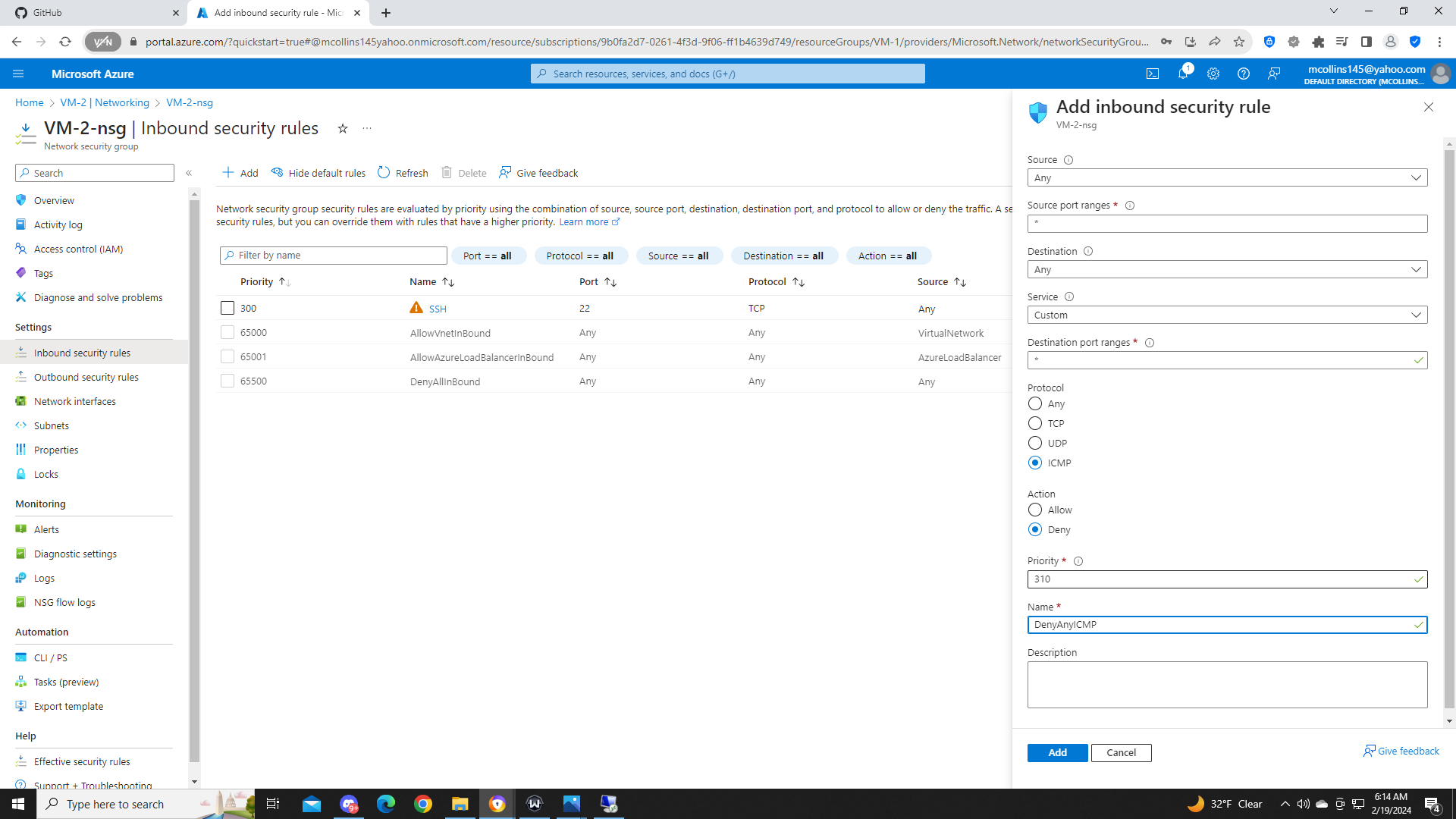

  -Within Azure go to VM-2's NetWork Security Group and disable all inbound ICMP traffic and Observe request the time outs in WireShark and PowerShell between VM-1 and VM-2

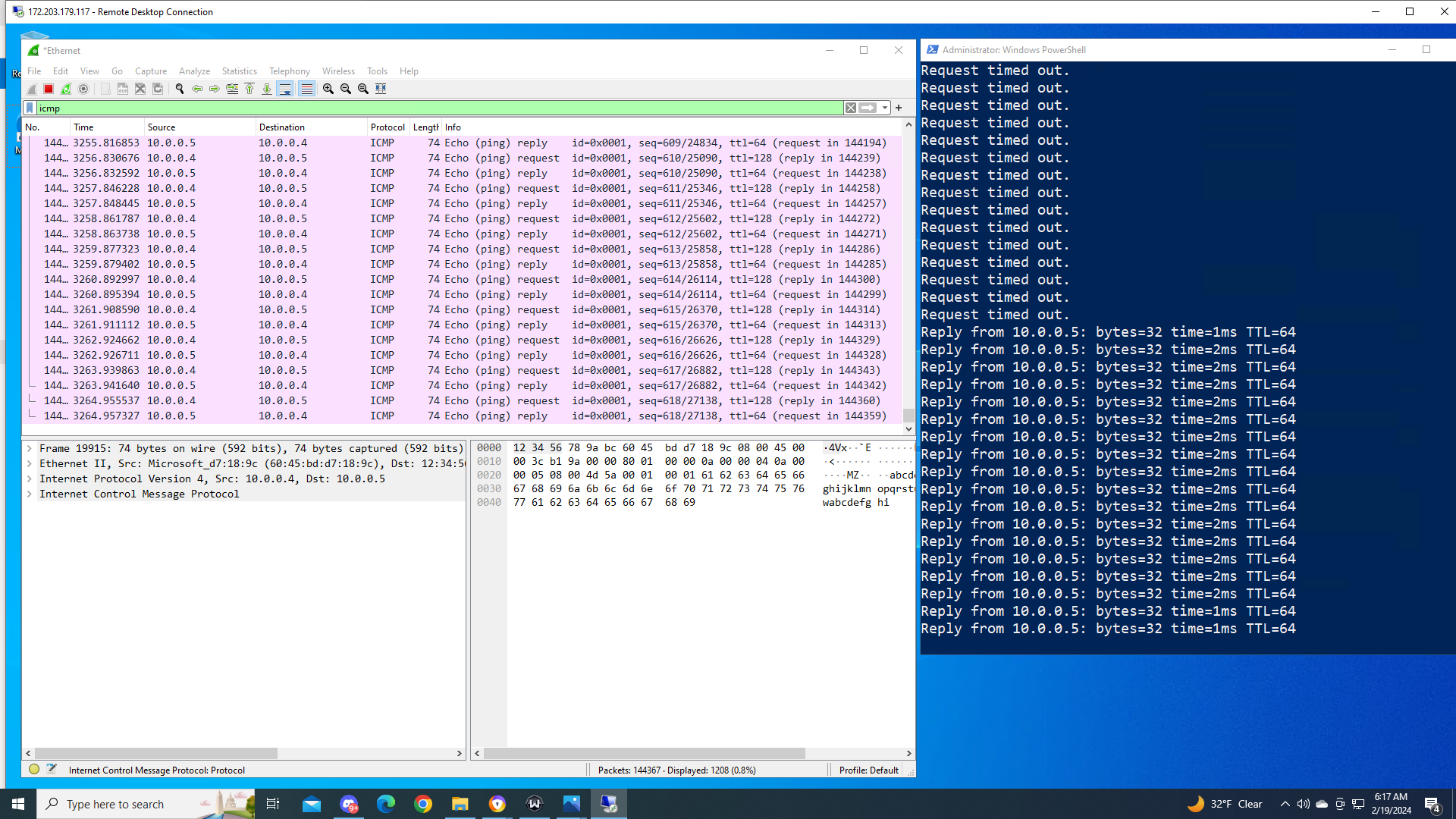

  -Enable inbound ICMP Traffic back in VM-2's NetWork Security Group and observe the succsessful ping in WireShark And PowerShell



• Observe ICMP traffic

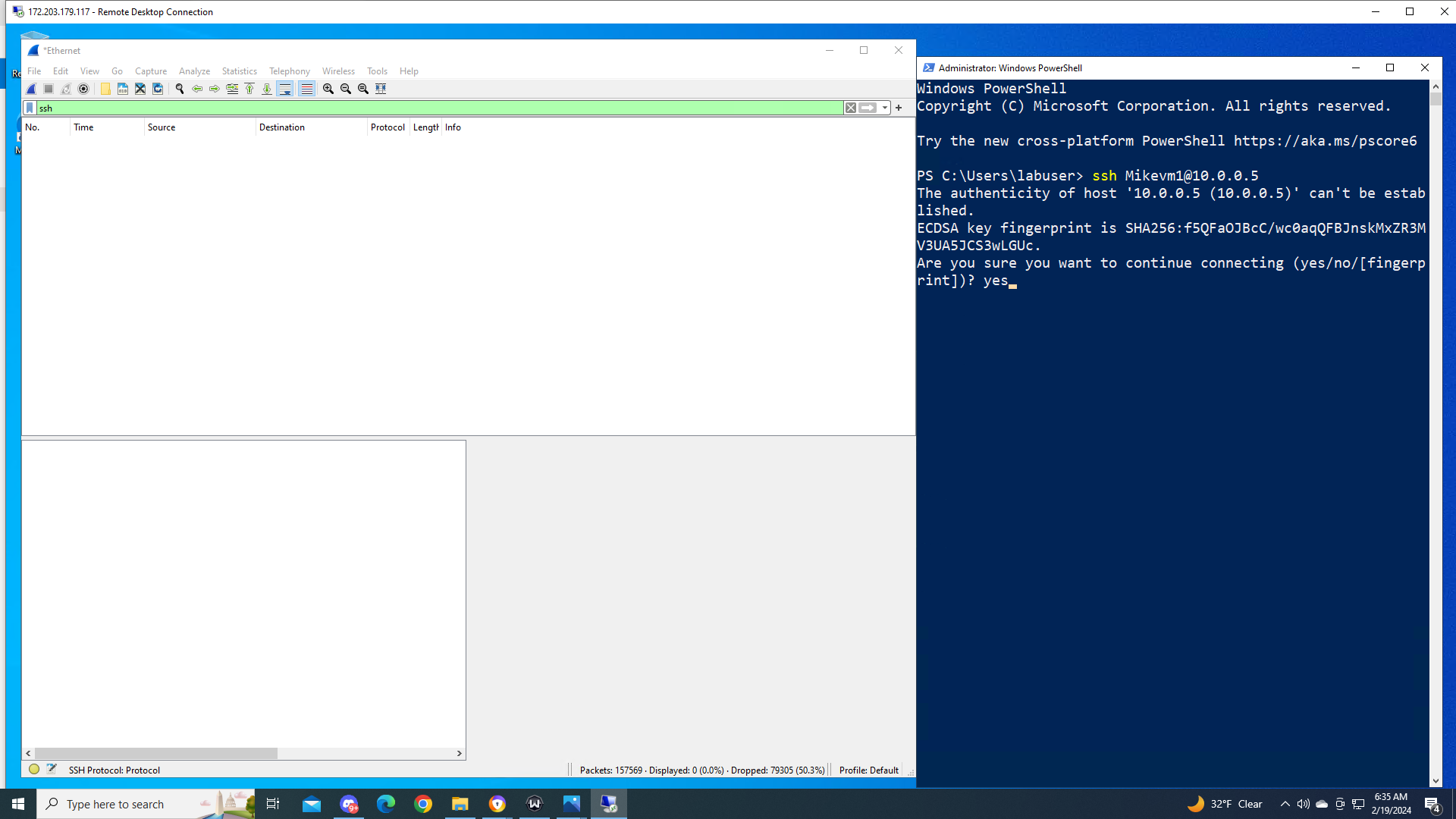

  -In WireShark filter for SSH traffic

  -In VM-1 SSH into VM-2 VIA its private address

  1.Type commands usernames, pwd, exc. into the linux SSH connectionand observe the traffic in WireShark.



  -Exit the SSH connection by typing exit and pressing enter

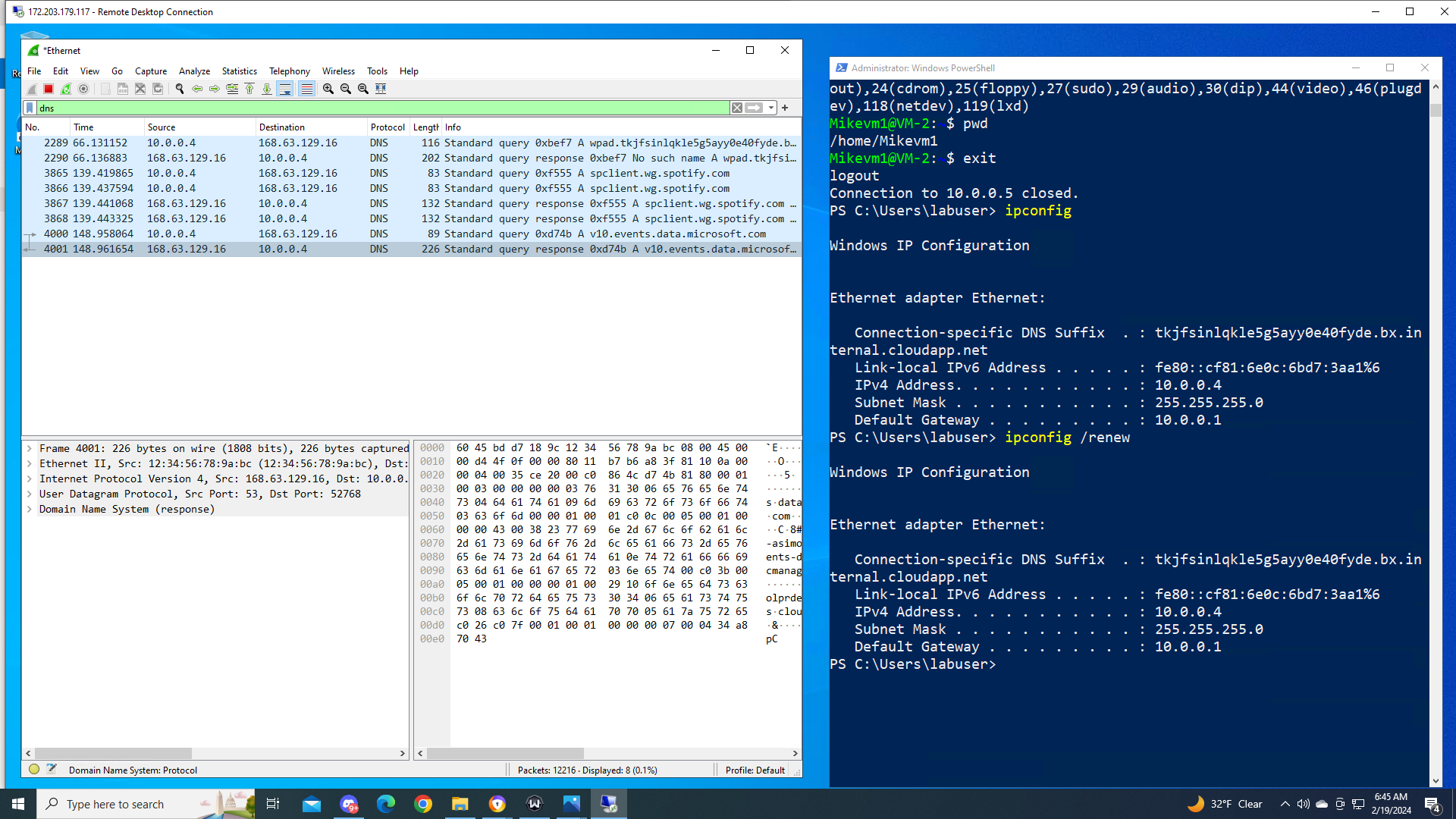

• Observe DHCP Traffic

  -In WireShark filter for DHCP traffic

  -In VM-1 attempt to issue you VM a new IP address using command line (ipconfig/renew)

  1.View the traffic activity in WireShark

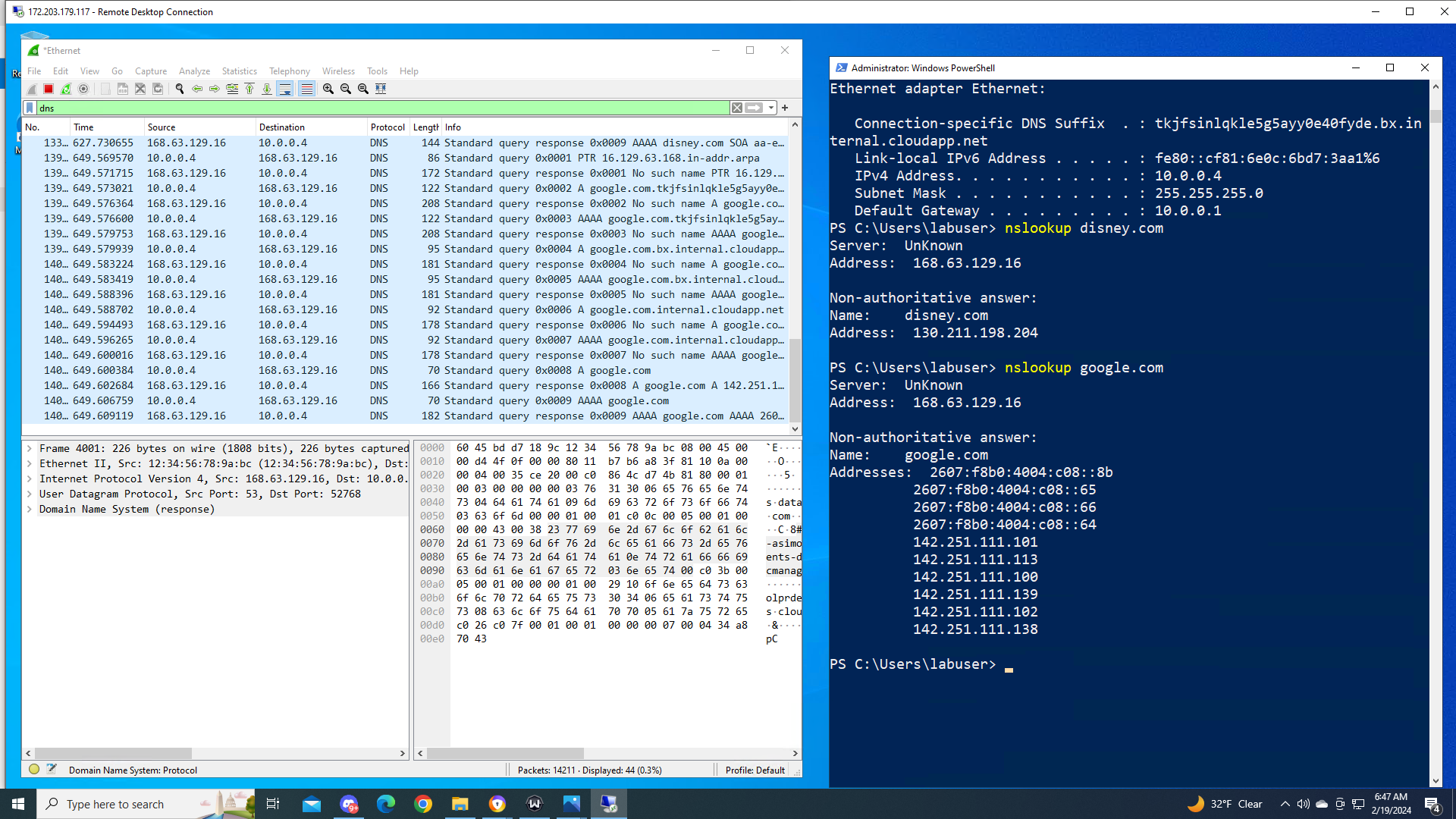

• Observe DNS Traffic

  -In WireShark filter for DNS traffic

  -While in VM-1 using command prompt or PowerShell use nslookup to see what google.com and disney.com's IP addresses are



• Observe RDP Traffic

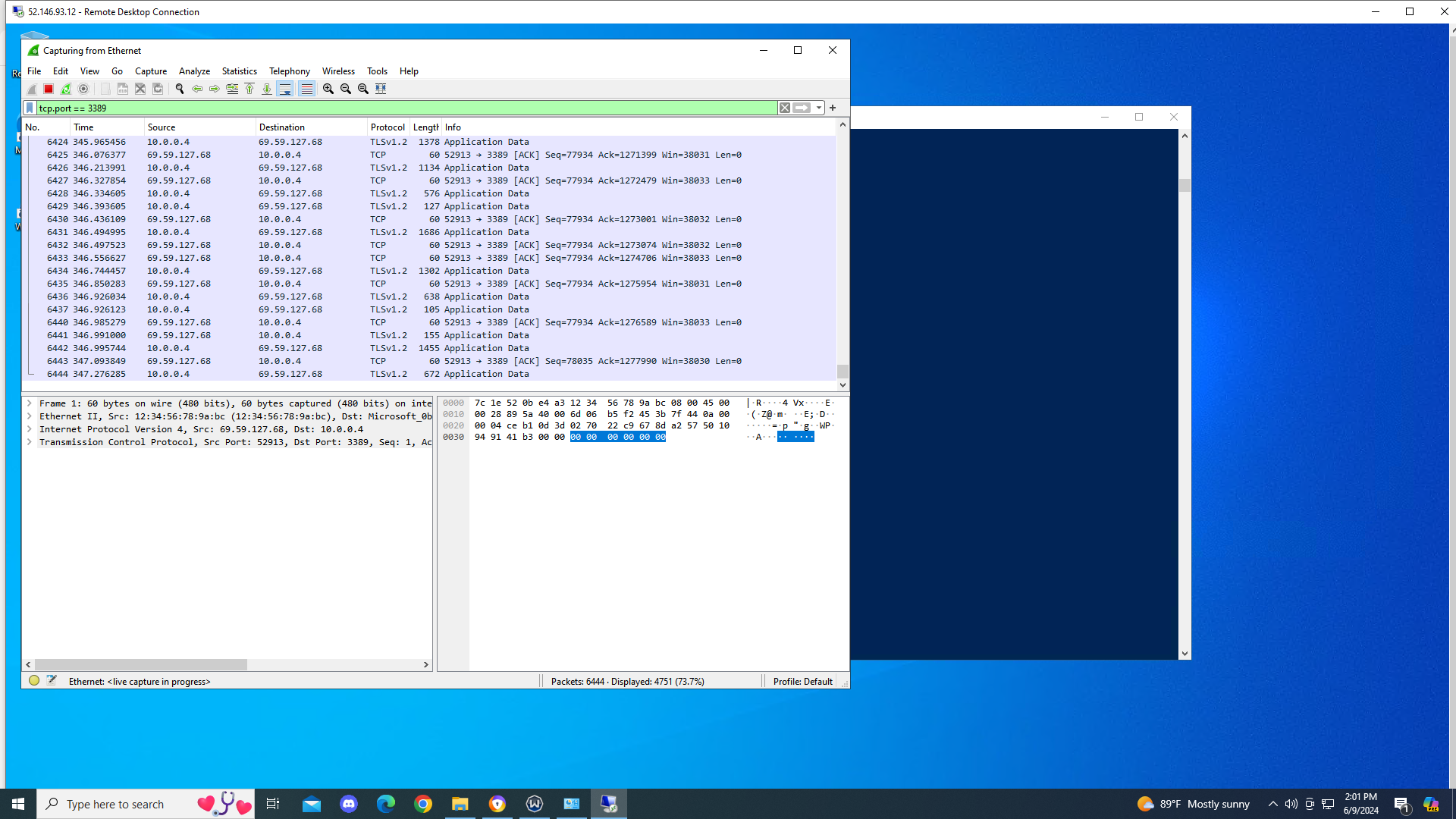

  -In WireShark filter for RDP traffic(tcp.port==3389)

  -Observe the constant traffic because of the RDP filter



  End.
